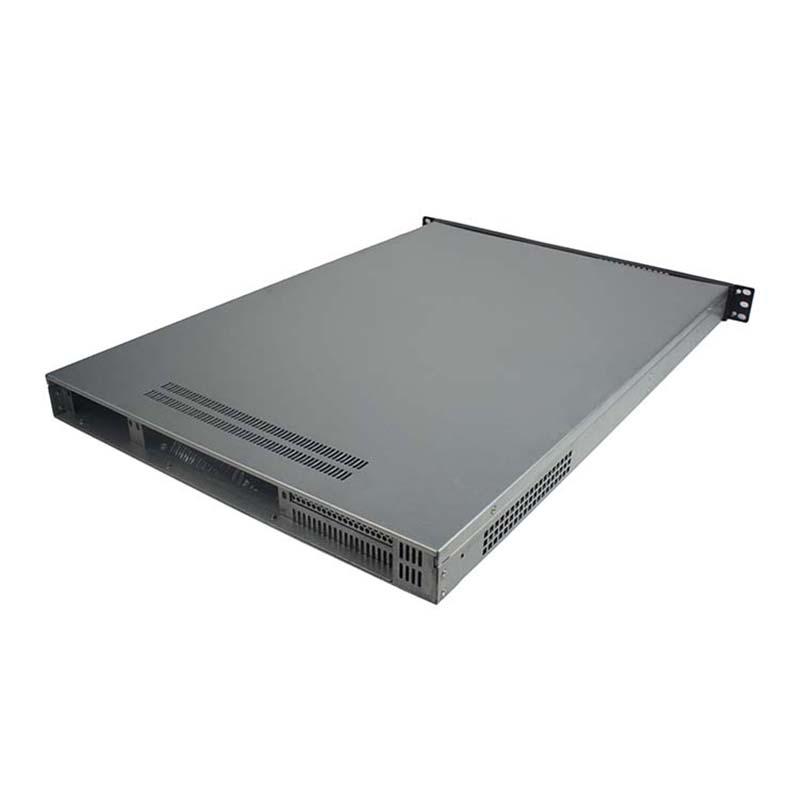

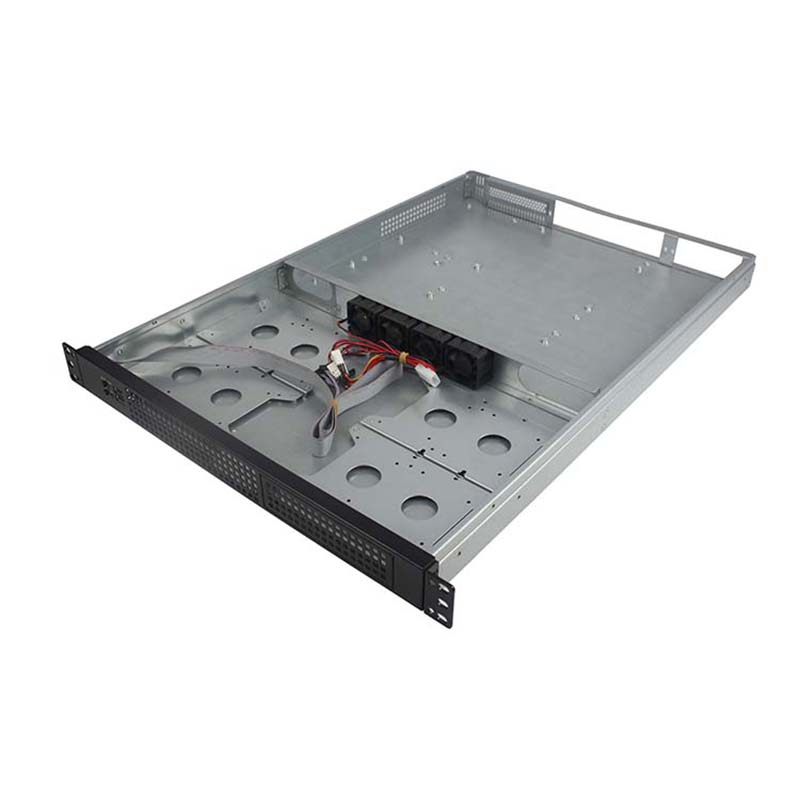

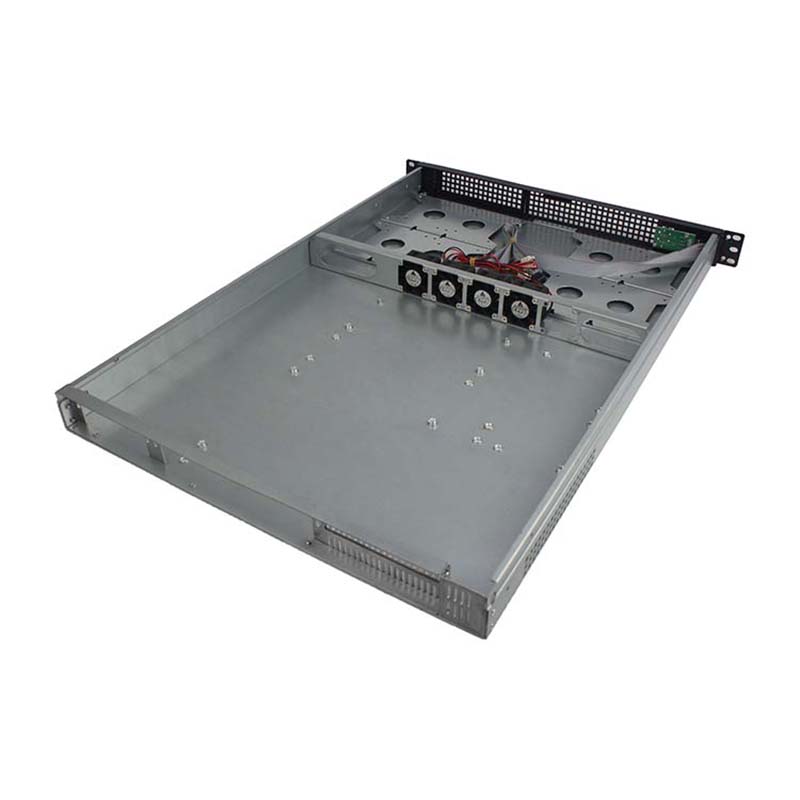

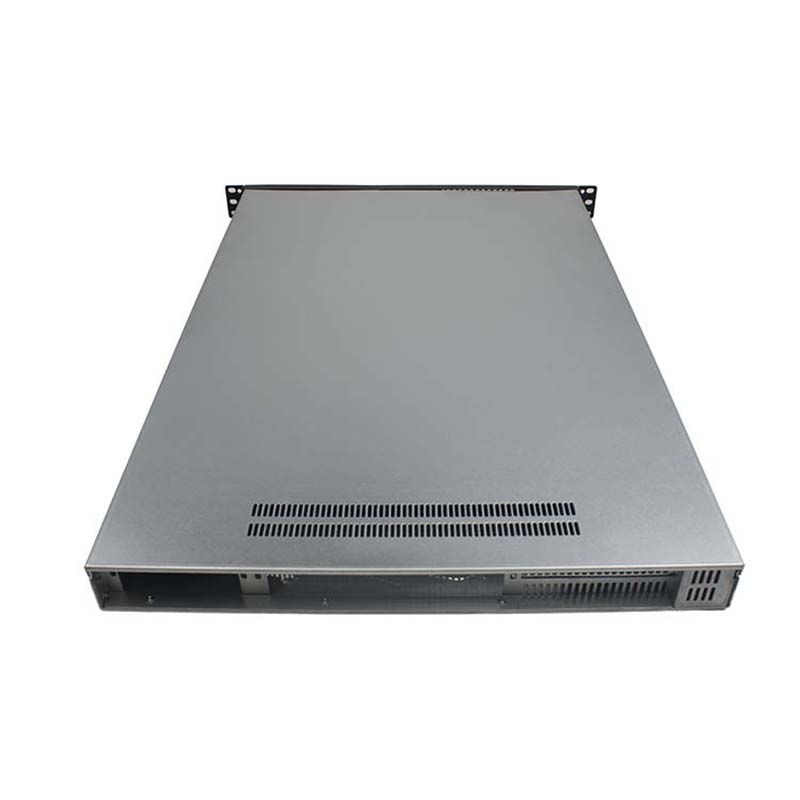

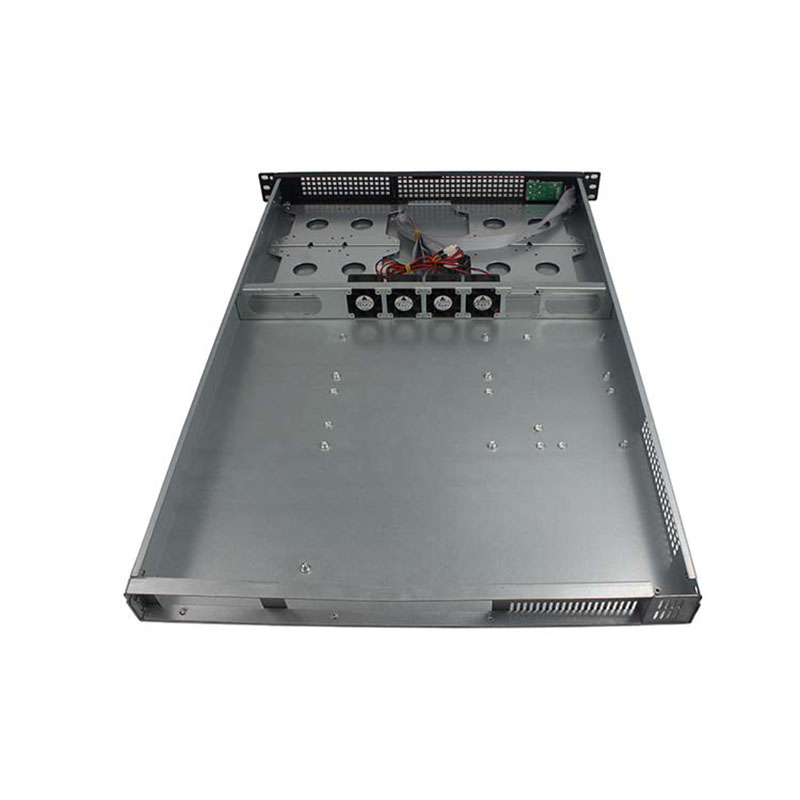

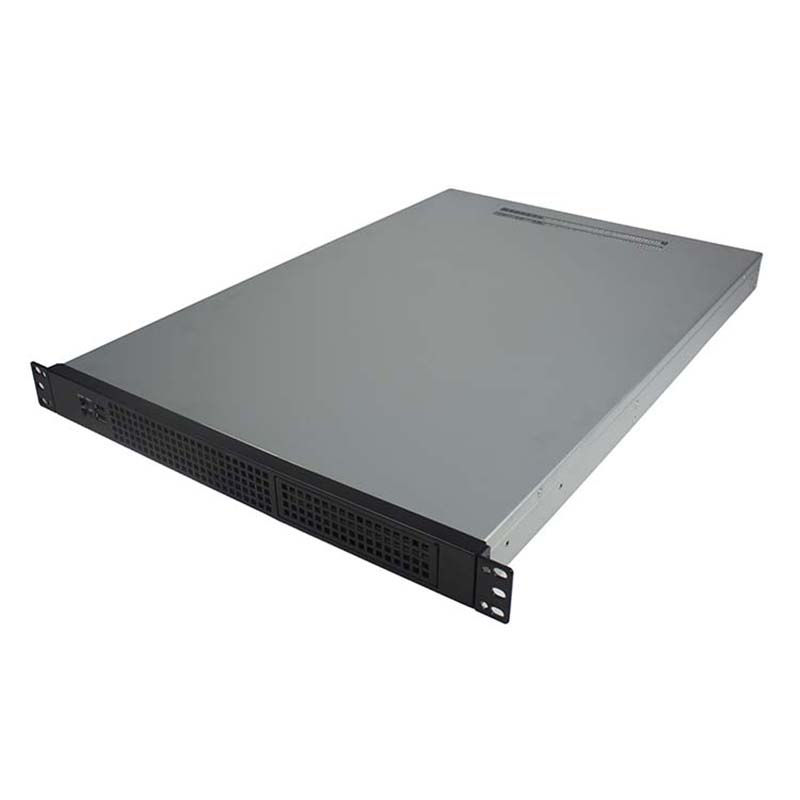

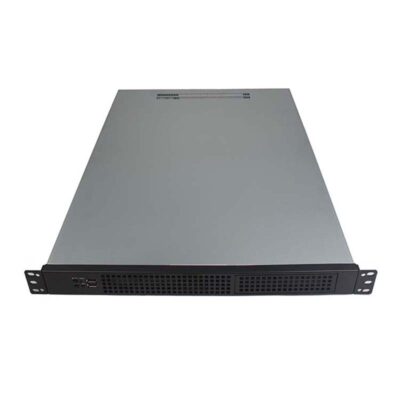

The ISC-SC1U650F-M is a 650 mm-deep 1U rackmount chassis for 12 x 13-inch motherboards, with up to four 3.5-inch or eight 2.5-inch drives, four 4028 fans and one riser-based expansion slot. Suitable for data center, cloud, OEM/ODM and project sourcing.
Made from zinc-plated steel, the ISC-SC1U650F-M is a 482 x 650 x 44.5 mm 1U rackmount chassis with front controls, two USB 2.0 ports, rack ears, and four 4028 fans. Its compact layout supports airflow, durable rack use, and practical service access in data center, cloud, enterprise IT, edge, and HPC environments.
It supports selected 12 x 13-inch ATX/EEB boards, up to four 3.5-inch or eight 2.5-inch drives, one full-height slot with a required riser, and a 100 mm 1U PSU format. For integrators, OEM/ODM buyers, distributors, and project teams, it offers flexible sourcing and scalable configuration. Confirm backplane, hot-swap, rails, cables, and included parts before ordering.
| Model | ISC-SC1U650F-M |
|---|---|
| Dimensions(mm) | 482(W)*650(D)*44.5 mm(H) |
| Main Board | 12"*13"(305*340MM) |
| Hard Disk | Four 3.5-inch Hard Disks or Eight 2.5-inch Hard Disks |
| Power | Standard 100MM(Width) 1U Special Power Supply |
| Fan | Four 4028 Fans |
| Expansion Slot | One Full High and Straight Slot (Riser Card is needed/Optional) |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.2MM |
| Packaging size | 78*55*13CM(0.056CBM) |
