ISC-RC2U390F-M is a 2U steel rackmount chassis for ATX/Micro ATX boards, up to eight 3.5-inch drives and five full-height PCIe slots. Suited to NAS, enterprise storage and server integration, with OEM/ODM and volume sourcing support.

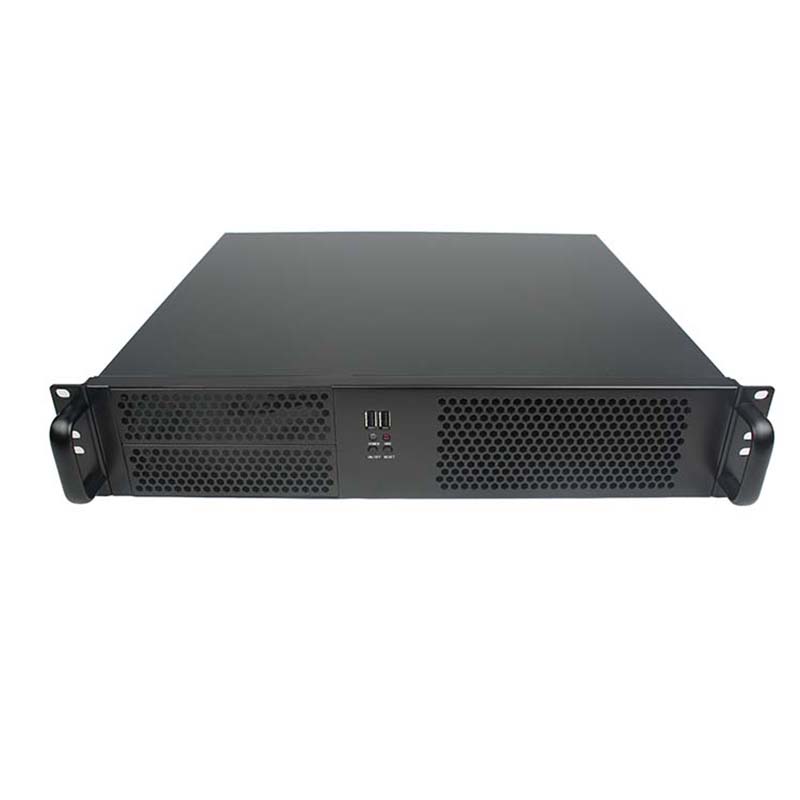

ISC-RC2U390F-M is a 2U rackmount chassis formed from 1.0 mm zinc-treated steel for rack cabinet deployment. Its removable cover supports assembly and service access, while front power, reset, status LEDs and two USB 2.0 ports simplify operation. A two-fan 8025 layout is designed for directed airflow across installed hardware.
The chassis supports ATX and Micro ATX boards up to 12 x 9.6 inches, up to eight 3.5-inch drives and five full-height PCIe slots. It is suited to NAS, enterprise storage, network services and selected accelerator builds, depending on configuration. PSU, backplane, drives and rails should be confirmed before ordering. iSTONECASE supports OEM/ODM development, prototyping, bulk sourcing and distributor procurement.
| Model | ISC-RC2U390F-M |
|---|---|
| Dimensions(mm) | 482(W)*390(D)*133MM(H) |
| Main Board | 12"*9.6"(305*245MM) |
| Hard Disk | Eight 3.5-inch Hard Disks |
| CD-ROM | Three 5.25-inch CD-ROMs |
| Power | ATX PSU |
| Fan | Two 8025 Fans |
| Expansion Slot | Five Full High and Straight Slot |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator and One HD Indicator |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.0MM |
| Packaging size | 58*55*24 CM |
| Gross weight | 7.58KG |
| N.W | 5.85KG |
