ISC-SC1U390L-M is a compact 1U rackmount server chassis for 12 x 9.6 in mainboards, one 3.5 in or two 2.5 in drives, dual 4020 fans, a standard 1U PSU, and one optional riser-based expansion slot. Suitable for OEM/ODM integration and volume sourcing.

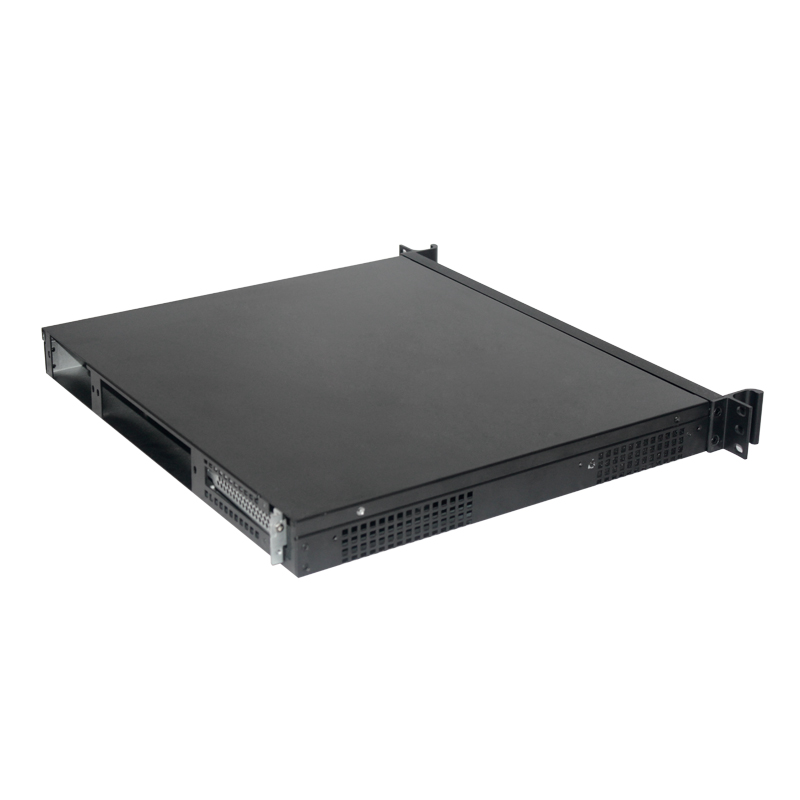

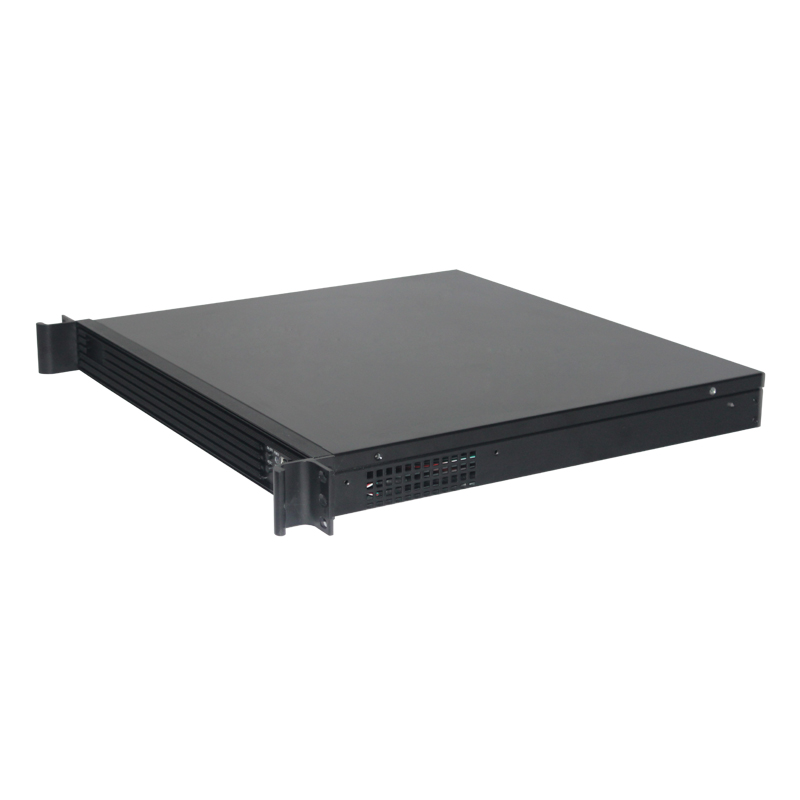

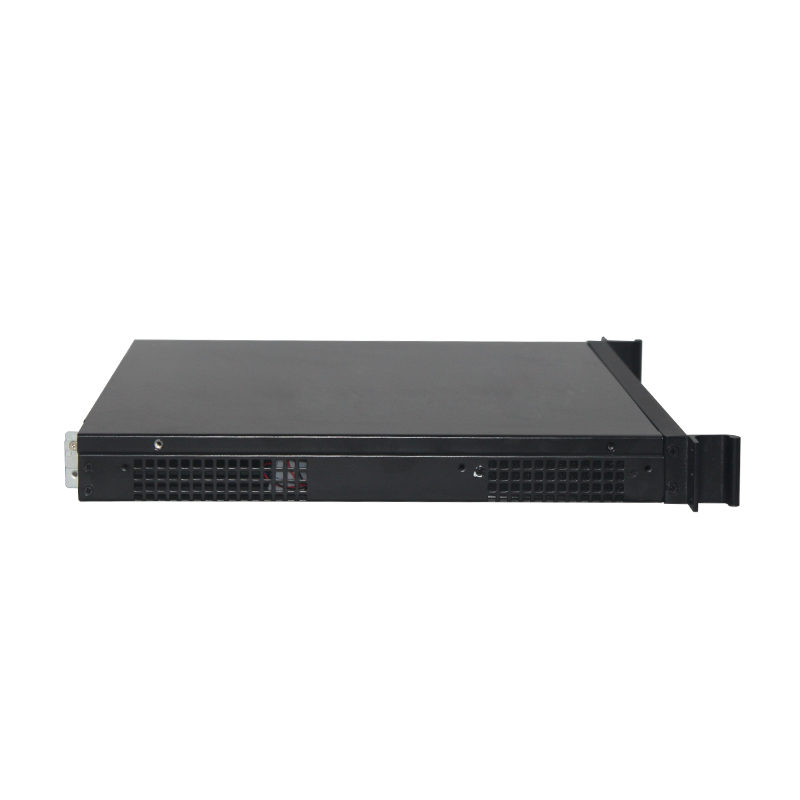

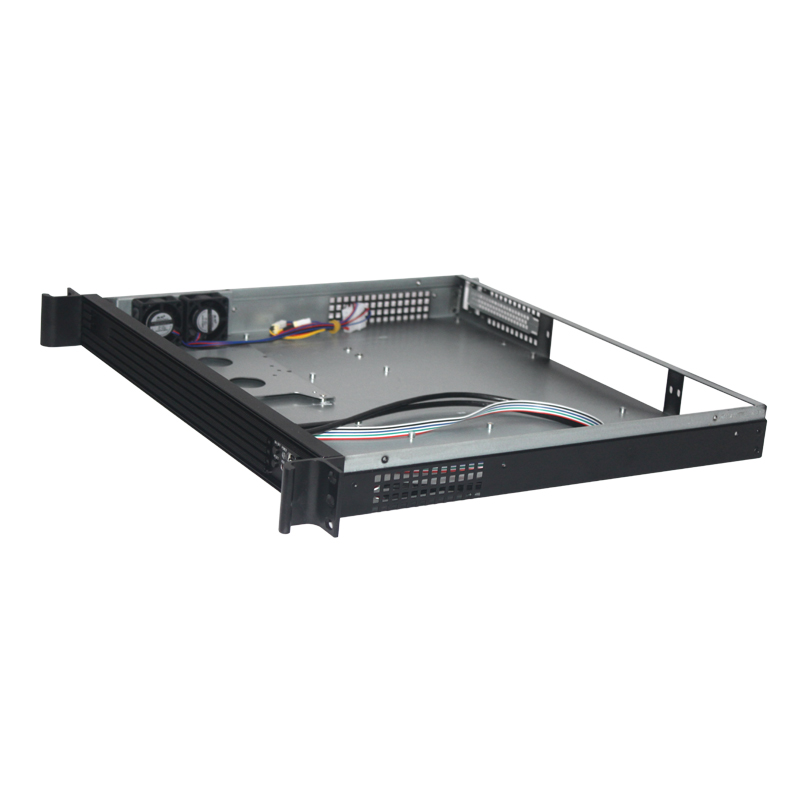

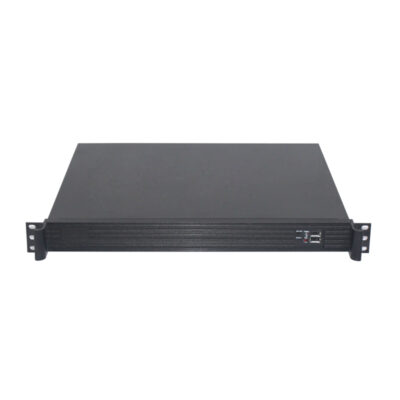

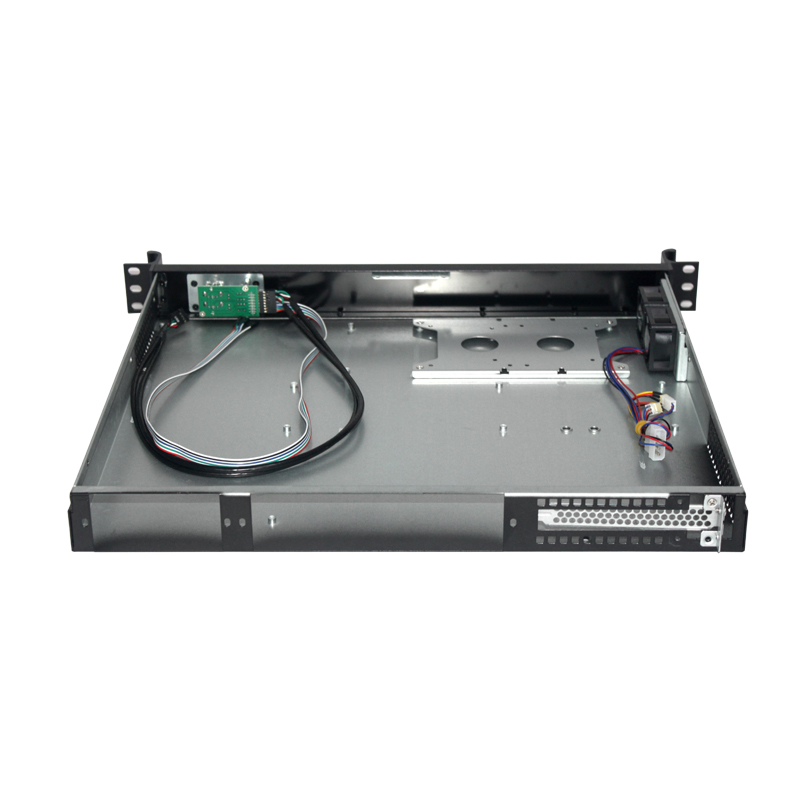

The ISC-SC1U390L-M is a compact 1U steel rackmount chassis measuring 482 x 390 x 44.5 mm. Its 1.0 mm structure supports durable rack deployment, while dual 4020 fans provide airflow for dense server builds. The layout is designed for practical assembly and maintenance in data center, edge, storage, and enterprise IT projects.
It supports 12 x 9.6 in mainboards, one 3.5 in or two 2.5 in drives, a standard 1U PSU, and one lateral expansion position with an optional riser. Suitable for integrators, OEM/ODM customers, distributors, and project buyers, it enables configurable builds and volume sourcing. Confirm rails, riser, PSU, drives, and optional parts before ordering.
| Model | ISC-SC1U390L-M |
|---|---|
| Dimensions(mm) | 482(W)*390(D)*44.5 mm(H) |

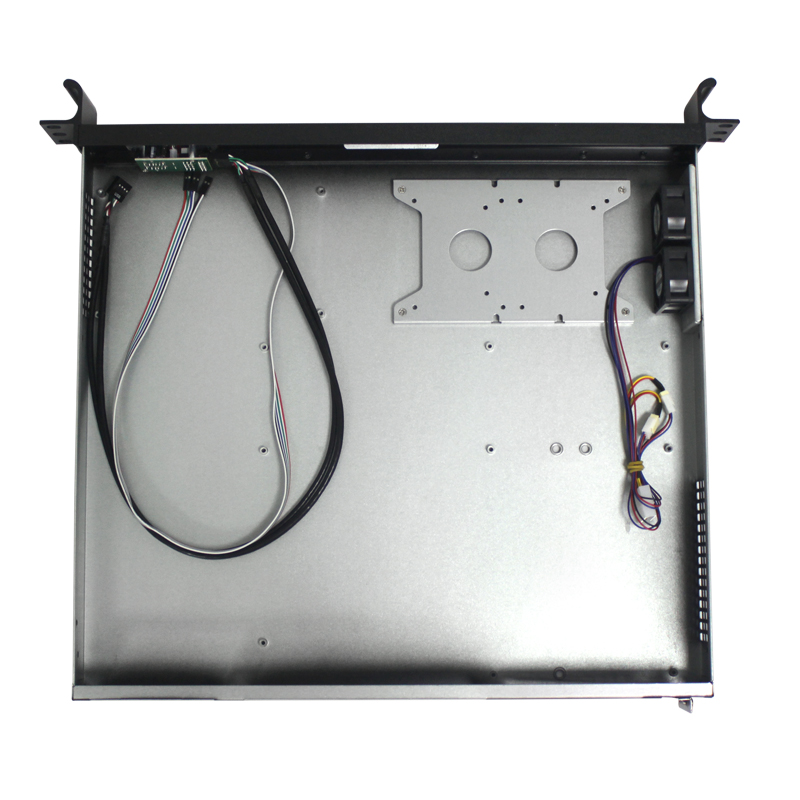

| Main Board | 12"*9.6"(305* 340MM) |

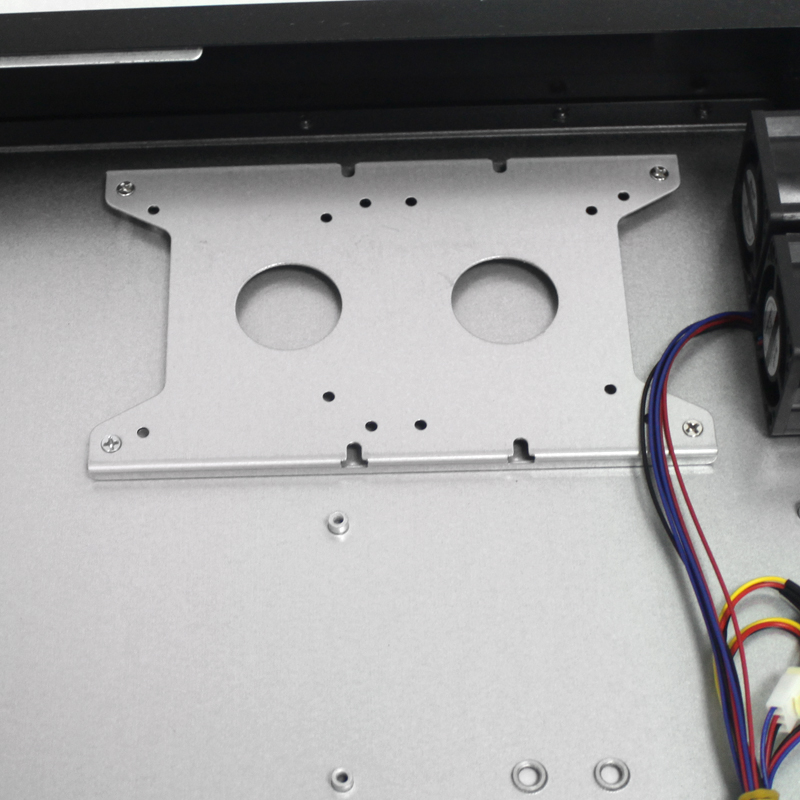

| Hard Disk | One 3.5-inch Hard Disk or Two 2.5-inch Hard Disks |
| Power | 1U Standard Power Supply |

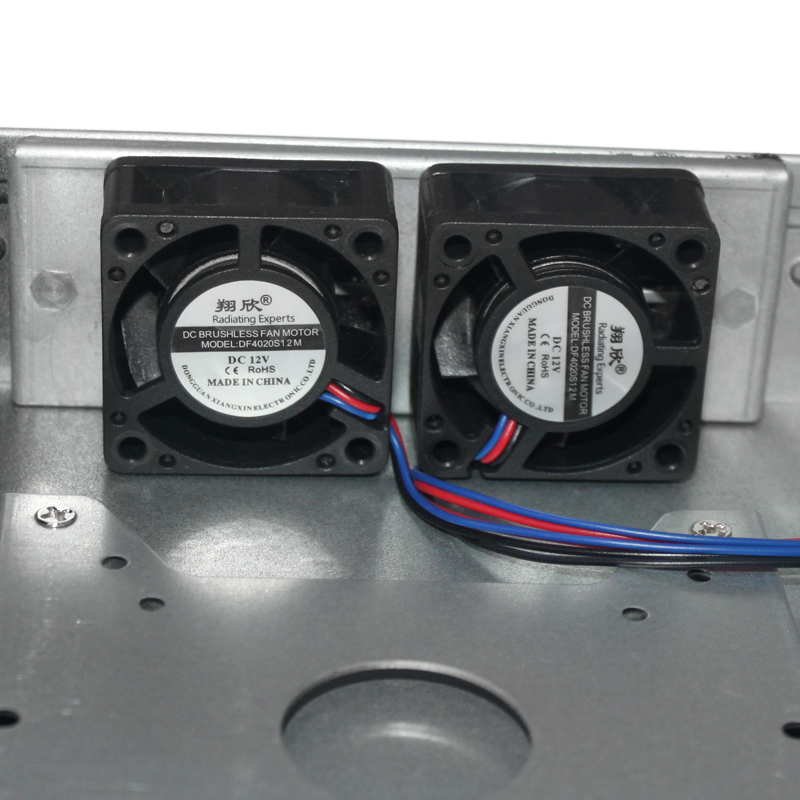

| Fan | Two 4020 Fans |

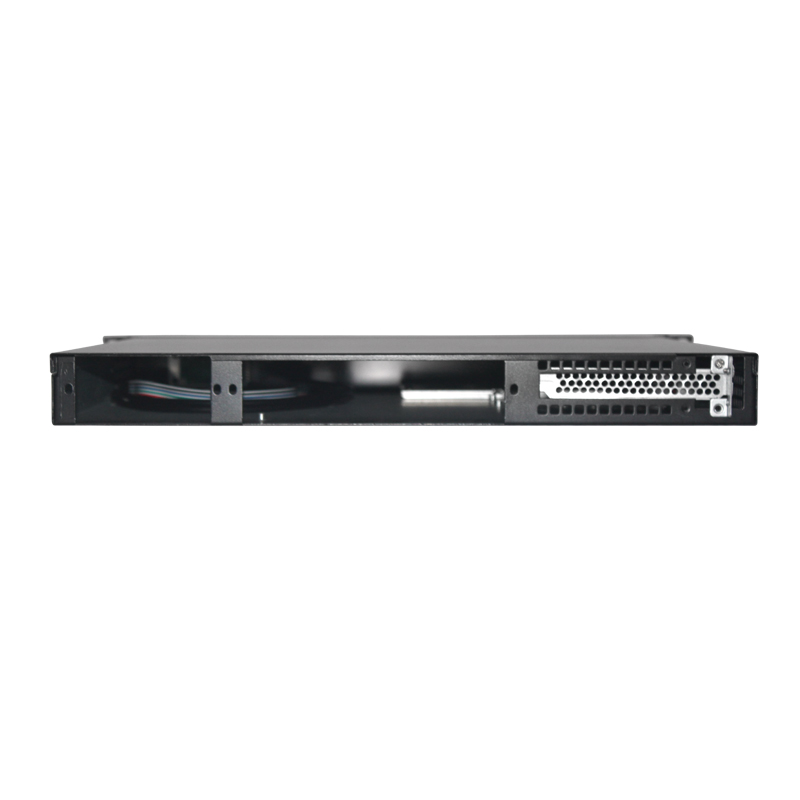

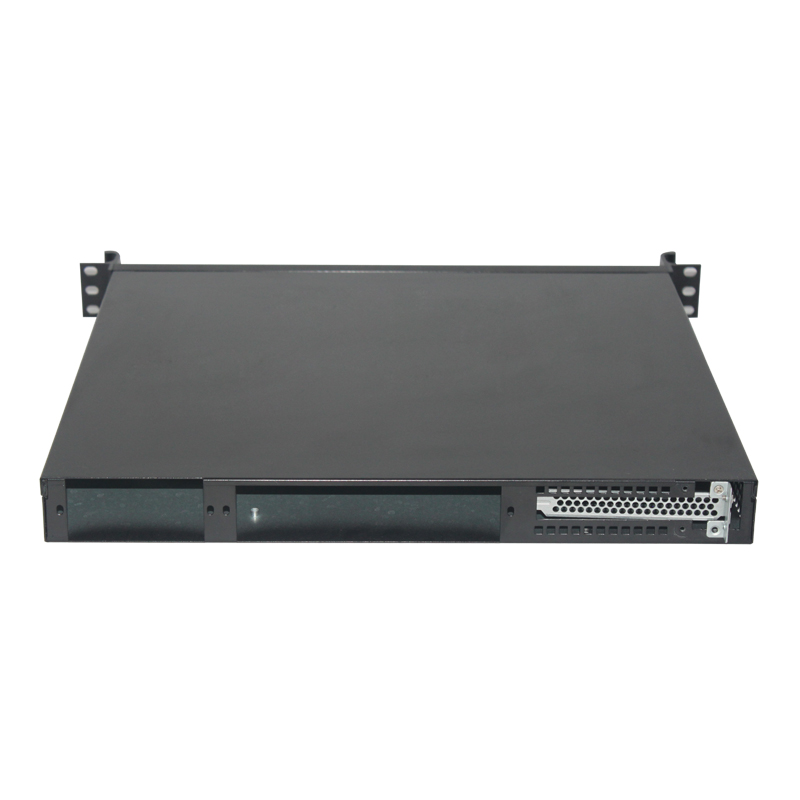

| Expansion Slot | One Full High and Lateral Slot (Riser Card is needed/Optional) |

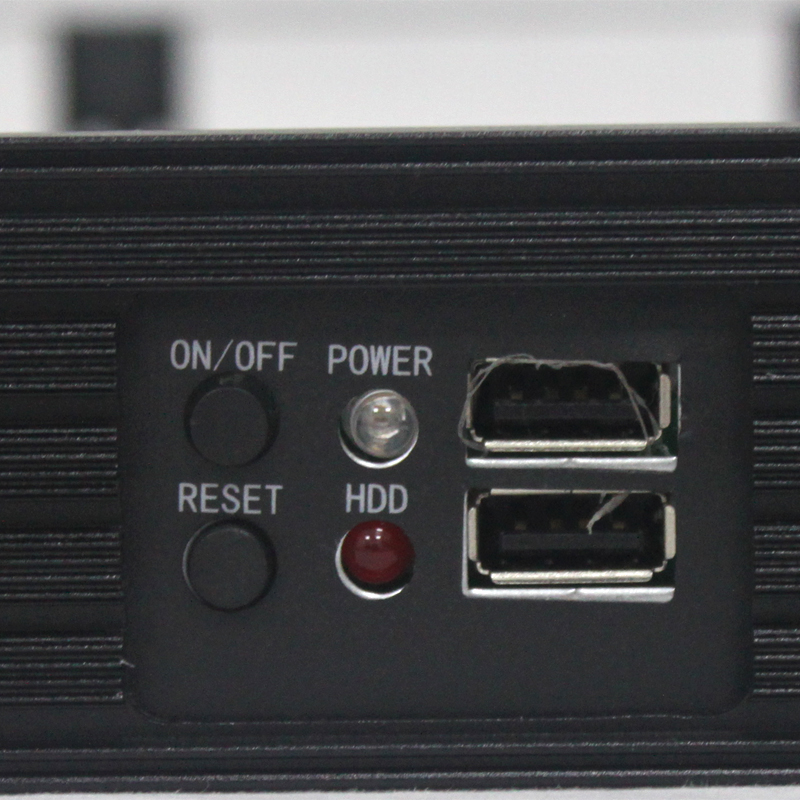

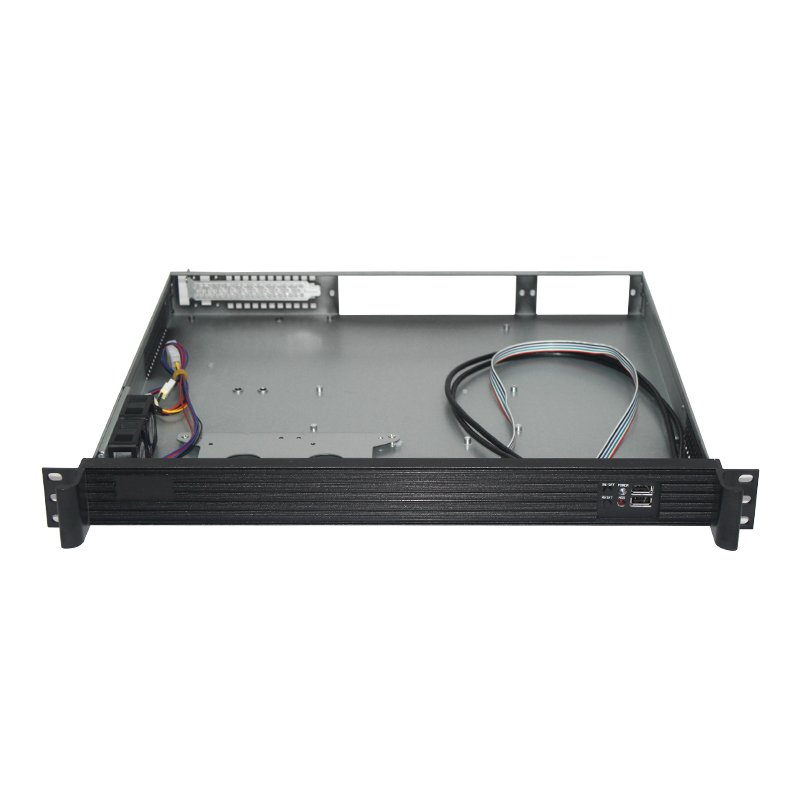

| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator;Reserved Logo size with 40(W)*(19.8H)mm |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.0MM |
| Packaging size | 56*54*16.5CM(0.05CBM) |
