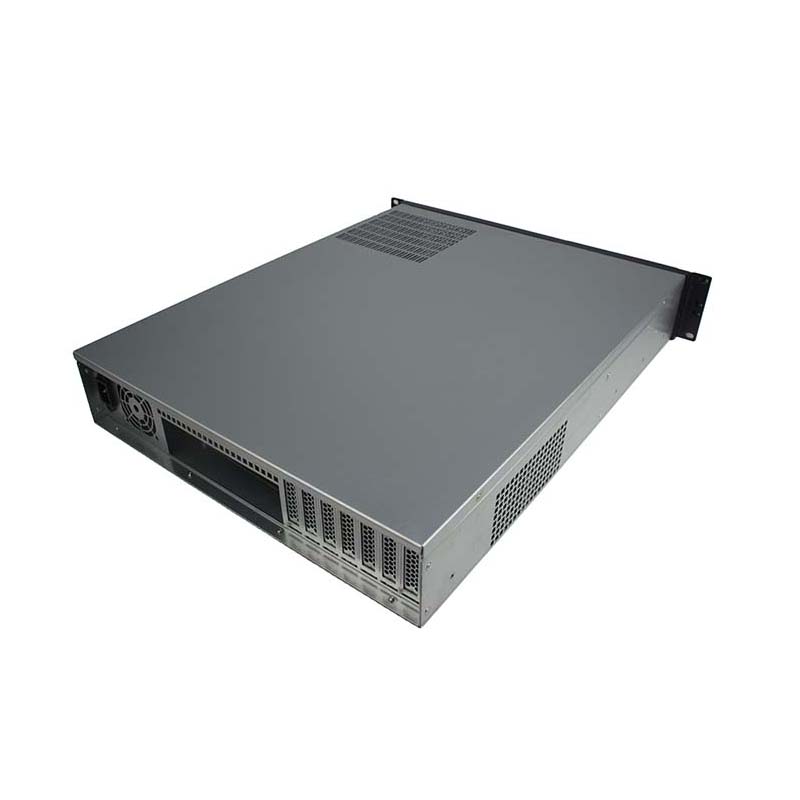

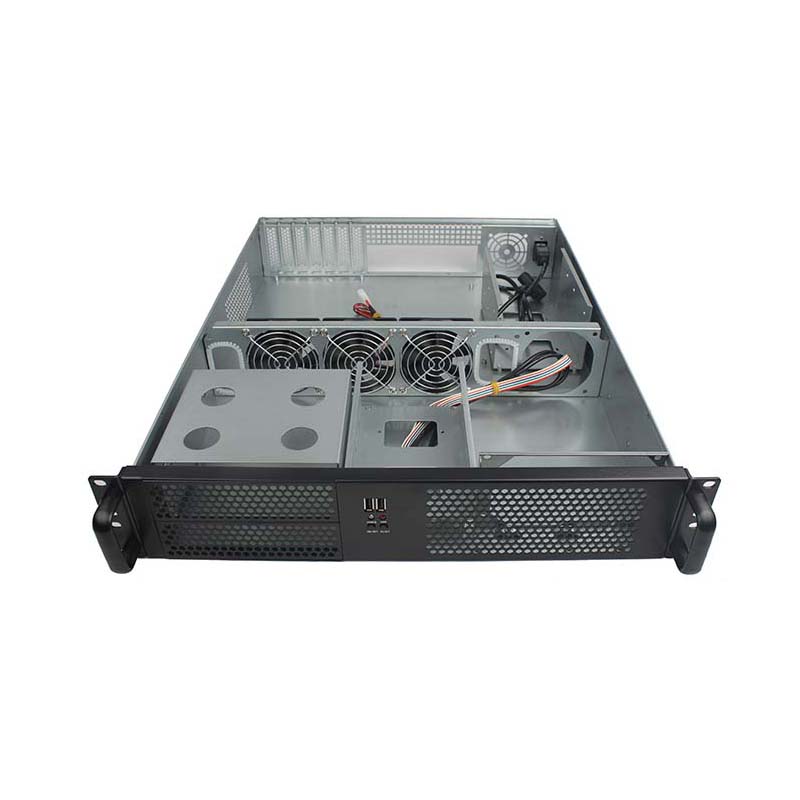

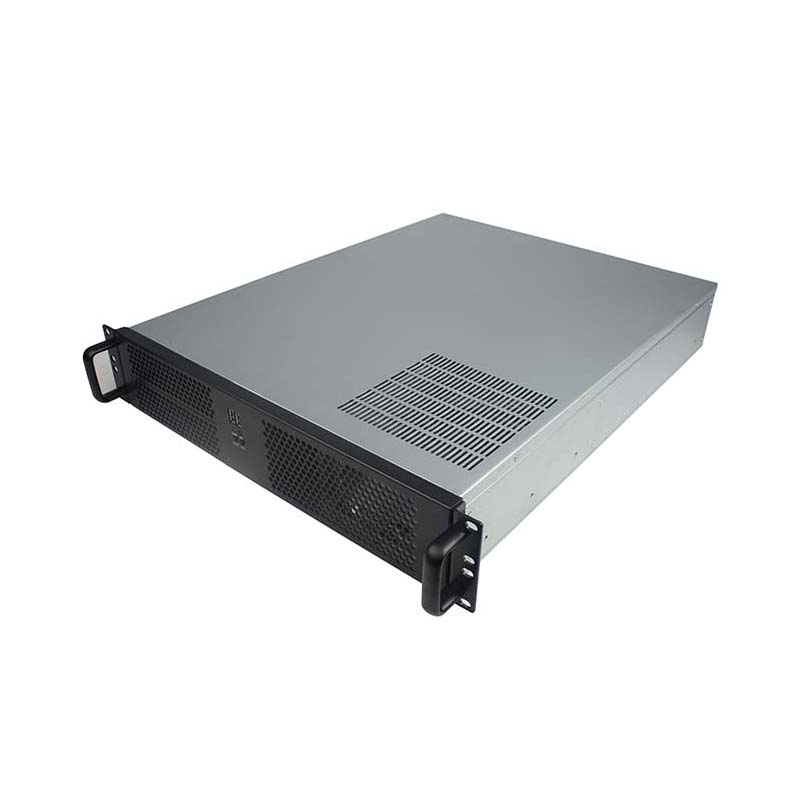

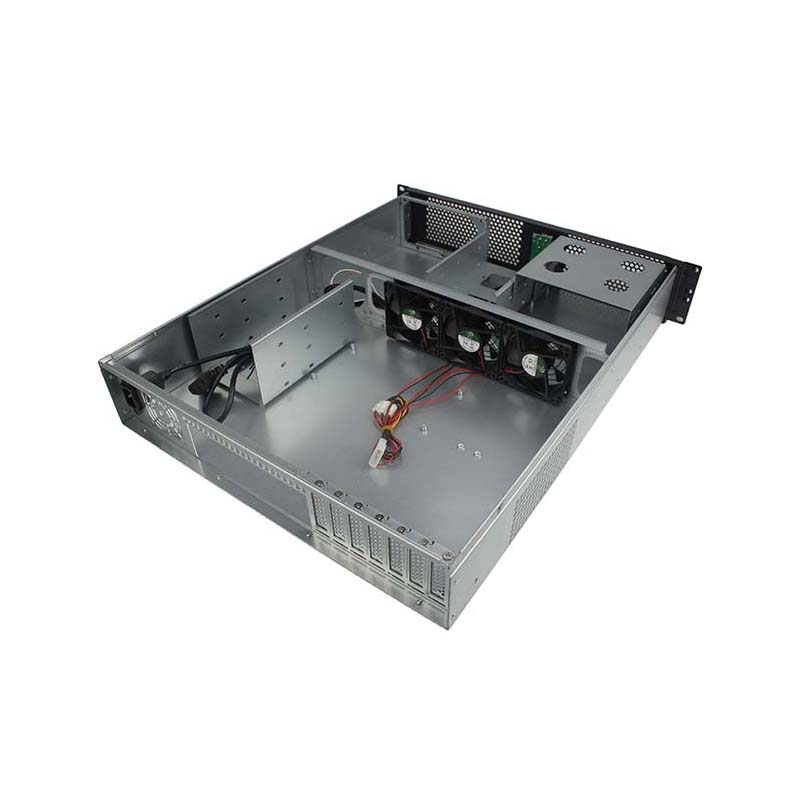

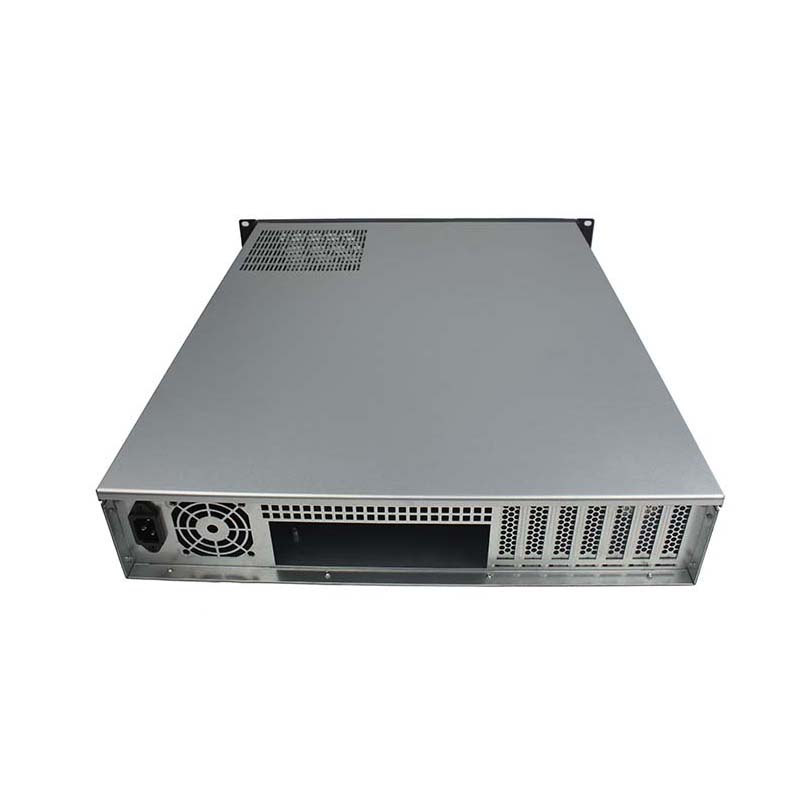

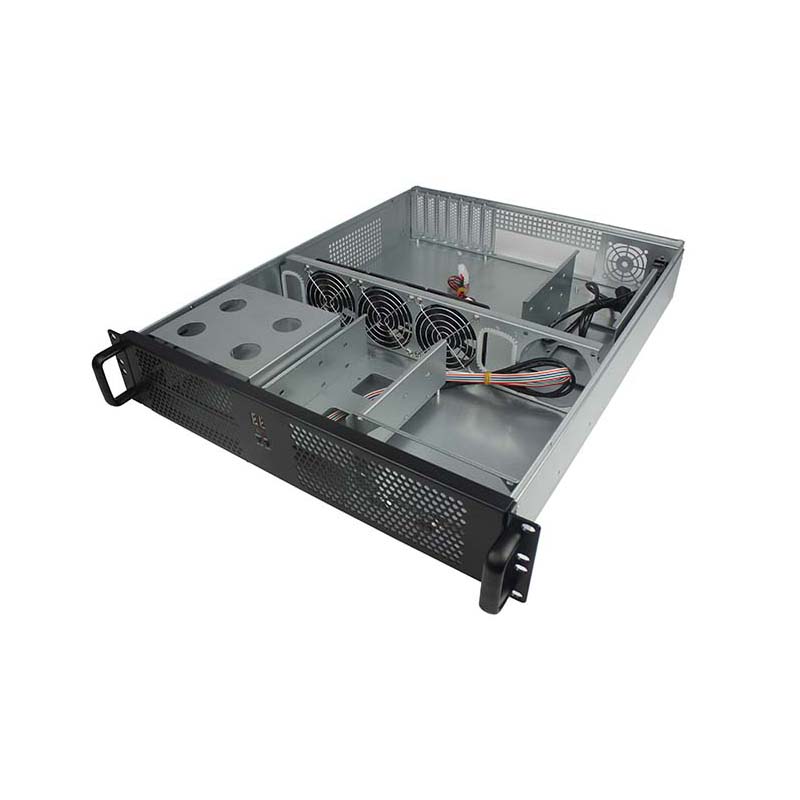

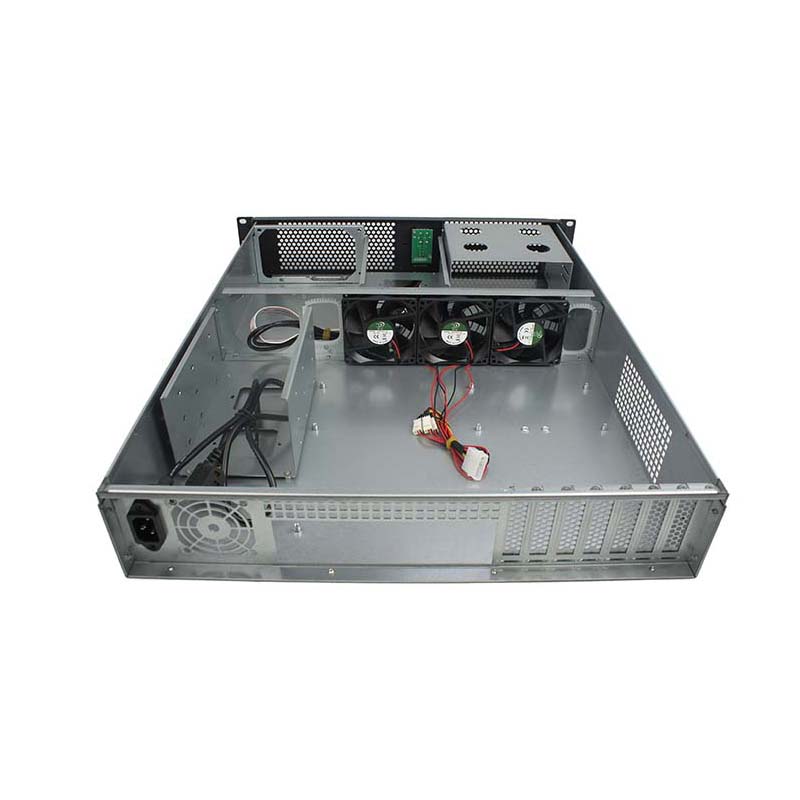

ISC-RC2U550F-M is a 2U SGCC steel rackmount chassis with eight 3.5-inch drive positions, support for 12 x 9.6-inch mainboards, three 8025 fans and seven half-height expansion slots. Designed for NAS, enterprise storage and OEM/ODM projects.
Built from 1.2 mm SGCC steel, ISC-RC2U550F-M is a 2U, 550 mm-deep rackmount chassis with front handles and an accessible layout. Three 8025 fans direct airflow through drive and board zones, while front USB 2.0, power, reset, and status controls support rack operation.
It supports eight internal 3.5-inch drives, selected 12 x 9.6-inch mainboards, and seven half-height straight expansion slots for network or controller cards. Designed for NAS, file server, monitoring, private cloud, and enterprise IT projects, it suits integrators, distributors, and project buyers seeking configurable OEM/ODM supply. Confirm PSU, backplane, rails, and accessories before ordering.
| Model | ISC-RC2U550F-M |
|---|---|
| Dimensions(mm) | 482(W)*550(D)*89 mm(H) |
| Main Board | 12"*9.6"(305*245MM) |
| Hard Disk | Eight 3.5-inch Hard Disks |
| CD-ROM | None |
| Power | Normal ATX Power(PS2) For Desktop |
| Fan | Three 8025 Fans |
| Expansion Slot | Seven Half High and Straight Slots |
| Panel Setting | Two USB2.0; One Power Switch;One Restart Switch;One Power Indicator;One HD Indicator |
| Case Material | SGCC |
| Material Thickness | 1.2MM |
| Packaging size | 69.5*55*17.5CM (0.067CBM) |
| Gross weight | 9.24KG |
| N.W | 7.804KG |
