Compact 2U rackmount server chassis in 1.2 mm SGCC steel, with configurable support for three 3.5-inch drives or two 2.5-inch plus one 3.5-inch drive, four half-height slots, dual 8025 cooling fans, ATX PSU support, and front USB 2.0. Built for OEM/ODM and project sourcing.

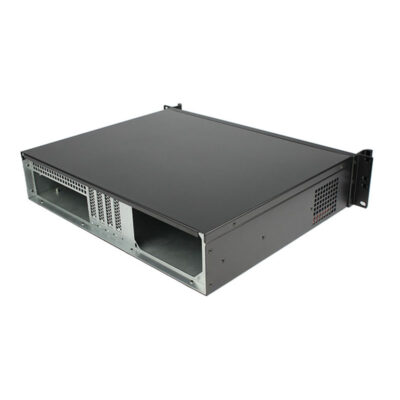

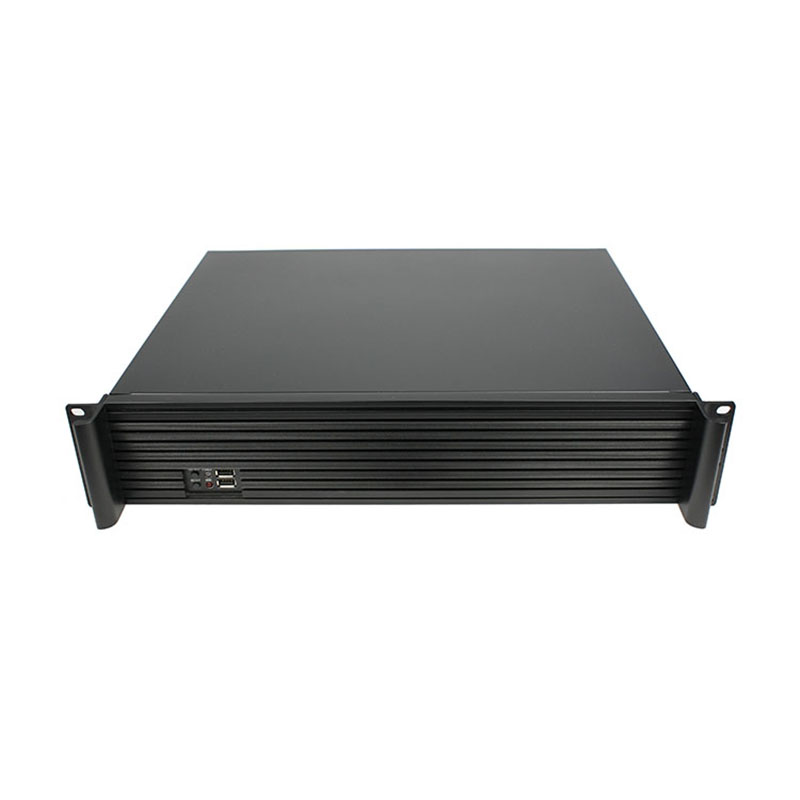

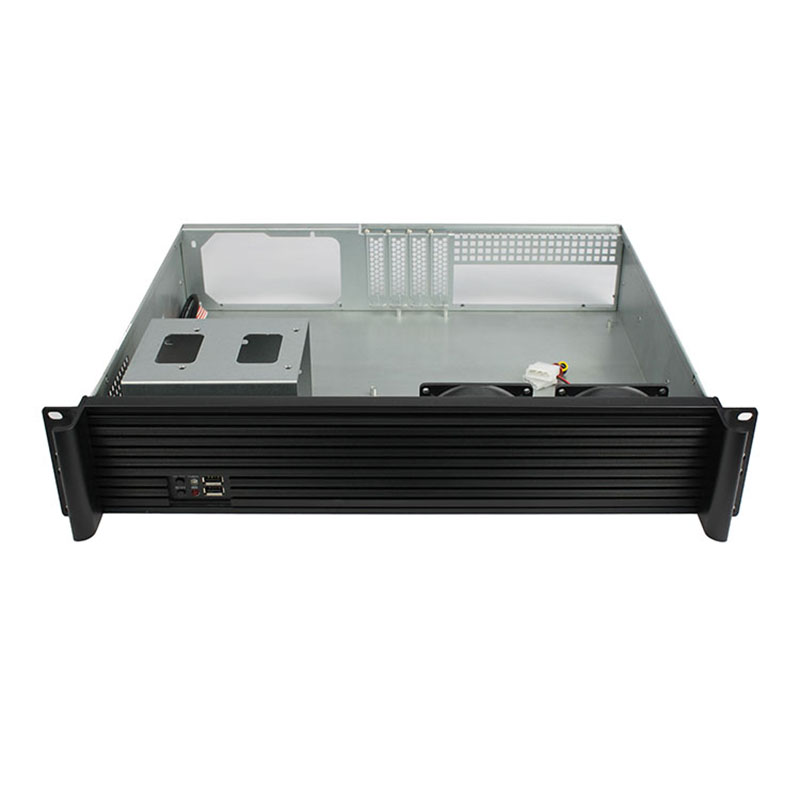

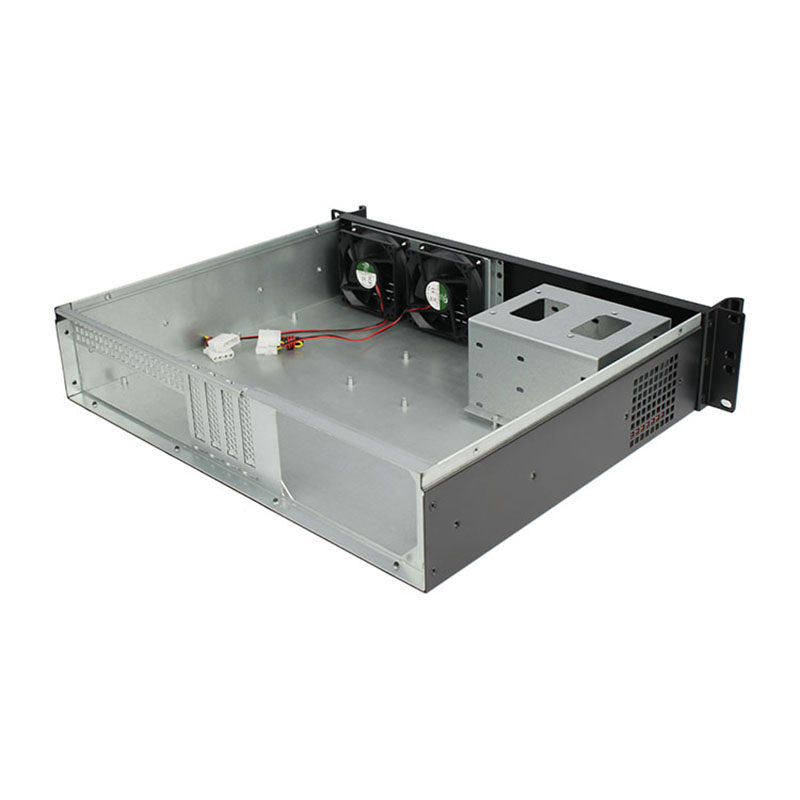

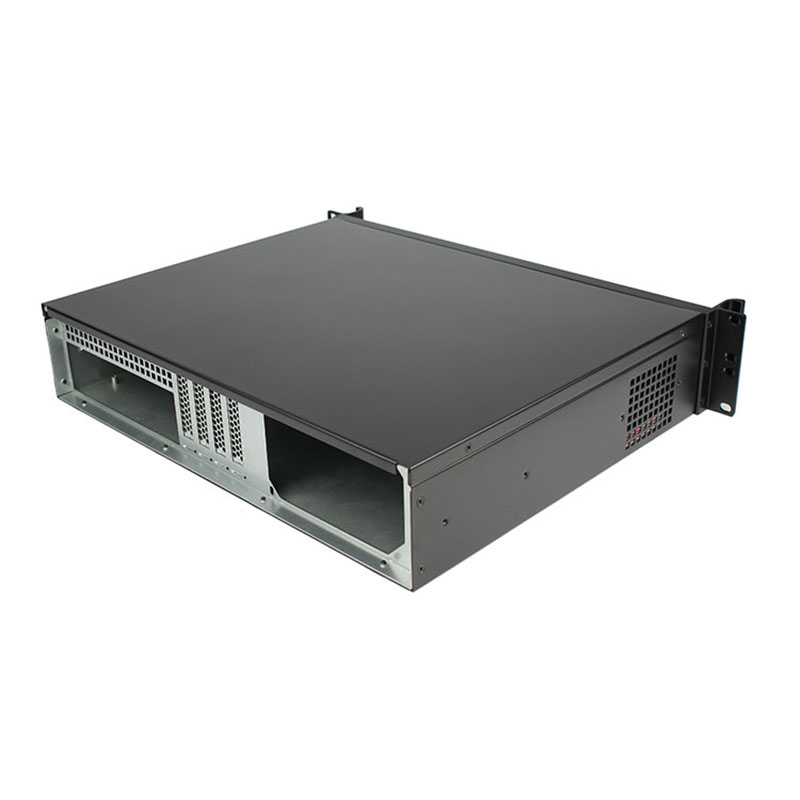

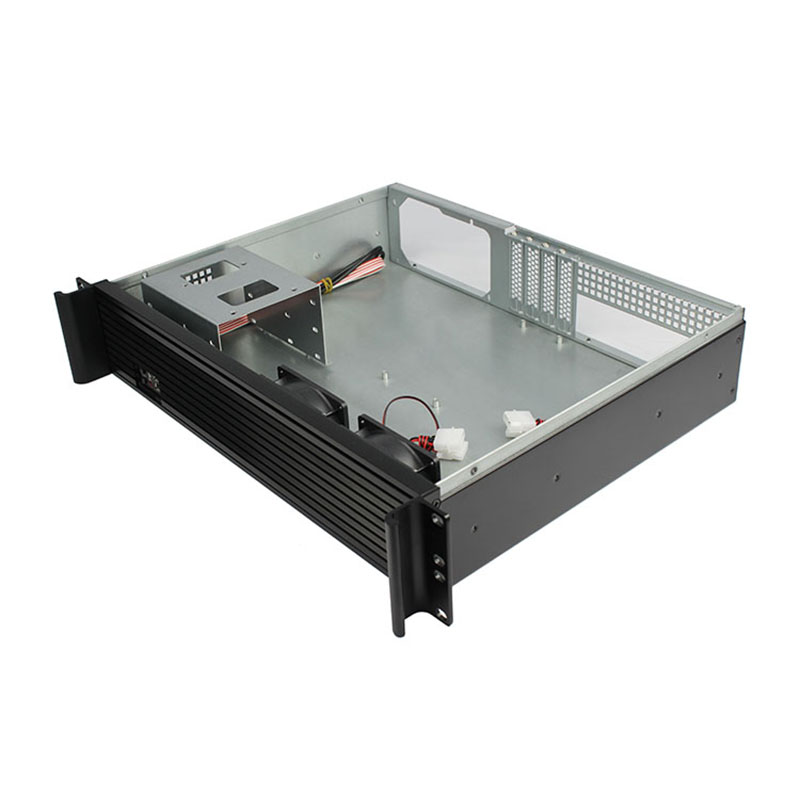

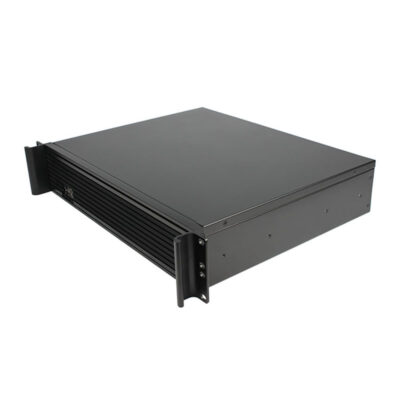

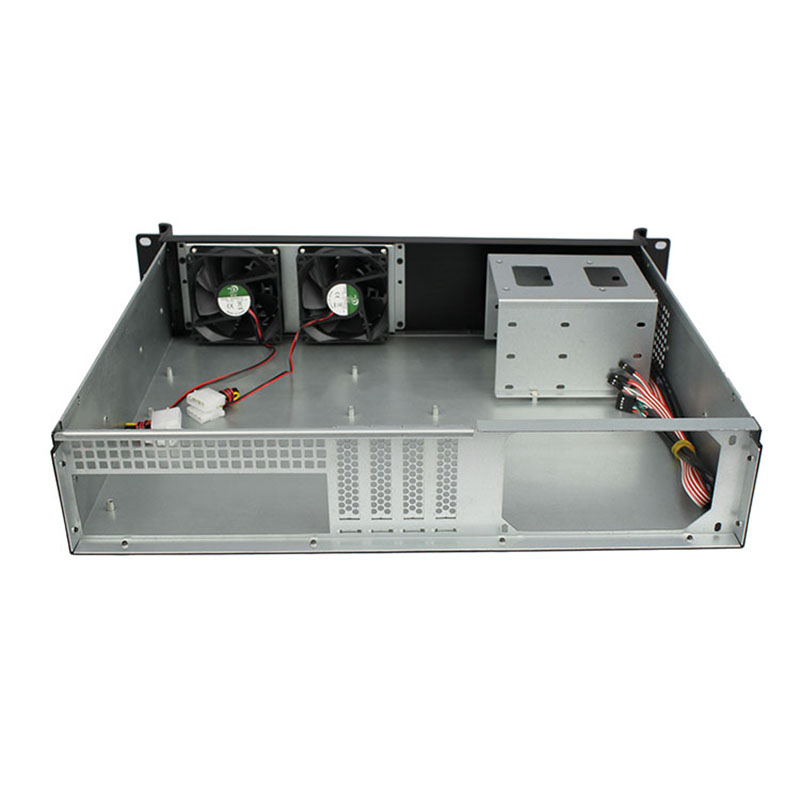

The ISC-RC2U350L-M is a compact 2U rackmount chassis made from 1.2 mm SGCC steel for durable rack installation. Its 350 mm depth, front controls, two USB 2.0 ports, and two 8025 fans support airflow, assembly, and routine maintenance for enterprise IT, storage, network, and edge systems.

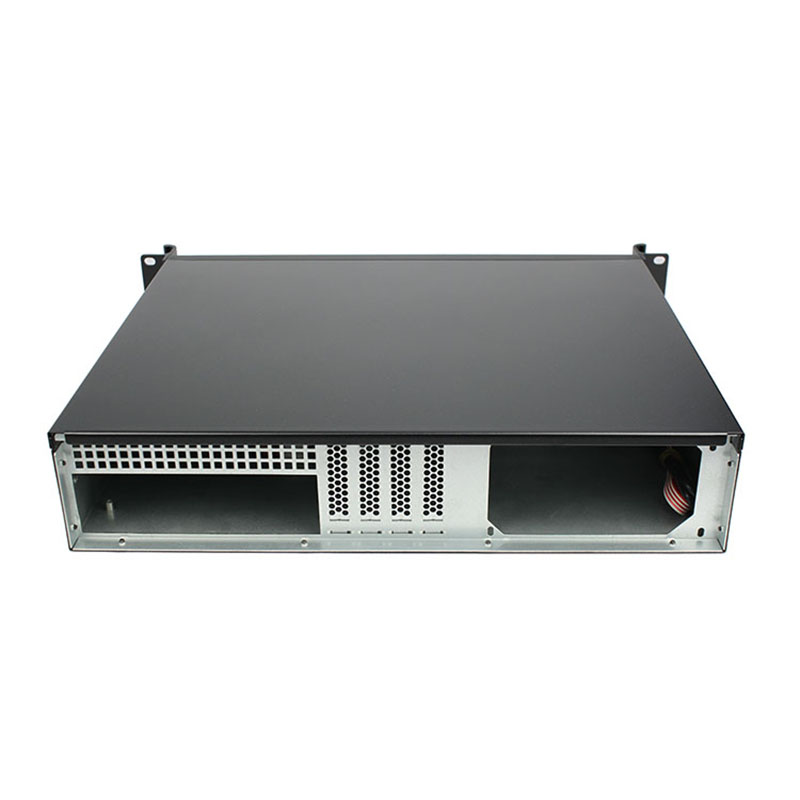

It supports three 3.5-inch drives or two 2.5-inch plus one 3.5-inch drive, four half-height expansion slots, and ATX power-supply configurations. Motherboard fit and optional rails should be confirmed before ordering. The chassis suits system integrators, MSPs, distributors, and project buyers needing OEM/ODM customization, prototypes, bulk production, and stable sourcing.
| Model | ISC-RC2U350L-M |
|---|---|
| Dimensions(mm) | 482(W)*350(D)*89 mm(H) |
| Main Board | 9.6"* 9.6"(245*245MM) |
| Hard Disk | Three 3.5-inch Hard Disks or Two 2.5-inch & One 3.5-inch Hard Disk |
| CD-ROM | None |
| Power | ATX PSU |
| Fan | Two 8025 Fans |
| Expansion Slot | Four Half High and Straight Slots |
| Panel Setting | Two USB2.0; One Power switch; One Reset switch; One Power indicator light; One Hard disk indicator light |
| Case Material | Case Material |
| Material Thickness | 1.2MM |
| Packaging size | 54*48*18CM(0.046CBM) |
| Gross weight | 5.797KG |
| N.W | 4.253KG |
