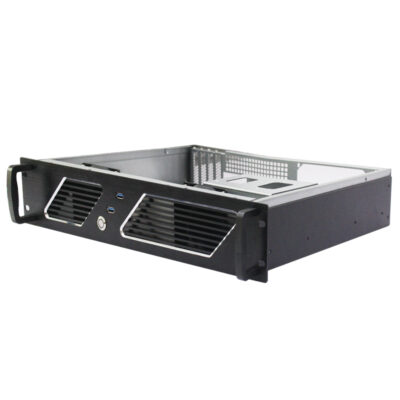

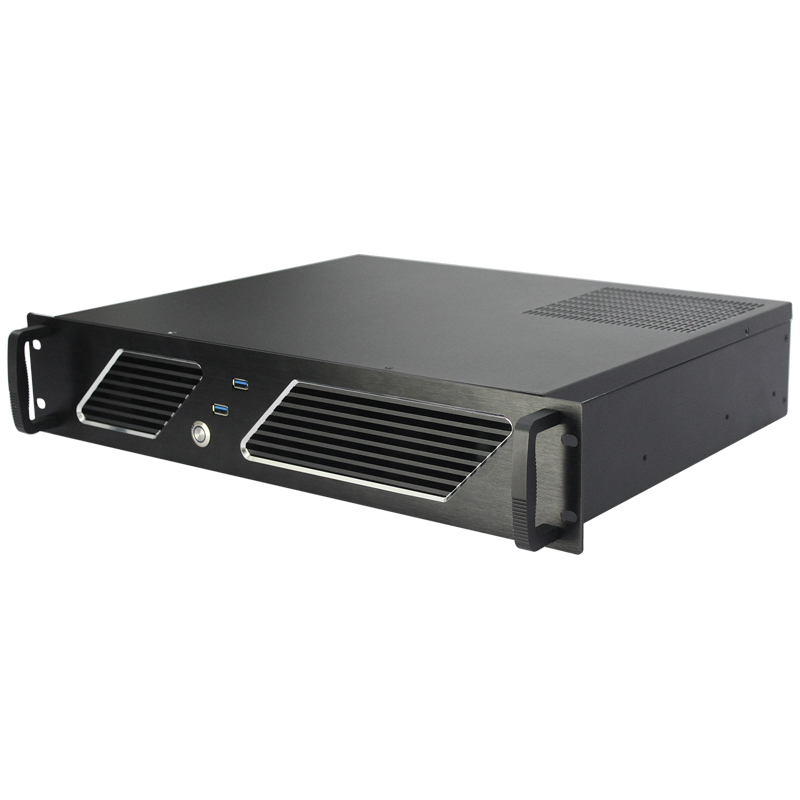

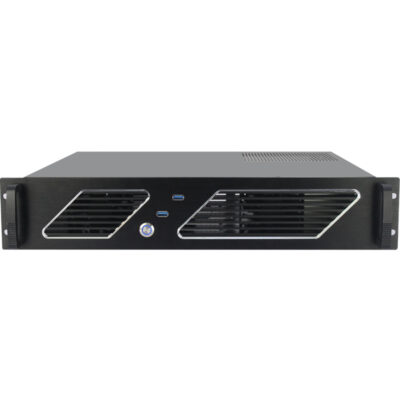

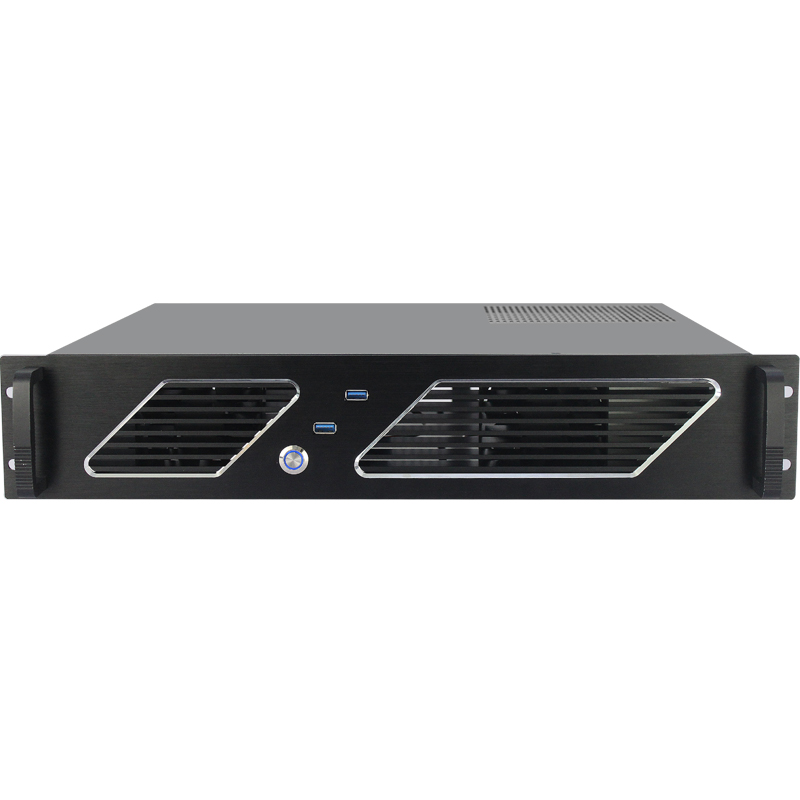

ISC-RC2U350E-M is a 2U rackmount chassis with three 3.5-inch drive positions, four half-height slots, dual 8025 cooling fans, front USB 3.0 and ATX PSU support. Designed for compact server, storage and edge projects with OEM/ODM sourcing flexibility.
Built from 1.2 mm SGCC steel with an aluminum front panel, the ISC-RC2U350E-M is a compact 2U rackmount chassis measuring 482 x 350 x 89 mm. Front rack handles aid installation and service access, while dual 8025 fans and ventilated panels support steady airflow for server, storage and edge deployments.
It supports selected motherboards up to 245 x 245 mm, three 3.5-inch drives, four half-height expansion slots, front USB 3.0 and an ATX-format PSU. GPU use needs a suitable optional riser and compatible layout. The chassis fits integrators, data center projects and distributors seeking OEM/ODM customization and volume sourcing.
| Model | ISC-RC2U350E-M |
|---|---|
| Dimensions(mm) | 482(W)*350(D)* 89 mm(H) |
| Main Board | 9.6"* 9.6"(245*245MM) |
| Hard Disk | Three 3.5-inch Hard Disks |
| CD-ROM | None |
| Power | ATX PSU |
| Fan | Two 8025 Fans |
| Expansion Slot | Four Half High and Straight Slots (Riser Card is needed/Optional) |
| Panel Setting | Two USB3.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | SGCC and aluminum panel |
| Material Thickness | 1.2MM |
| Packaging size | 54*48*18CM(0.046CBM) |
| Gross weight | 6.3KGS |
| N.W | 5.9 |
