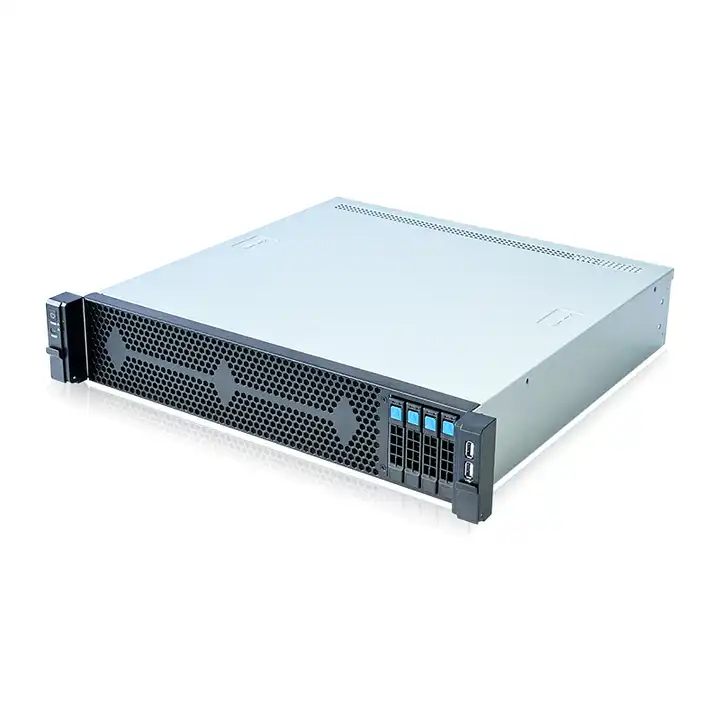

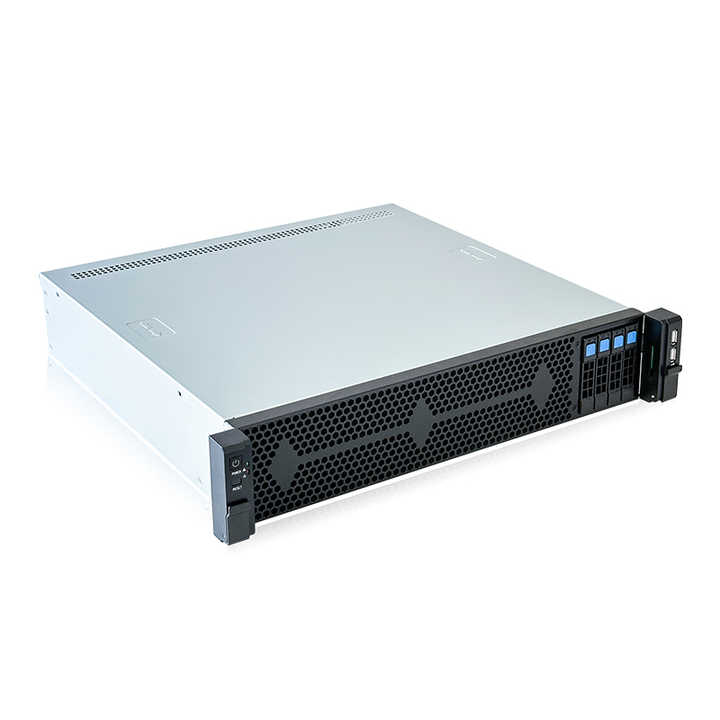

ISC-RC2U430AB4-L is a 2U rackmount server chassis with four 2.5-inch hot-swap SATA bays, multi-form-factor motherboard support, up to seven half-height PCIe slots, and configurable PSU options for data center, NAS, and OEM/ODM projects.
The ISC-RC2U430AB4-L is a 2U rackmount enclosure built from 1.0 mm SECC steel with aluminum-alloy elements. Front-access hot-swap carriers and three 8038 hot-swap fans support airflow, durability, and easier service in data center, enterprise IT, and network deployments. Rack depth and guide-rail compatibility should be confirmed before ordering.
It provides four 2.5-inch hot-swap SATA bays, supports EATX, CEB, ATX, and Micro ATX motherboards, and allows up to seven half-height PCIe slots. Redundant or 2U single PSU support depends on configuration. Suitable for NAS, private cloud, research, and system integration, it gives OEM/ODM customers, distributors, and project buyers a flexible chassis for custom builds and bulk procurement.
| Model | ISC-RC2U430AB4-L |
|---|---|
| Color | Silver |
| Materia | Quality Fine 1.0mm SECC,Aluminum Alloy, Plastic |
| Dimension D*W*H | L430*W435*H90MM |
| HDD Bay | 4*2.5"hot-swap SATA drive bays |
| HDD Backplane | 6Gb/s SATA Backplane,Supports SGPIO |

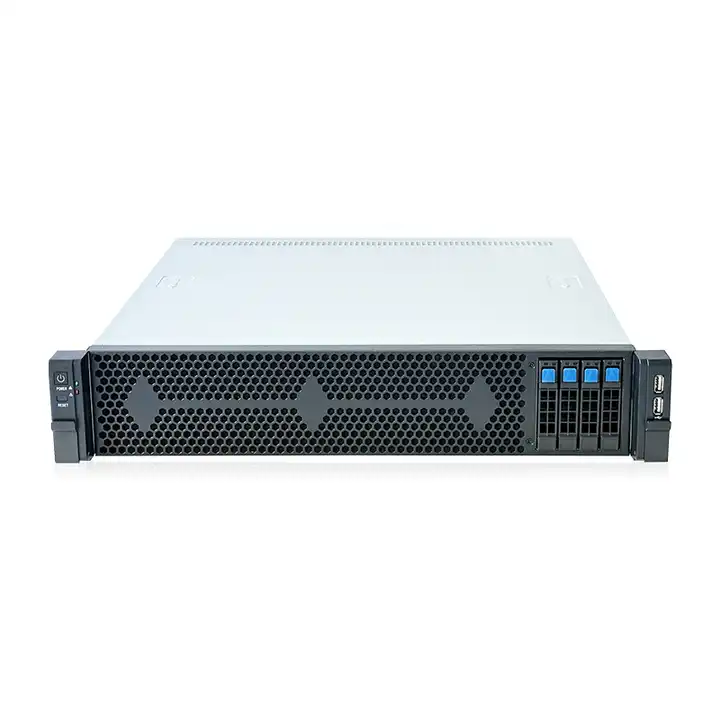

| Front Panel Control | 2 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators |

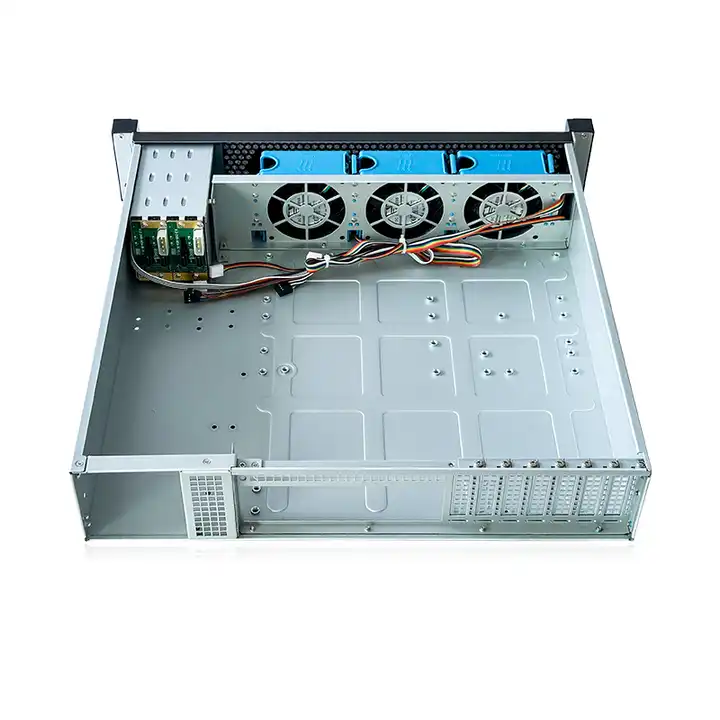

| Cooling Fan | Supports intelligent-temperature control,3pcs 8038 hot-swap fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | Redundant power supply/ 2U single power supply |

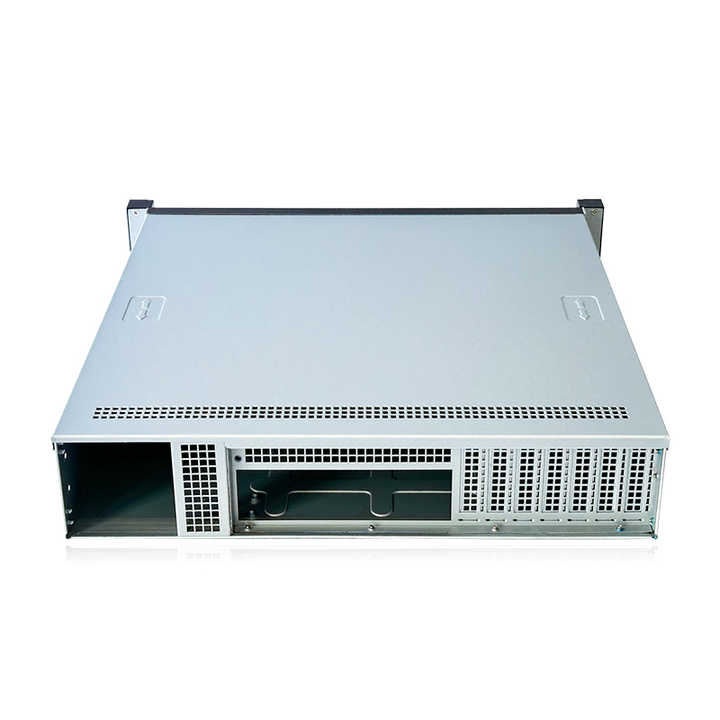

| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Selling Units | Single item |
| Single package size | 55X54X19 cm |
| Single gross weight | 8.000 kg |
