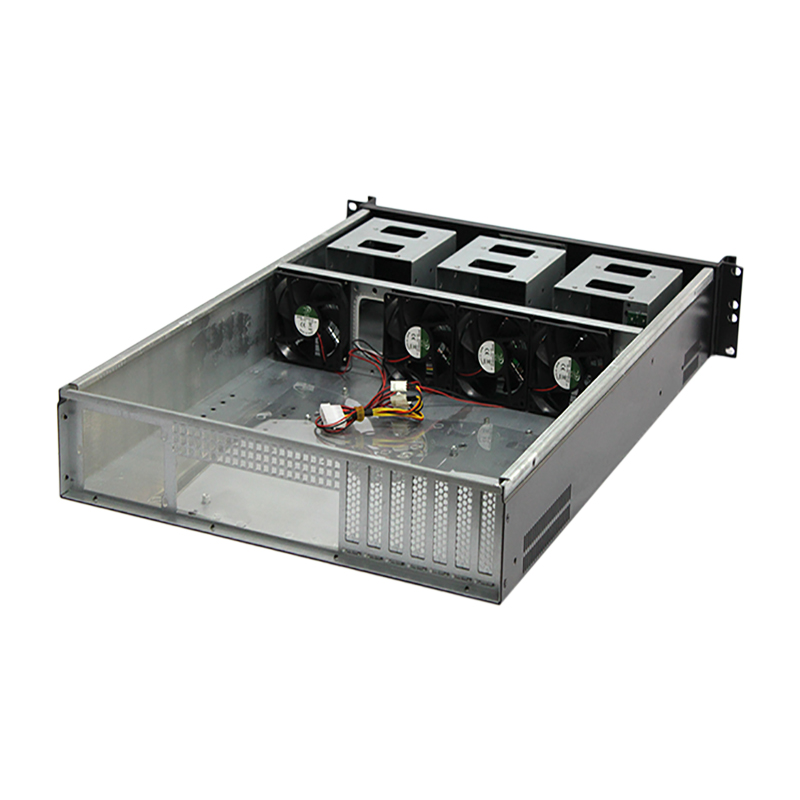

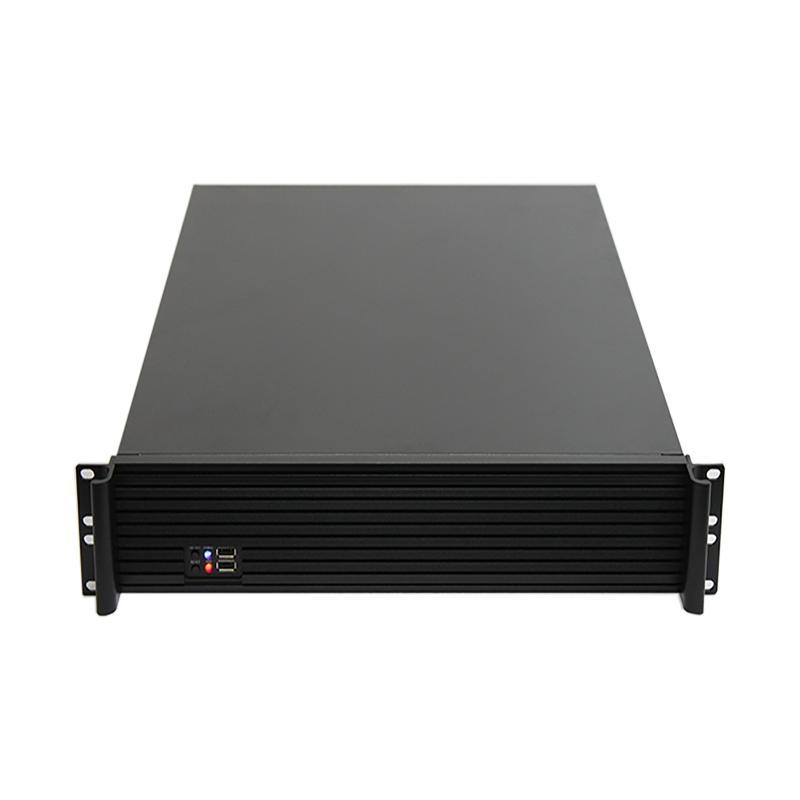

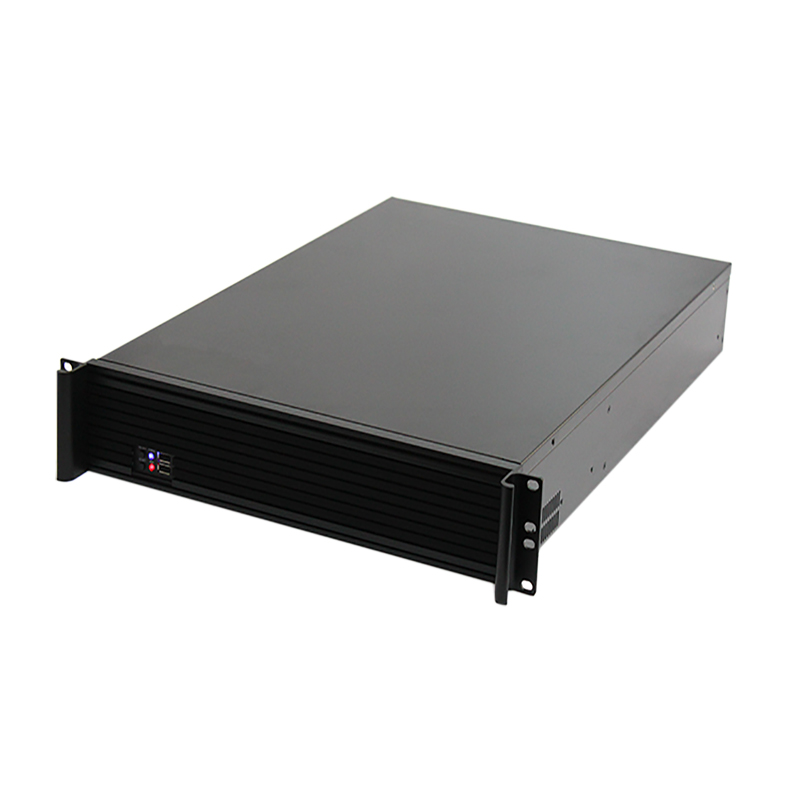

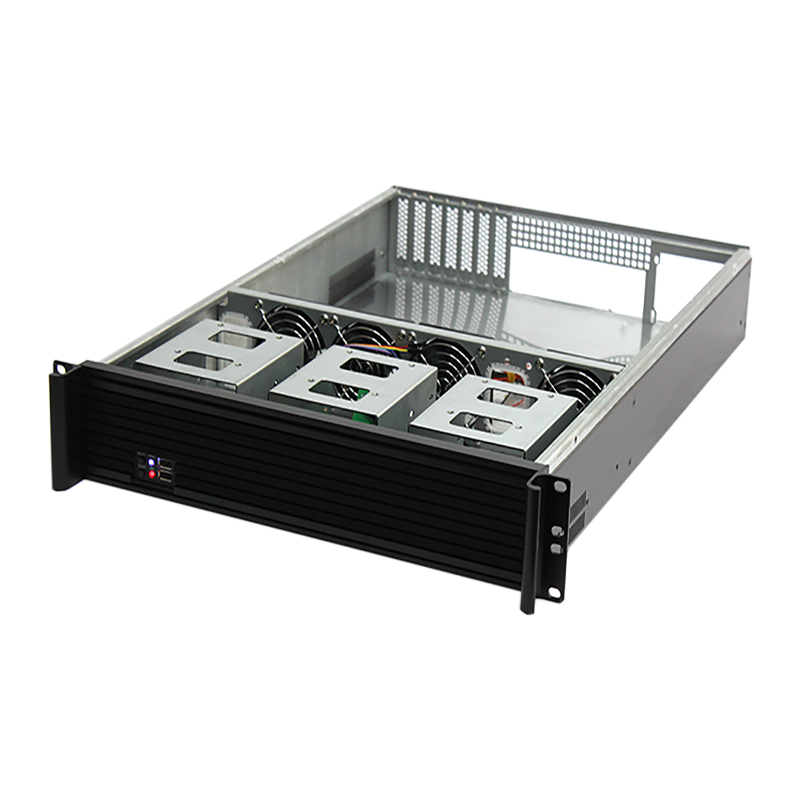

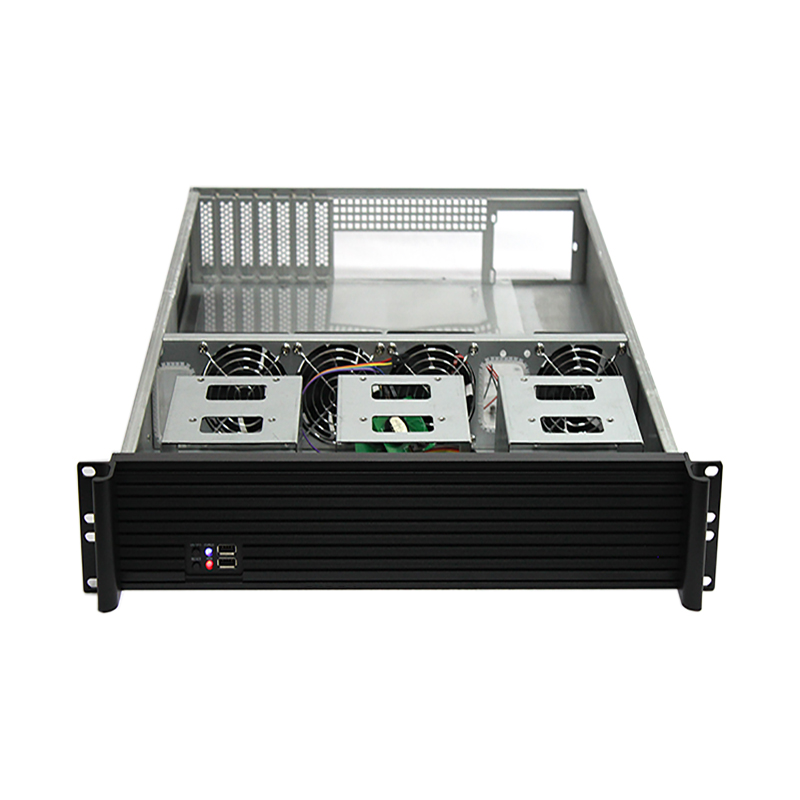

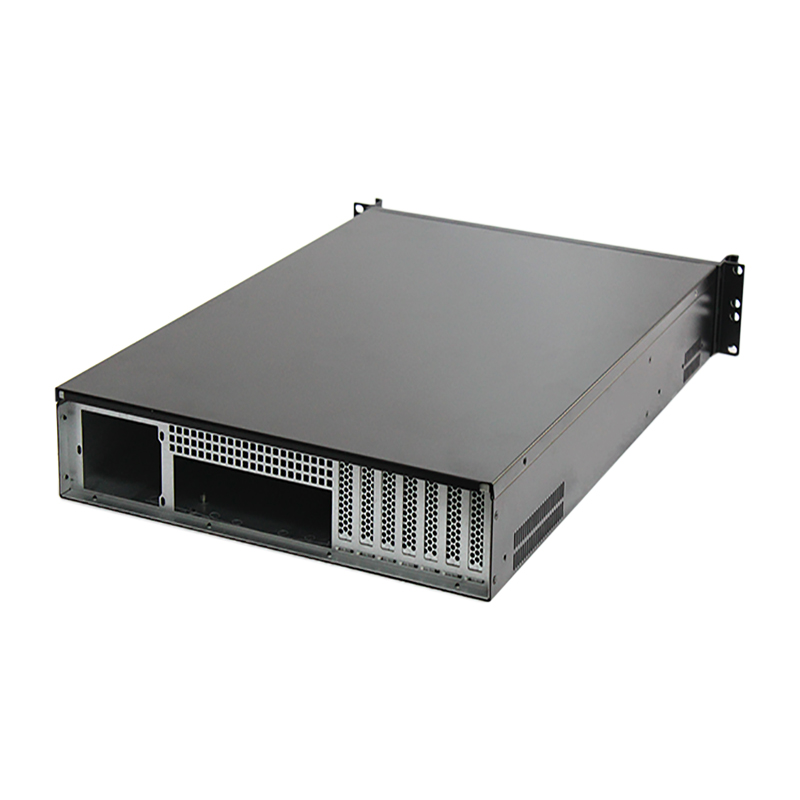

ISC-RC2U650L-M is a 2U rackmount server chassis for up to nine 3.5-inch drives, 12 x 13-inch ATX/EEB or Micro ATX boards, seven half-height slots and four 80 x 25 mm fans. Suitable for data center, storage and OEM/ODM projects.
The ISC-RC2U650L-M is a 2U rackmount chassis with an SGCC steel body and aluminum front panel. Its internal drive layout, front controls and four 80 x 25 mm fans support durable installation, practical servicing and directed airflow in enterprise racks.
It supports up to nine 3.5-inch drives, 12 x 13-inch ATX/EEB and Micro ATX motherboards, seven half-height slots and a 2U PSU format. Designed for data centers, storage, private cloud, AI research and system integration, it offers flexible OEM/ODM and bulk sourcing value. Hot-swap backplanes, rails and accessories are not specified; confirm before ordering.
| Model | ISC-RC2U650L-M |
|---|---|
| Dimensions(mm) | 482(W)*650(D)*89 mm(H) |
| Main Board | 12*13(305* 340MM) |
| Hard Disk | Nine 3.5-inch Hard Disks |
| Power | 2U Special Power |
| Fan | Four 8025 Fans |
| Expansion Slot | Seven Half High and Straight Slots |
| Panel Setting | Two USB2.0; One Power Switch;One Restart Switch;One Power Indicator;One HD Indicator |
| Case Material | SGCC and Aluminum panel |
| Material Thickness | 1.2MM |
| Packaging size | 82*57*20CM(0.093CBM) |
| Gross weight | 13.797KG |
| N.W | 8.784KG |
