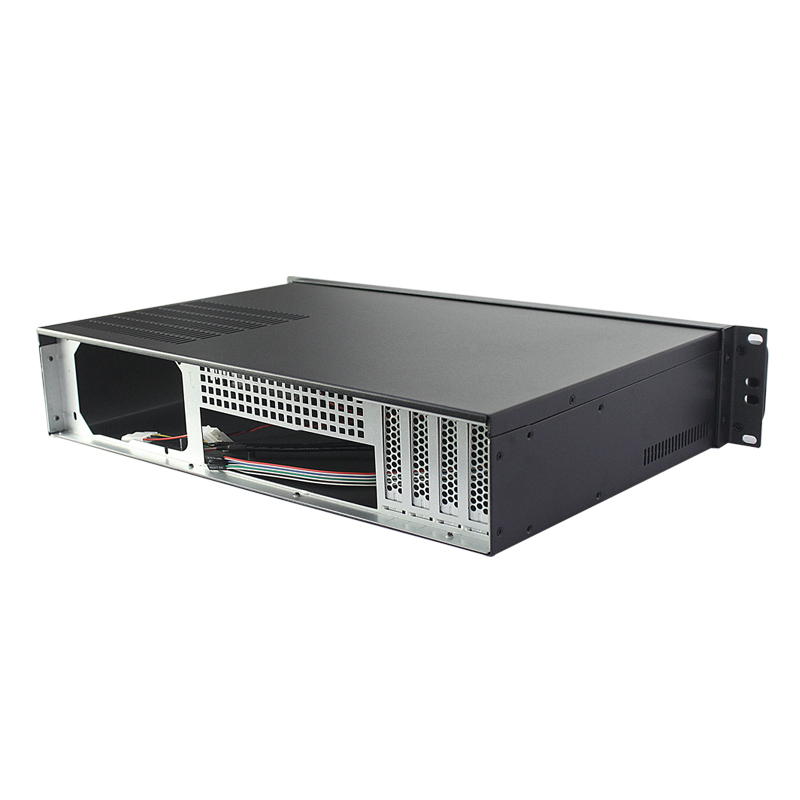

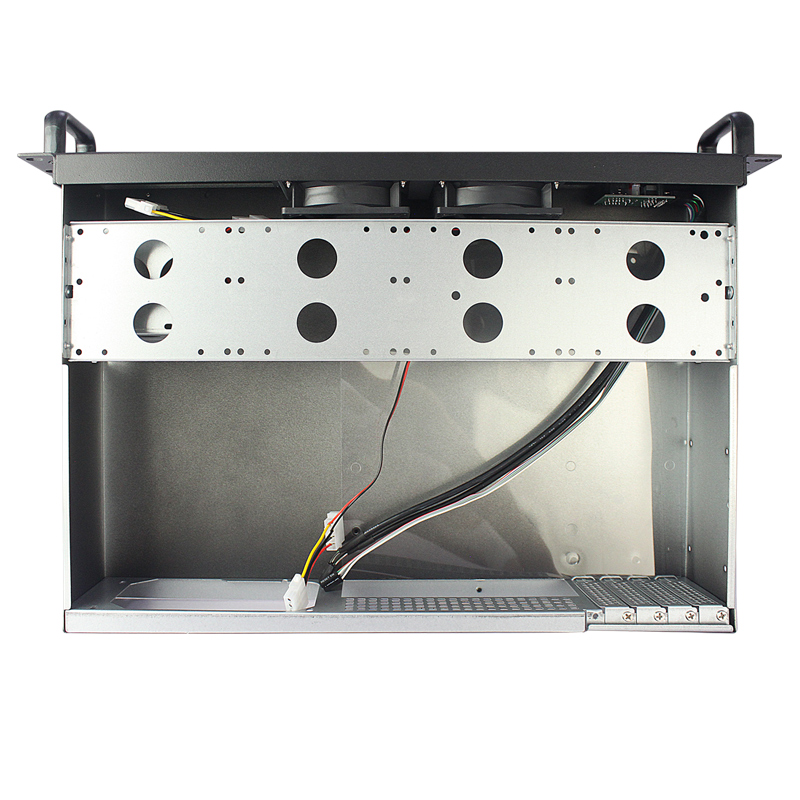

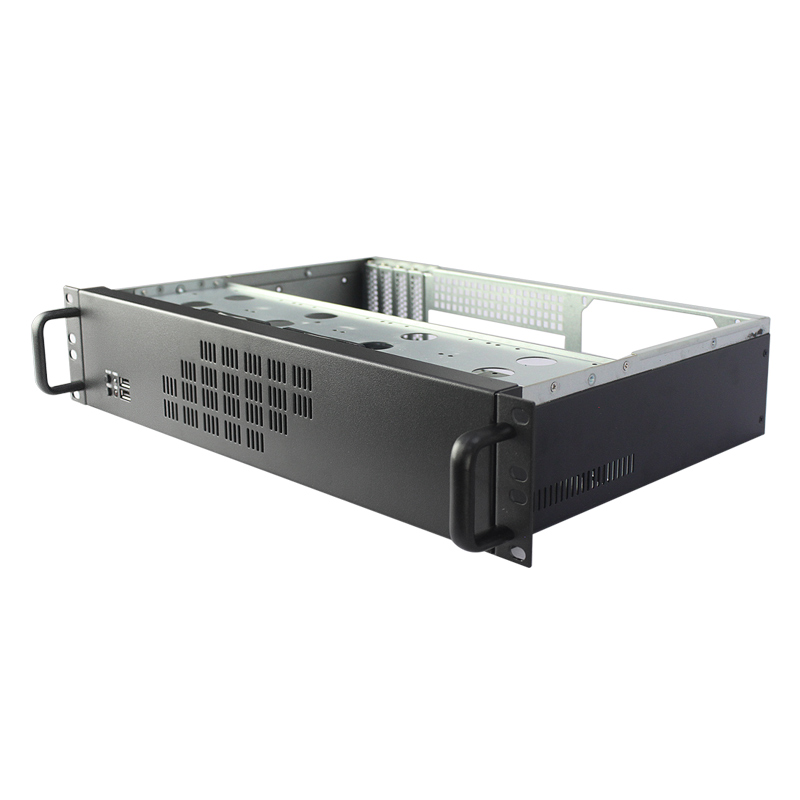

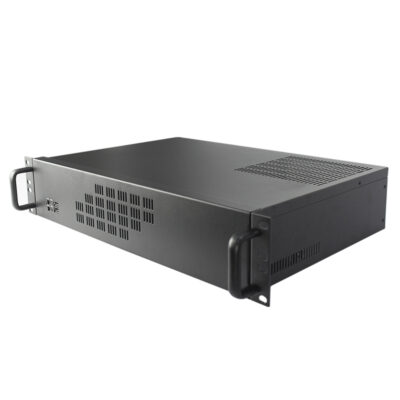

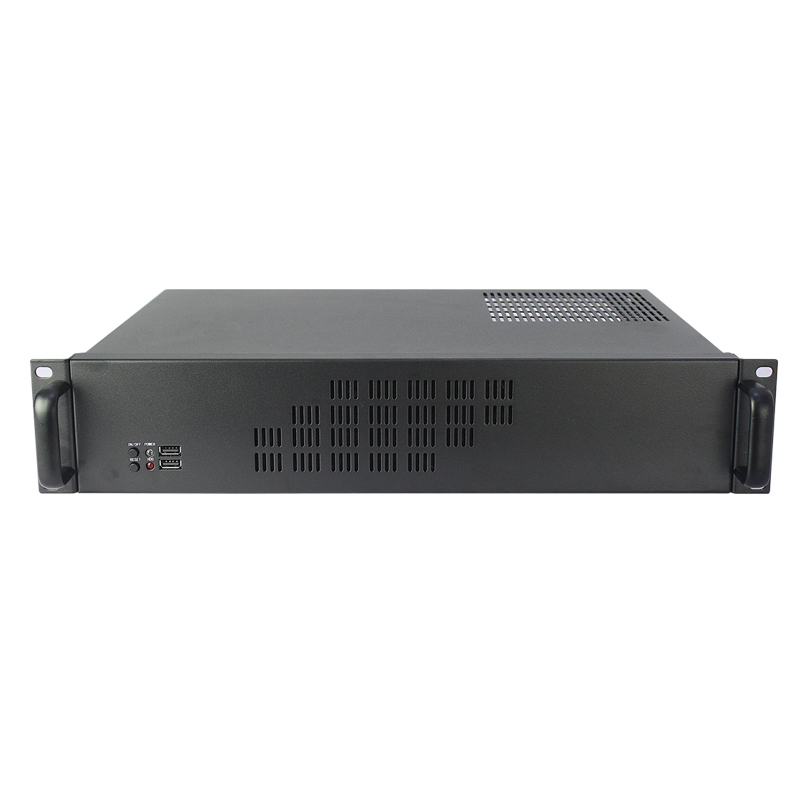

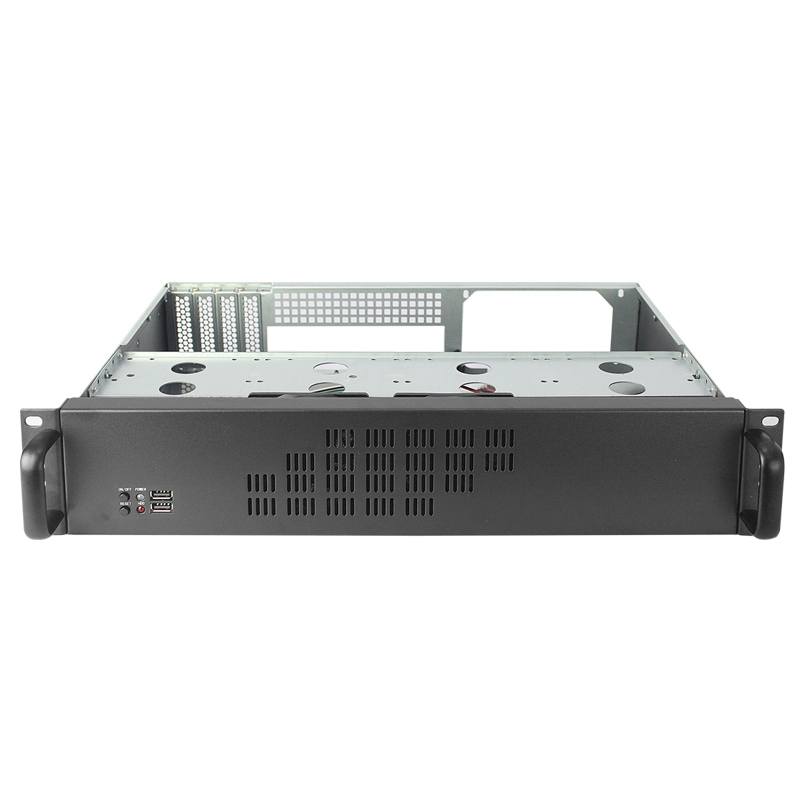

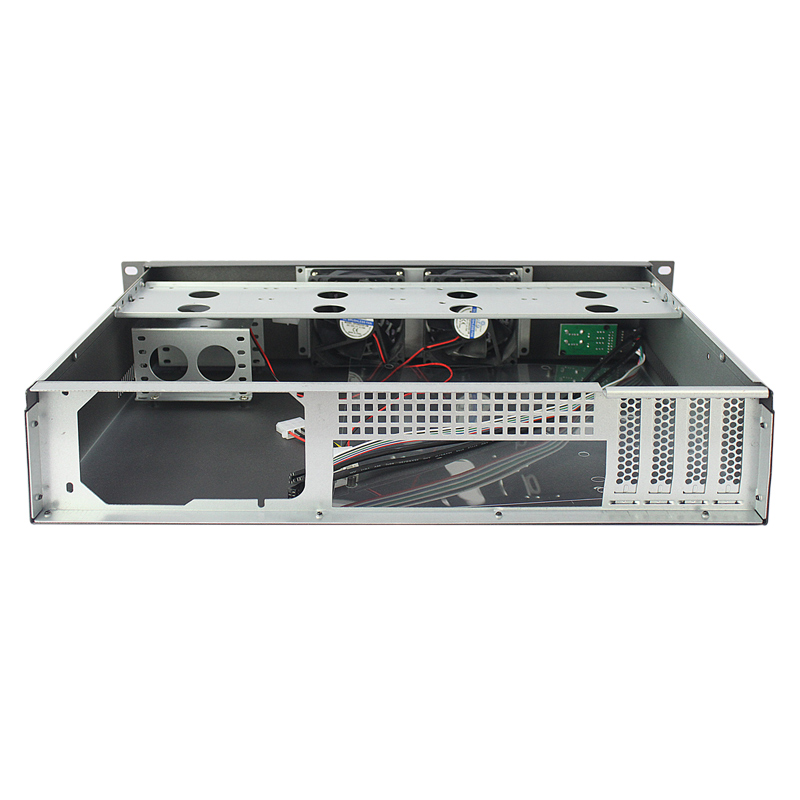

ISC-RC2U300F-M is a 2U SGCC steel rackmount chassis with 300 mm depth, two 80 mm fans, four half-height expansion slots, and support for 4 x 3.5-inch or 7 x 2.5-inch drives. Built for integrators, OEM/ODM projects, and bulk server-room procurement.
The ISC-RC2U300F-M is a compact 2U rackmount chassis built from 1.0 mm SGCC steel. Its 300 mm depth supports space-conscious rack deployment, while front handles aid installation and removal. Two 80 mm fans create directed airflow, and front controls simplify operation and routine maintenance.
Designed for enterprise IT, storage, edge, security, and integration projects, it supports either four 3.5-inch drives or seven 2.5-inch drives, plus four half-height expansion slots. Motherboard, PSU, rails, backplane, and cabling should be confirmed by configuration. It offers practical sourcing value for OEM/ODM customers, system builders, distributors, and project procurement.
| Model | ISC-RC2U300F-M |
|---|---|
| Dimensions(mm) | 482(W)*300(D)* 89 mm(H) |
| Main Board | 9.6"*9.6"(245* 245MM) |
| Hard Disk | Four 3.5-inch Hard Disks or 7*2.5" HDD |
| Power | ATX PSU |
| Fan | 2*8020 cooling fan |
| Expansion Slot | 4* half full height slot |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | SGCC |
| Material Thickness | 1.0MM |
| Packaging size | 54*42.5*17cm(0.039CBM) |
| Gross weight | 6KG |
| N.W | 4.8KG |
