ISC-RC2U550L-M is a 2U steel rackmount server chassis for up to eight 3.5-inch drives and 12 x 9.6-inch ATX/Micro-ATX boards. Four 80 mm fans, seven half-height slots and OEM/ODM support suit NAS, data center and integration projects.

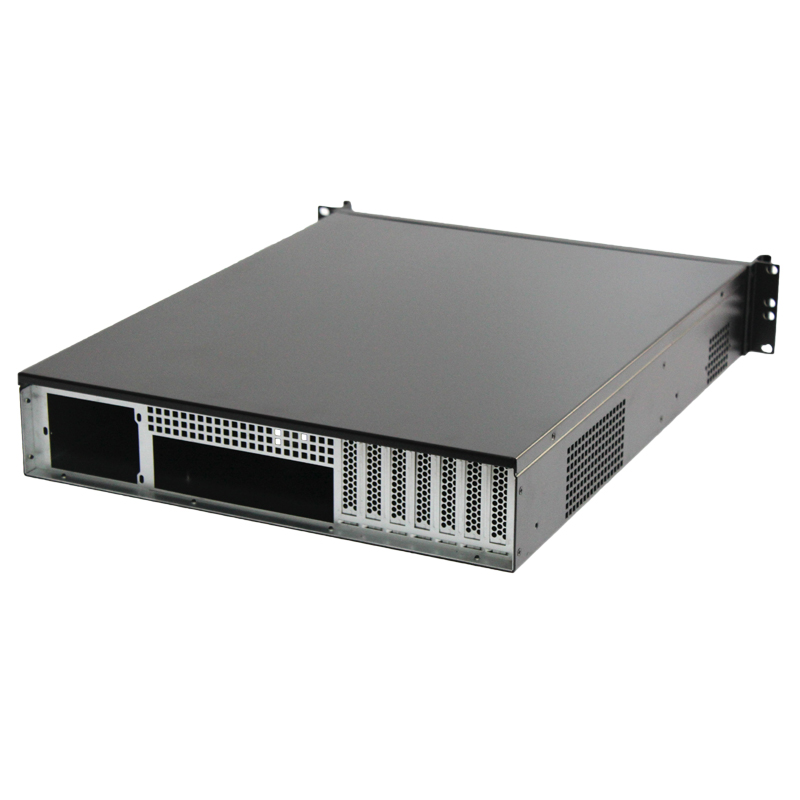

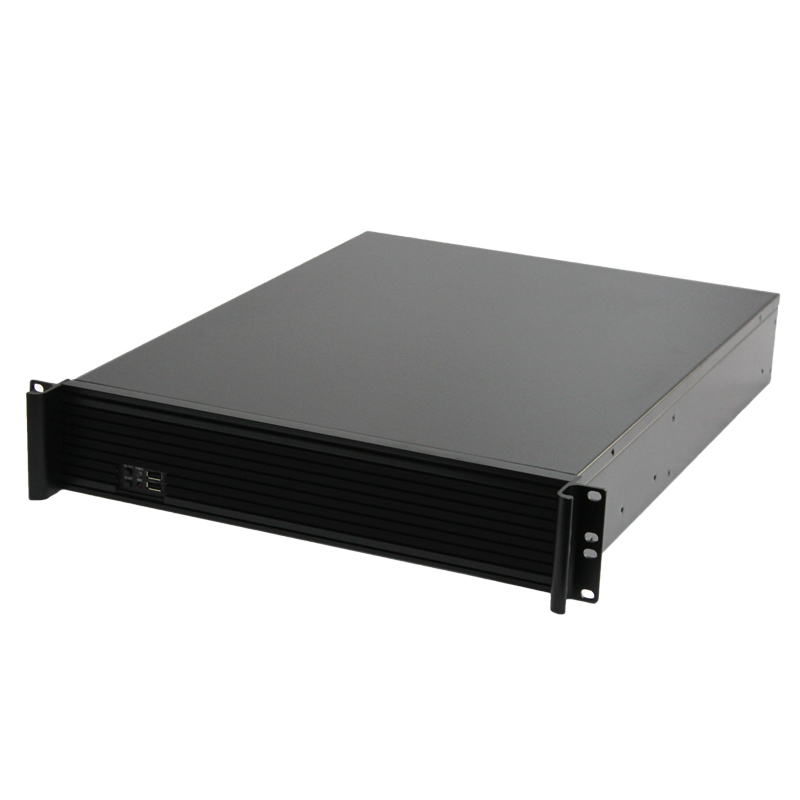

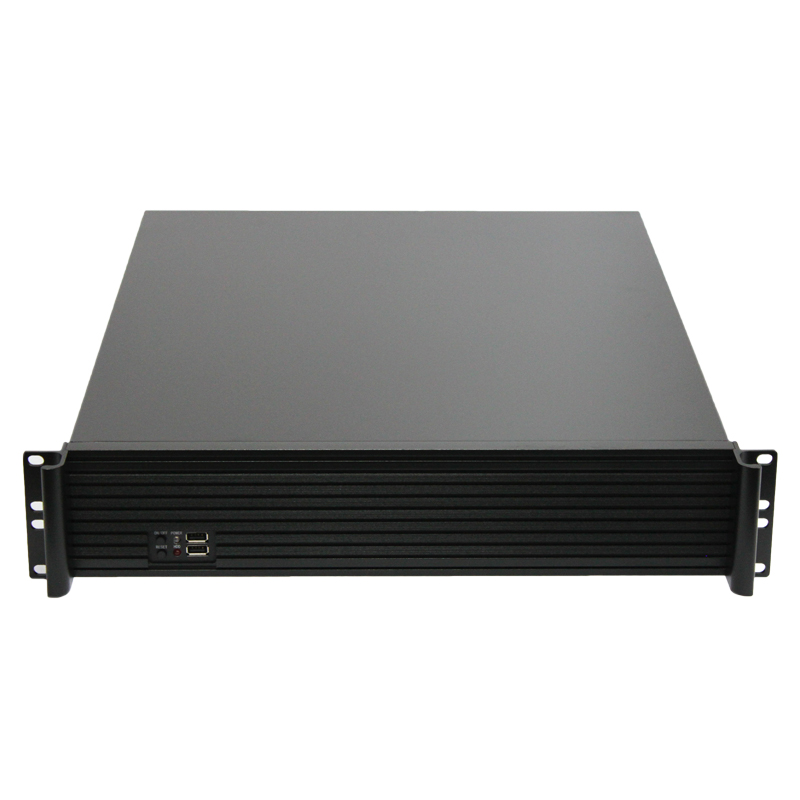

The ISC-RC2U550L-M is a 2U rackmount chassis made from 1.2 mm SGCC steel with an aluminum front panel. Rack ears and front handles aid cabinet mounting and service access. Four 80 mm fans support airflow for server, NAS and enterprise IT deployments, while the rigid enclosure helps protect installed hardware.
This server case supports boards up to 12 x 9.6 inches, including ATX and Micro-ATX, up to eight 3.5-inch drives, seven half-height straight expansion slots and a 2U special PSU format. Backplane, hot-swap structure and rails require configuration confirmation. It suits system integrators, OEM/ODM programs, distributors and bulk project sourcing.
| Model | ISC-RC2U550L-M |
|---|---|
| Dimensions(mm) | 482(W)*550(D)*89 mm(H) |
| Main Board | 12"*9.6"(305*245MM) |
| Hard Disk | Eight 3.5-inch Hard Disks |
| Power | 2U Special Power Supply |
| Fan | Four 8025 Fans |
| Expansion Slot | Seven Half High and Straight Slots |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | SGCC and Aluminum panel |
| Material Thickness | 1.2MM |
| Packaging size | 70*54.5*18.5（0.07CBM） |
| Gross weight | 10.243KG |
| N.W | 7.731KG |
