ISC-RC2U350L1-M is a 2U SGCC steel rackmount chassis for up to a 9.6 x 9.6-inch motherboard, three 3.5-inch drives, four half-height slots, ATX PSU support, and two 8025 fans. Designed for compact server, storage, and OEM integration projects.

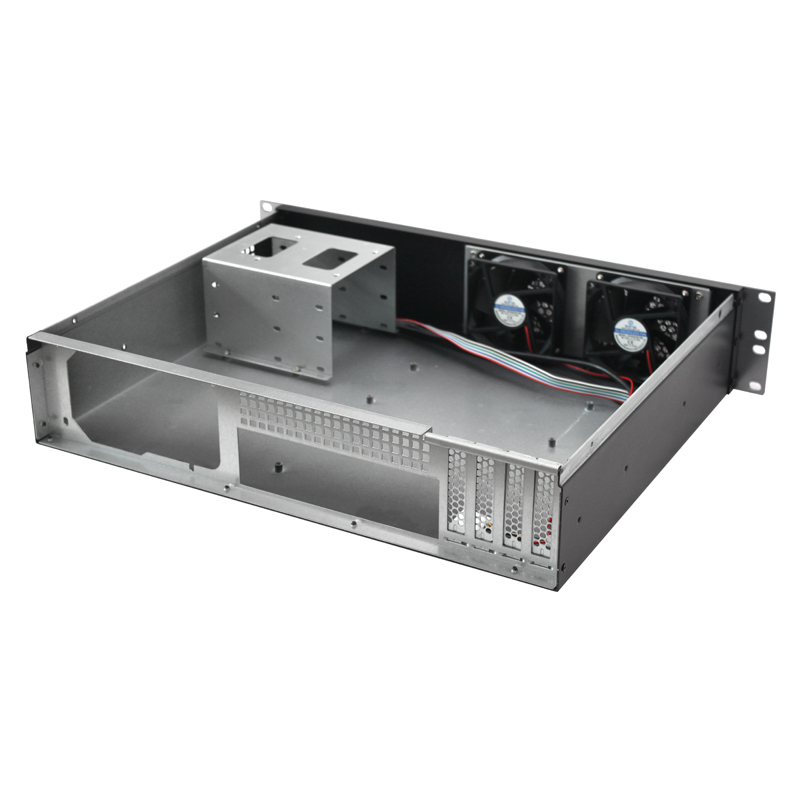

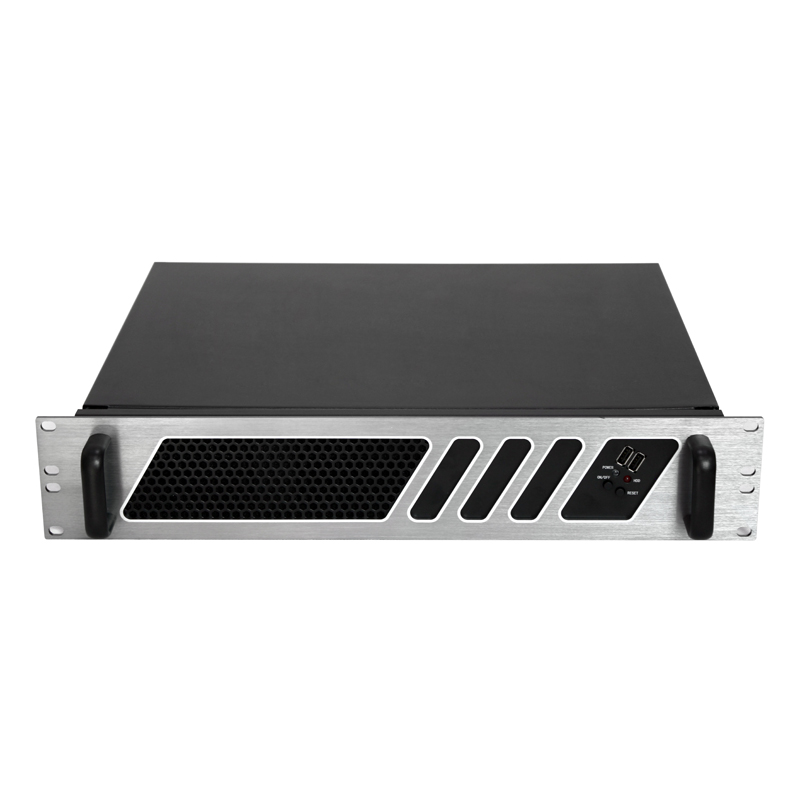

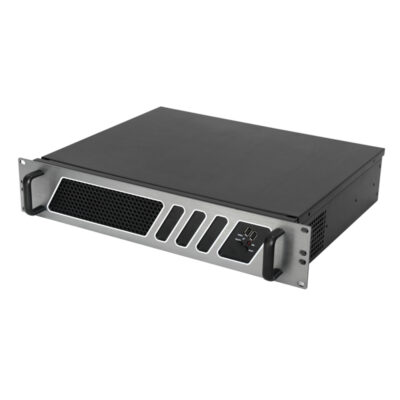

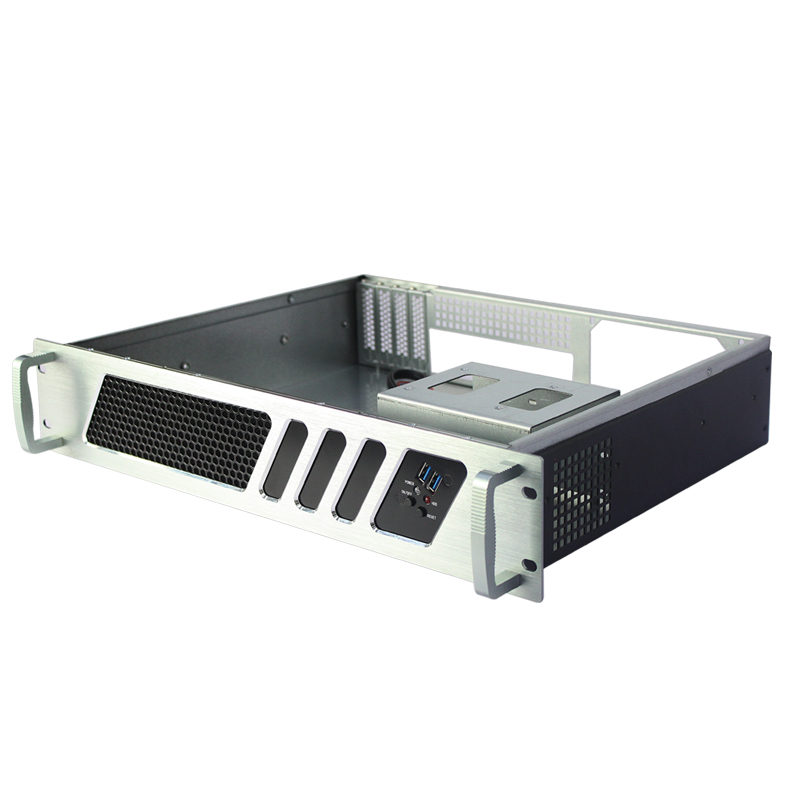

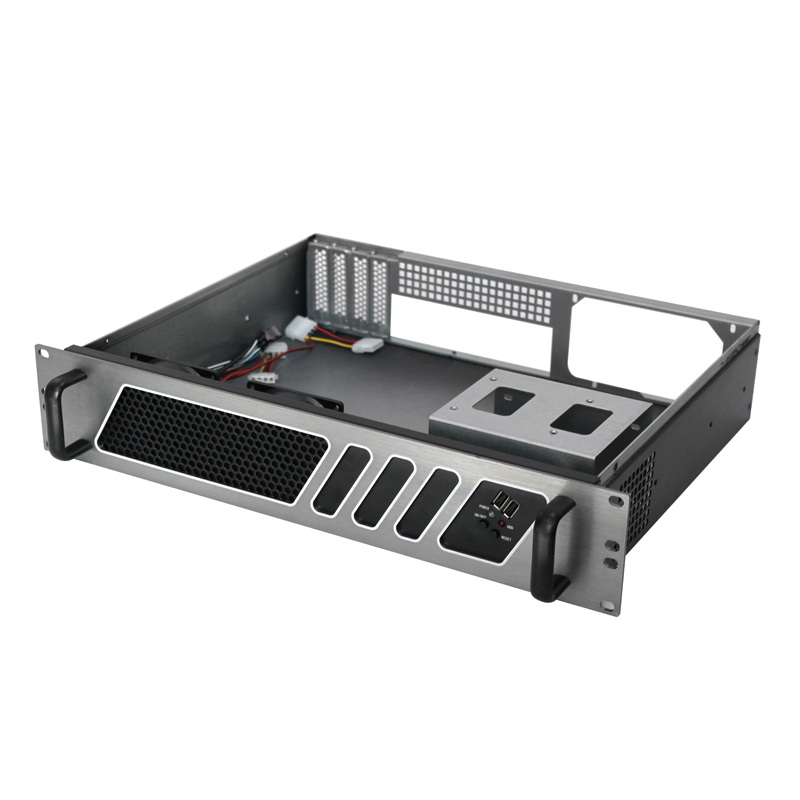

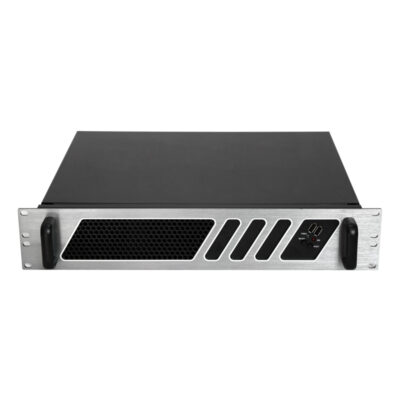

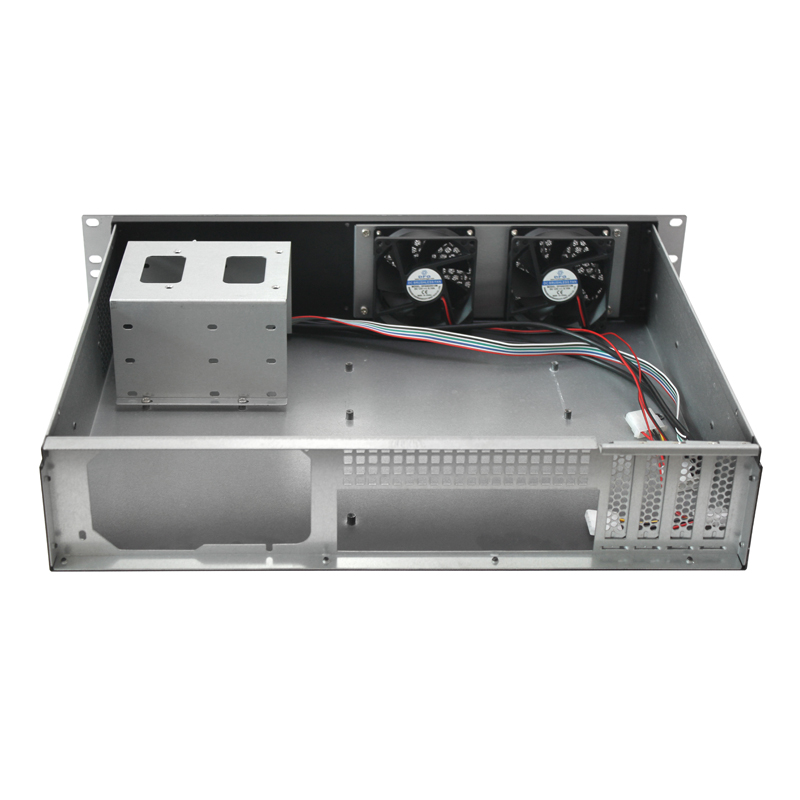

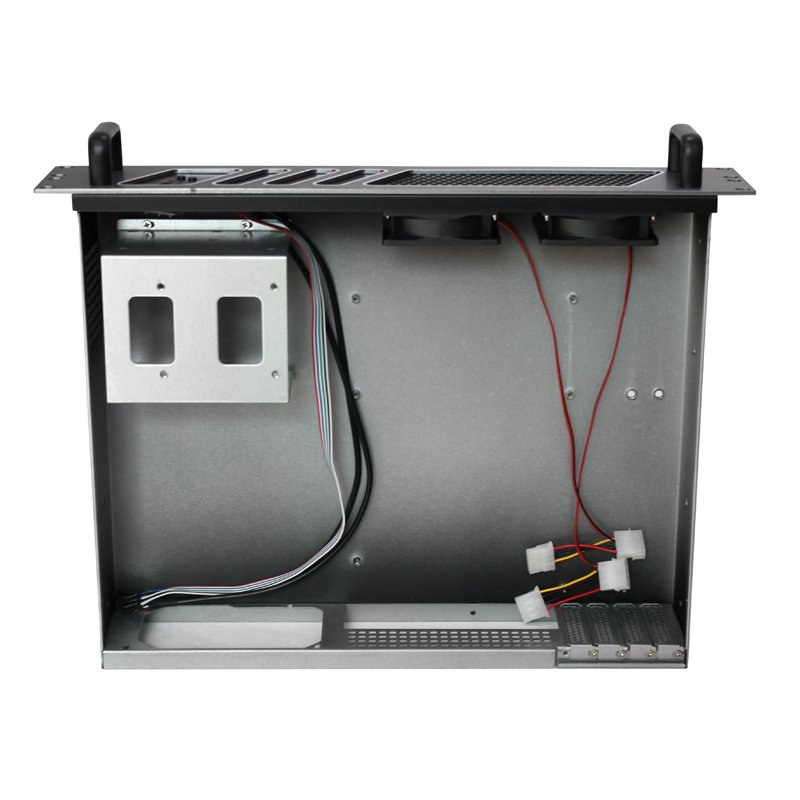

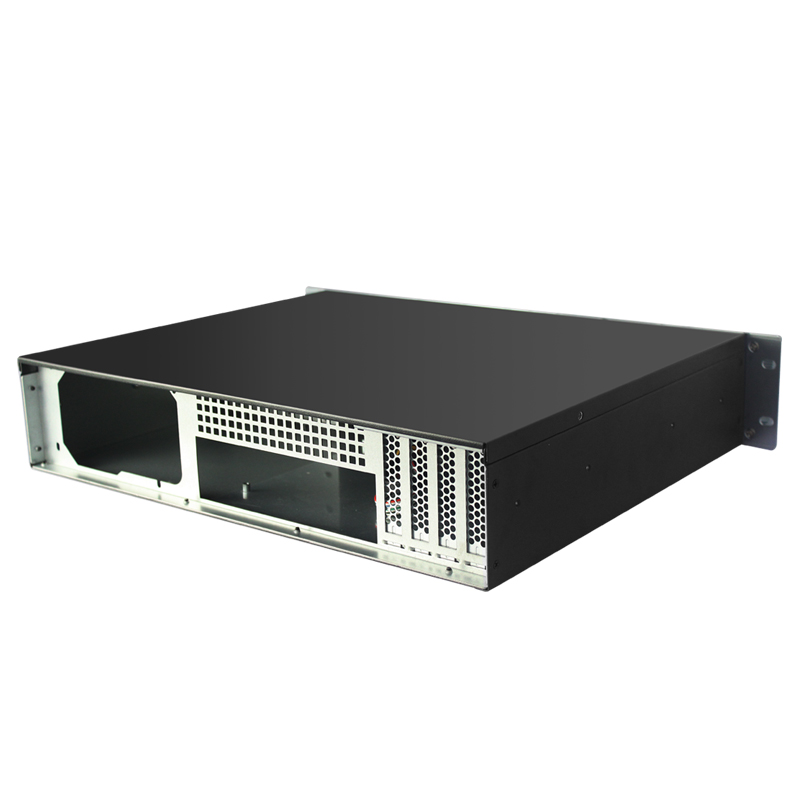

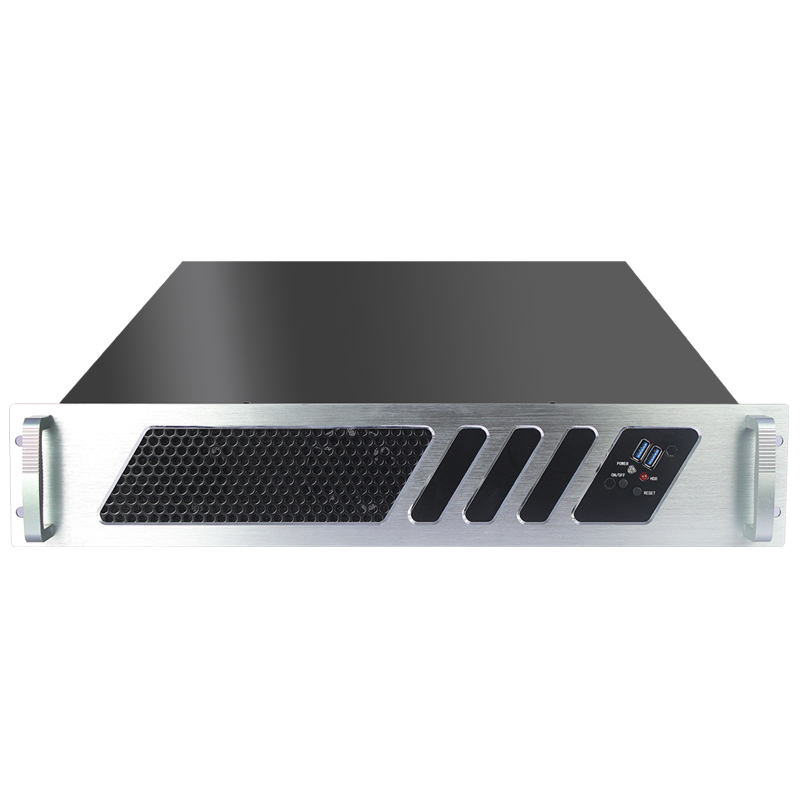

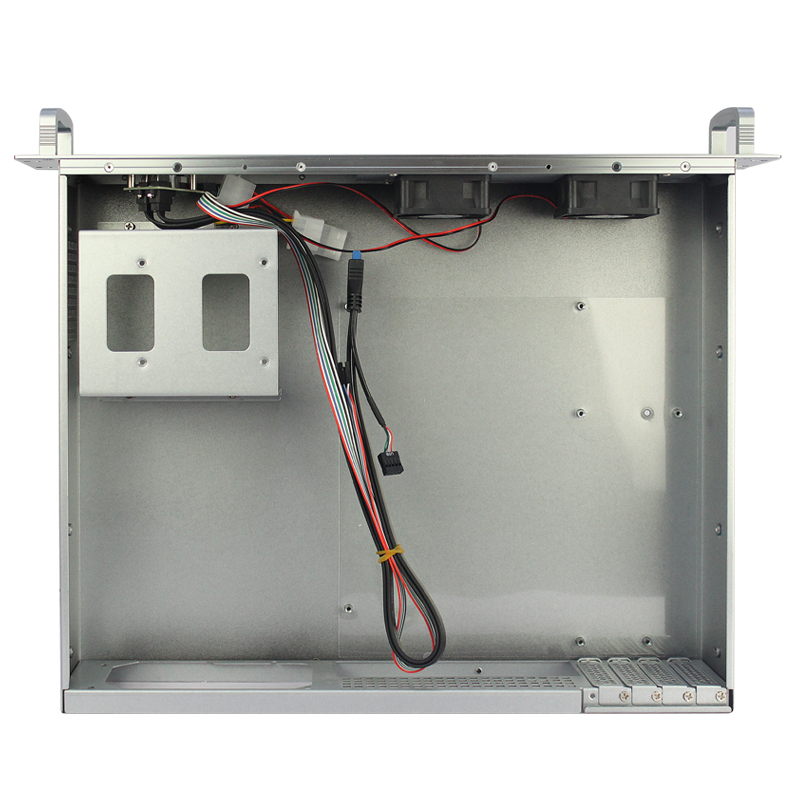

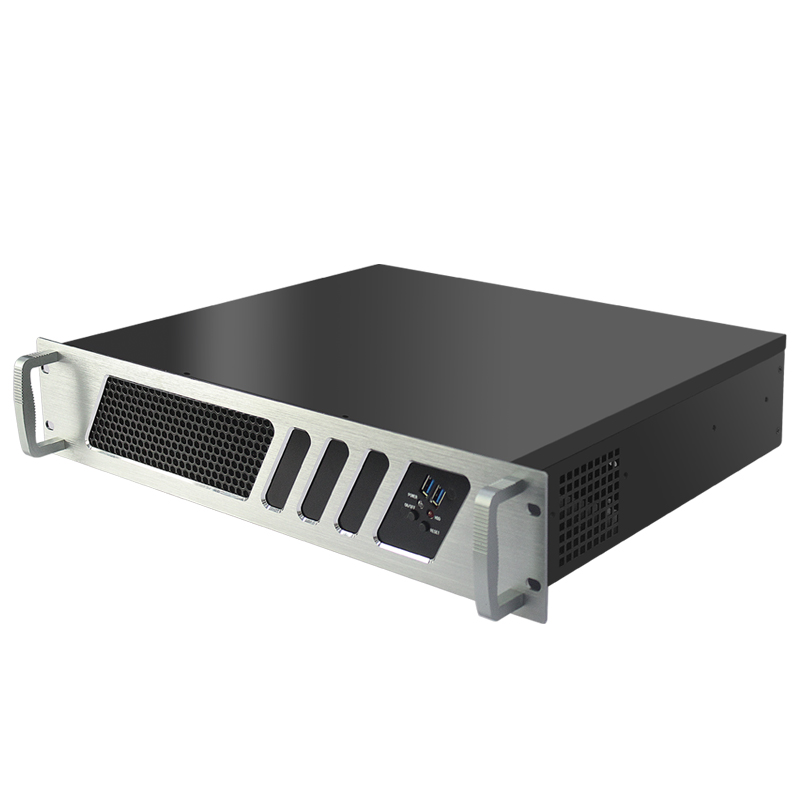

Built from 1.2 mm SGCC steel, the ISC-RC2U350L1-M is a compact 2U rackmount chassis measuring 482 x 350 x 89 mm. Front handles aid installation and service access, while the ventilated panel and two 8025 fans support airflow. It suits data center, enterprise IT, security, edge, and industrial builds.

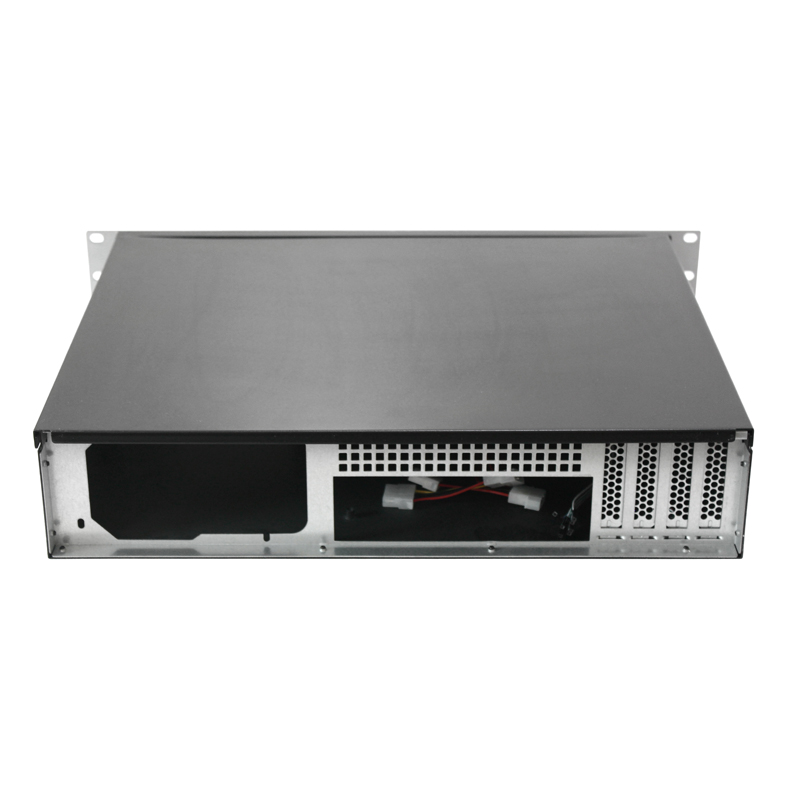

It supports a motherboard up to 9.6 x 9.6 inches, up to three 3.5-inch drives, four half-height straight slots, and an ATX power supply. Riser cards, rails, drives, and other components depend on configuration and should be confirmed before ordering. It serves system integrators, OEM/ODM buyers, distributors, and project procurement.
| Model | ISC-RC2U350L1-M |
|---|---|
| Dimensions(mm) | 482(W)*350(D)* 89 mm(H) |
| Main Board | 9.6"*9.6"(245*245MM) |
| Hard Disk | Three 3.5-inch Hard Disks |
| CD-ROM | None |
| Power | ATX PSU |
| Fan | Two 8025 Fans |
| Expansion Slot | Four Half High and Straight Slots (Riser Card is needed/Optional) |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | SGCC |
| Material Thickness | 1.2MM |
| Packaging size | 54*48*18CM(0.046CBM) |
| Gross weight | 5.927KG |
| N.W | 4.383KG |
