ISC-RC2U480L-M 2U Rackmount Server Chassis for Integrators

ISC-RC2U480L-M is a 2U rackmount server chassis for MicroATX builds, with three 3.5-inch bays, two full-height PCIe slots, ATX PSU support and front USB 2.0. Suitable for data center, enterprise and industrial integration, with OEM/ODM and bulk procurement support.

Categories: , Tags: , ,
Share your love

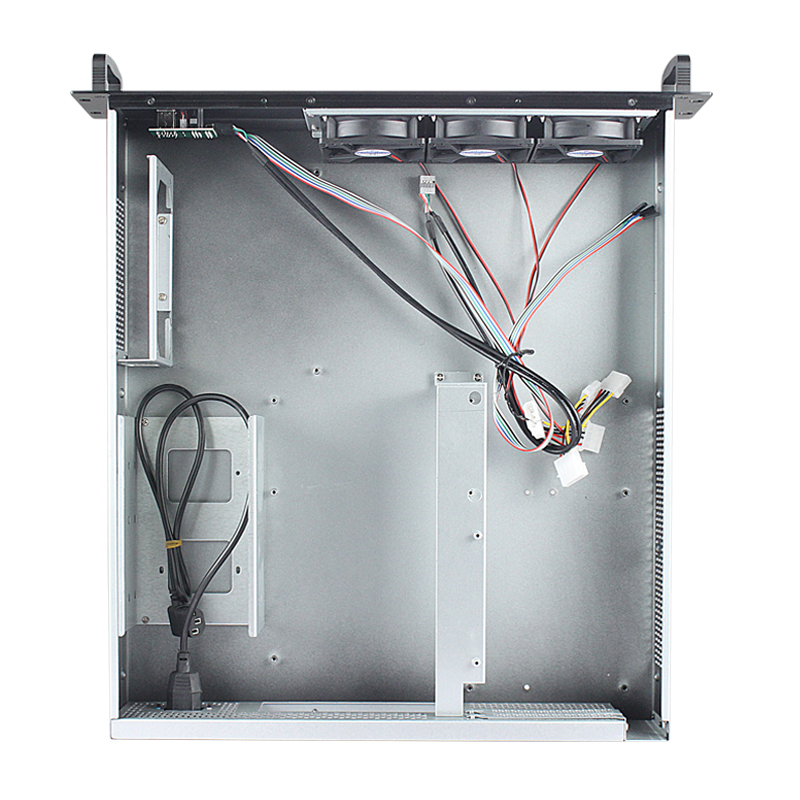

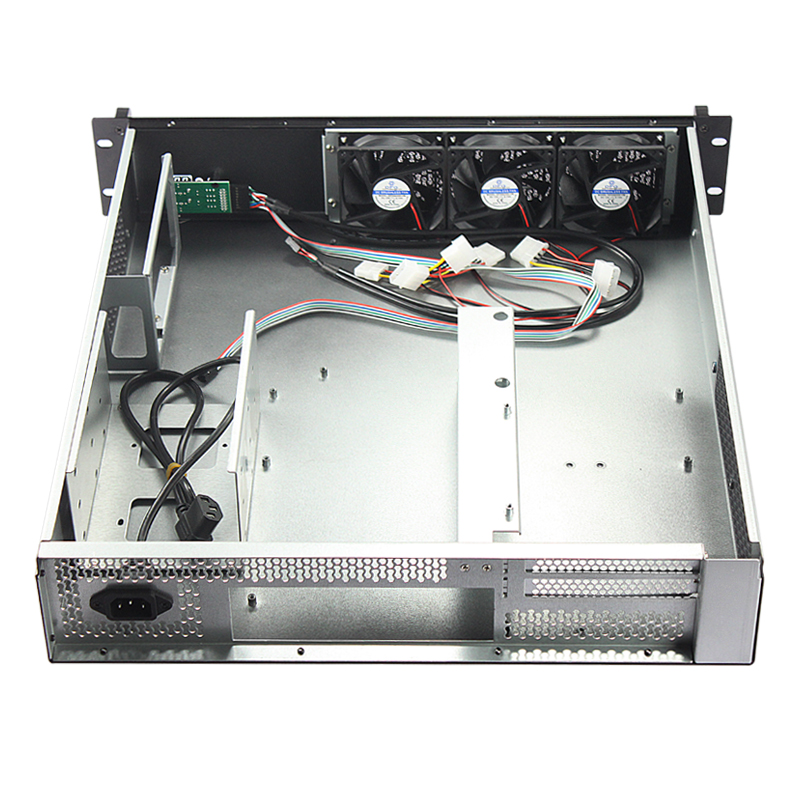

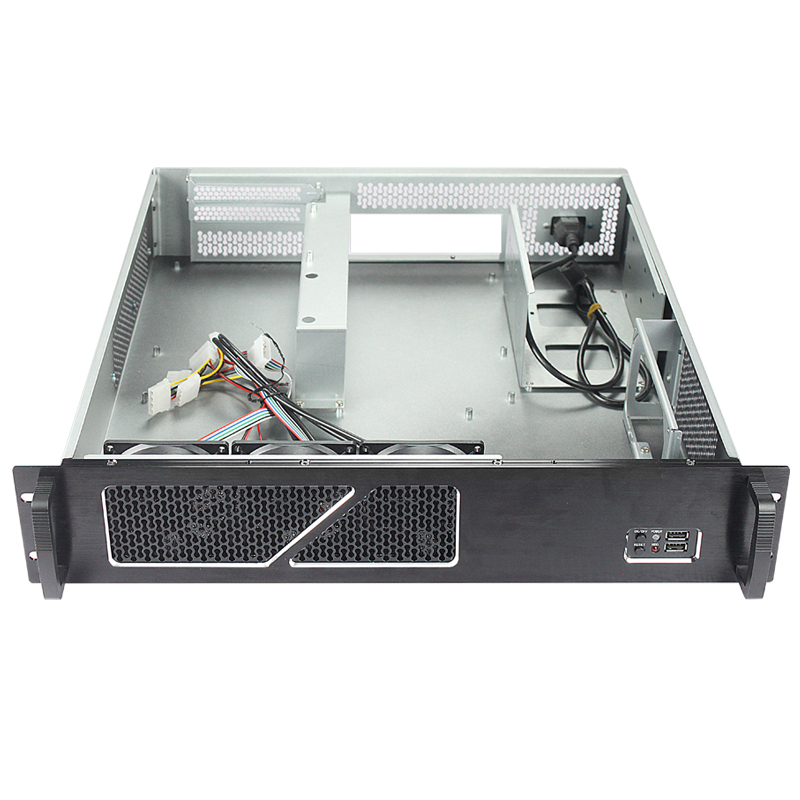

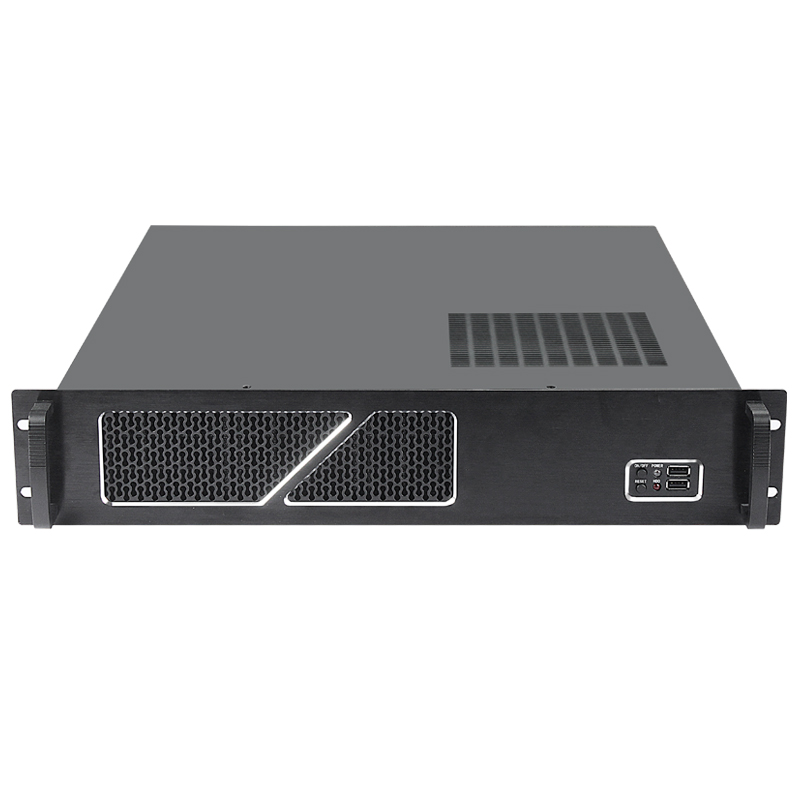

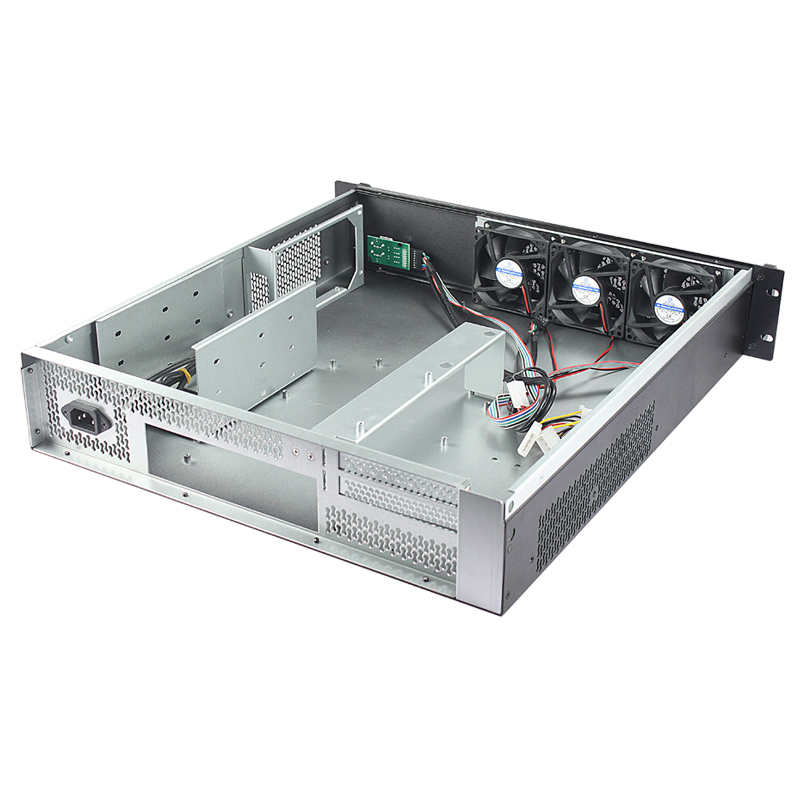

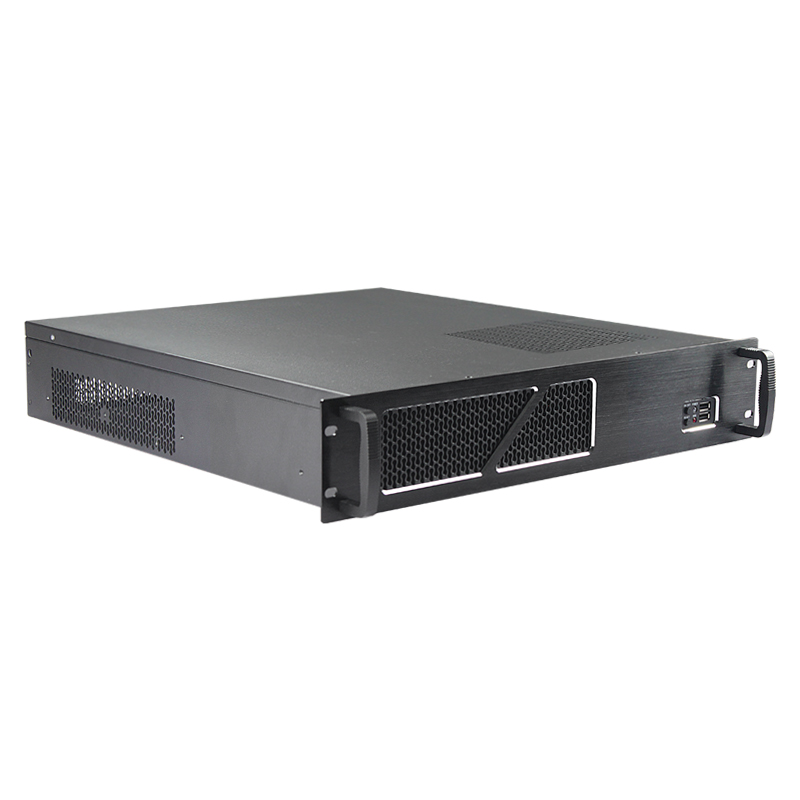

Built from aluminum alloy and steel, the ISC-RC2U480L-M is a 2U rackmount chassis with front rack ears, handles, ventilation and USB 2.0 controls. Its 480 mm depth and three 80 x 25 mm fan positions support organized airflow and service access.

It supports MicroATX boards up to 12 x 9.6 inches, three 3.5-inch drives, two horizontal full-height PCIe slots and an ATX PSU, depending on configuration. Designed for enterprise IT, storage, networking, industrial control and data-center projects, it offers integrators, OEM customers and distributors a flexible platform for custom builds and bulk sourcing. Confirm rails, backplane, hot-swap structure and included components before ordering.

Module

ISC-RC2U480L-M
Dimensions

482(W)*480(D)*89 mm(H)
Main Board

12"* 9.6"(305* 245MM)
Hard Disk

Three 3.5-inch Hard Disks
CPU MAX H

75mm
Expansion Slot

2*horyzontal full height PCI-E slot
Power Supply

ATX PSU
Cooling Fan

3* 8025 Fans
Panel setting

2*USB 2.0 power switch ,Reset
G.W

5.2KGS
Certification

ce, RoHS
Form Factor

MicroATX
Material

Aluminum Alloy, Steel
Style

With Fan, With Side Panel Window
Front Ports

usb
