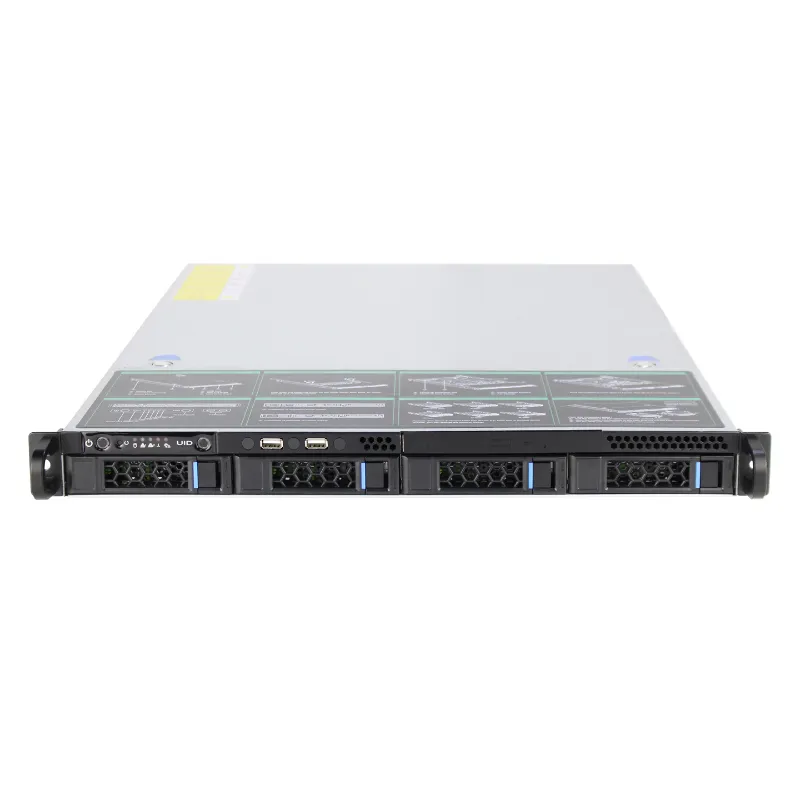

ISC-SC1U650A-H4-T is a 1U SGCC rackmount server case with four front 3.5-inch bays supporting 2.5-inch drives, one internal 2.5-inch position, EE-ATX support, horizontal PCI/PCIe expansion, and configurable cooling for OEM/ODM projects.

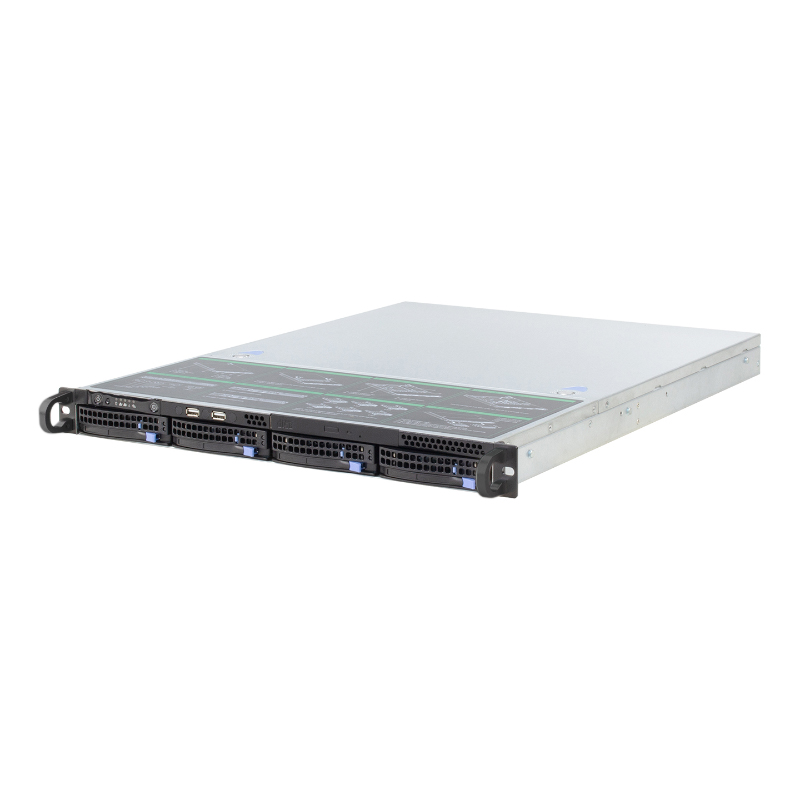

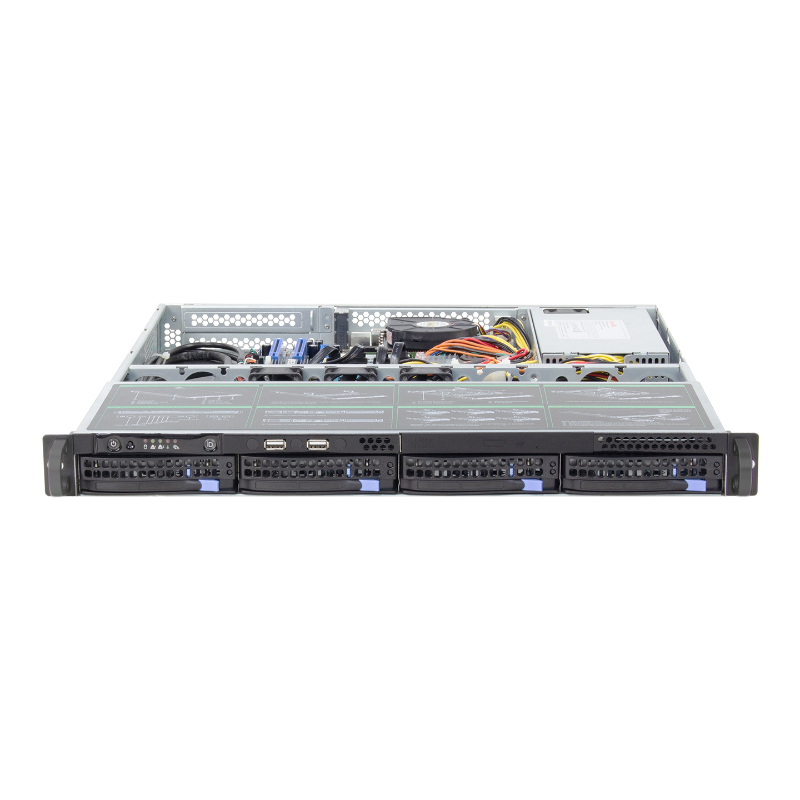

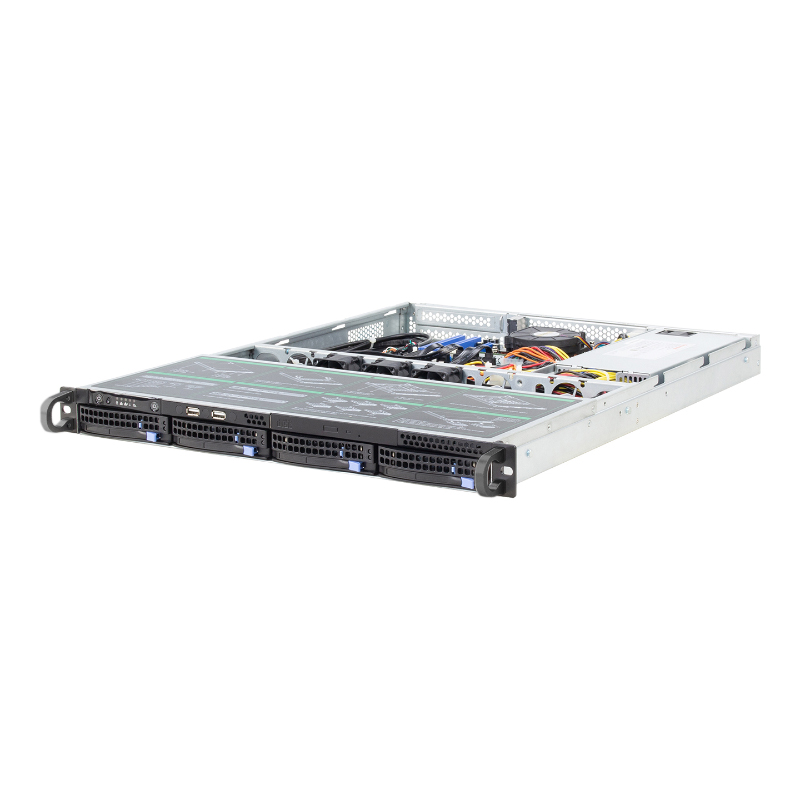

Built from 1.0 mm SGCC, the ISC-SC1U650A-H4-T is a compact 1U rackmount chassis with front-access drive carriers, rack handles and secured top-panel fasteners. Its 650 mm depth and support for up to six 40 mm fans promote directed airflow and easier inspection or maintenance.

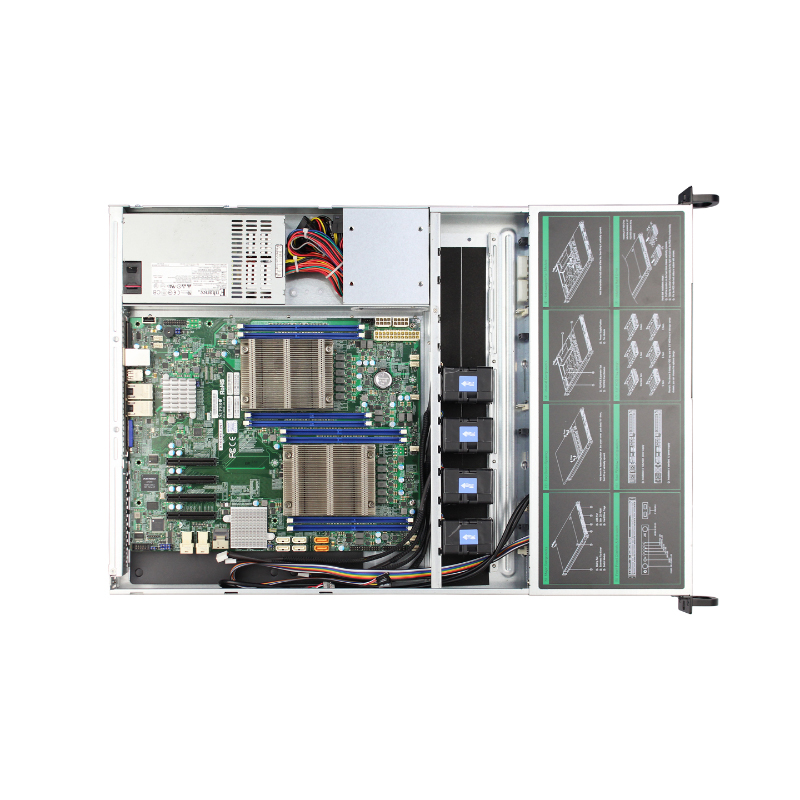

It supports EE-ATX boards up to 13.68 x 13 inches, four front 3.5-inch bays for selected 2.5-inch drives, one internal 2.5-inch position, one horizontal PCI/PCIe slot and 1U PSUs up to 300 mm. Suitable for cloud storage, big data, security monitoring and system integration, it offers flexible OEM/ODM and bulk sourcing value. Confirm backplane, fans, rails and accessories before ordering.
| Model | ISC-R166-4-M |
|---|---|
| Dimensions(mm) | 482(W)*660(D)*44.5 mm(H) |
| Main Board | 12"*13"(305*340MM) |
| Hard Disk | 4*3.5" HDD |
| Power | 1U Special Power Supply |
| an | Four 4028 Fans |
| Expansion Slot | One Full High and Straight Slot (Riser Card is needed/Optional) |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator(Red);Two Network Indicators(Yellow) |
| Case Material | SGCC |
| Packaging size | 84*58*14 |
| Gross weight | 11.6 kg |
