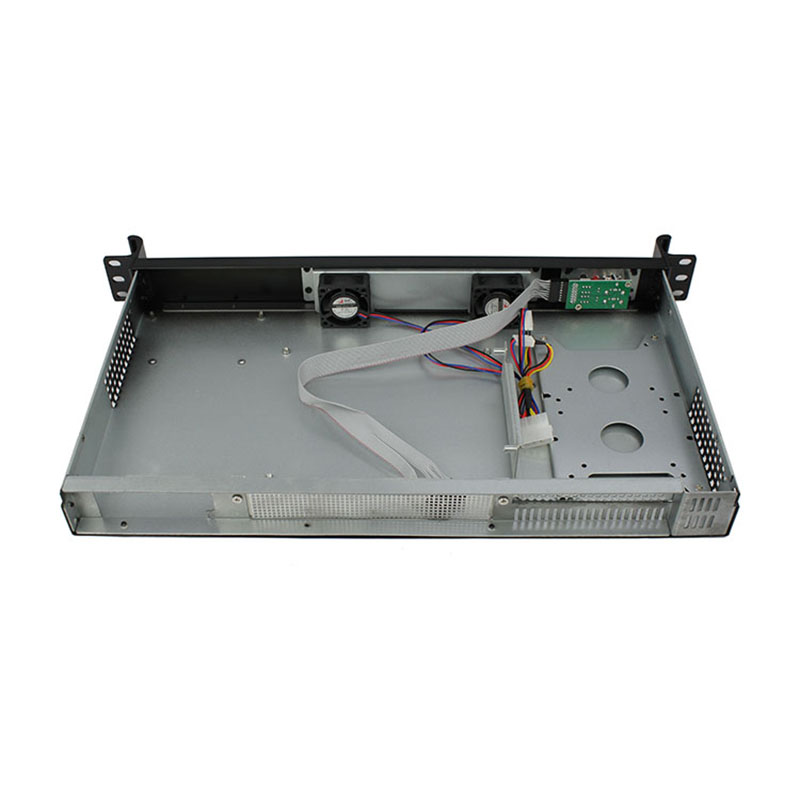

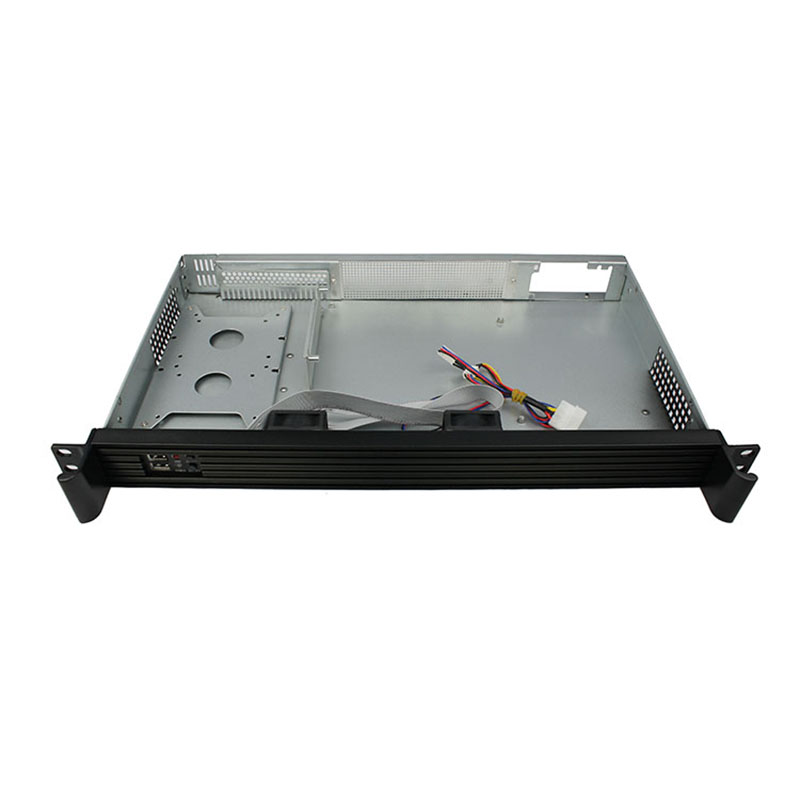

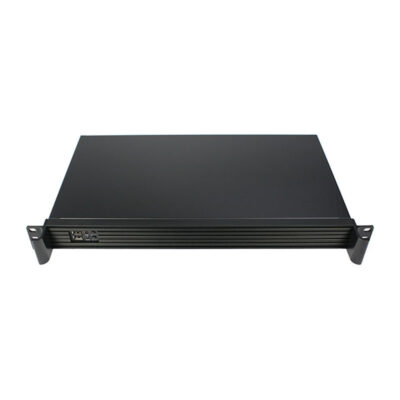

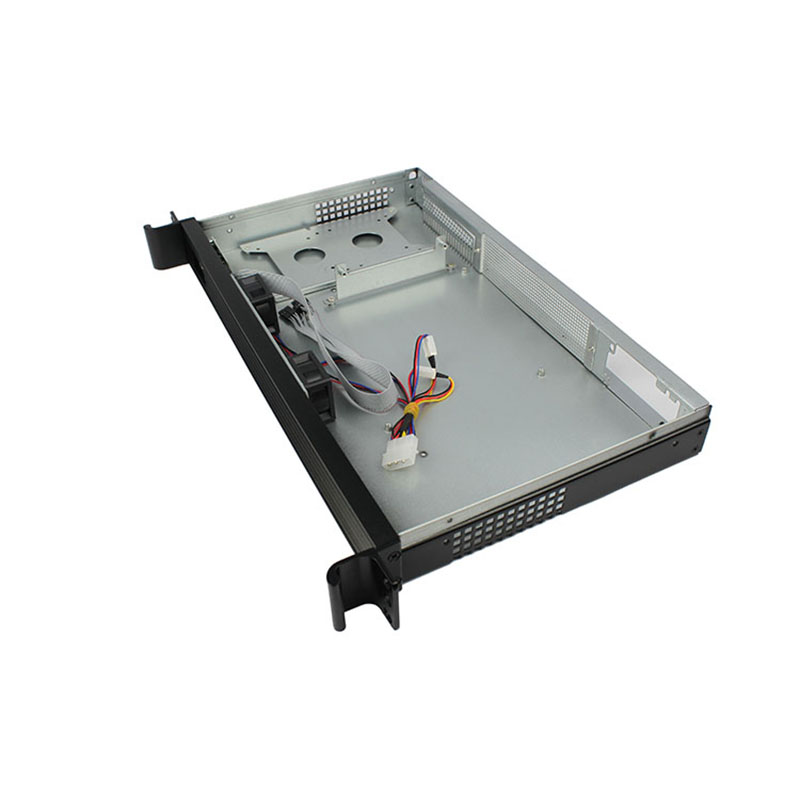

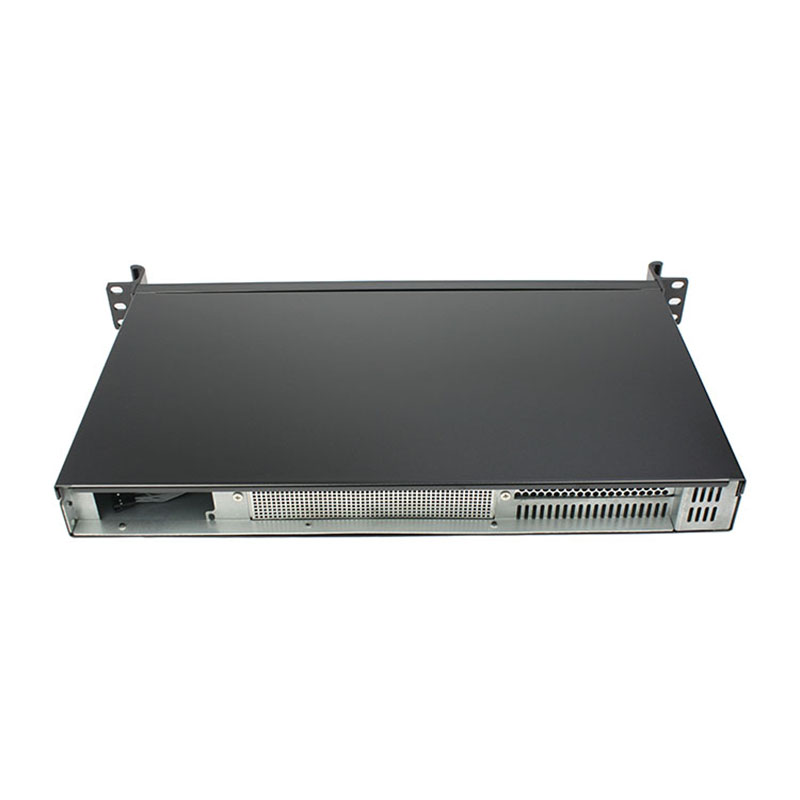

Compact ISC-SC1U250L-M 1U steel rackmount case with support for 1 × 3.5-inch or 2 × 2.5-inch drives, dual 4020 cooling fans, USB 2.0 front access, and one expansion slot. Suitable for compact storage, edge, and enterprise integration projects.
The ISC-SC1U250L-M is a compact 1U rackmount chassis made from 1.0 mm steel for server rooms, edge sites, enterprise IT, and network storage projects. Its 482 × 250 × 44.5 mm frame uses front rack mounting, two 4020 fans, and front USB 2.0, power, reset, and status controls for access and maintenance.
It supports one 3.5-inch drive or two 2.5-inch drives and one high straight expansion slot with an optional switching card. Motherboard, PSU, backplane, rails, and other system parts require confirmation. It suits integrators, service providers, distributors, and OEM/ODM buyers seeking custom development, prototyping, production, and volume procurement.
| Model | ISC-SC1U250L-M |
|---|---|
| Dimensions(mm) | 482(W)*250(D)*44.5(H) |
| Main Board | 7"*7"(170*170MM) |
| Hard Disk | 1* 3.5 inch hard disks or 2 *2.5 inch hard disks |
| Power | 1U flex power |
| Fan | 2*4020 fans |
| Expansion Slot | 1 high straight slot (with switching card / sold separately) |
| Panel Setting | 2 USB2.0, a power switch, a restart switch, a power indicator, a hard disk indicator |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.0MMPackaging size |
| Packaging size | 55*39.5*14.5CM(0.03CBM) |
