Compact 2U SGCC rackmount chassis with ATX/Micro ATX support, two 2.5-inch or one 3.5-inch drive position, seven half-height slots, dual 80 mm fans and front USB 2.0. Built for data center, storage and enterprise integration procurement.

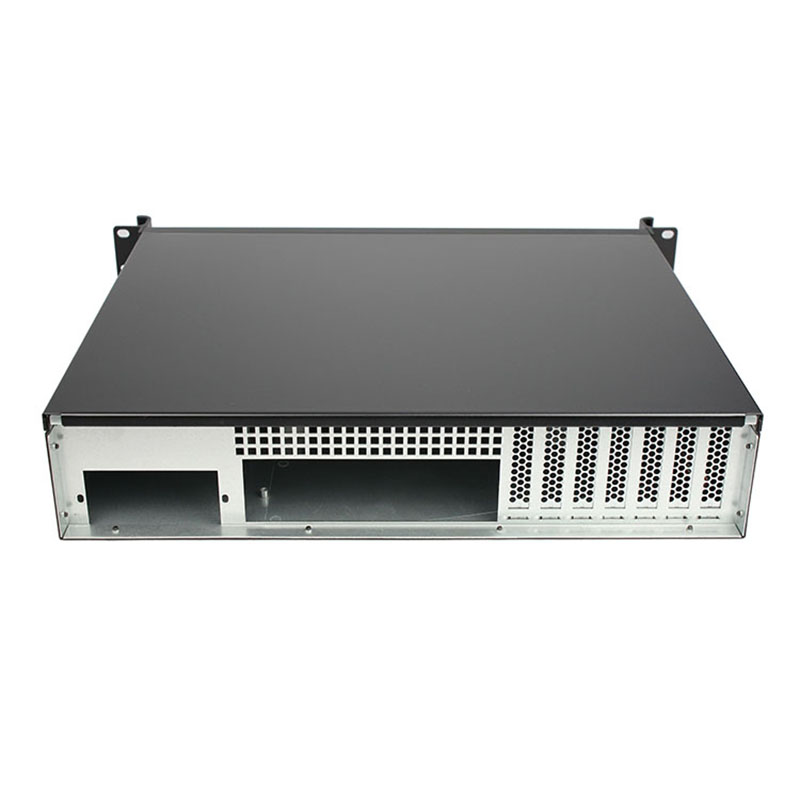

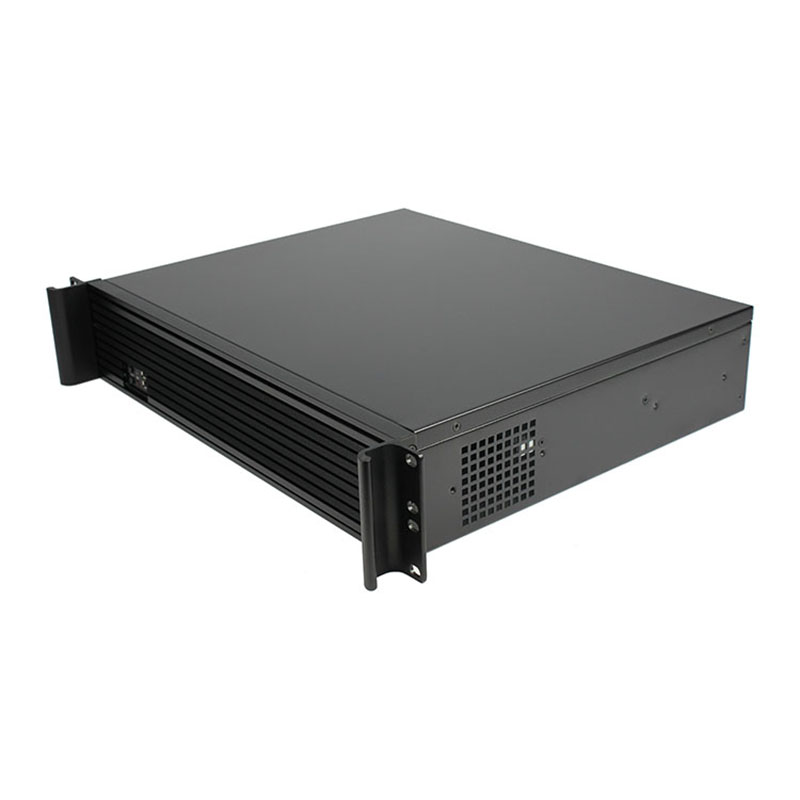

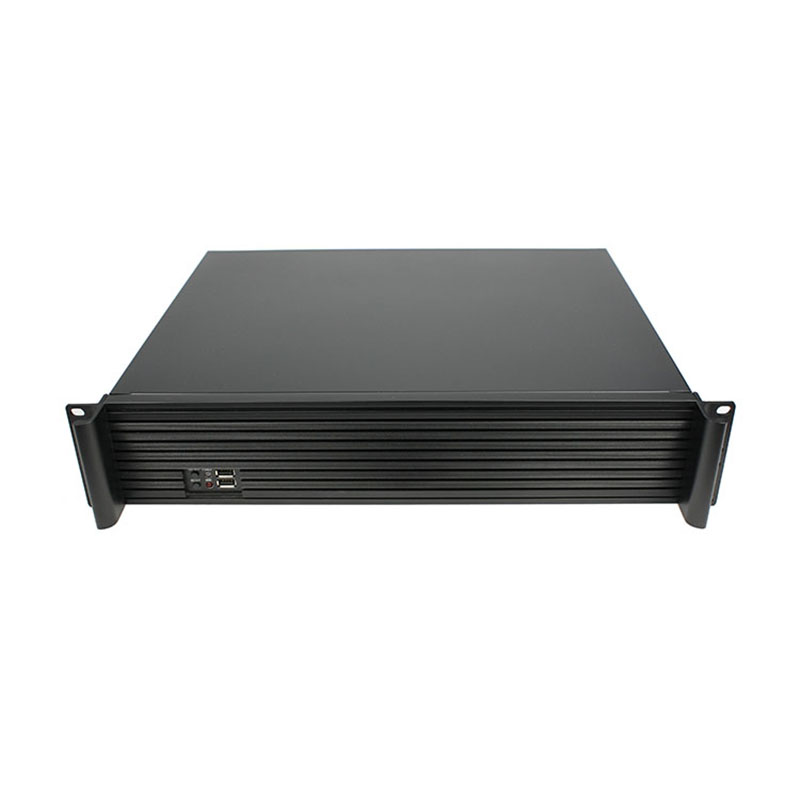

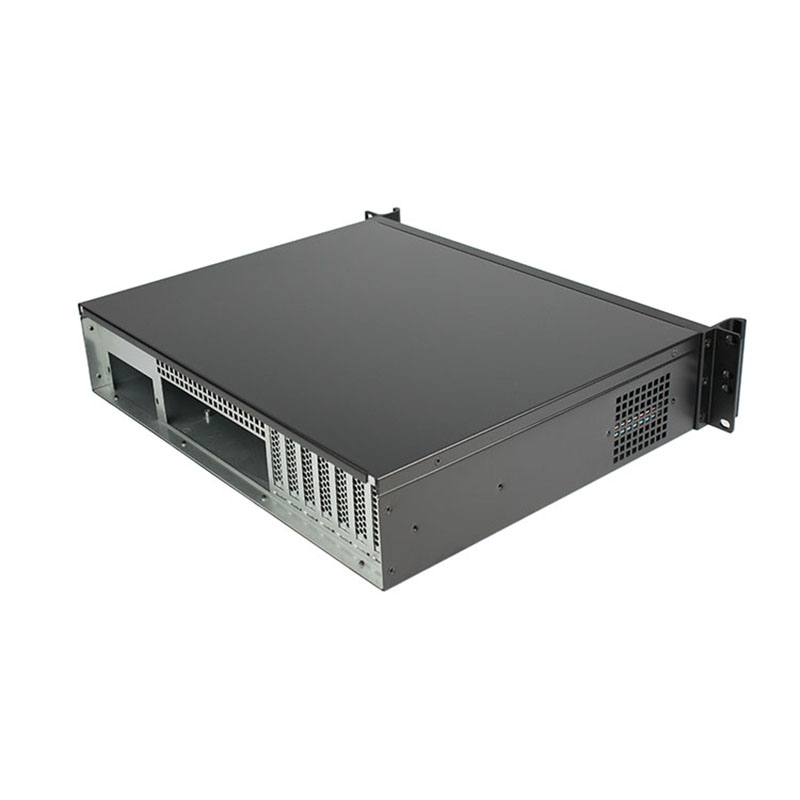

The ISC-RC2U310L-M is a compact 2U rackmount server chassis made from 1.2 mm SGCC. Its 482 x 350 x 89 mm body, rack handles and low-profile layout support cabinet deployment and service. Two 80 x 25 mm fans aid airflow, while front USB 2.0, power, reset and status indicators simplify operation.
It supports ATX and Micro ATX boards up to 12 x 9.6 inches, two 2.5-inch drives or one 3.5-inch drive, seven half-height slots and a listed 1U special PSU. Suitable for data centers, storage, edge systems and enterprise integration, it gives OEM/ODM buyers and distributors a configurable chassis for system builds and bulk procurement; confirm rails and final options before ordering.
| Model | ISC-RC2U310L-M |
|---|---|
| Dimensions(mm) | 482(W)*350(D)* 89 mm(H) |
| Main Board | 12"* 9.6"(305*245MM) |
| Hard Disk | Two 2.5-inch Hard Disks or One 3.5-inch Hard Disks |
| CD-ROM | None |
| Power | 1U Special Power Supply |
| Fan | Two 8025 Fans |
| Expansion Slot | Seven Half High and Straight Slots (Riser Card is needed/Optional) |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | SGCC |
| Material Thickness | 1.2MM |
| Packaging size | 54.5* 49 *18.5CM(0.05CBM) |
| Gross weight | 5.7KG |
| N.W | 4.2KG |
