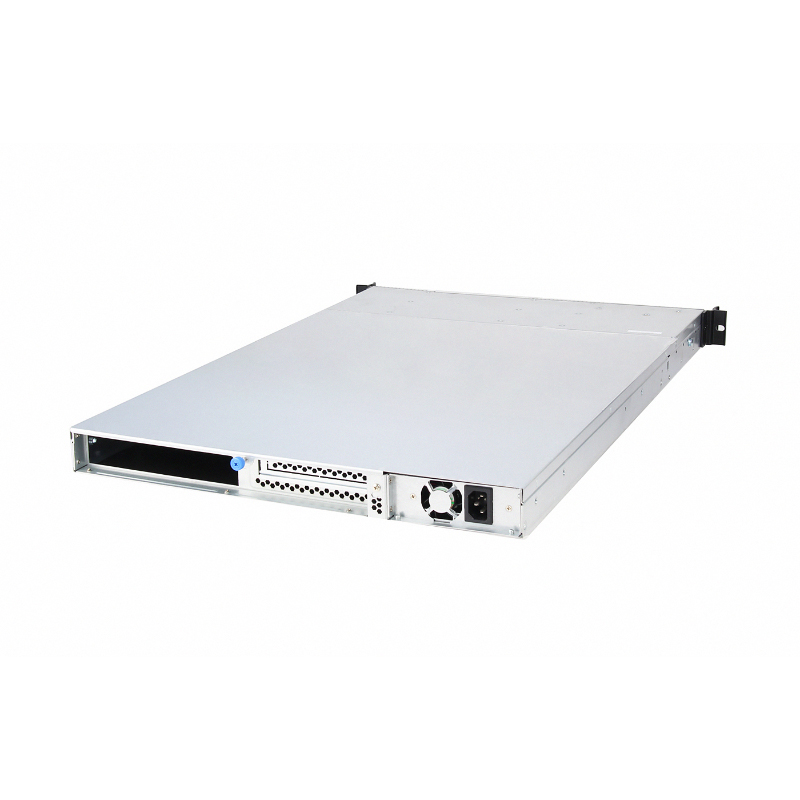

ISC-SC1U670-H4-T is a 1U SGCC rackmount server chassis with four front hot-swap drive bays, selected 2.5-inch drive support, one full-height PCIe slot, four fan positions, and standard 1U PSU compatibility for cloud, storage, and OEM projects.

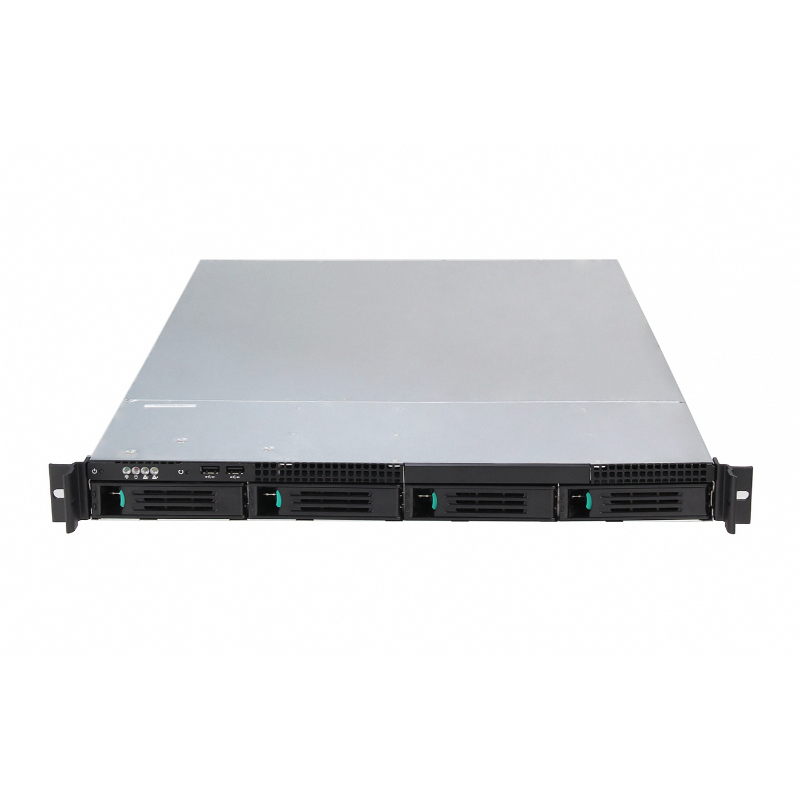

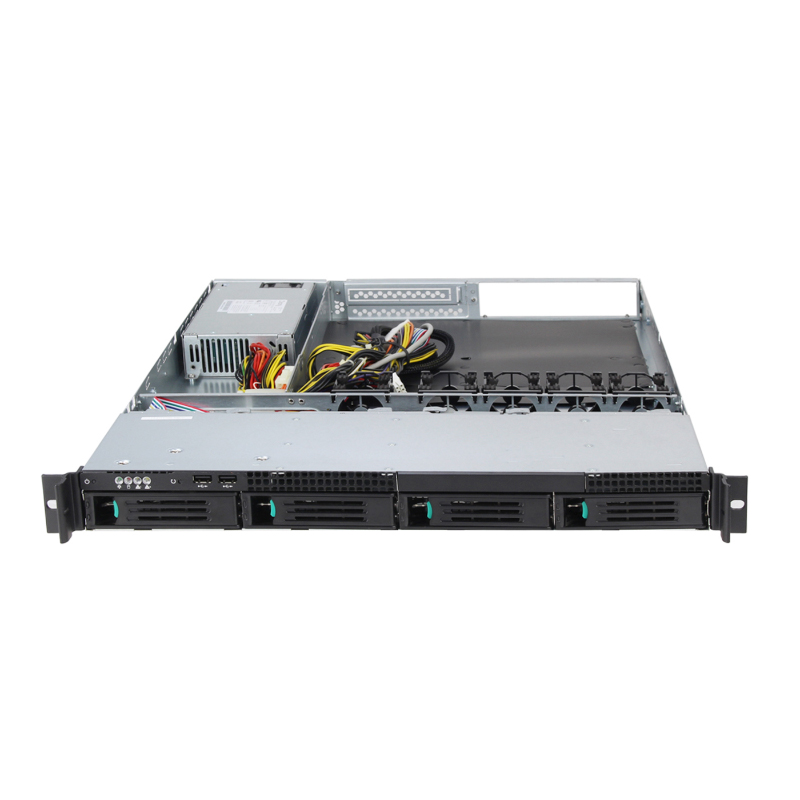

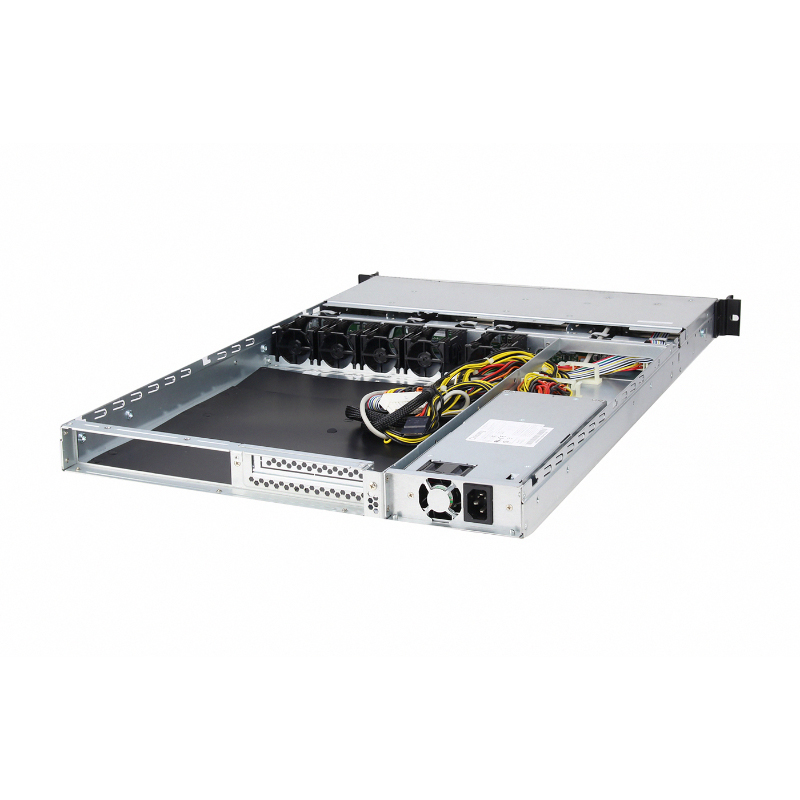

Built from 1.0 mm anti-fingerprint SGCC, the ISC-SC1U670-H4-T is a compact 1U rackmount chassis for dense server and storage deployments. Four front-access hot-swap bays, rack handles, and four hot-swappable 4056 fan positions support directed airflow, durable operation, and easier drive or cooling maintenance.
The chassis supports four 3.5-inch drives, selected 2.5-inch HDD/SSD configurations, one full-height PCIe slot, a 6Gb/s SATA backplane option with SGPIO, and standard 1U PSU formats. It suits cloud storage, enterprise IT, big-data nodes, integrators, distributors, and OEM/ODM procurement. Confirm motherboard, rails, fans, cables, backplane, and PSU before ordering.
| Model | ISC-SC1U670-H4-T |
|---|---|
| Chassis size | 670(L)*432(W)*44(H)mm |
| main material | Sinosteel, environmentally friendly, anti-fingerprint 1.0mm SGCC |
| surface treatment | Hanging ears are sprayed black, other steel plates are natural color |
| hard disk | 4 front 3.5" HDDs, compatible with 2.5" HDD/SSD |
| Hard disk backplane | 6Gb/s SATA interface, with temperature control, with SGPIO |
| Fan position | Standard 4 4056 hot-swappable fan positions (high air pressure/high air volume) 11000RPM |
| Applicable motherboard | Standard motherboards 12"x13" and below |
| I/O expansion | 1 full-height PCI/PCIE expansion slot, horizontal insertion |
| External interface | 2*USB 2.0 |
| system control | Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2 |
| Applicable power supply | Standard 1U power supply |
| Internal accessories | Power bracket, screw bag |
| Safety standards | GB/T 13914-2002 |
