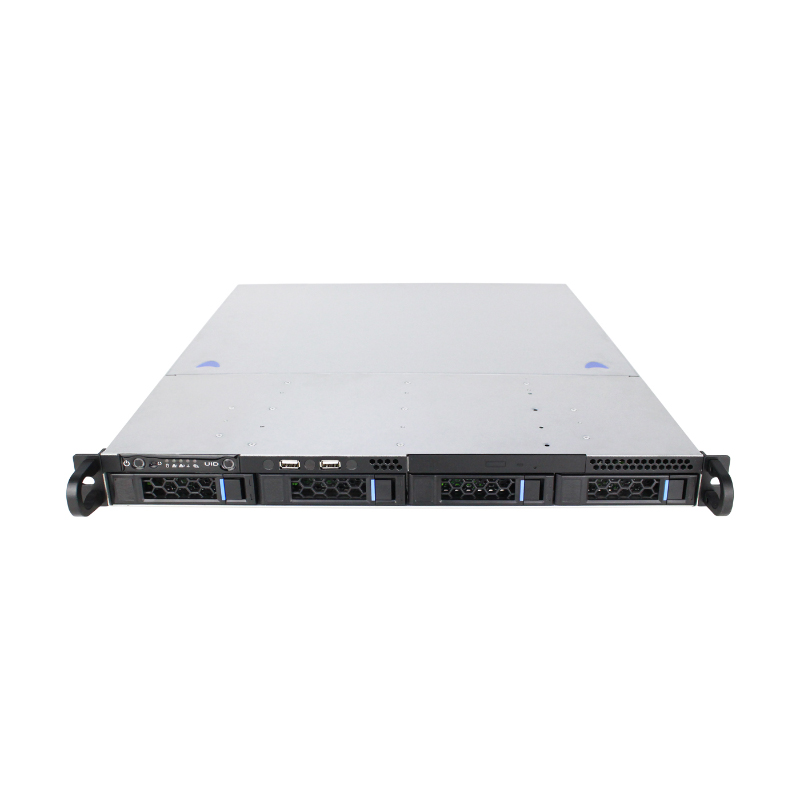

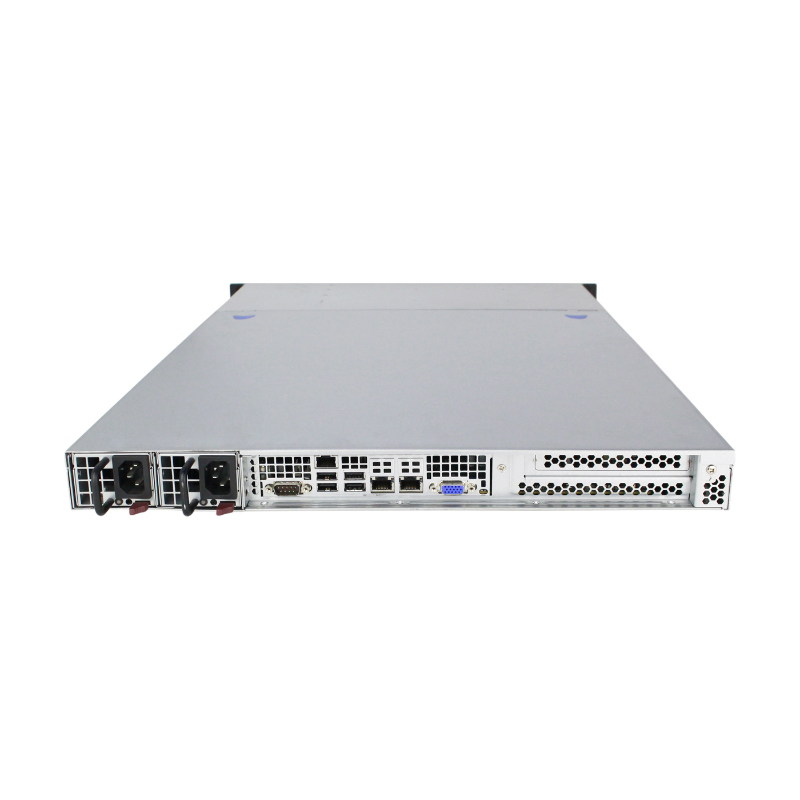

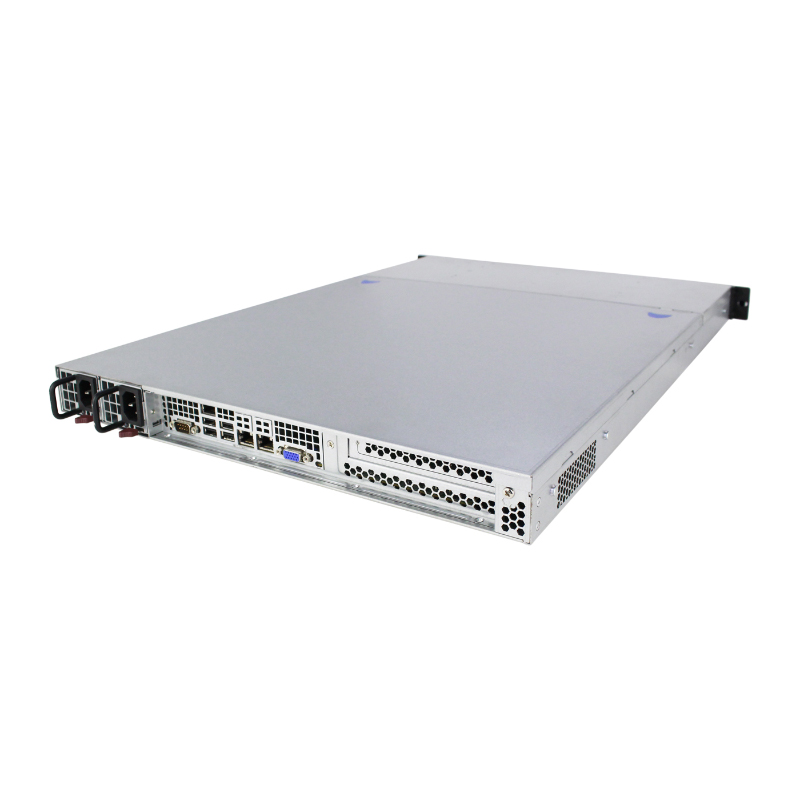

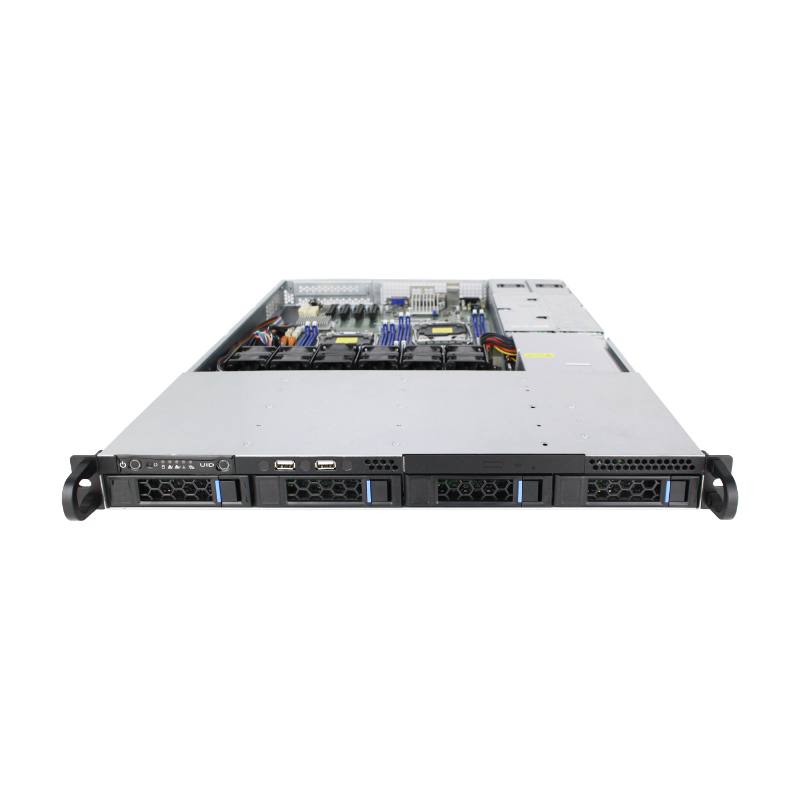

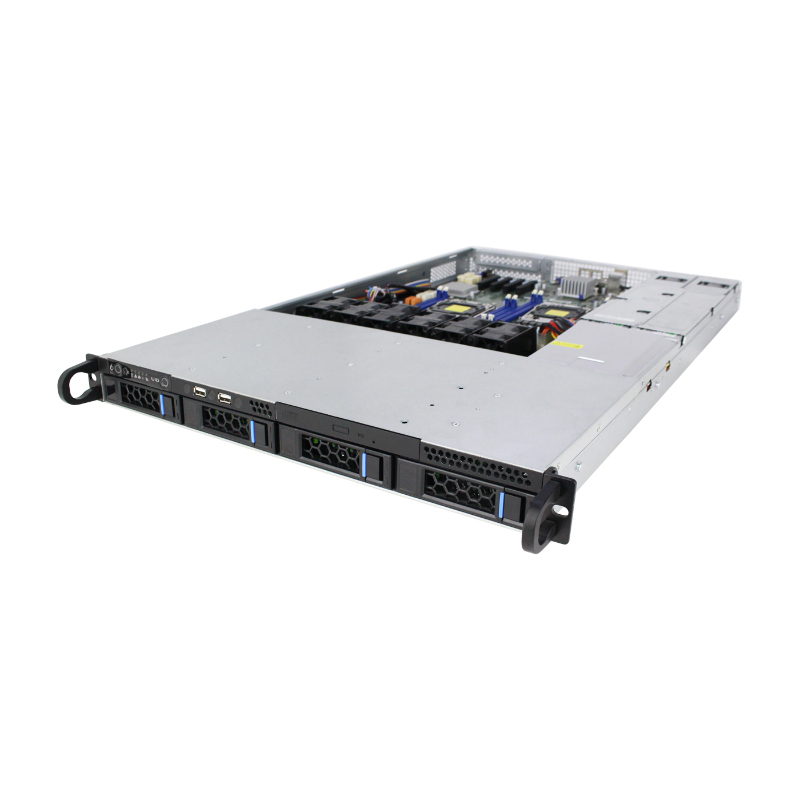

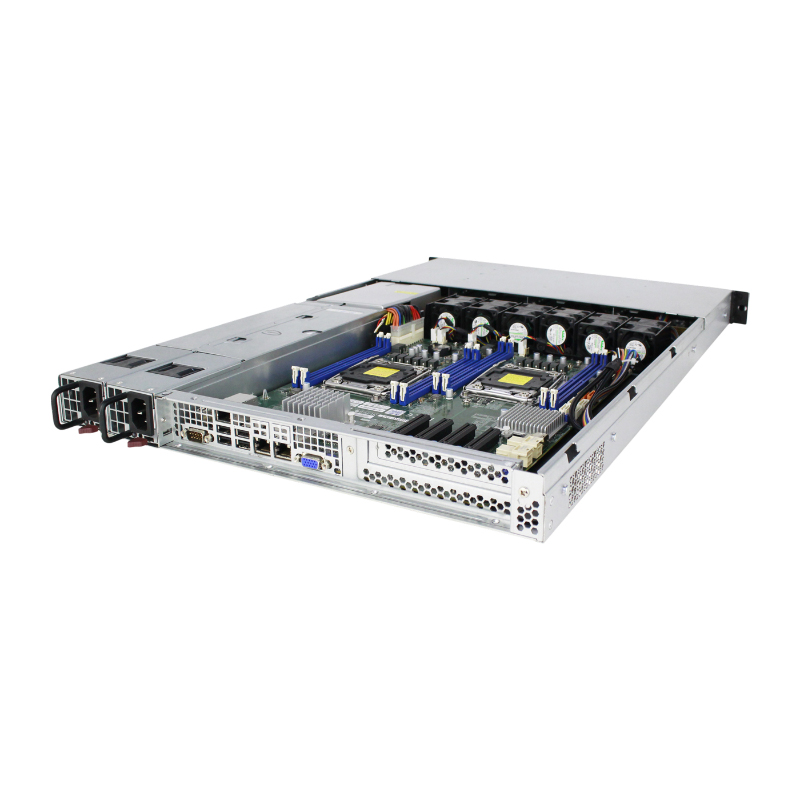

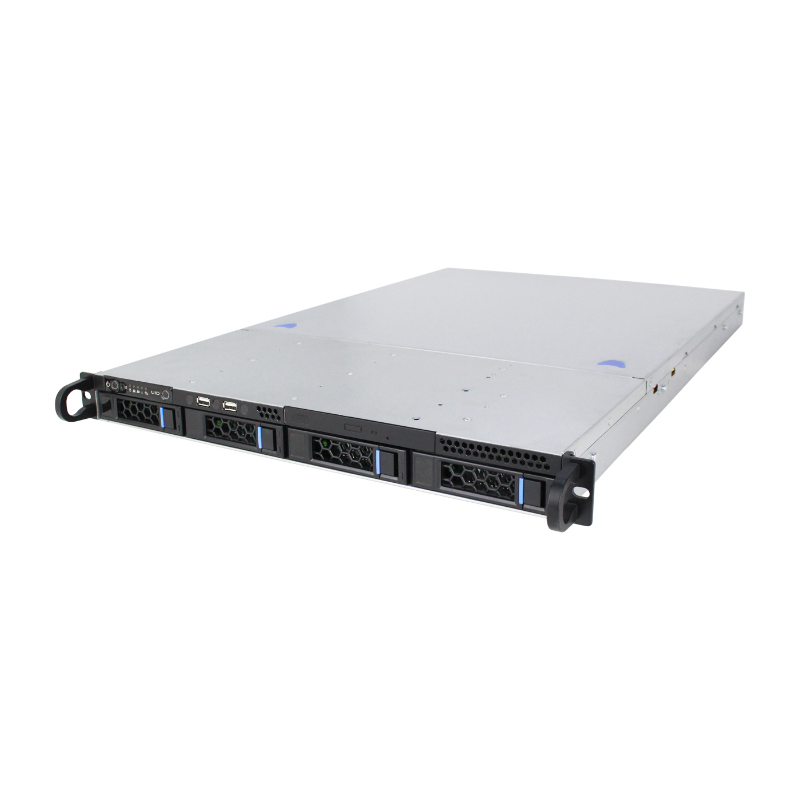

ISC-SC1U650A-H4-T is a 1U SGCC rackmount server chassis with four front hot-swap 3.5-inch bays compatible with 2.5-inch drives, EE-ATX support, 40 mm cooling, and standard 1U PSU compatibility for cloud, security, and OEM/ODM projects.
Built from 1.0 mm fingerprint-resistant SGCC, this 1U rackmount chassis has a tool-free top cover, front-access trays, and a 650 mm-deep layout for dense installations. Support for up to six 40 mm fans helps maintain directed airflow and convenient maintenance.
ISC-SC1U650A-H4-T provides four front hot-swap bays, one internal 2.5-inch bay, EE-ATX support, one horizontal PCI/PCIe slot, and standard 1U PSU compatibility. Designed for cloud storage, security monitoring, and enterprise IT, it serves data center operators, system integrators, and OEM buyers seeking configurable ODM development and bulk sourcing. Confirm backplane, rails, fans, and accessories before ordering.
| Model | ISC-SC1U650A-H4-T |
|---|---|
| Chassis size | L650mm* W437.5mm* H44.5mm |
| material | Environmentally friendly, fingerprint resistant 1.0mm SGCC |
| hard disk | Front 4* 3.5" HDDs (compatible with 2.5" HDD/SSD), built-in 1* 2.5" HDD/SSD; HDD extraction box adopts anti-EMI design, with light guide column, which can indicate the working status of the HDD; slide rail design, smooth extraction |

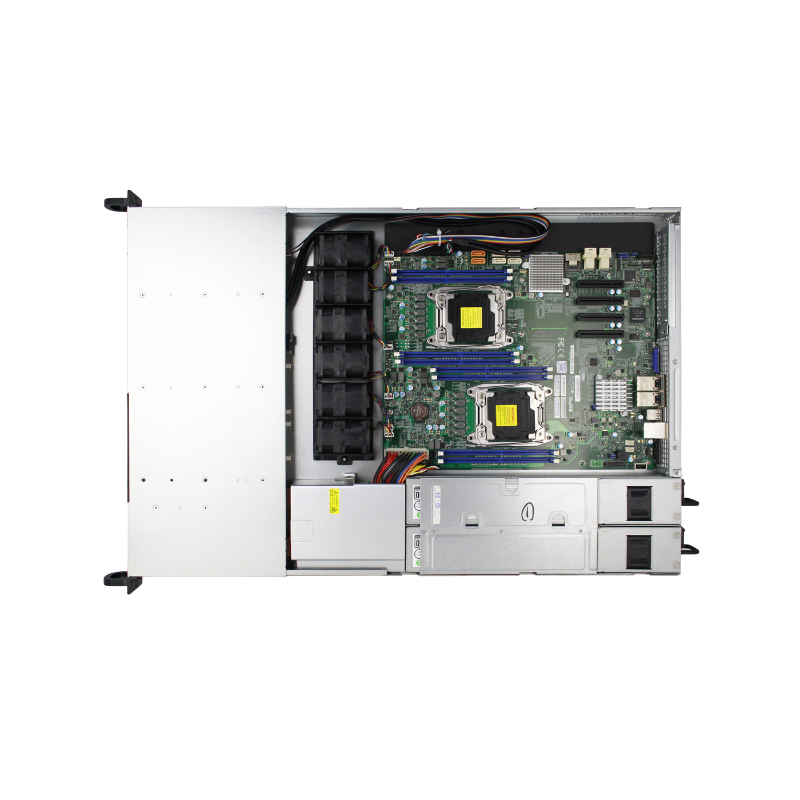

| Motherboard size | Standard motherboards 13.68"* 13" (EE-ATX) and below |
| Backplane Specifications | 6Gb/s Sata interface, with temperature control, direct connection mode |
| Optical drive slot type | 1* ultra-thin notebook optical drive slot |
| USB type | 2* USB 2.0 |
| Rear expansion slot orientation | 2* USB 2.0 |

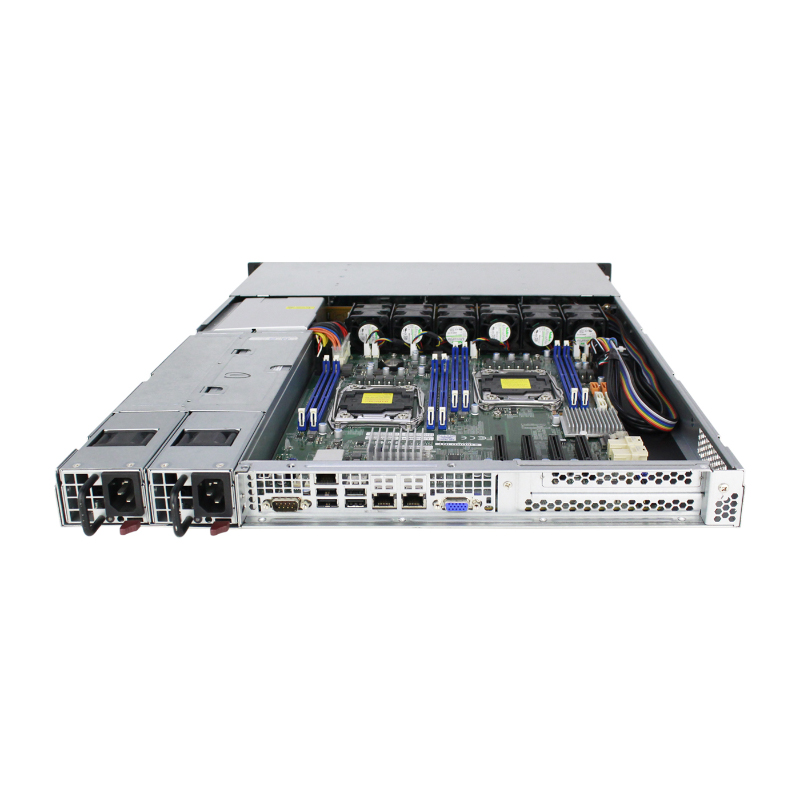

| Fan Specifications | Support 6* 40mm fans, 4* 4028B ball fans as standard, 12000rpm, with hot swap and shock absorption |
