The ISC-RC2U450F-M is a 2U steel rackmount chassis supporting 12 x 9.6 in motherboards, up to three drives, seven mixed-height expansion slots and two 8025 fans. Designed for enterprise IT, storage and integration projects with OEM/ODM sourcing support.

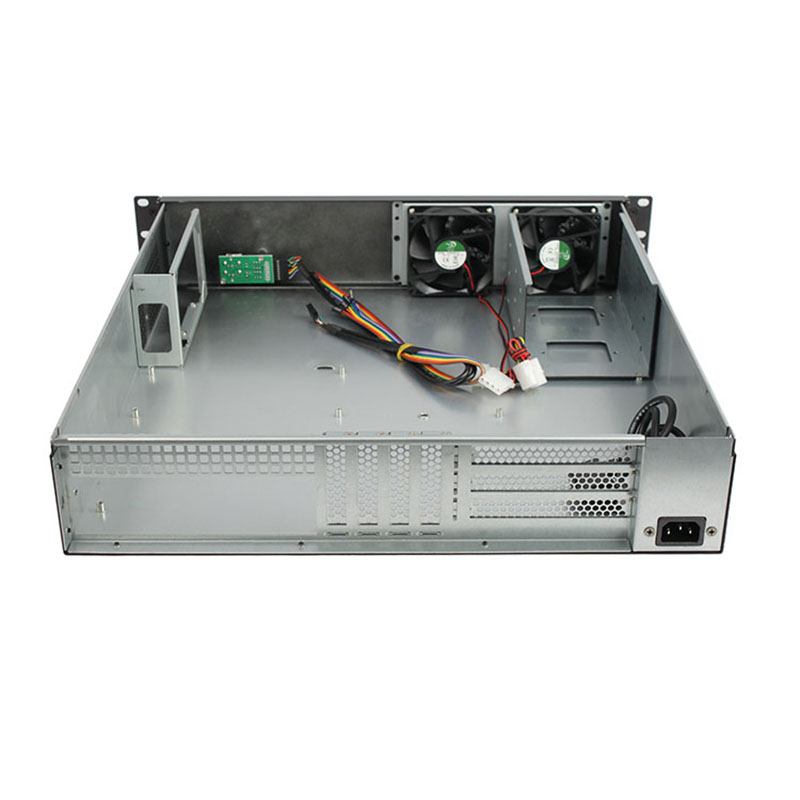

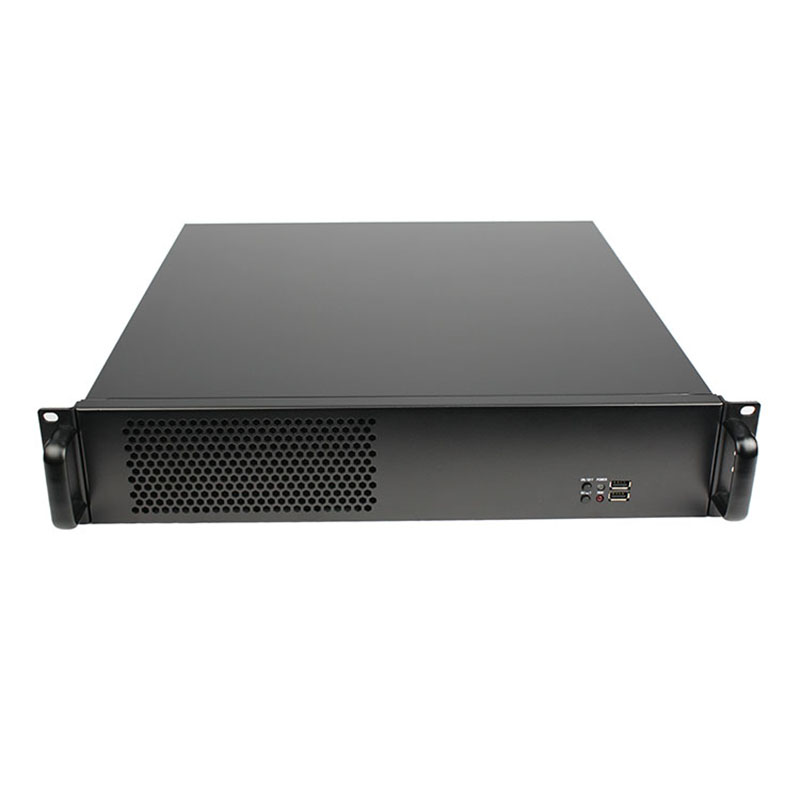

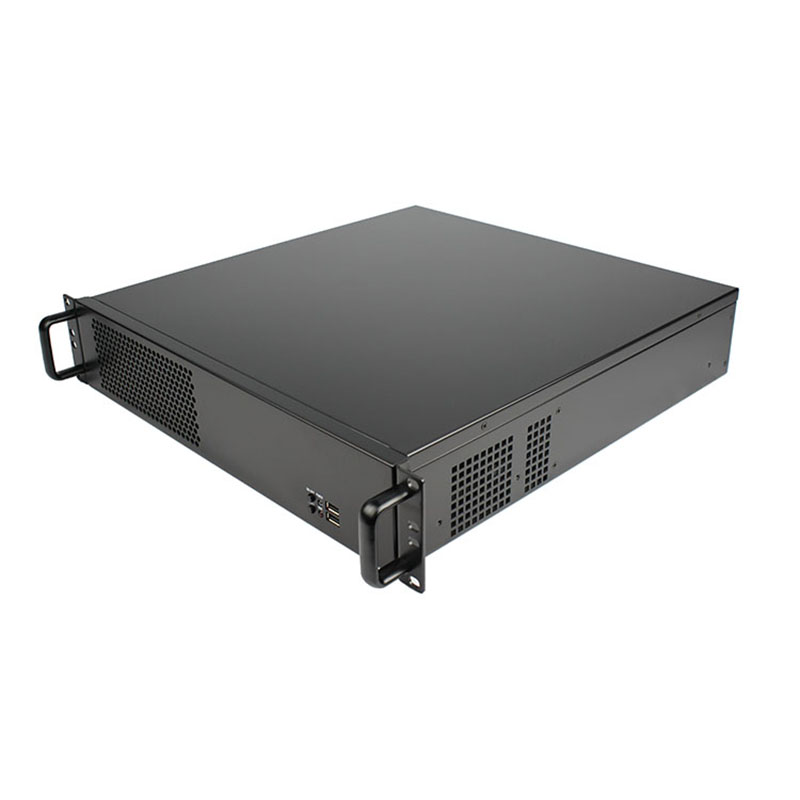

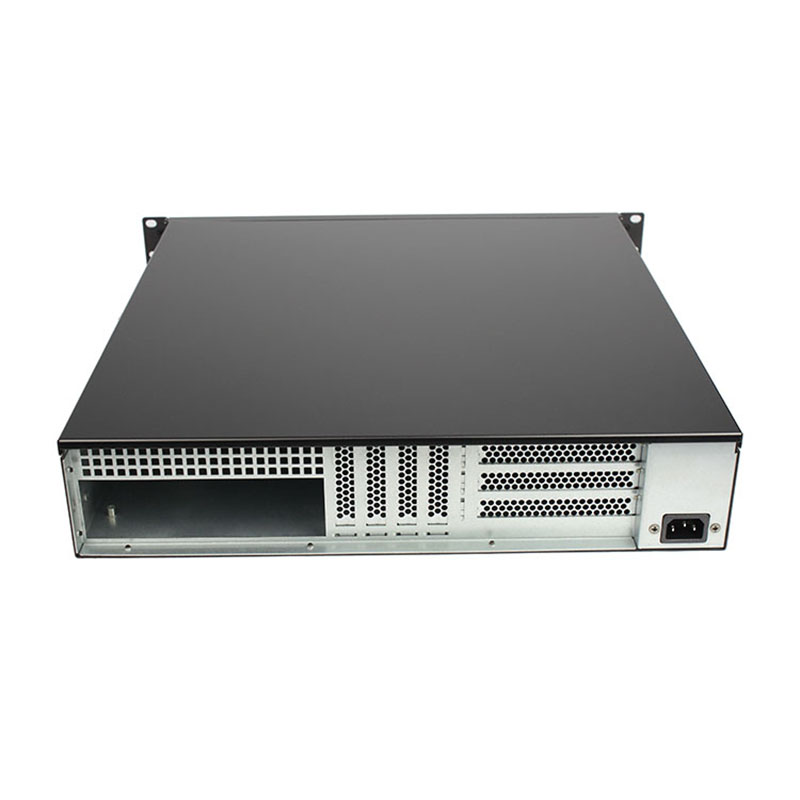

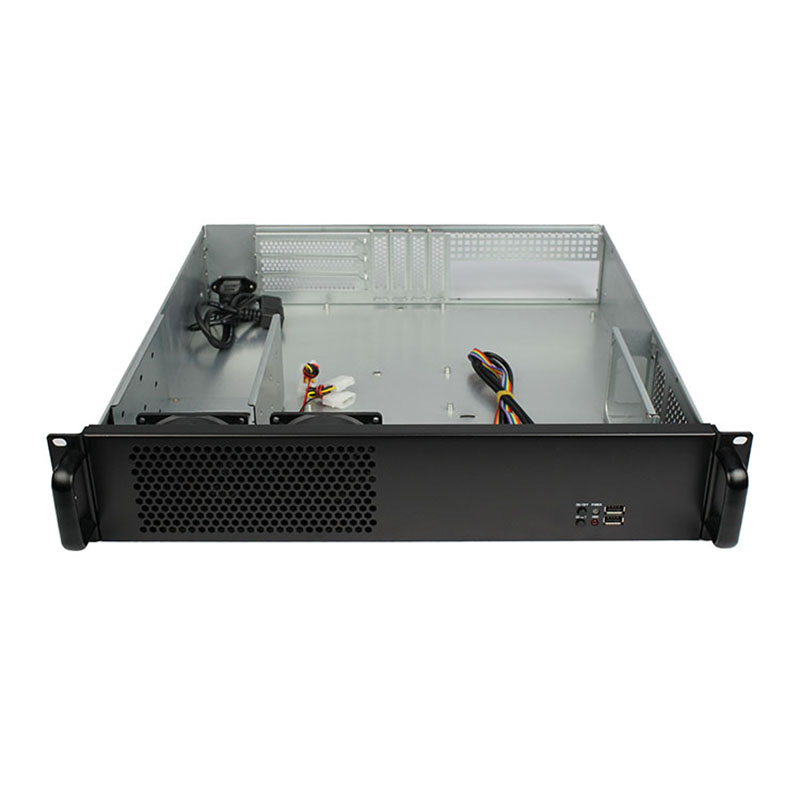

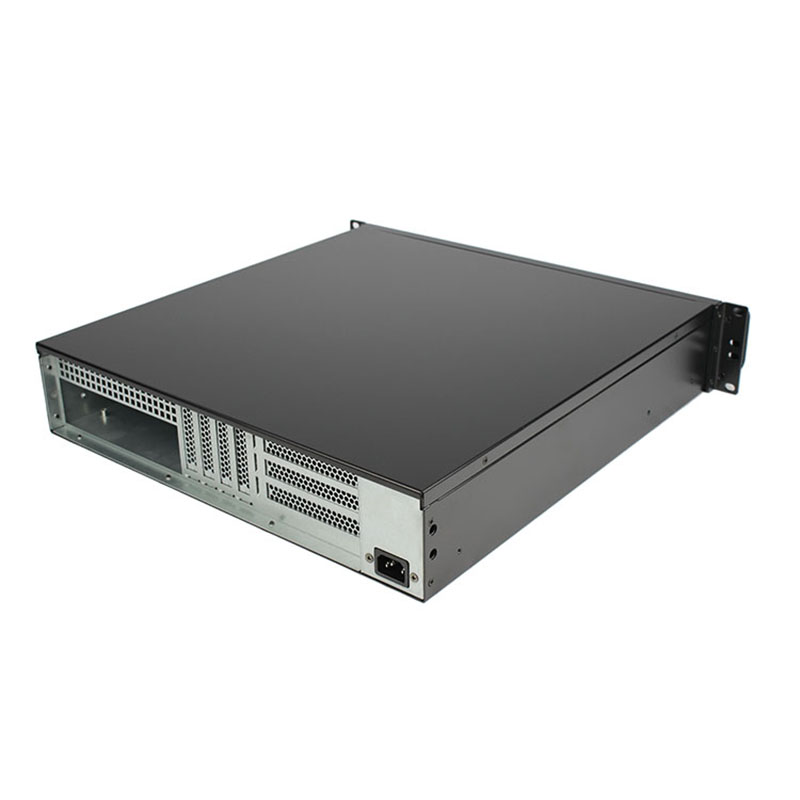

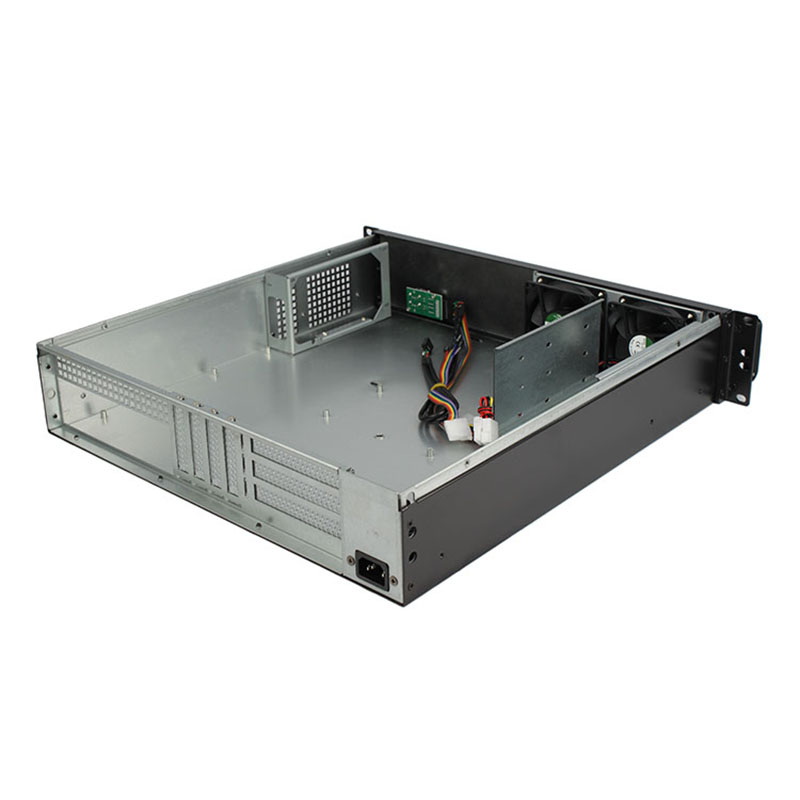

The ISC-RC2U450F-M is a 2U rackmount chassis made from zinc-plated Ma steel, with front mounting ears, handles and a perforated air-intake panel. Its 450 mm depth suits compact rack deployment, while two specified 8025 fans support directed cooling. Front controls and two USB 2.0 ports aid operation and maintenance.
It supports motherboards up to 12 x 9.6 inches, up to three drives, and four half-height plus three full-height expansion slots for enterprise IT, storage, research and integration workloads. Confirm PSU, backplane, hot-swap and rail requirements before ordering. iSTONECASE supports OEM/ODM customization, production, bulk procurement and distributor sourcing.
| Model | ISC-RC2U450F-M |
|---|---|
| Dimensions(mm) | 482(W)*450(D)* 89 mm(H) |
| Main Board | 12"* 9.6"(305*245MM) |
| Hard Disk | Three 3.5-inch Hard Disks or Two 3.5-inch & One 2.5-inch Hard Disk |
| CD-ROM | None |
| Power | ATX PSU |
| Fan | Two 8025 Fans |
| Expansion Slot | Four Half High and Straight Slots and Three Full High and Straight Slots |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.2MM |
| Packaging size | 61*56.5*19CM(0.065CBM) |
| Gross weight | 8.5KG |
| N.W | 6.2KG |
| Container loading quantity | 20＂：430 40＂： 890 40HQ＂：1046 |
