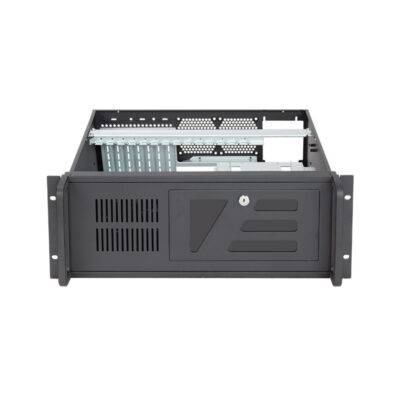

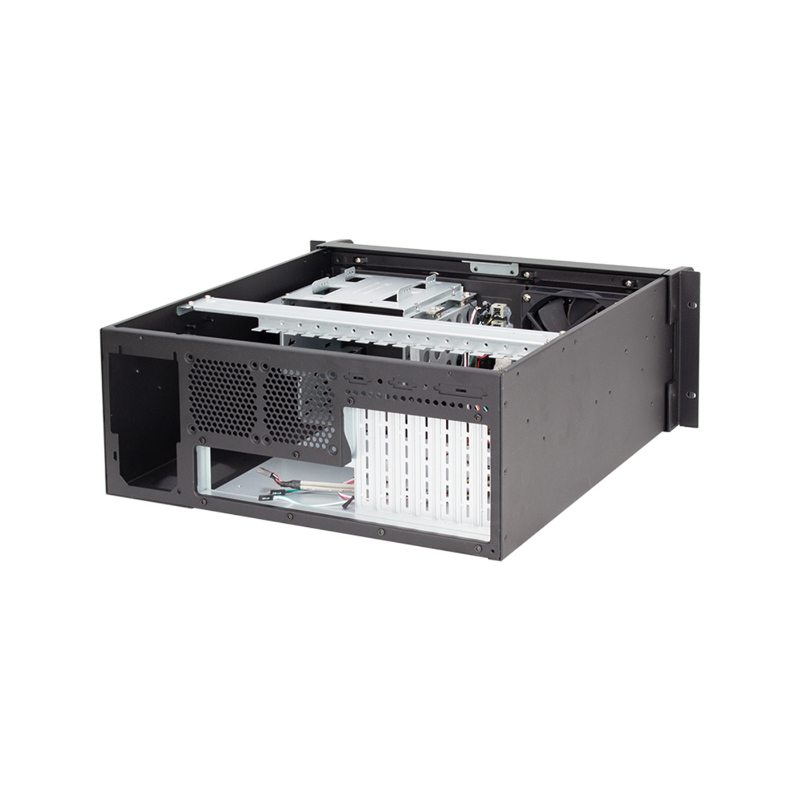

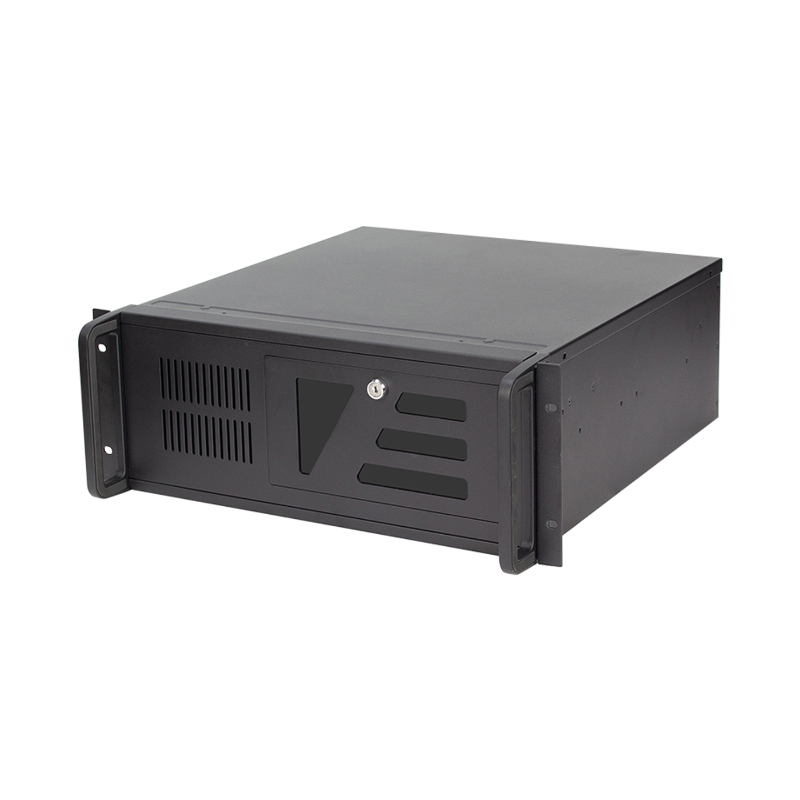

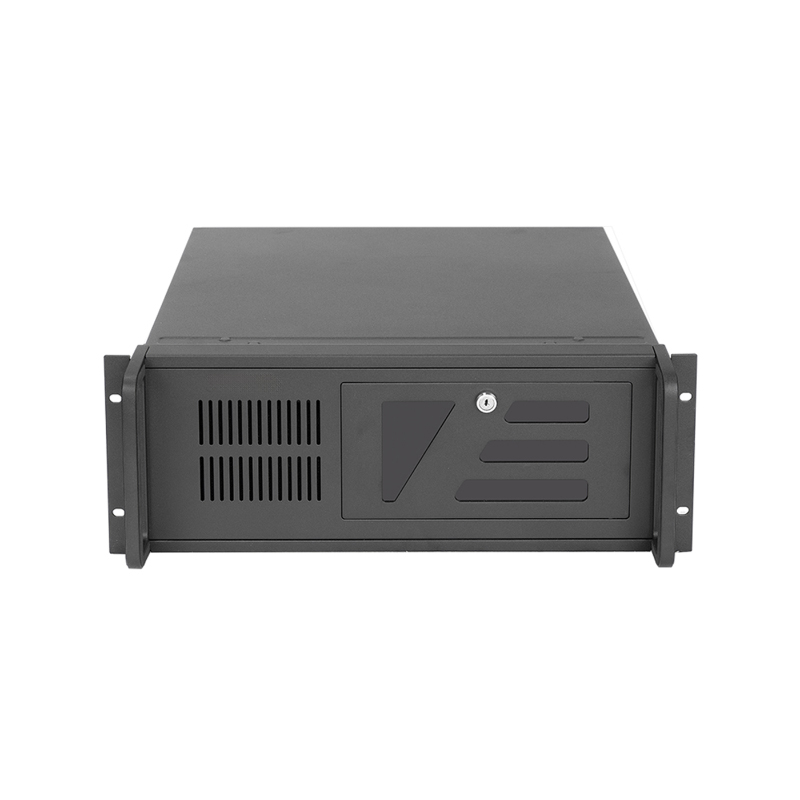

ISC RC4U610DB T is a 4U rackmount chassis supporting standard 12 x 9.6 in motherboards, 2 x 3.5 in and 1 x 2.5 in drives, 7 PCI/PCIe slots, dual USB 2.0 and a lockable front panel for industrial server and OEM/ODM projects.
Product Overview: The ISC RC4U610DB T is a configurable 4U rackmount chassis for industrial and enterprise server builds.
Product Category: Rackmount server case for system integration and project deployment.
Key Configuration: 450 x 427 x 177 mm, mixed drive bays, 7 PCI/PCIe slots, dual USB 2.0 and a 12025S fan position.
Compatibility: Designed for standard 12 x 9.6 in motherboards; PSU, rails, fans, backplane and cables depend on configuration.
Applications: Industrial control, automation, IoT, security monitoring and enterprise IT.
Procurement Value: Suitable for integrators, OEM/ODM customers, distributors and bulk project sourcing.
| Model | ISC-RC4U610DB-T |
|---|---|
| Case size | 450(L)*427(W)*177(H)mm |
| Main material | Magang, environmentally friendly 1.2mm SPCC and fingerprint-resistant SGCC |
| Surface treatment | Internal parts are not sprayed, and the rest are all sprayed with computer white |
| HDD slot | 2 built-in 3.5" HDD,1 2.5" SSD |
| CD-ROM slot | 2 5.25" optical drive bays,1 3.5" floppy drive bay |
| Fan slot | 1 12025S fan |
| Applicable motherboard | Standard motherboards of 12"*9.6" and below |
| I/O expansion | 7 full-height PCI/PCIE expansion slots,vertically inserted |
| External interface | 2* USB 2.0 |
| System control | Power LED*1, Reset*1, Power SW*1, HDD LED*1 |
| Applicable power supply | Standard ATX power supply |
| Internal accessories | Power supply bracket, screw package |
| Safety standards | GB/T 13914-2002 |
| Packing method | Head and bottom box + outer box |
| Packing size | 580*530*260㎜ |
| Applicable fields | Industrial control, mechanical automation, intelligent transportation, Internet of Things, security monitoring and other fields |
