ISC-RC2U650F-M is a 2U SGCC steel rackmount chassis with eight 3.5-inch bays, two 5.25-inch bays, support for up to 12 x 13-inch ATX, Micro-ATX and EEB boards, seven half-height slots and ATX PS2 PSU compatibility for enterprise IT, integration and OEM/ODM sourcing.

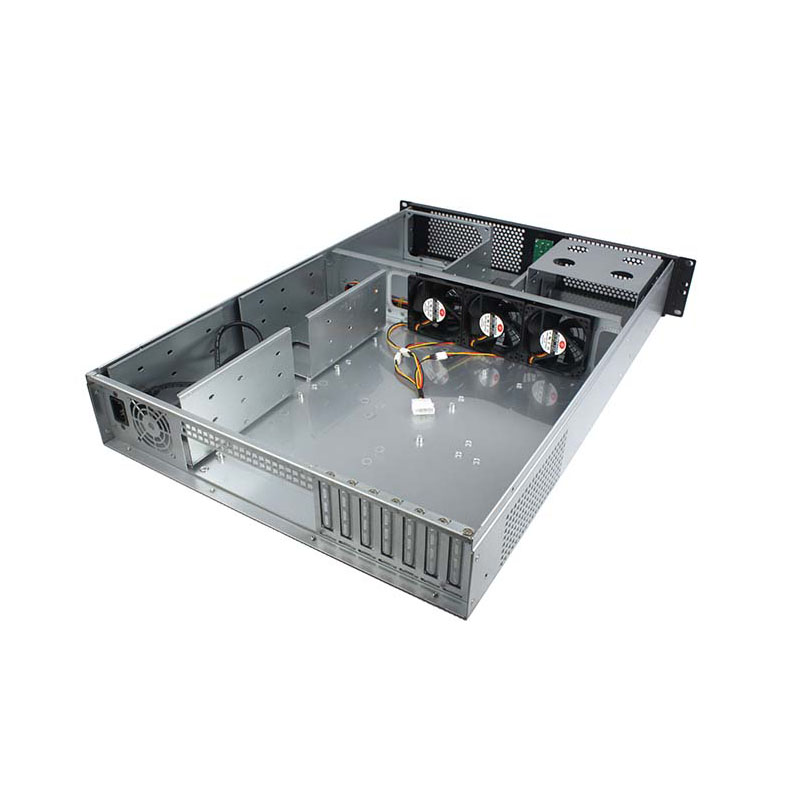

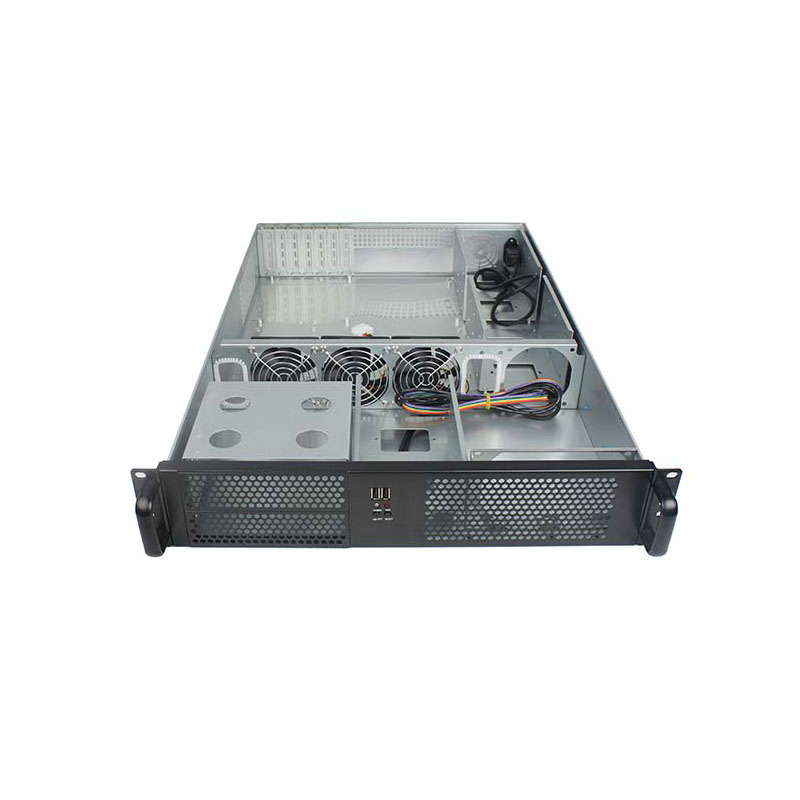

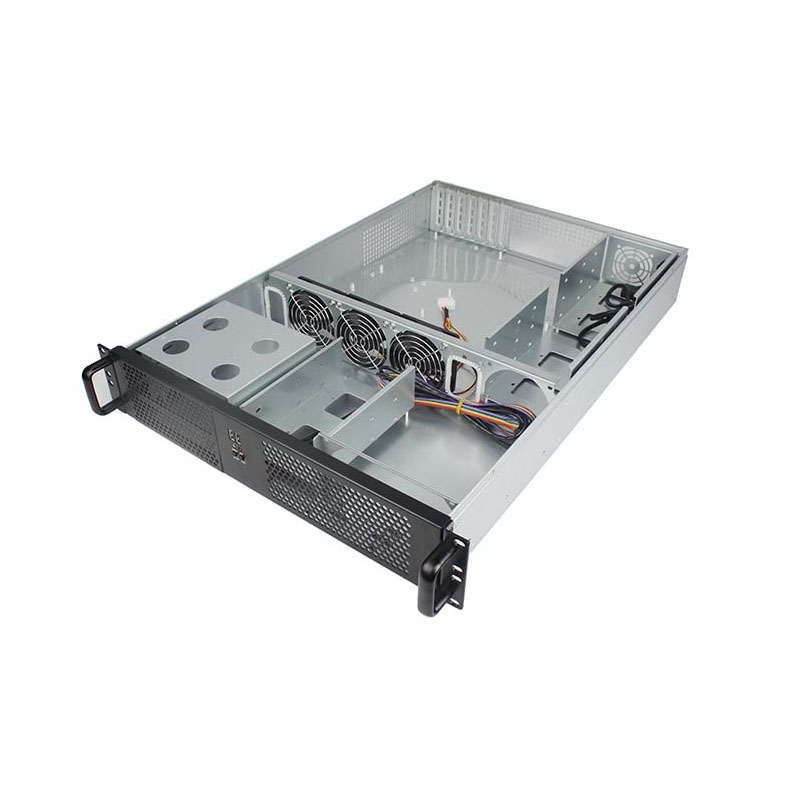

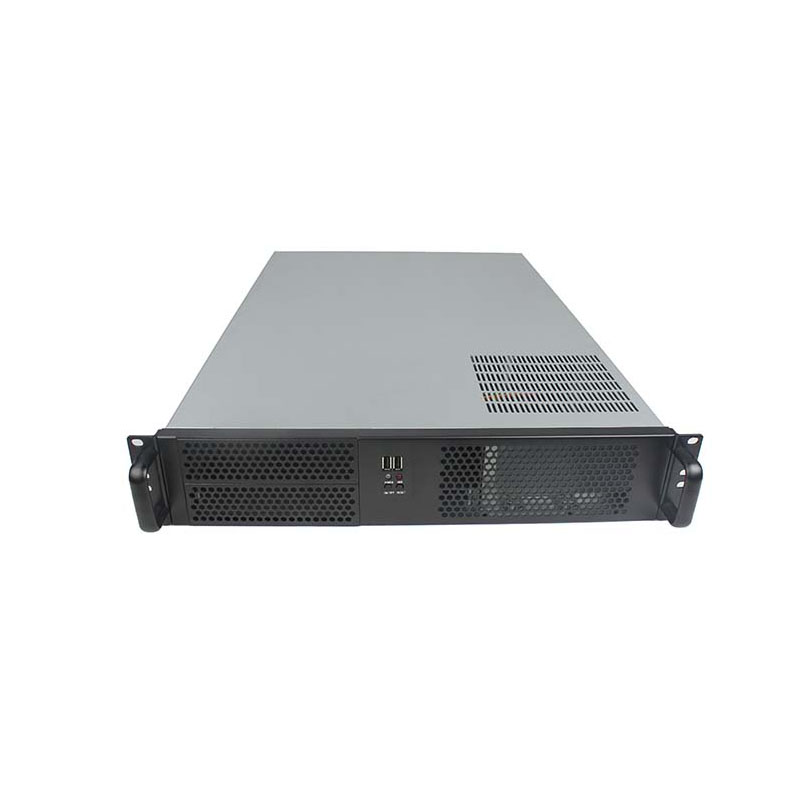

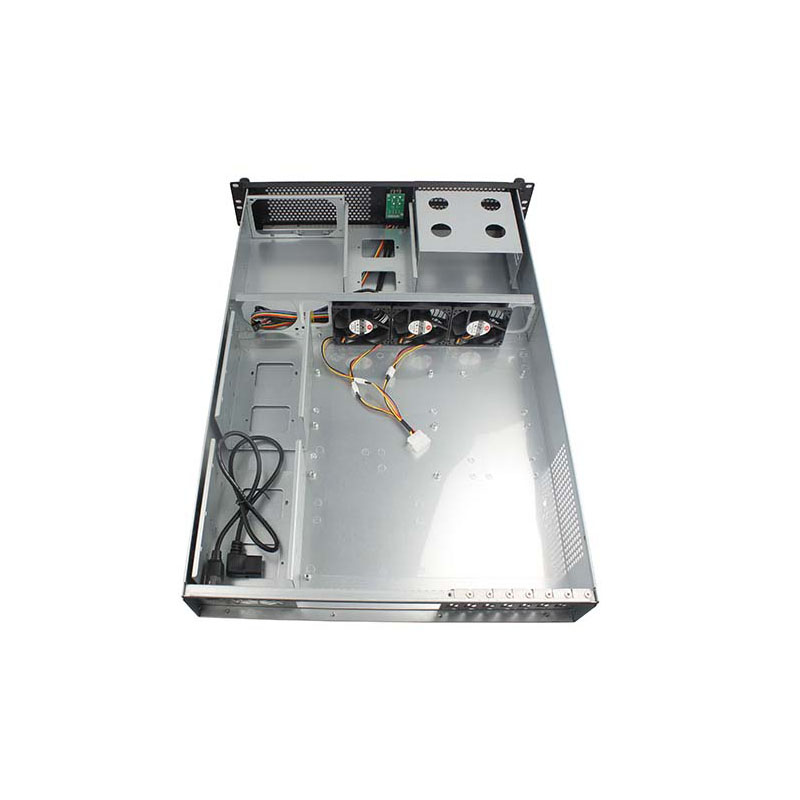

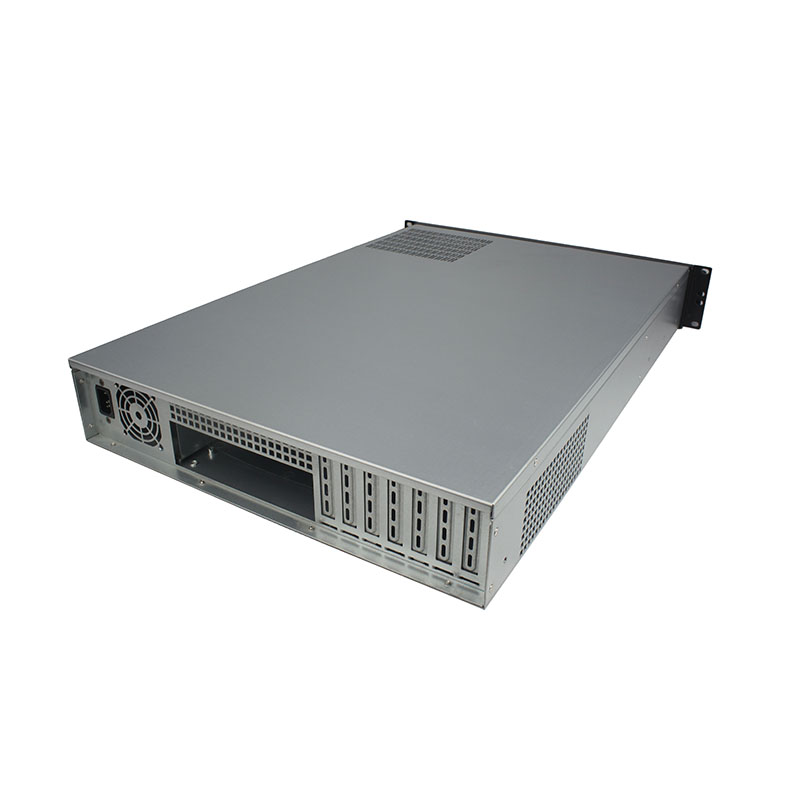

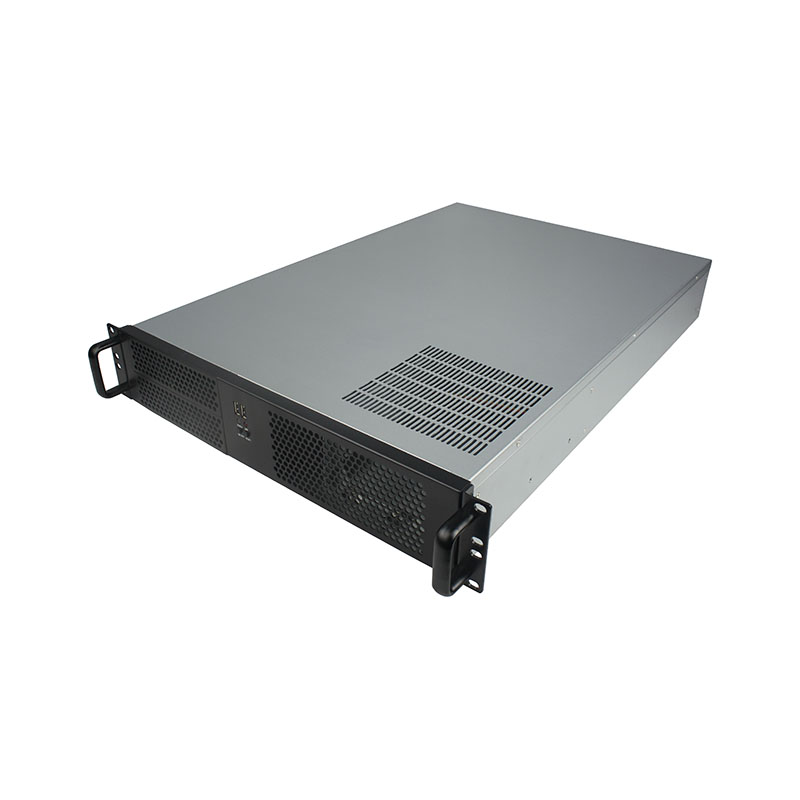

The ISC-RC2U650F-M is a 2U rackmount chassis built from 1.2 mm SGCC steel and sized at 482 x 650 x 89 mm. Front handles, an accessible internal layout, four 80 x 25 mm fans and a ventilated front panel support rack installation, airflow and service access for data center, enterprise IT and research use.
It supports up to 12 x 13-inch ATX, Micro-ATX and EEB boards, eight 3.5-inch HDD bays, two 5.25-inch bays, seven half-height expansion slots and an ATX PS2 PSU. Hot-swap, backplane and rails are not specified; confirm before ordering. Designed for integrators, OEM/ODM projects, distributors and bulk infrastructure procurement.
| Model | ISC-RC2U650F-M |
|---|---|
| Dimensions(mm) | 482(W)*650(D)*89 mm(H) |
| Main Board | 12"*13"(305*340MM) |
| Hard Disk | Eight 3.5-inch Hard Disk |
| CD-ROM | Two 5.25-inch CD-ROMs |
| Power | Ordinary Desk-type ATX Power Supply PS2 |
| Fan | Four 8025 Fans; |
| Expansion Slot | Seven Half High and Straight Slots |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | SGCC |
| Material Thickness | 1.2MM |
| Packaging size | 78.5X 55X 17CM (0.073CBM) |
| Gross weight | 11KG |
| N.W | 9KG |

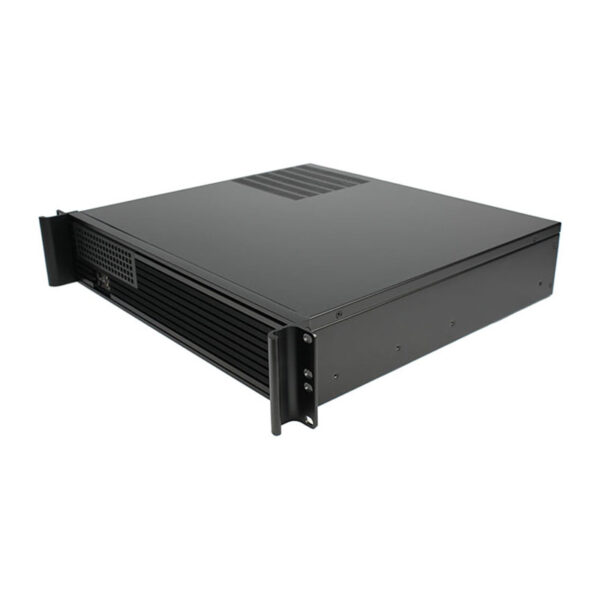

ISC-RC2U390L1-M is a 2U rackmount server chassis supporting up to four 3.5-inch…
