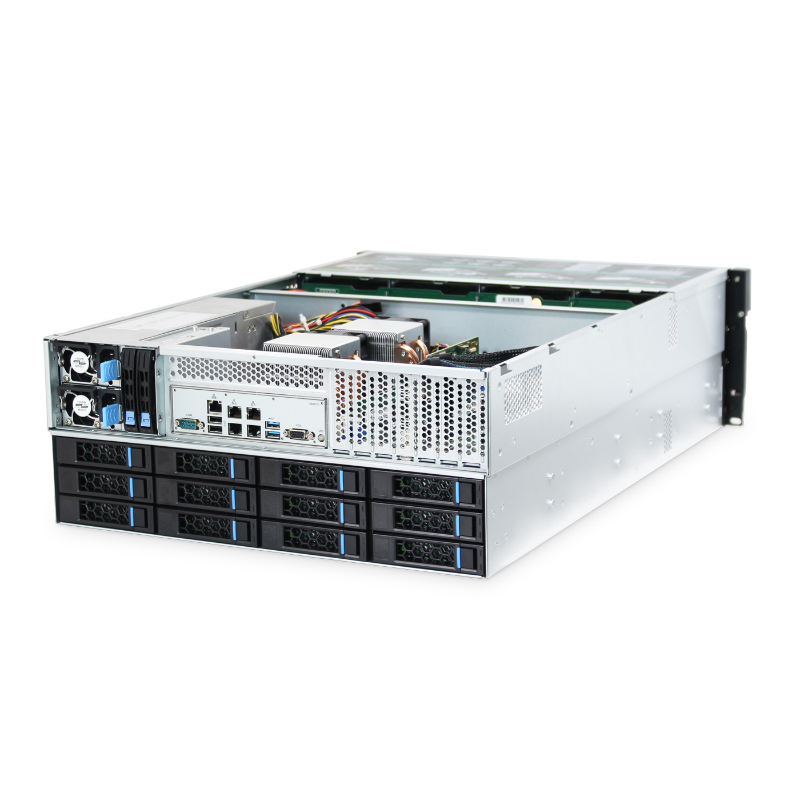

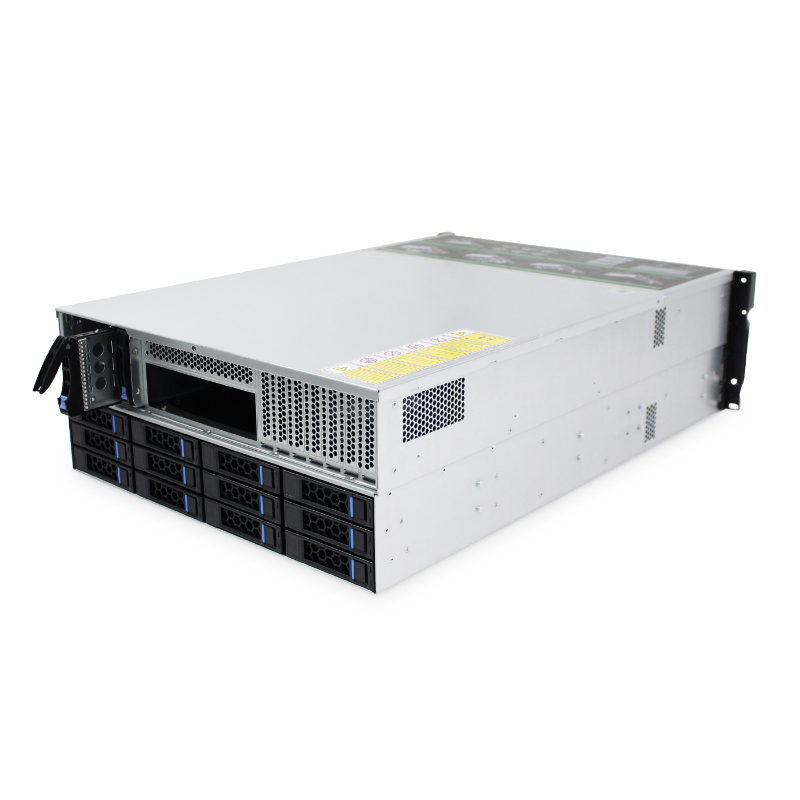

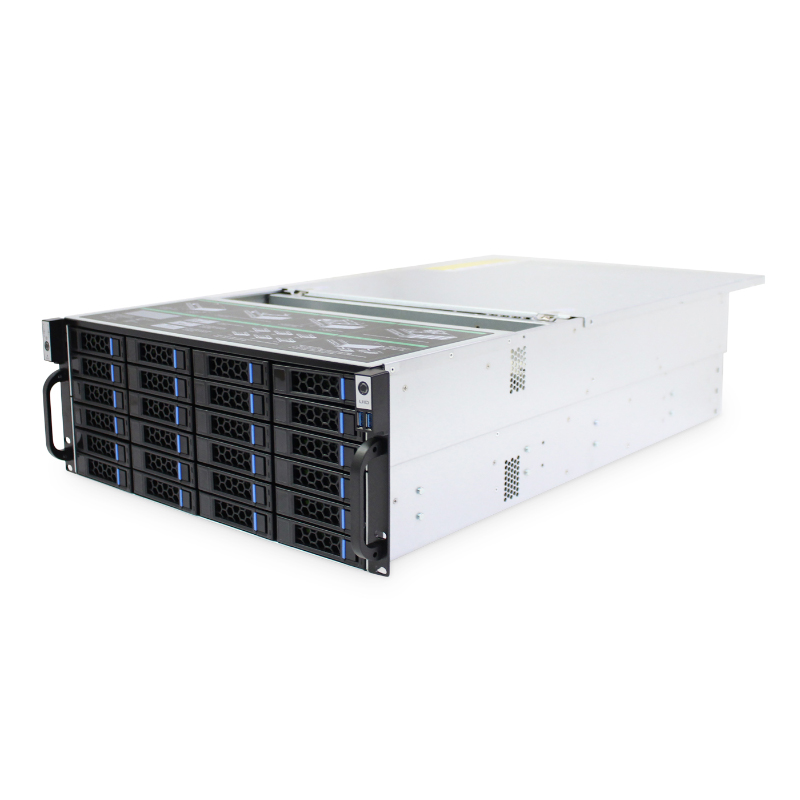

ISC-SC465-H36-T is a 4U rackmount storage chassis with 24 front and 12 rear 3.5-inch bays, seven half-height PCI/PCIe slots, hot-swappable fan cooling, and support for selected 2U or CRPS PSU configurations. Built for data centers, integrators, OEM/ODM projects, and bulk sourcing.
ISC-SC465-H36-T is a 4U rackmount SGCC storage chassis with a fingerprint-resistant finish and front-and-rear drive access. Its 24 front and 12 rear 3.5-inch bays support dense storage, while three 120 mm hot-swappable ball-bearing fans aid airflow and fan service.
Seven half-height PCI/PCIe slots support selected expansion, with standard 2U 800 W or CRPS redundant PSU compatibility. Confirm motherboard, backplane, interface, rail, and drive compatibility before ordering. For cloud storage, big data, surveillance, enterprise IT, and research, it serves integrators, data-center operators, OEM/ODM buyers, distributors, and bulk projects.
| Model | ISC-SC465-H36-T |
|---|---|
| Chassis | Topron S465-36 expansion chassis, 12Gbps Expander backplane |
| Dimensions (mm) | 650mm deep × 437.5mm wide × 177mm high, standard rack-mounted server chassis |
| Chassis dimensions | 650mm deep × 437.5mm wide × 176mm high |
| Material | Environmentally friendly, fingerprint-resistant 1.0mm SGCC |

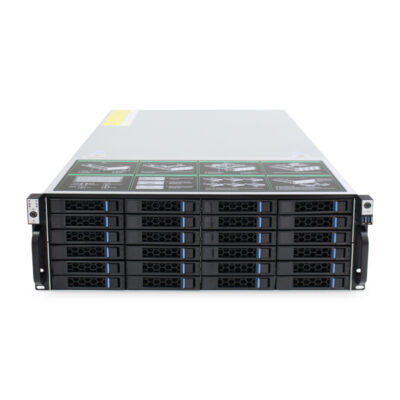

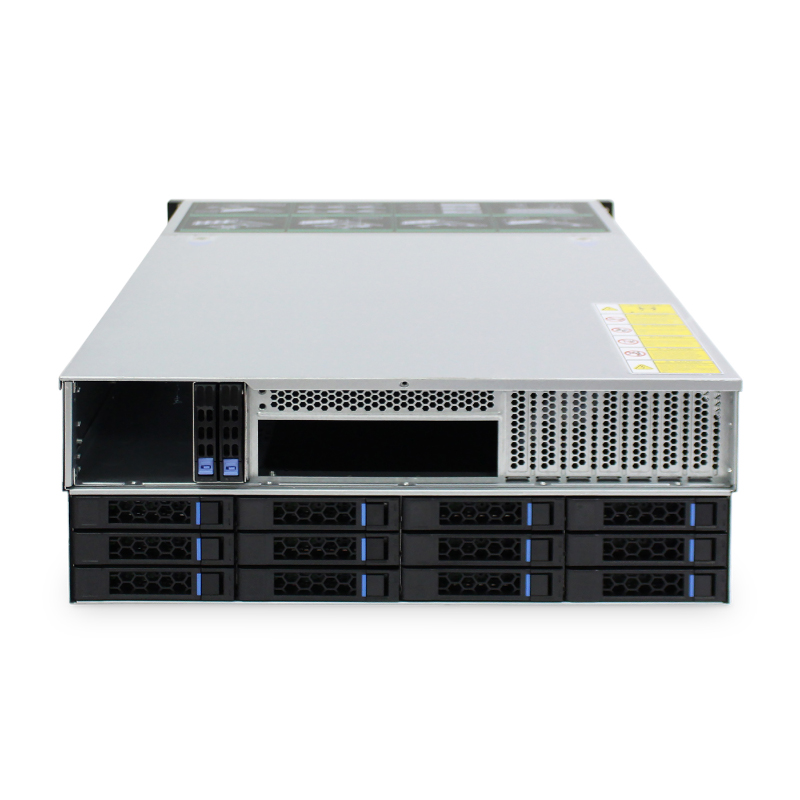

| Hard disk | 24 front 3.5" HDDs (compatible with 2.5" HDD/SSD), 12 rear 3.5" HDDs (compatible with 2.5" HDD/SSD); The hard disk extraction box adopts EMI-proof design, with light guide column, which can indicate the working status of the hard disk; the slide rail design makes extraction smooth |
| Motherboard dimensions | Standard motherboards of 12" × 13" and below |
| Backplane specifications | 6Gb/s Expander expansion backplane, Mini-sas interface (SFF8087), with temperature control, SGPIO, and time-sharing startup |
| Optical drive slot type | None |
| USB type | 2 * USB 2.0 |

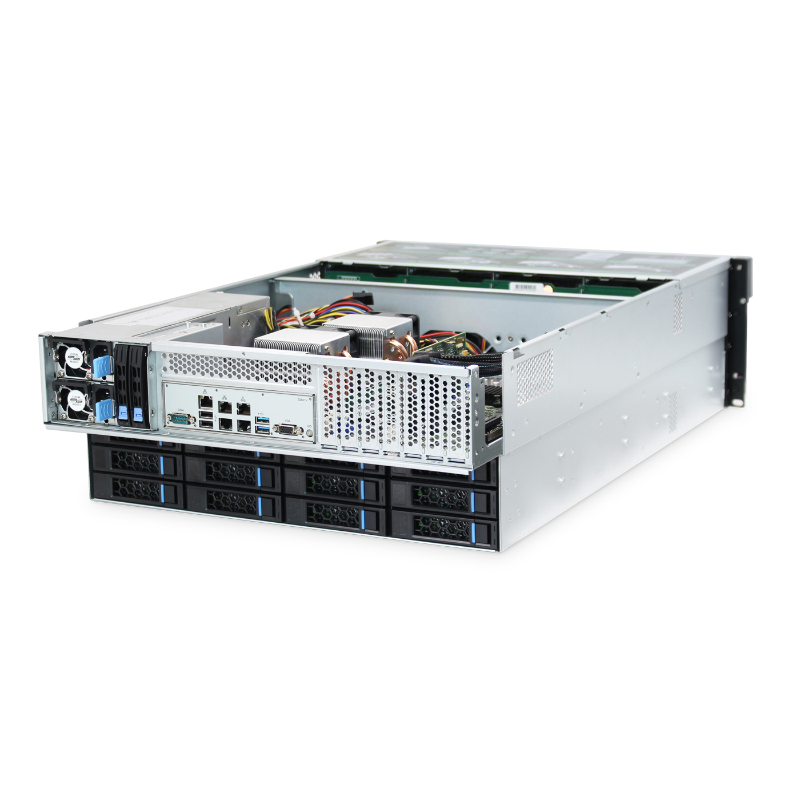

| Rear expansion slot direction | 7 half-height PCI/PCIE expansion slots, vertical insertion |
| Front door panel | None |

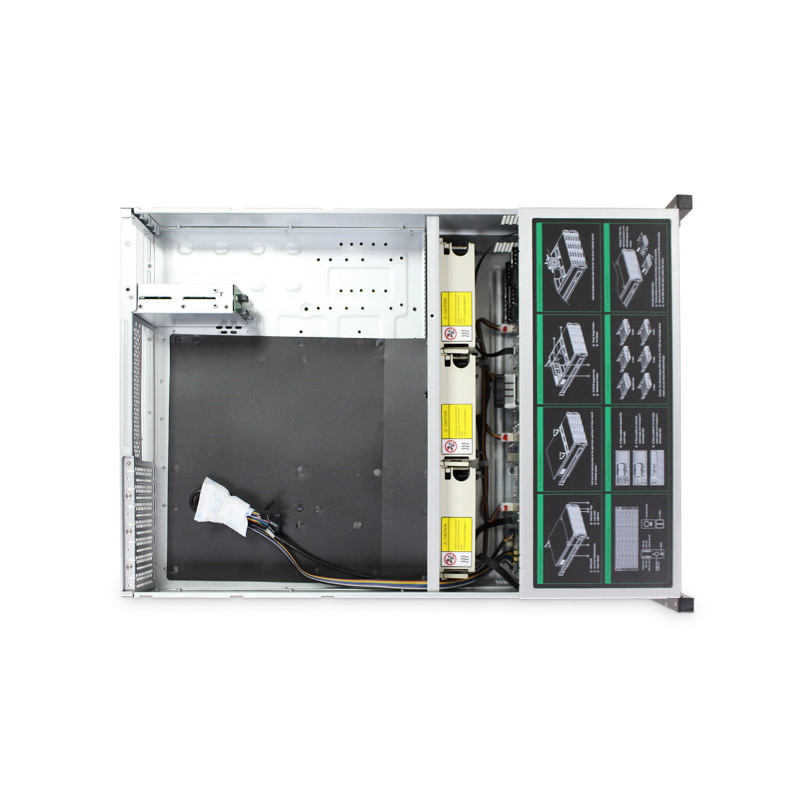

| Fan specifications | Standard 3 12038B ball fans, high air pressure, high air volume, hot-swappable |
| Power specifications | Standard 2U power supply or CRPS redundant power supply |
| System control | Power LED*1, Reset*1 Power SW*1, HDD LED*1NIC LED*2*1, UID LED*1UID SW*1, OH/FAN Fail LED*1Power Fail LED*1 |
| Air guide cover | None |

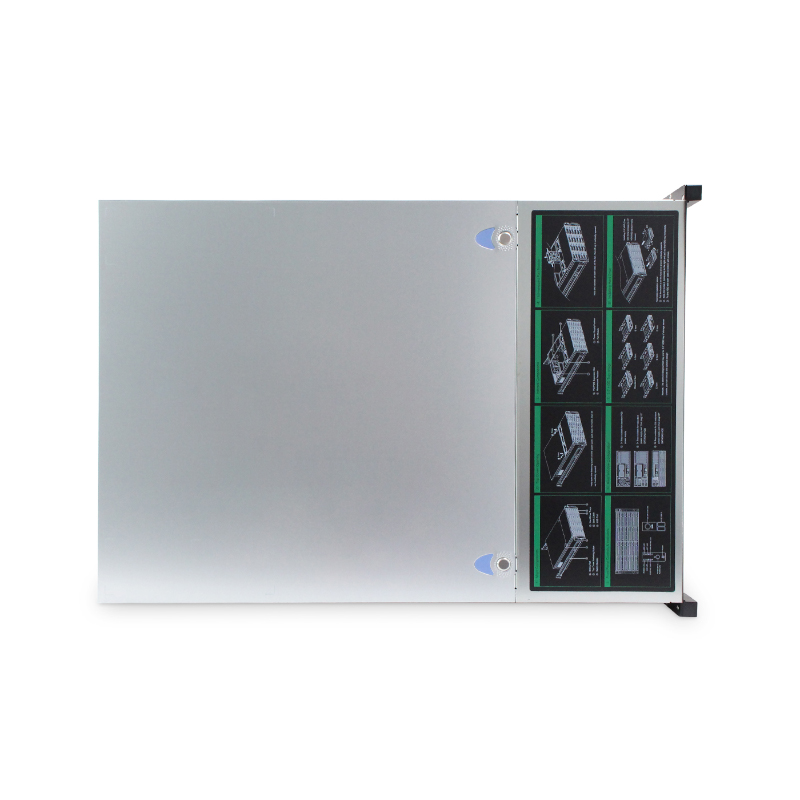

| Top cover button | Yes, tool-free disassembly |
| Application areas | Cloud storage, cloud computing, big data, security monitoring and other fields |
