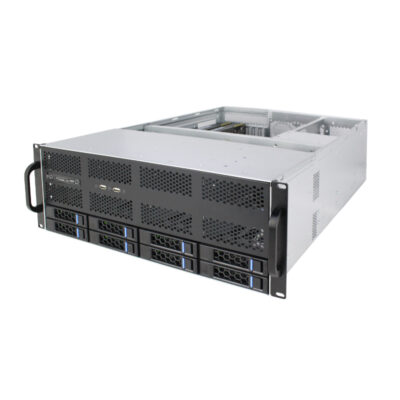

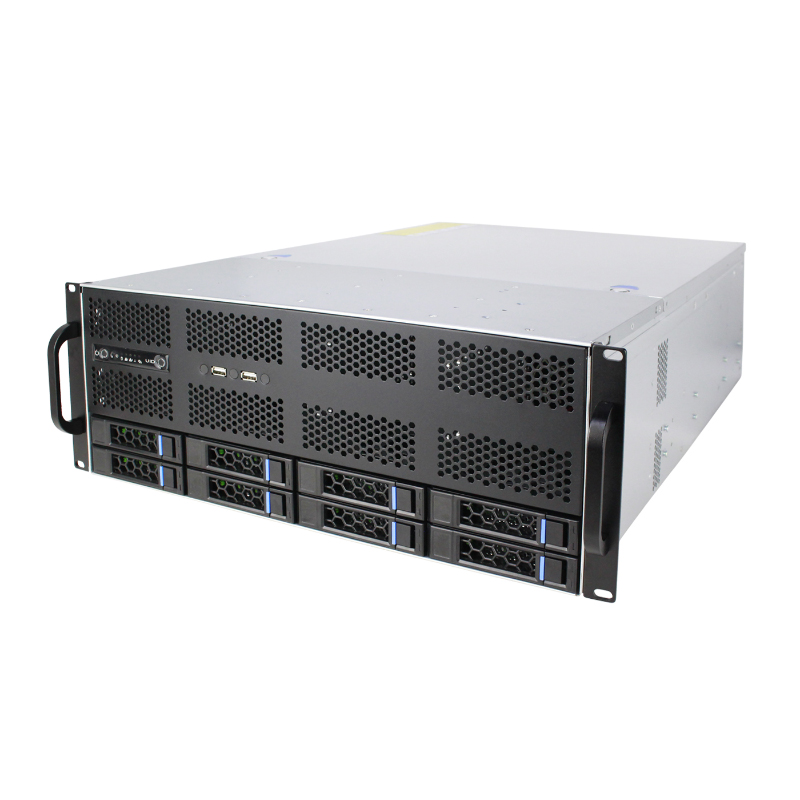

ISC-SC465-H08-T is a 4U rackmount chassis with eight front 3.5-inch hot-swap bays, SFF8087 Mini-SAS backplane, three 12038 hot-swap fans and seven full-height PCIe slots. It supports EEB, ATX and Micro-ATX boards for storage, cloud and OEM/ODM sourcing.
Built from 1.0 mm SGCC steel, the ISC-SC465-H08-T is a 4U rackmount chassis with front-access carriers, handles and mounting ears. Three 12038 hot-swap fans support directed airflow and easier service for storage, cloud and enterprise systems.

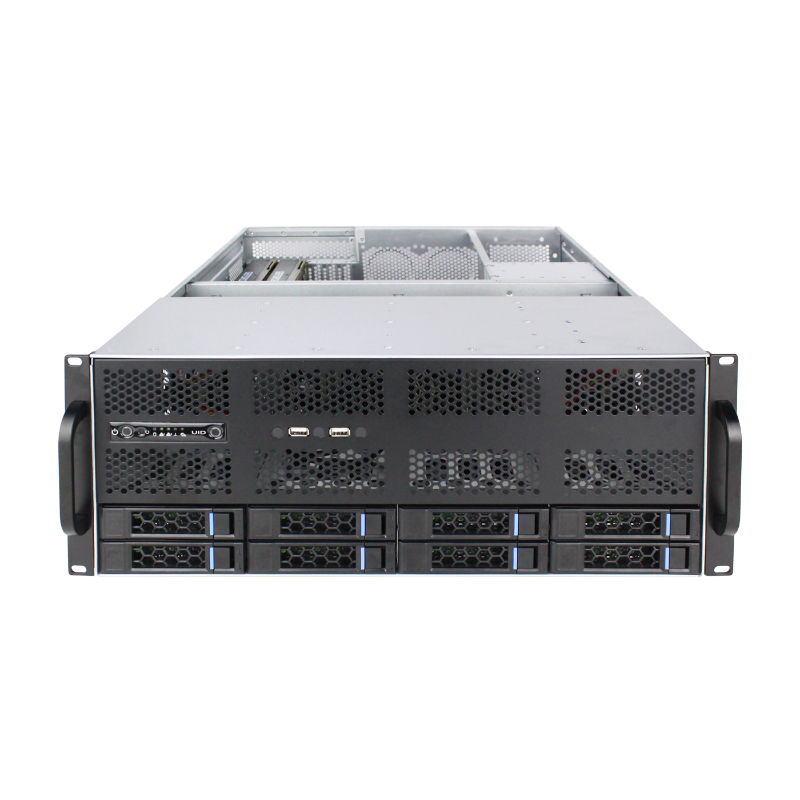

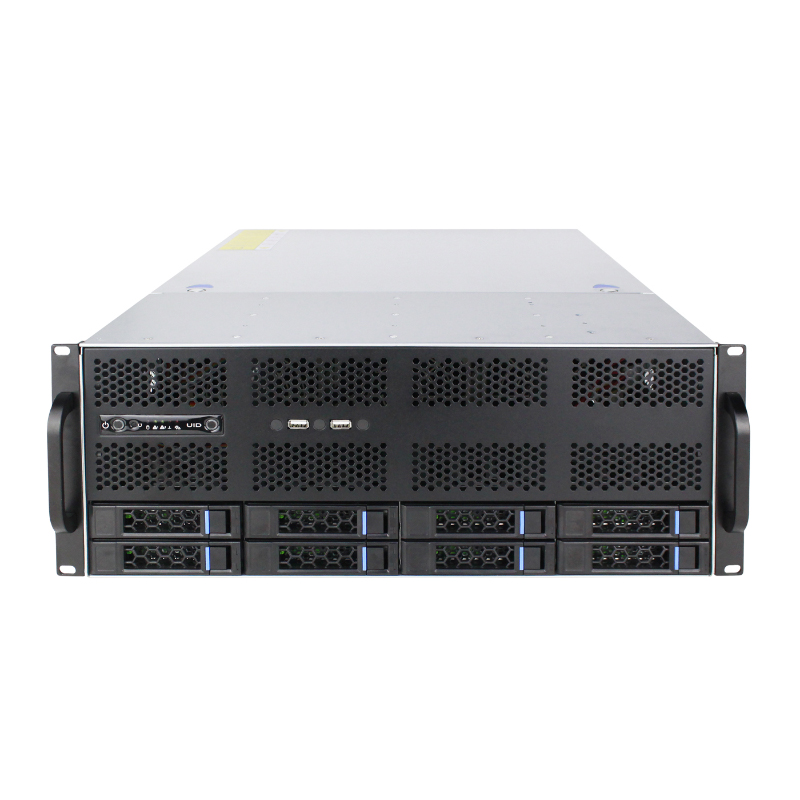

It provides eight front 3.5-inch hot-swap bays, a 6Gb SFF8087 Mini-SAS backplane with SGPIO, and seven full-height PCIe slots. Supported boards include EEB up to 12 x 13 inches, ATX and Micro-ATX, with selected 2U or CRPS redundant PSU formats. Designed for system integrators, data centers and OEM/ODM projects, it supports scalable storage or compute builds; confirm rails, cables and included parts before ordering.
| Model | ISC-SC465-H08-T |
|---|---|
| Case size | 650(L)*437.5(W)*177(H)mm |
| Main material | Medium steel, environmentally friendly, fingerprint-resistant 1.0mm SGCC |
| Surface treatment | Handle, mounting ears and front panel are black, other steel plates are natural color |
| HDD slot | 8 front 3.5" HDD/SSD |
| HDD backplane | 6Gb Mini-sas direct-connect backplane (SFF8087 interface), with temperature control, with SGPIO, optional 6Gb Mini-sas Expander backplane (SFF8087 interface), with temperature control, with SGPIO |
| Fan slot | Standard 3 12038 hot-swappable fans, high air pressure, high air volume |
| Applicable motherboard | Standard 12"*13" and below motherboard size |
| I/O expansion | 7 full-height PCI/PCIE expansion slots |
| External interface | 2 * USB2.0, optional USB3.0 |
| System control | Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1 |
| Applicable power supply | Standard 2U power supply or CRPS redundant power supply |
| Internal accessories | Power supply bracket, screw package |
| Safety standards | GB/T 13914-2002 |
| Packing method | EPE+inner box+outer box |
| Applicable fields | Cloud storage, cloud computing, big data and other fields |
