ISC-R166-4-M is a 1U rackmount server chassis with four visible front-access drive trays, a metal enclosure, internal fan cooling, and configurable motherboard and PSU support. Designed for data center, edge, security, and OEM/ODM integration projects.

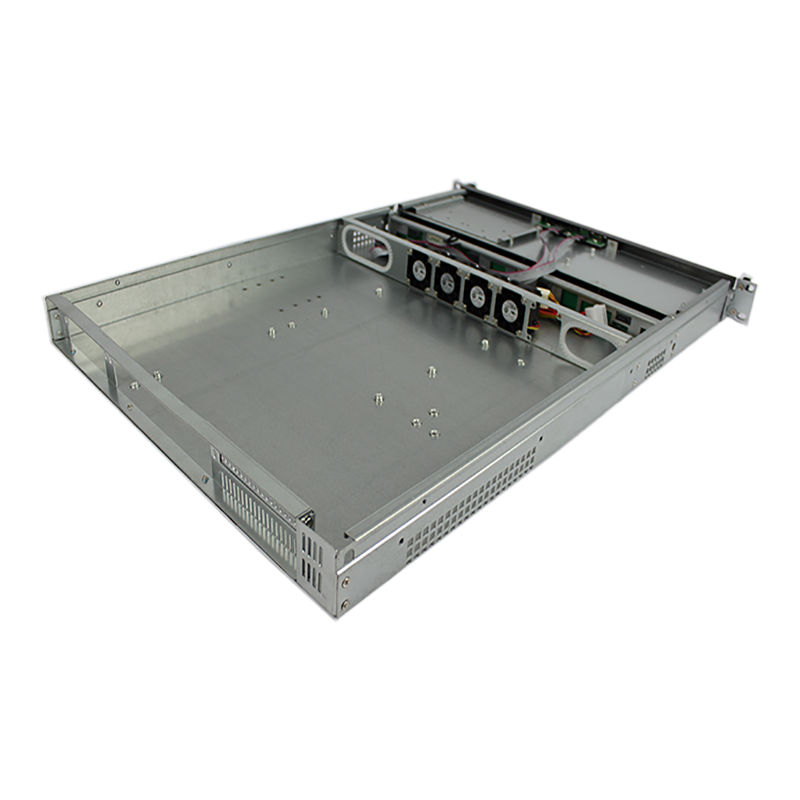

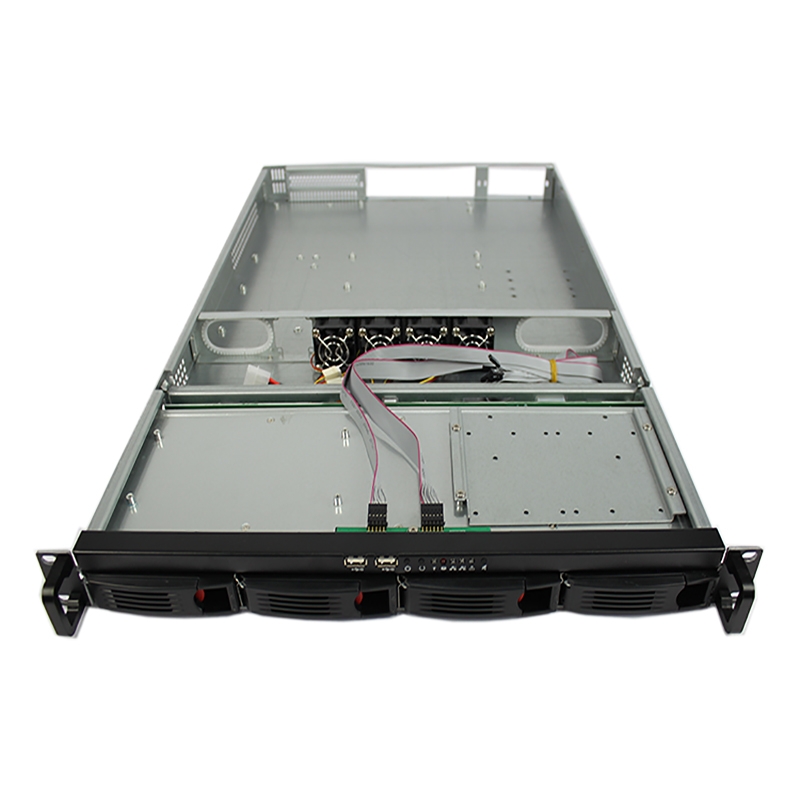

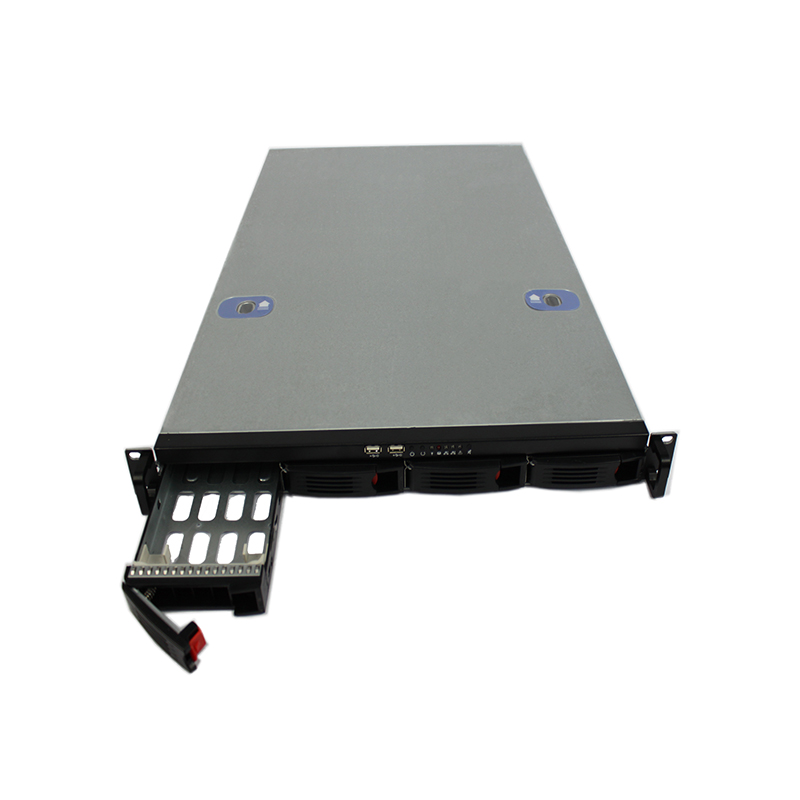

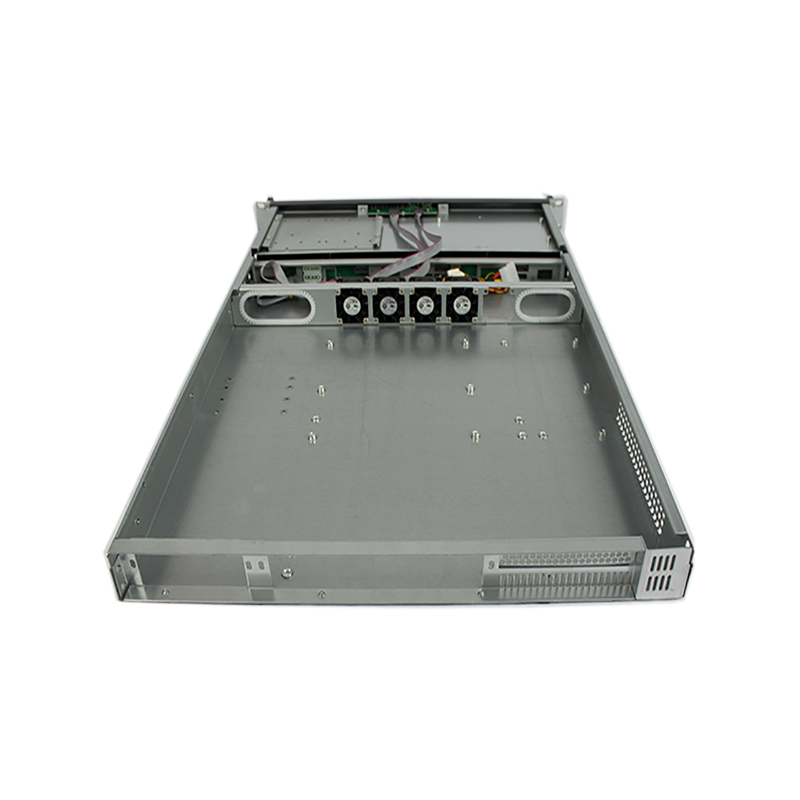

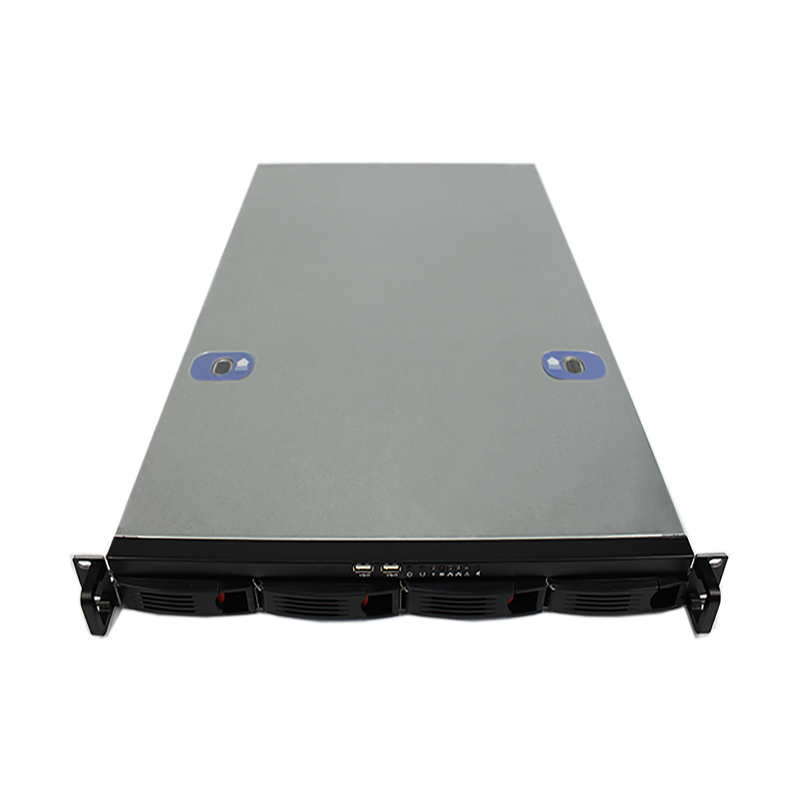

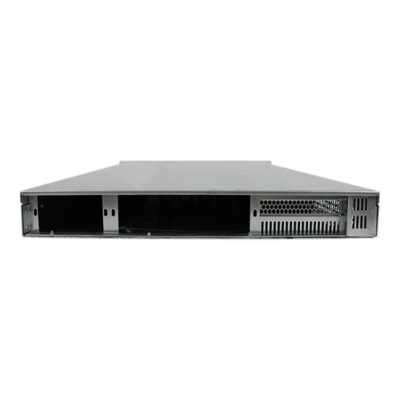

ISC-R166-4-M is a compact 1U rackmount server chassis with a rigid metal enclosure, rack handles, and four visible front-access drive trays. An internal fan wall supports directed airflow for dense rack use, easier servicing, and deployment in data centers, edge rooms, security systems, and enterprise IT.
Designed for configurable storage or compute builds, it supports selected motherboard, PSU, riser, backplane, and rail options depending on configuration. Hot-swap function, drive interface, expansion support, and included accessories should be confirmed before ordering. It provides practical OEM/ODM value for integrators, distributors, and project sourcing.
| Model | ISC-R155-4-M |
|---|---|
| Dimensions(mm) | 482(W）*550（D）*44.5（H） |
| Main Board | 12"*9.6"(305* 240MM) |
| Hard Disk | 4*3.5" HDD tray and 2*2.5" HDD bracket |
| Power | 1U Special Power Supply |
| Fan | 4*4028 cooling fan |
| Expansion Slot | 1*PCI-E slot（Option of riser card） |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator(Red);Two Network Indicators(Yellow) |
| Case Material | SGCC |
| Material Thickness | 1.2MM |
| Packaging size | 72*59*14CM(0.059CBM) |
| Gross weight | 10.4KG |
| N.W | 7.309KG |
| Container loading quantity | 20＂：474 40＂： 983 40HQ＂：1152 |
