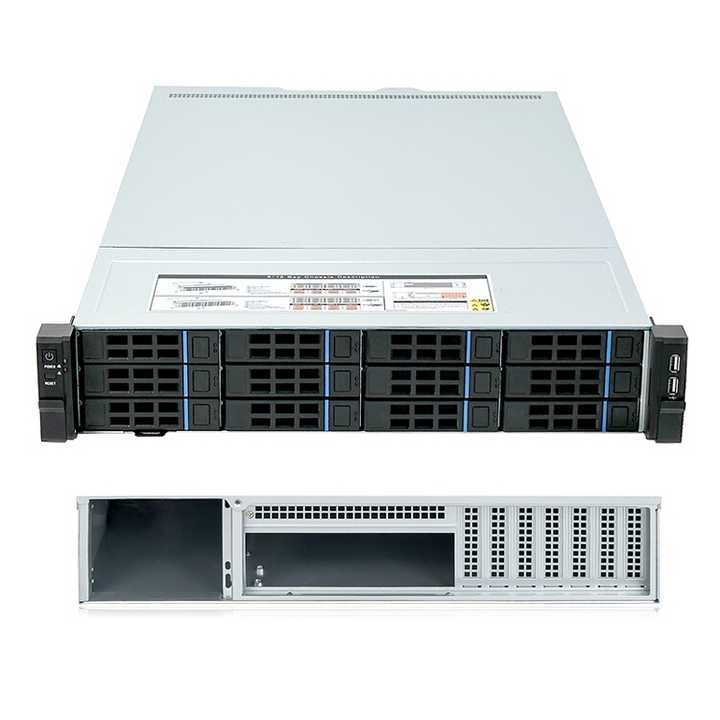

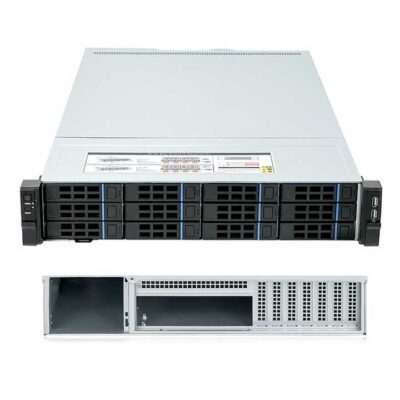

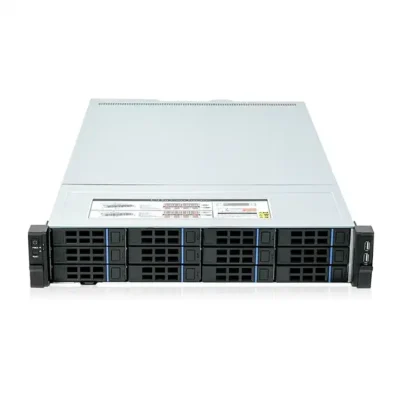

ISC-SC265F12-L is a 2U rackmount server chassis with 12 hot-swap bays, EATX-to-Micro ATX support, seven half-height PCIe slots, and flexible PSU options for data center, NAS, cloud, and OEM/ODM projects.
ISC-SC265F12-L is a 2U rackmount chassis made from 1.0 mm SECC steel for data center and enterprise use. Its front-access 12-bay hot-swap layout simplifies drive service, while three 8038 hot-swap fans support directed airflow. The 650 mm depth suits compact rack deployment; guide-rail compatibility should be confirmed.
For NAS, cloud storage, virtualization, HPC, and server integration, the chassis supports EATX, CEB, ATX, and Micro ATX boards, seven half-height PCIe slots, and redundant or single 2U power supplies. It fits integrators, OEM/ODM buyers, distributors, and project teams seeking configurable sourcing, scalable storage, and manufacturing support.
| Model | ISC-SC265F12-L |
|---|---|
| Color | silver |
| Materia | Quality Fine 1.0mm SECC, Plastic |
| Dimension D*W*H | L650mm*W436mm*H90mm |

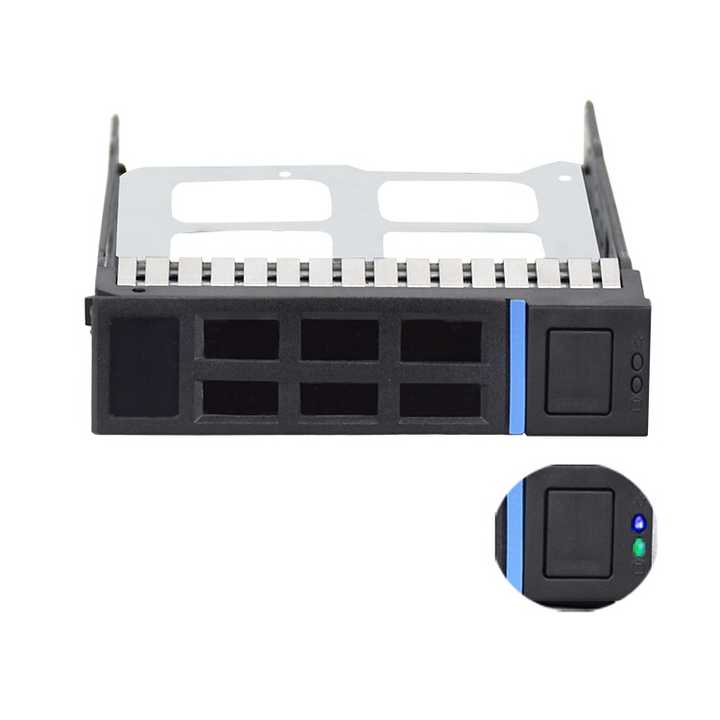

| HDD Bay | 12*3.5"/2.5"hot-swap SAS/SATA drive bays,optional rear 2*2.5" hot-swap hard drives bays |
| HDD Backplane | 12Gb/s SAS Backplane,Supports SGPIO |
| Front Panel Control | 2 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators,Front Mask |

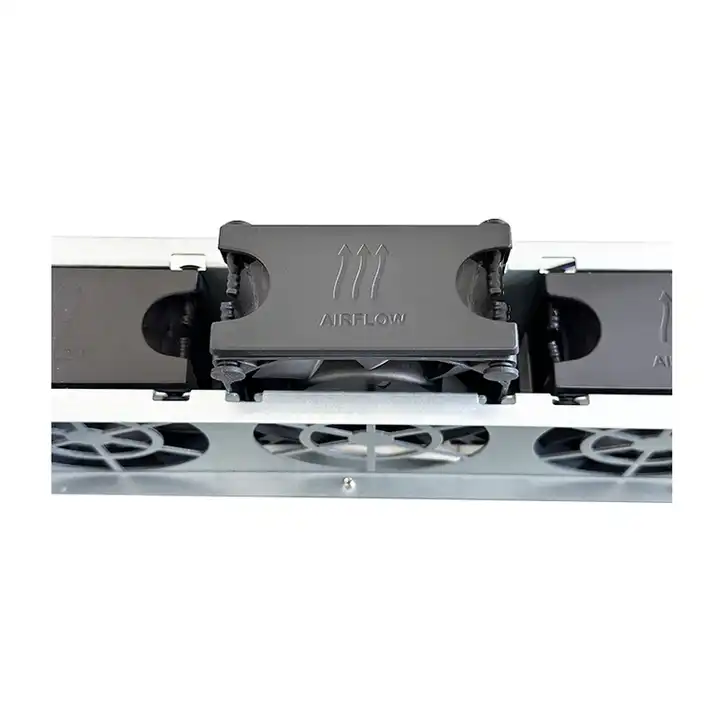

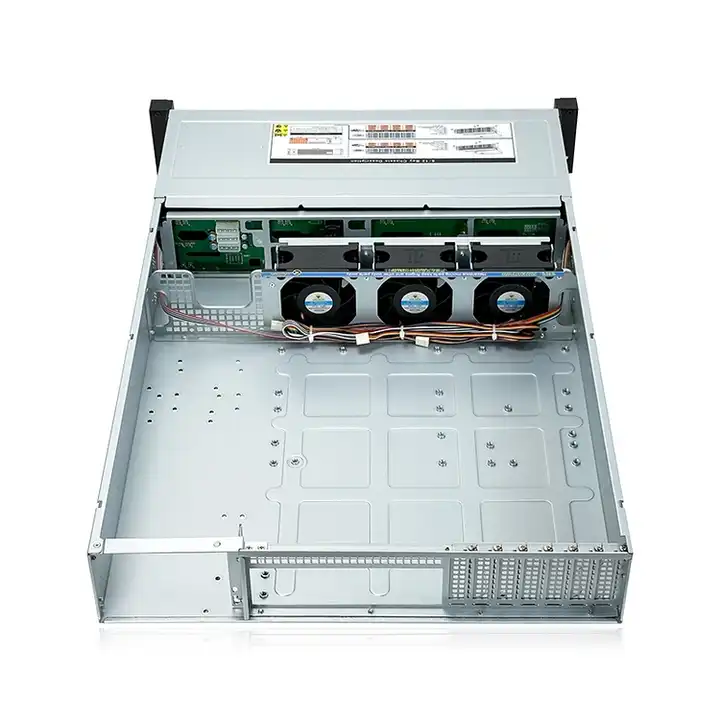

| Cooling Fan | Supports intelligent-temperature control,3pcs 8038 hot-swap fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | Redundant power supply / 2U single power supply |
| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Selling Units | Single item |
| Single package size | 82X59X22 cm |
| Single gross weight | 16.000 kg |
