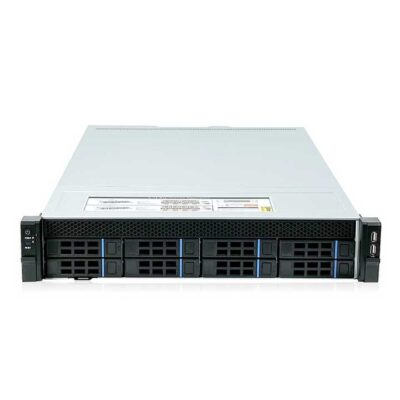

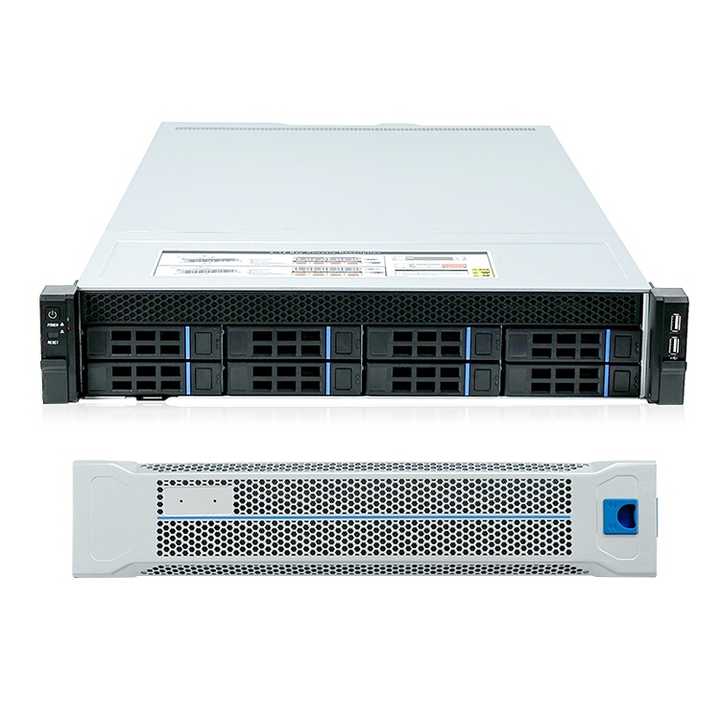

ISC-SC265F08-L is a 2U rackmount server chassis with eight 3.5/2.5-inch hot-swap bays, a 12Gb/s SAS backplane, EATX-to-Micro-ATX support, seven half-height PCIe slots, and flexible PSU options for data center and OEM/ODM projects.

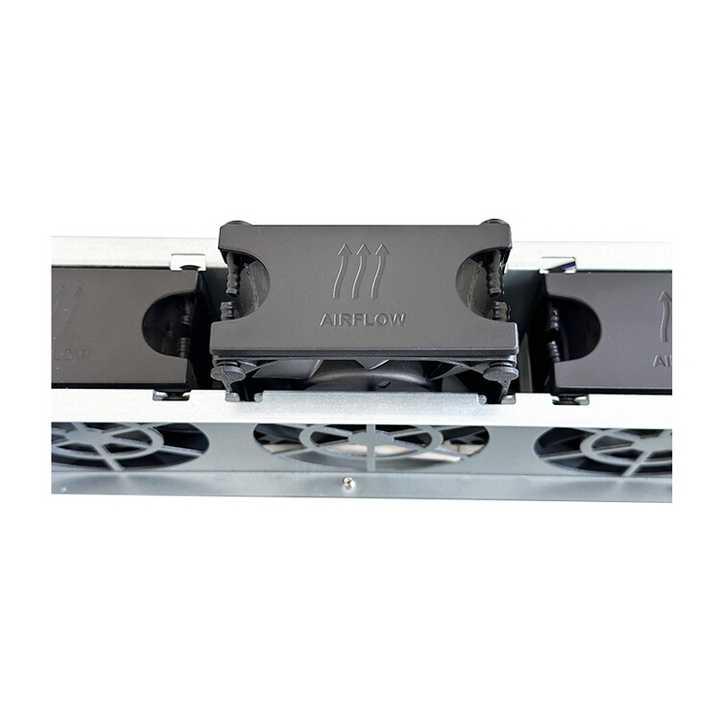

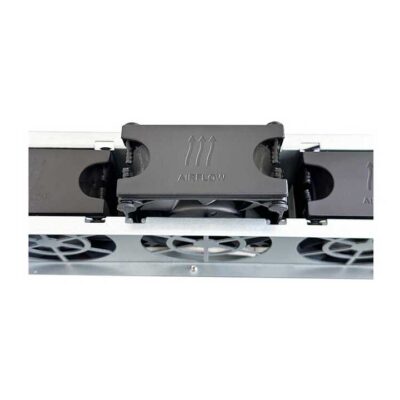

Built from 1.0 mm SECC steel, the ISC-SC265F08-L is a durable 2U rackmount chassis for front-service data center use. Eight hot-swap 3.5/2.5-inch bays, three 8038 hot-swap fans, USB 2.0 and status LEDs support airflow, drive access and routine maintenance.
It supports EATX, CEB, ATX and Micro-ATX boards up to 12 x 13 inches, seven half-height PCIe slots, a 12Gb/s SAS backplane, and redundant or 2U single PSU formats. Suitable for storage, virtualization, edge, media and selected accelerator workloads, it serves integrators, operators and distributors. iSTONECASE offers OEM/ODM customization, prototyping and volume sourcing; confirm rails, optional rear bays and final configuration before ordering.
| Model | ISC-SC265F08-L |
|---|---|
| Color | silver |
| Materia | Quality Fine 1.0mm SECC, Plastic |
| Dimension D*W*H | L650mm*W436mm*H90mm |

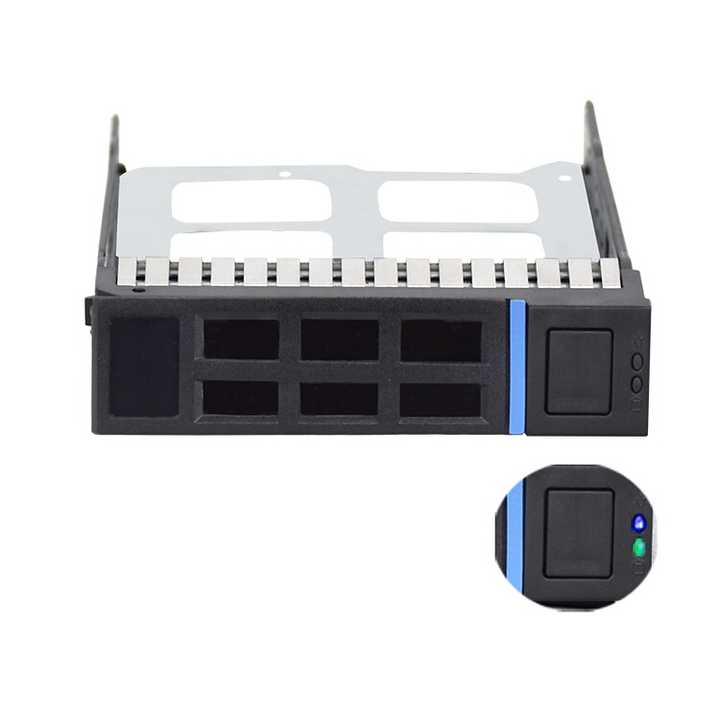

| HDD Bay | 8*3.5"/2.5" SAS/SATA/NVMe hot-swap hard drives,optional rear 2*2.5" hot-swap hard drives bays |
| HDD Backplane | 12Gb/s SAS Backplane,Supports SGPIO |
| Front Panel Control | 2 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators,Front Mask |

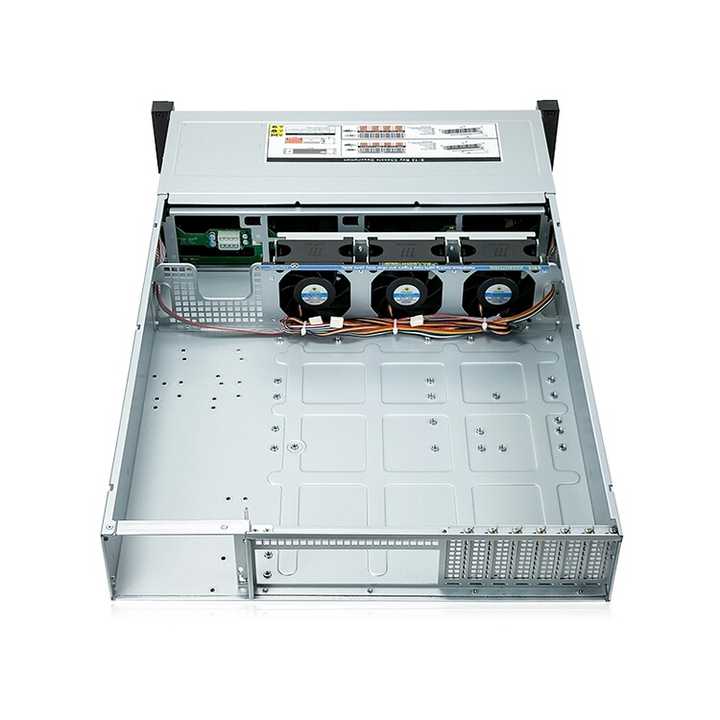

| Cooling Fan | Supports intelligent-temperature control,3pcs 8038 hot-swap fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | Redundant power supply/ 2U single power supply |

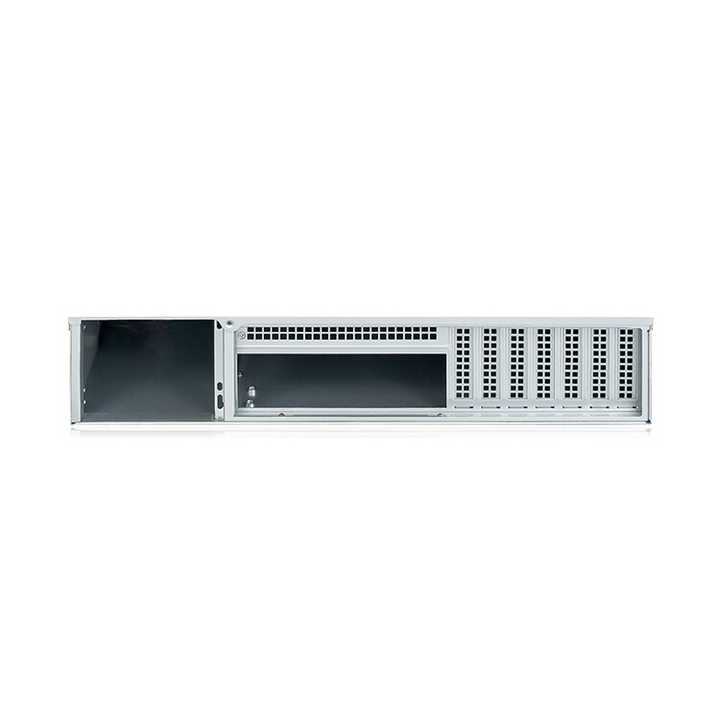

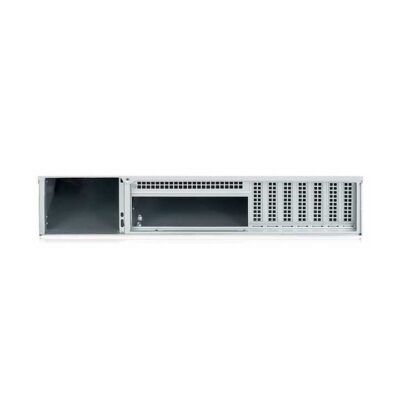

| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Single package size | L810mm*W580mm*H210mm |
| Single gross weight | 15kg |
