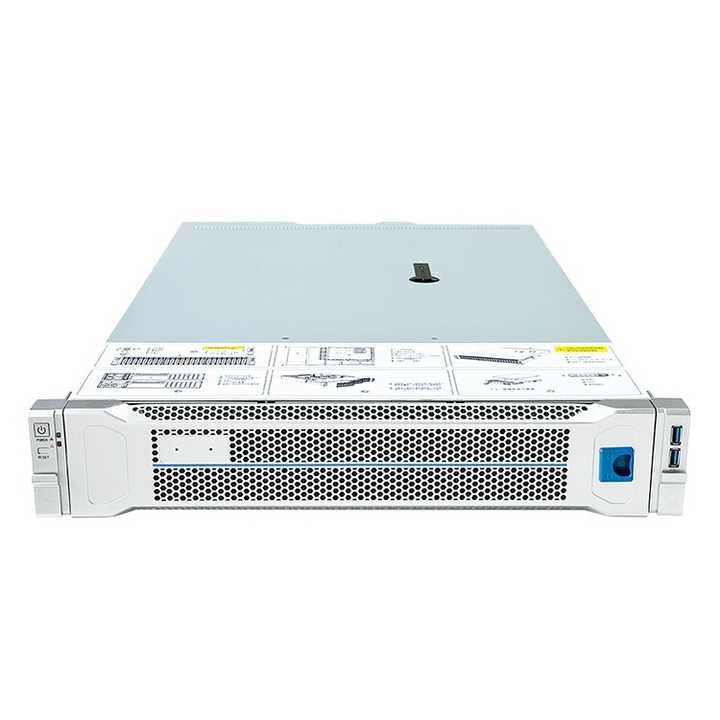

ISC-SC265B24-L is a 2U rackmount server chassis with 12 front hot-swap 3.5″/2.5″ SAS/SATA bays, flexible EATX-to-Micro-ATX support, 7 half-height PCIe slots, and redundant PSU compatibility for data center, NAS, cloud, and OEM/ODM projects.

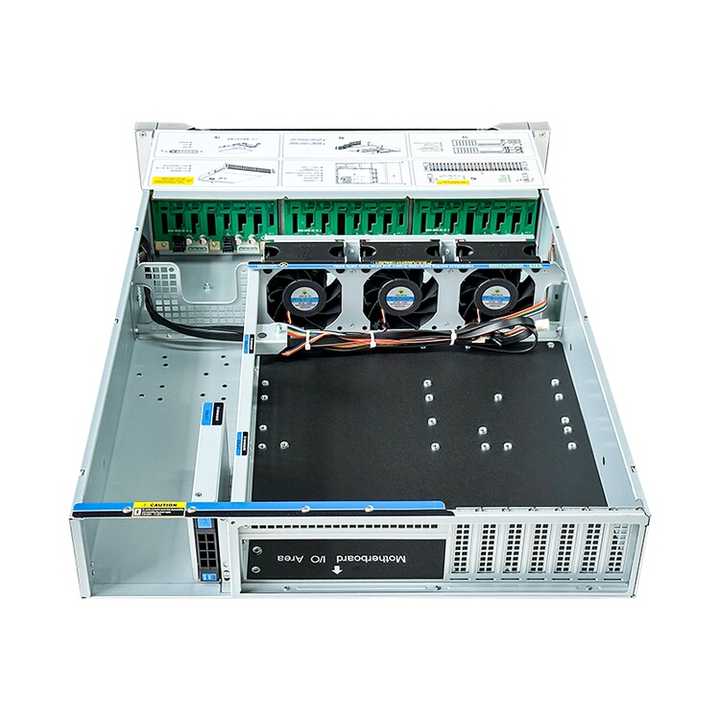

Built from 1.0 mm SECC steel, the ISC-SC265B24-L is a 2U rackmount server chassis for cabinet deployment and front-service storage. Twelve 3.5″/2.5″ hot-swap SAS/SATA bays, a 12Gb/s SAS backplane, and three 8038 hot-swap fans support airflow, drive access, and maintenance.
It supports EATX, CEB, ATX, and Micro-ATX boards up to 12″ x 13″, seven half-height PCIe slots, and selected redundant PSU configurations. Designed for data centers, NAS, private cloud, virtualization, security, and edge workloads, it suits integrators, OEM buyers, distributors, and project teams seeking configurable builds and bulk sourcing. Confirm rear bays, rails, PSU, and accessories before ordering.
| Model | ISC-SC1U650A-H4-T |
|---|---|
| Chassis size | L650mm* W437.5mm* H44.5mm |
| material | Environmentally friendly, fingerprint resistant 1.0mm SGCC |
| hard disk | Front 4* 3.5" HDDs (compatible with 2.5" HDD/SSD), built-in 1* 2.5" HDD/SSD; HDD extraction box adopts anti-EMI design, with light guide column, which can indicate the working status of the HDD; slide rail design, smooth extraction |
| Motherboard size | Standard motherboards 13.68"* 13" (EE-ATX) and below |
| Backplane Specifications | 6Gb/s Sata interface, with temperature control, direct connection mode |
| Optical drive slot type | 1* ultra-thin notebook optical drive slot |
| USB type | 2* USB 2.0 |
| Rear expansion slot orientation | 1 standard PCI/PCIE horizontal expansion slot |
| Fan Specifications | Support 6* 40mm fans, 4* 4028B ball fans as standard, 12000rpm, with hot swap and shock absorption |
| Power Specifications | Compatible with standard 1U power supplies with a length of 300mm |
| system control | Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1 |
| Top cover button | Yes, tool-free disassembly |
| Application field | Cloud storage, cloud computing, big data, security monitoring and other fields |
