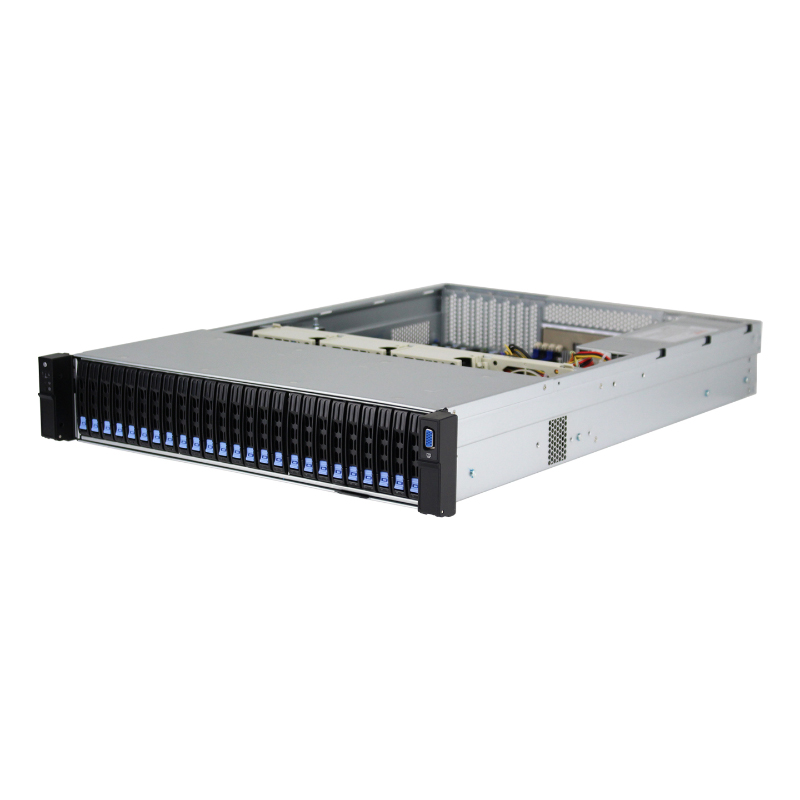

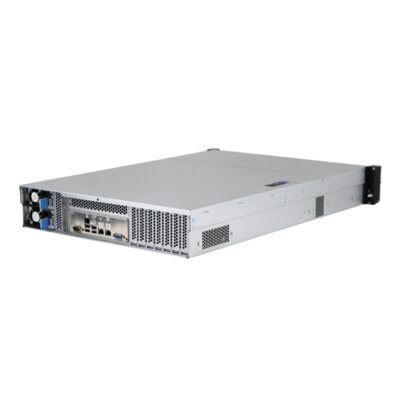

2U rackmount storage chassis with 25 front hot-swap 2.5-inch bays, seven half-height PCIe slots, three 8038 hot-swap fan positions, and 2U/CRPS redundant PSU support. Designed for data center, cloud storage, big data, and security system procurement.

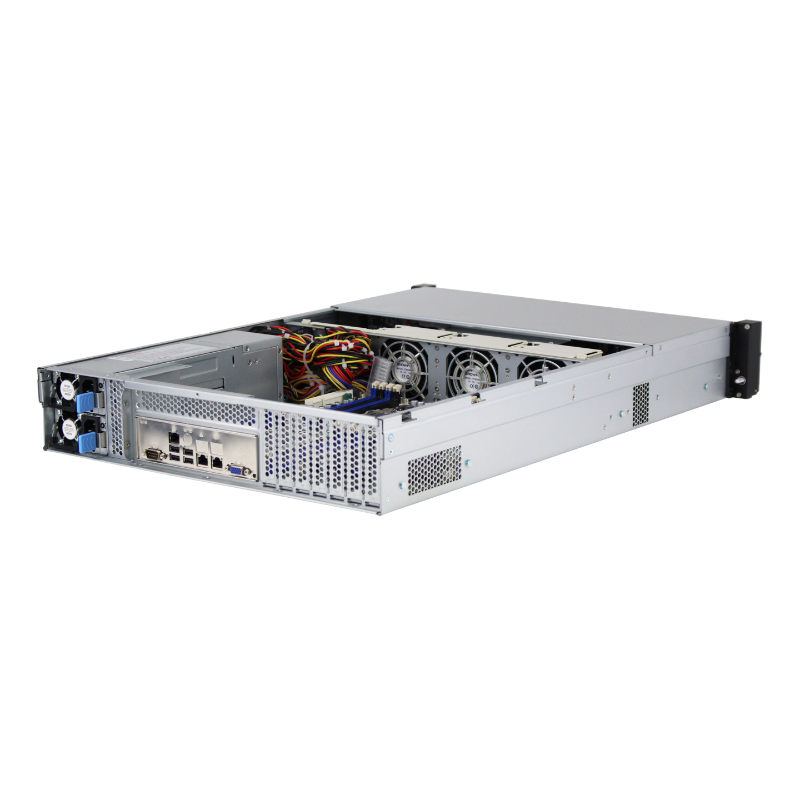

The ISC-SC265S-H25-T is a 2U Sinosteel rackmount chassis with 650 mm depth, front hot-swap drive access, and rack handles. Three 8038 hot-swap fan positions support directed airflow, while the serviceable layout simplifies drive replacement and maintenance.
This 25-bay 2.5-inch storage chassis supports SAS/SATA drives, with selected bays designed for NVMe use. It offers seven half-height PCIe slots, front USB 3.0 and VGA, plus 2U or CRPS redundant PSU support. Suitable for cloud storage, big data, security monitoring, and system integration, it supports OEM/ODM and bulk sourcing. Confirm motherboard, PSU, rails, fans, drives, and cables before ordering.
| Model | ISC-SC265S-H25-T |
|---|---|
| Chassis size | 650mm(L)*437.5mm(W)*88mm(H) |
| Main material | Sinosteel, environmentally friendly, fingerprint resistant 1.0mm SGCC |
| Surface treatment | Handles and hanging ears are sandblasted and oxidized bright black, other steel plates are natural color |
| Hard disk backplane | 12Gb/s MiniSAS HD interface (12Gb Expander backplane), with temperature control, with SGPIO, with time-sharing startup, with hard disk short circuit protection, support cold storage |

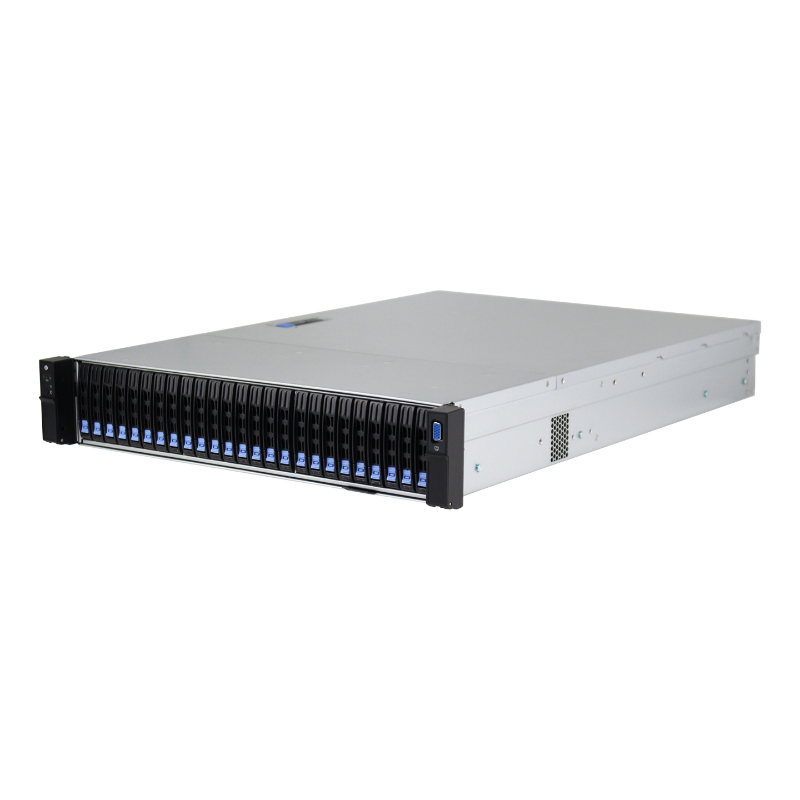

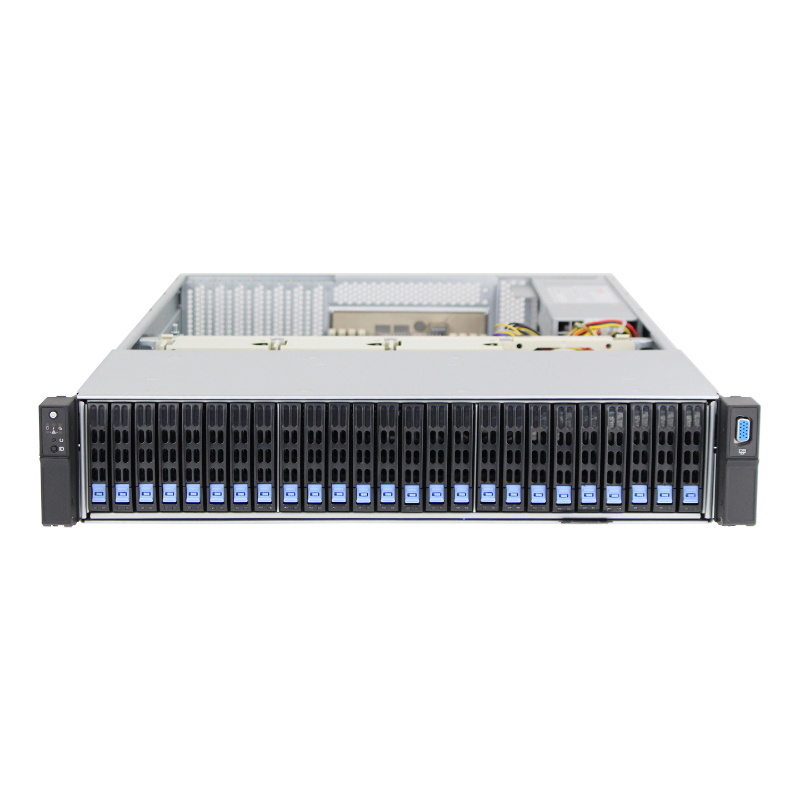

| Hard disk | 25 front 2.5" HDD/SSD, HDD0-3 support SAS/SATA/NVME three hard drive modes, HDD4-24 support SATA/SAS hard drive mode |

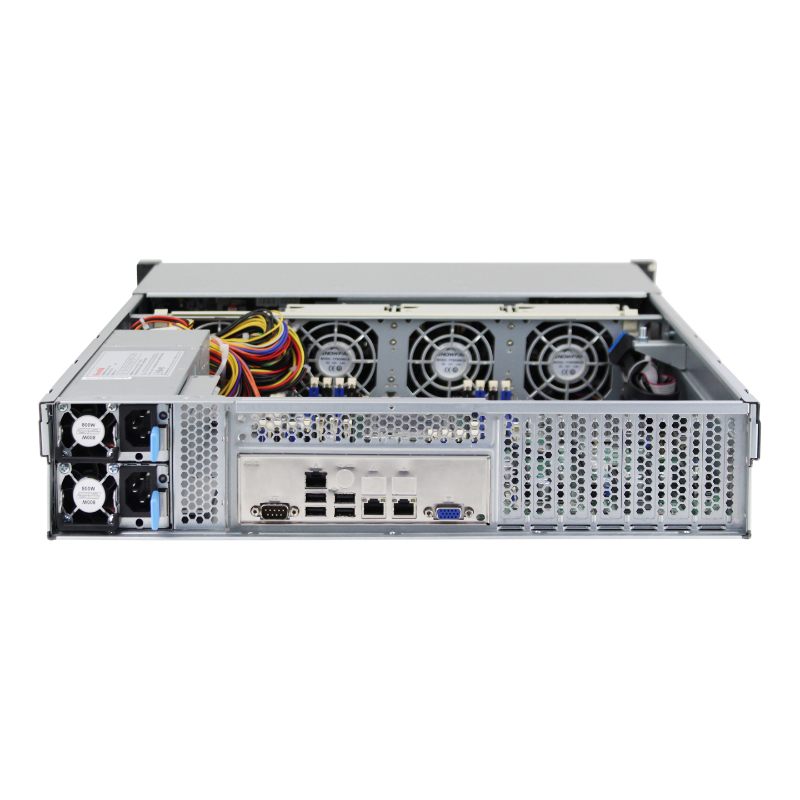

| Fan position | Standard 3 8038 hot-swap fan slots |

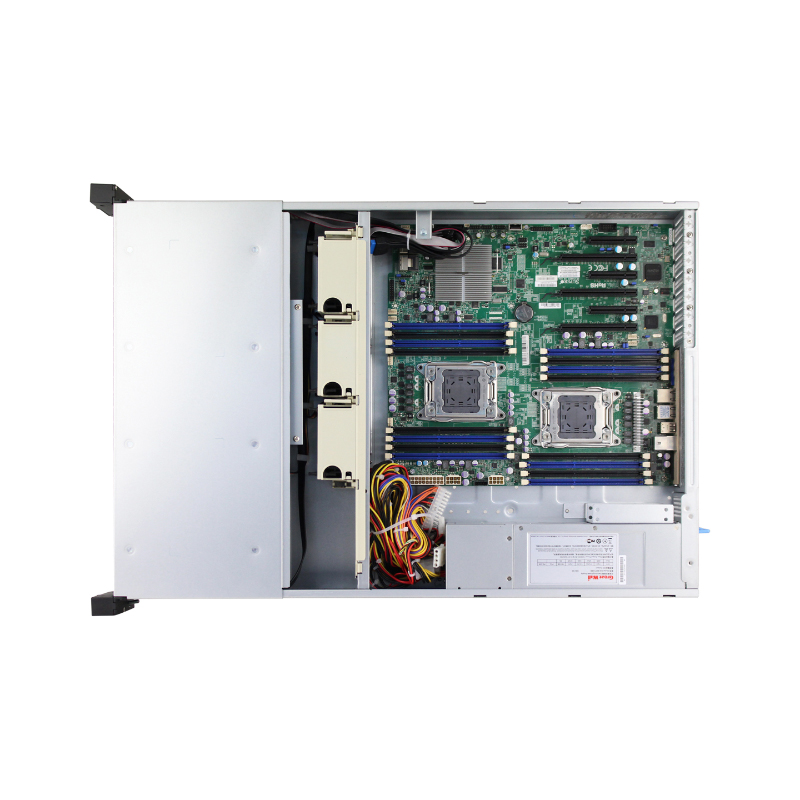

| Applicable motherboard | Support 12"*13"(E-ATX) and below motherboard size |
| I/O expansion | 7 half-height PCIE expansion slots |
| External interface | 2 * Front USB 3.0, 1 * Front VGA port |
| System control | Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1 |

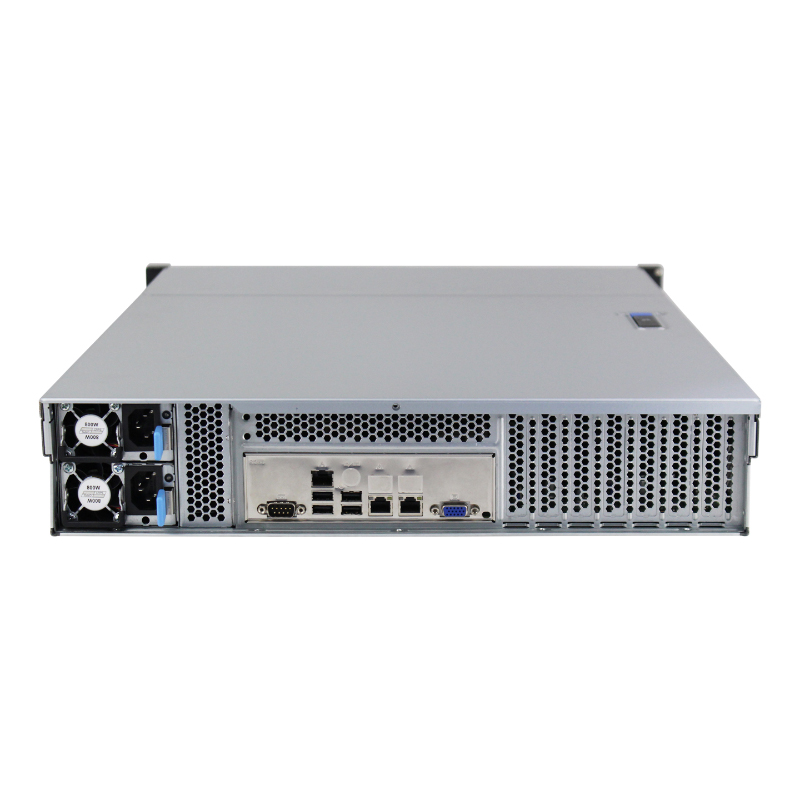

| Applicable power supply | 2U or CRPS redundant power supply |
| Internal accessories | Power bracket, screw bag |
| Safety standards | GB/T 13914-2002 |
| Packing | Pearl cotton + inner box + corner guard + outer box |
| Applicable fields | Cloud storage, cloud computing, big data, security monitoring and other fields |
