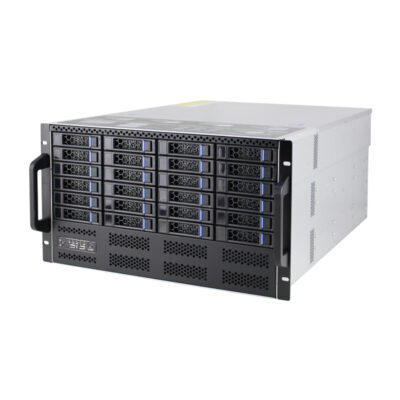

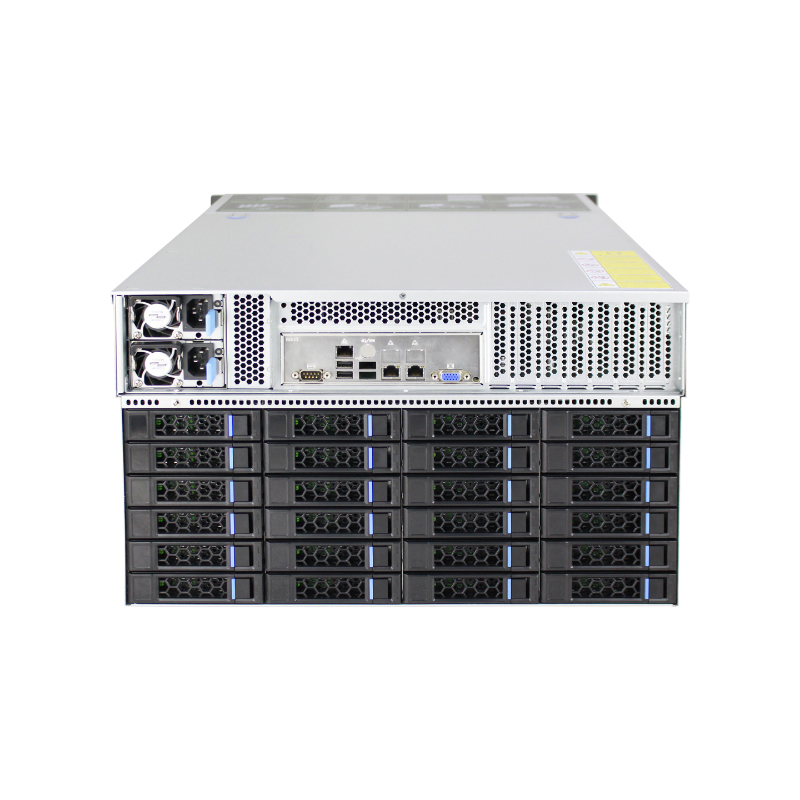

The ISC-SC665-H48-T is a 6U rackmount server chassis for up to 48 hot-swappable 3.5-inch drives, two 2.5-inch SSD positions and seven half-height expansion slots. Designed for storage, cloud and monitoring projects with OEM/ODM procurement support.
Product Overview: ISC-SC665-H48-T is a 6U rackmount chassis for dense enterprise storage. Product Category: 48-bay hot-swap server case. Key Configuration: Supports up to 48 3.5-inch drives, two 2.5-inch SSD positions, six 120 mm fans and seven half-height PCI/PCIe slots. Compatibility: Designed for motherboards up to 12 x 13 inches and standard or redundant PSU options; confirm backplane and accessories before ordering. Applications: Suitable for cloud storage, big data, security monitoring and data centers. Procurement Value: For integrators, operators, OEM customers and distributors needing scalable sourcing, customization and volume support.
| Model | ISC-SC665-H48-T |
|---|---|
| Dimensions (mm) | 650mm deep × 437.5mm wide × 265mm high, standard rack-mounted server chassis |
| Material | Environmentally friendly, fingerprint-resistant 1.0mm SGCC |
| HDD and FDD positions | 48 3.5" hot-swappable hard disk slots, 2 built-in 2.5" hard disk slots |
| Fan position | 6 12038 ball fans, high speed, high wind pressure, high air volume, hot-swappable |

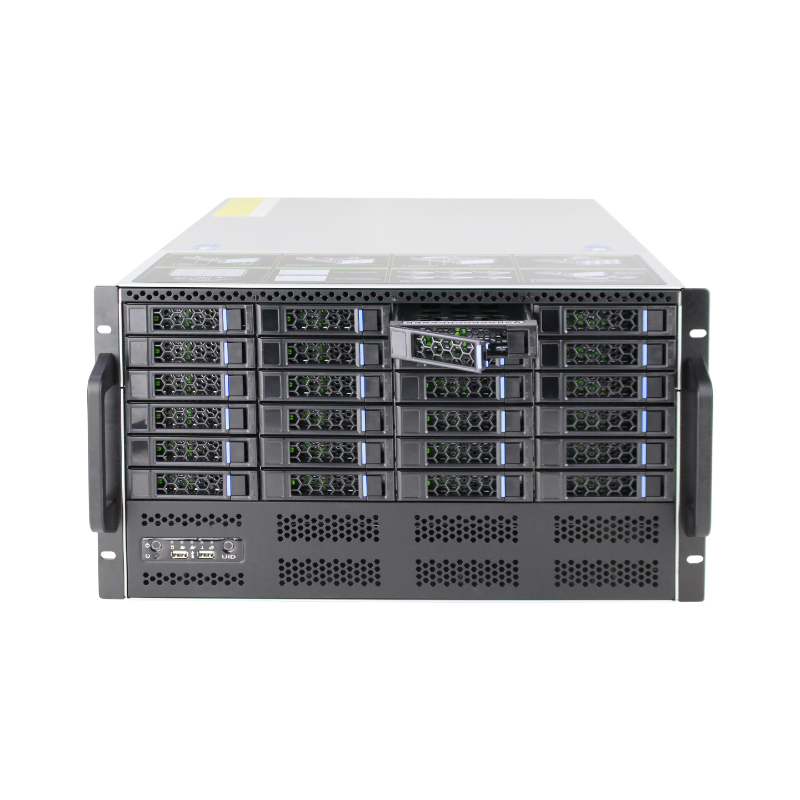

| HDD drawer box | Anti-EMI design, compatible with 2.5"/3.5" hard disks, with light guide, can indicate the working status of the hard disk, optional with lock function |
| HDD backplane | 6Gb Expander expansion backplane, Mini-sas interface (SFF8087), with temperature control, SGPIO and time-sharing startup function; optional 12Gb Expander expansion backplane, Mini-sas HD interface (SFF8643) |
| Suitable for motherboard | Support various motherboards of 12"*13" and below |
| System control | Power SW*1, Reset*1, Power LED*1, HDD LED*1, NIC LED*2, Power Fail LED*1, OH/Fan Fail LED*1, USB2.0*2 |
| Power supply | Standard 2U power supply and redundant power supply |
| Expansion slot | 7 half-height PCI/PCIE expansion slots |
| Slide rail | Three-section ball bearing rails or simple rails |
| Application area | Cloud storage, cloud computing, big data, security monitoring and other fields |
