ISC-SC265C12-L is a 2U SECC steel server chassis with 12 SAS/SATA hot-swap bays, support for EATX, CEB, ATX and Micro ATX boards, seven half-height PCIe slots, and single or redundant 2U PSU options for data center, storage and OEM/ODM projects.
Made from 1.0 mm SECC steel, the ISC-SC265C12-L is a 2U rackmount chassis with front-access hot-swap trays, 650 mm depth and three 8038 hot-swap fans for directed airflow. Front USB 2.0, controls, indicators and handles support routine service in data center and enterprise racks.
It provides 12 bays for 3.5-inch or 2.5-inch SAS/SATA drives and supports EATX, CEB, ATX and Micro ATX boards, seven half-height PCIe slots, plus single or redundant 2U power supplies. Suitable for storage, private cloud and system integration projects, it offers optional rear 2.5-inch bays, subject to configuration. Rail fit should be confirmed. iSTONECASE supports OEM/ODM and bulk sourcing.
| Model | ISC-SC265C12-L |
|---|---|
| Color | silver |
| Materia | Quality Fine 1.0mm SECC,Aluminum Alloy, Plastic |

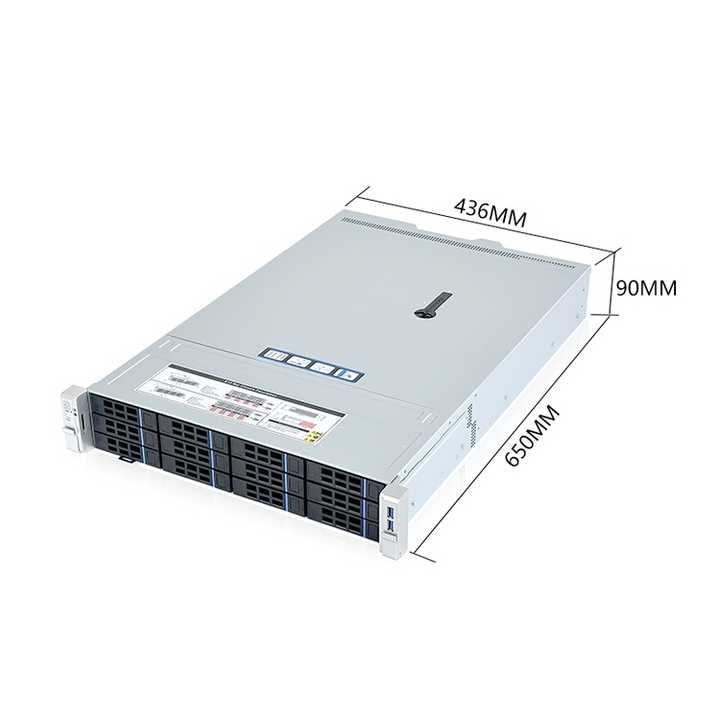

| Dimension D*W*H | L650mm*W436mm*H90mm |
| HDD Bay | 12*3.5"/2.5" SAS/SATA/NVMe hot-swap hard drives,optional rear 2*2.5" hot-swap hard drives bays |
| HDD Backplane | 12Gb/s SAS Backplane,Supports SGPIO |
| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators,Front Mask |
| Cooling Fan | Supports intelligent-temperature control,3pcs 8038 hot-swap fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | Redundant power supply/ 2U single power supply |
| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Single package size | L810mm*W580mm*H210mm |
| Single gross weight | 15kg |
