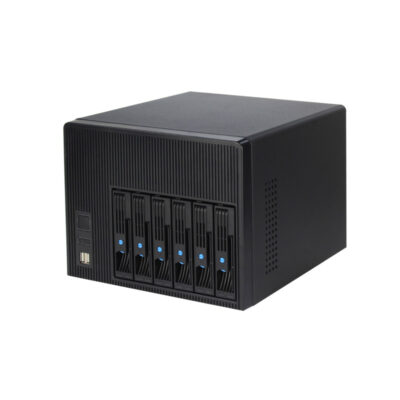

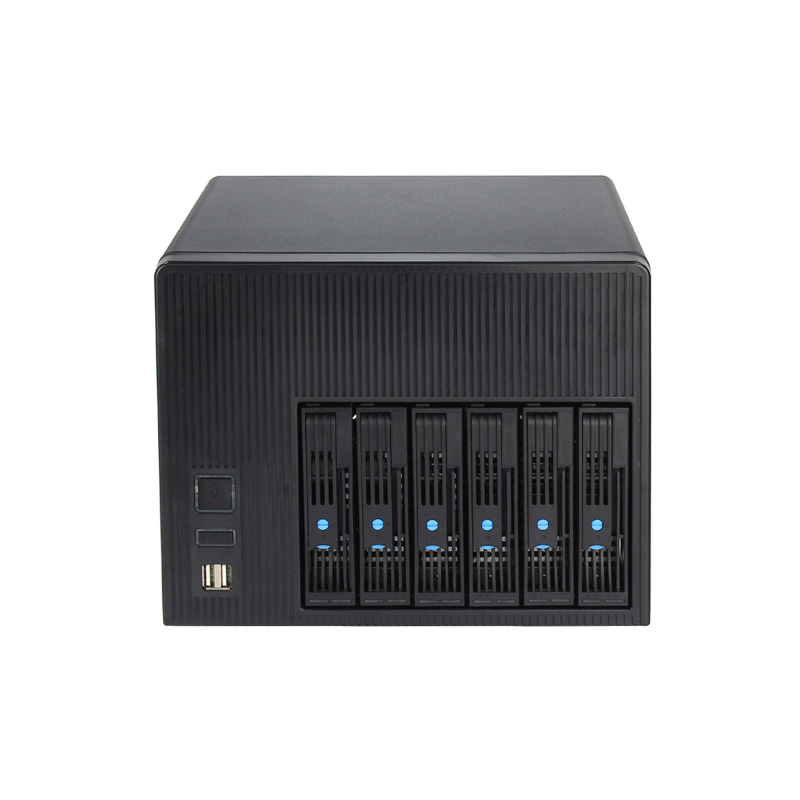

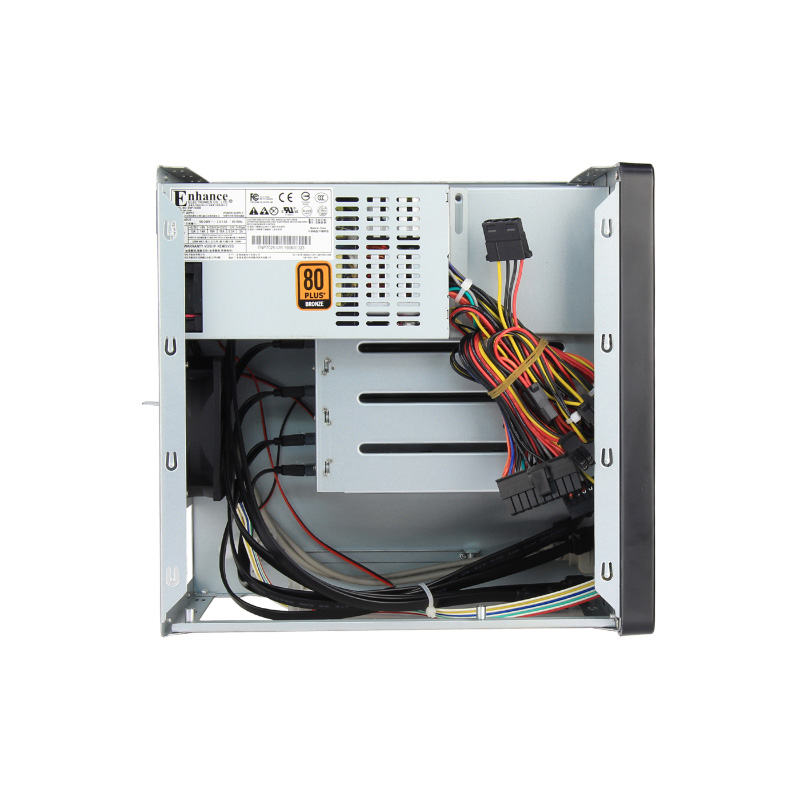

Compact ISC-NS6S-T NAS chassis with six front-access drive bays, 2.5-inch compatibility, Mini-ITX support, one full-height PCIe slot, Flex PSU support and dual 80 mm fans. Designed for private cloud, office storage, integrators and volume sourcing.
Product Overview: ISC-NS6S-T is a compact desktop NAS chassis for custom storage builds.
Product Category: 6-bay Mini-ITX NAS case for private cloud and office storage.
Key Configuration: Six front-access bays, one full-height PCI/PCIe slot, two front USB ports and dual 8025 fans.
Compatibility: Supports Mini-ITX boards, Flex PSUs and selected 3.5-inch or 2.5-inch drives; confirm backplane and interface details.
Applications: SMB backup, file sharing, media storage, edge storage and managed IT.
Procurement Value: Suitable for integrators, OEM/ODM projects, distributors and volume sourcing.
| Model | ISC-NS6S-T |
|---|---|
| Dimensions (mm) | Depth 260mm × Width 250mm × Height 195mm |
| Material | 1.0mm/SGCC+PC+ABS |
| HDD bit | 6 standard 3.5" hard drive bays, compatible with 2.5" hard drives |
| Fan position | 2 8025 fans |
| Suitable for motherboard | Mini-ITX Motherboard |
| PCI expansion | 1 full-height PCI/PCIE expansion slot |
| USB interface | 2 front USB ports |
| Indicator lights and switches | Power LED*1, HDD LED*1, Power SW*1, Reset*1 |
| Power supply | Flex Power |
| Weight | Net weight 4KG, gross weight 4.9KG |
| Packing | carton + pearl cotton |
| Package dimensions | 370mm*360mm*310mm |
| Application field | Home storage, private cloud, office video and other fields |
