ISC-SC265-H12-T is a 2U rackmount chassis with a visible 12-bay front hot-swap layout, 650 mm depth, 12 × 13 in motherboard support, PCIe expansion, and 2U/CRPS PSU compatibility for storage, cloud, monitoring, and OEM projects.

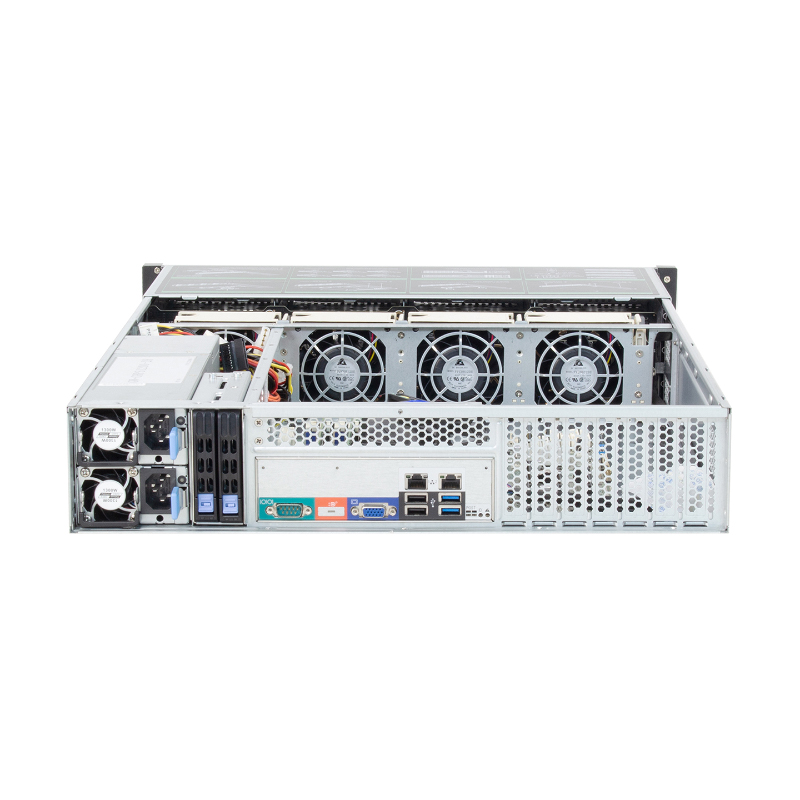

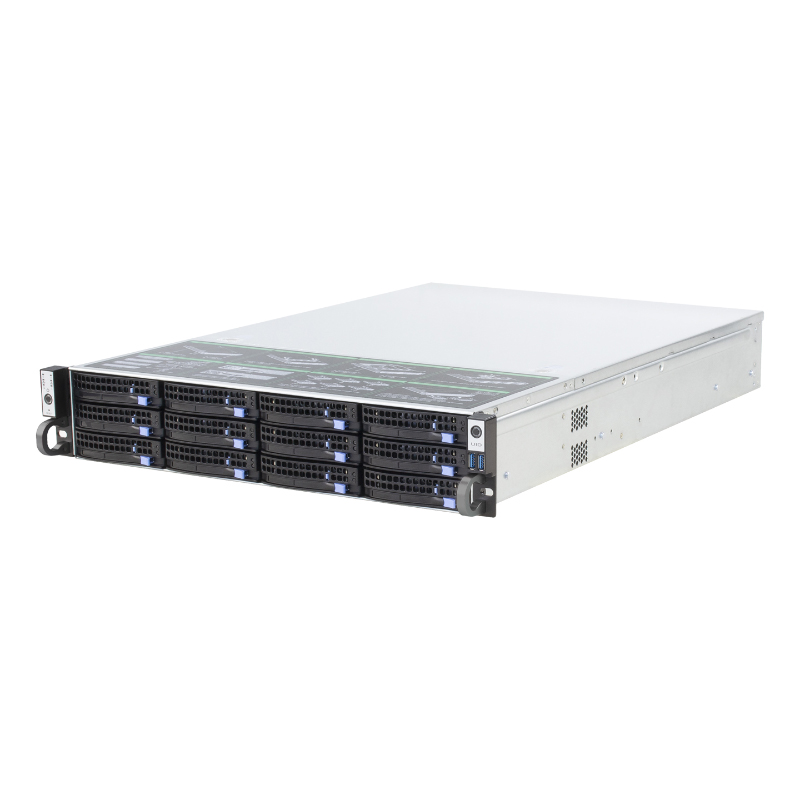

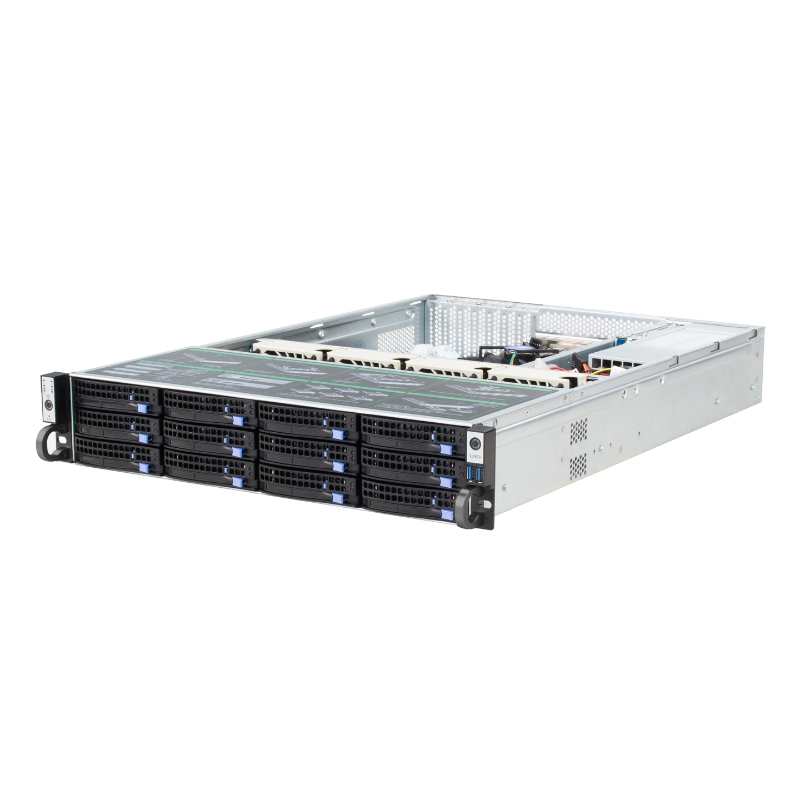

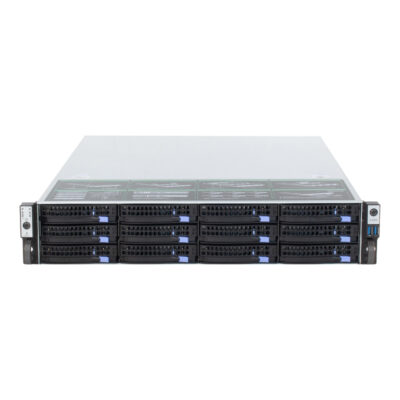

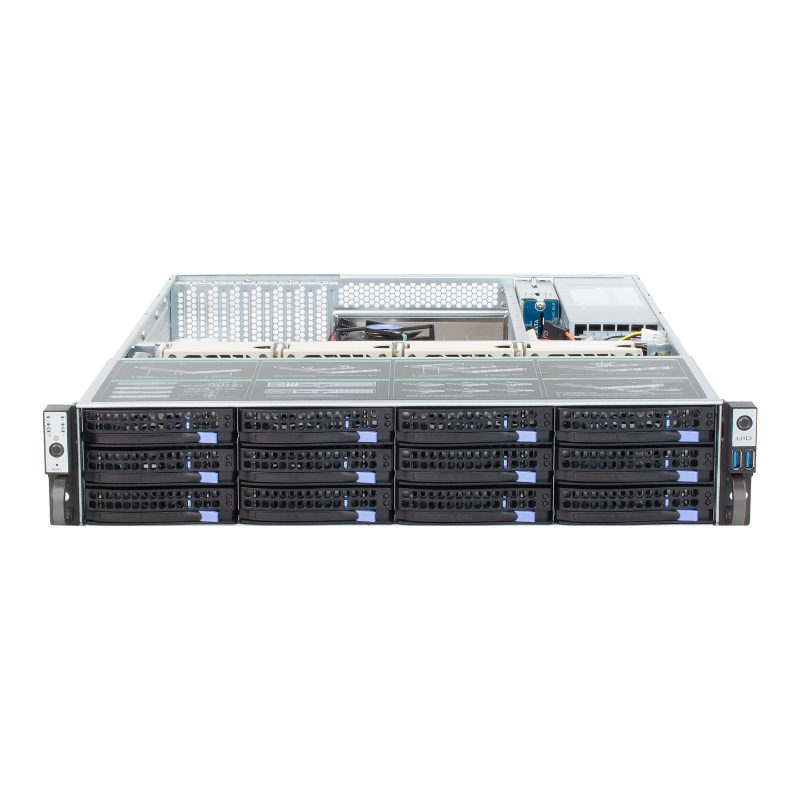

Built from 1.0 mm SGCC, the ISC-SC265-H12-T is a 2U rackmount chassis with 650 mm depth, lockable front access, and a visible 12-tray hot-swap layout. Three 80 mm hot-swappable fans and four fan positions support front-to-rear airflow, service access, and durable data center or storage deployment.
It is designed for selected 12 × 13 in motherboards, seven half-height and three full-height PCI/PCIe positions, and standard 2U or CRPS redundant PSUs. Backplane, storage interface, rails, drives, PSU, and accessories depend on configuration. Suitable for cloud, monitoring, enterprise IT, OEM/ODM integration, distribution, and project procurement.
| Model | ISC-SC265-H12-T |
|---|---|
| Case size | Depth 650mm×Width 437.5mm×Height 88mm |
| Material | Environmentally friendly, fingerprint-resistant 1.0mm SGCC |
| Hard disk | 12 front 3.5" HDDs (compatible with 2.5" HDD/SSD), 3 internal 2.5" HDD/SSD; The hard disk extraction box adopts EMI-proof design, with light guide, which can indicate the working status of the hard disk; slide rail design, smooth extraction |
| Motherboard size | Standard motherboards of 12" × 13" and below |
| Backplane specification | 6Gb/s Mini-sas interface (SFF8087), with temperature control, with SGPIO |
| Optical drive slot type | None |
| USB type | 2 * USB 2.0 |
| Rear expansion slot direction | 7 half-height PCI/PCIE expansion slots, vertical insertion |
| Front door panel | None |
| Fan specification | 4 8cm fan positions, standard 3 8038B ball fans, high wind pressure, high air volume, hot-swappable |
| Power supply specification | Compatible with standard 2U power supply and CRPS redundant power supply with a length of 300mm and below |
| System control | Power LED*1, Reset*1 Power SW*1, HDD LED*1NIC LED*2*1, UID LED*1UID SW*1, OH/FAN Fail LED*1Power Fail LED*1 |
| Air guide cover | No |
| Top cover button | Yes, tool-free disassembly |
| Application area | Cloud storage, cloud computing, big data, security monitoring and other fields |
