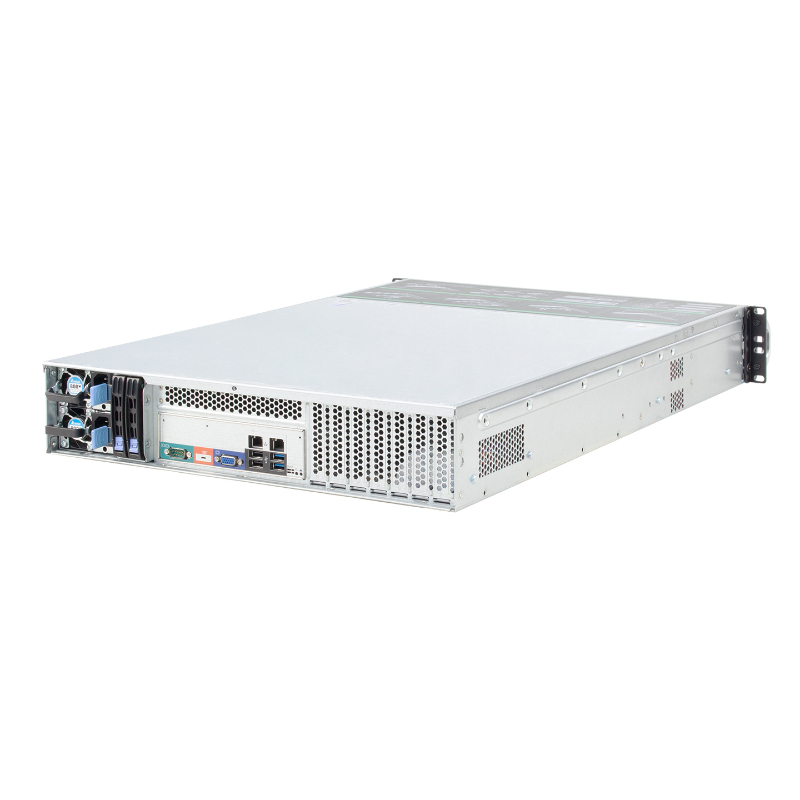

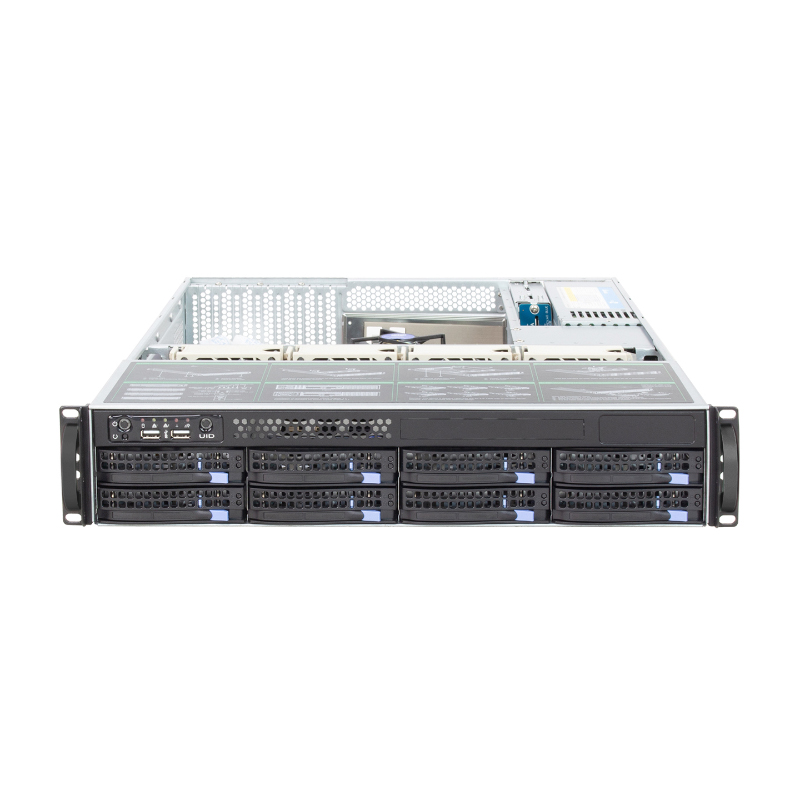

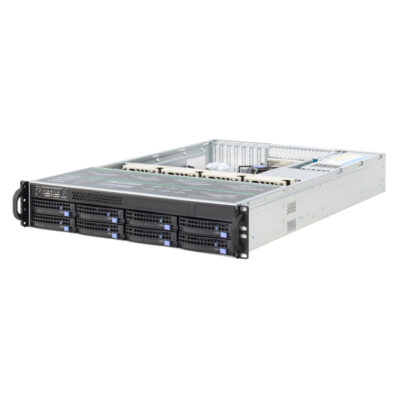

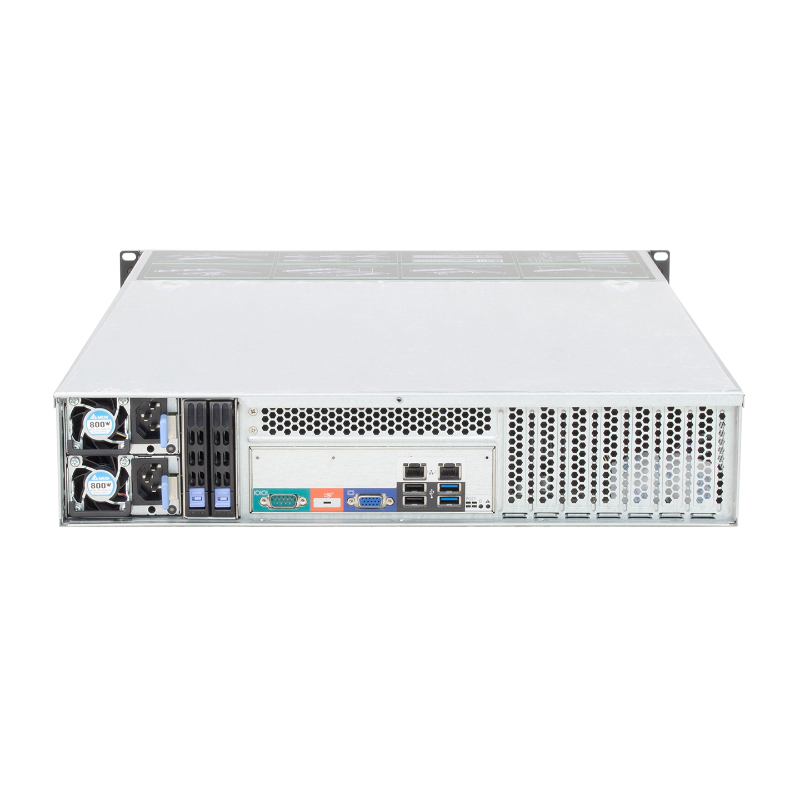

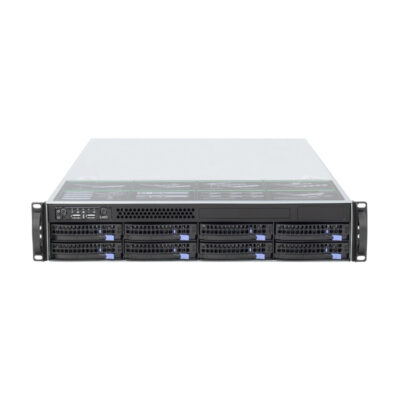

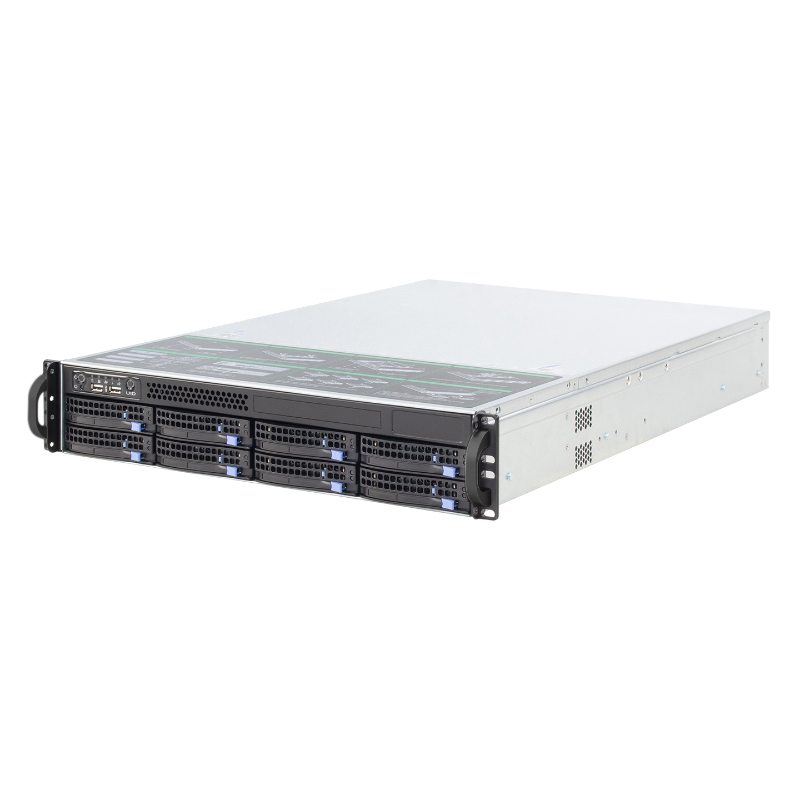

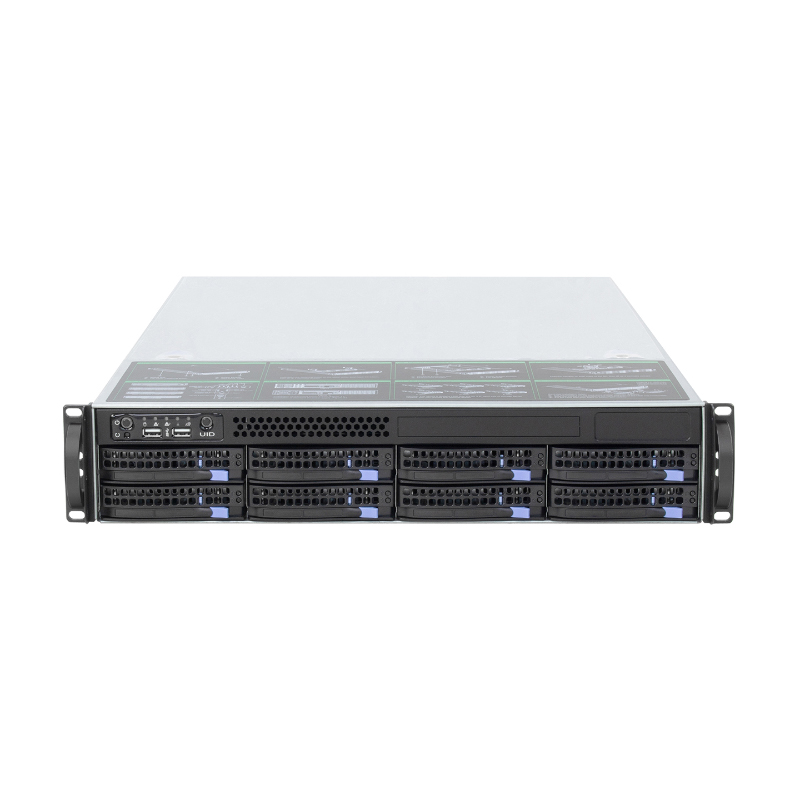

ISC-SC265-H08-T is a 2U rackmount server chassis with eight front hot-swap 3.5-inch bays, three internal 2.5-inch bays, ATX/Micro-ATX/EEB support and flexible PCIe expansion for storage, cloud, monitoring and OEM/ODM integration.

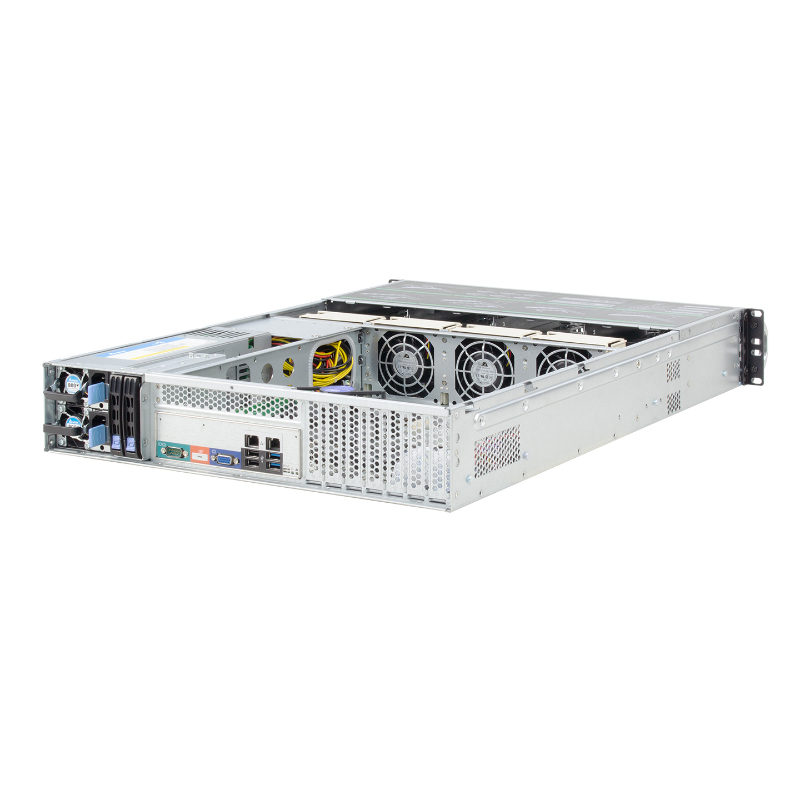

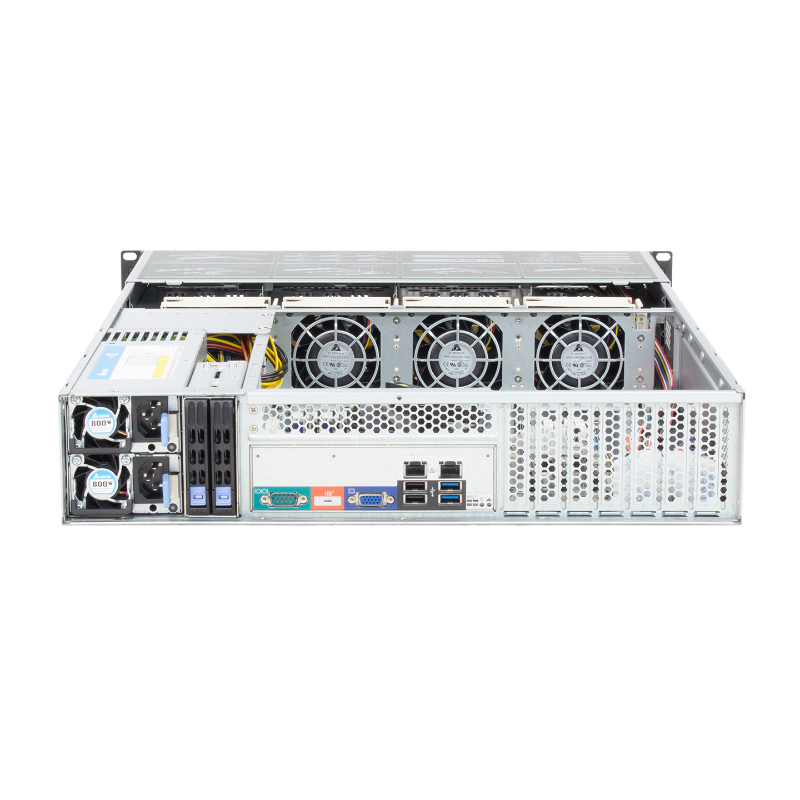

Built from 1.0 mm SGCC steel, the ISC-SC265-H08-T is a 2U rackmount chassis with front-access drive trays and a 650 mm depth. Three hot-swappable 80 x 25 mm ball-bearing fans, plus four available fan positions, support serviceable airflow for data center, storage and monitoring use.
It provides eight front 3.5-inch hot-swap bays with 2.5-inch drive support, three internal 2.5-inch bays, and ATX, Micro-ATX or EEB motherboard compatibility up to 12 x 13 inches. PCI/PCIe expansion and selected Mini-SAS backplane options suit cloud, HPC and integration projects for system integrators and project buyers. Confirm PSU, rails and accessories; OEM/ODM and bulk sourcing are available.
| Model | ISC-SC265-H08-T |
|---|---|
| Case size | Depth 650mm×Width 437.5mm×Height 88mm |
| Material | Environmentally friendly, fingerprint-resistant 1.0mm SGCC |
| Hard disk | 8 front 3.5" HDDs (compatible with 2.5" HDD/SSD), 3 internal 2.5" HDD/SSD; The hard disk extraction box adopts EMI-proof design, with light guide, which can indicate the working status of the hard disk; the slide rail design makes extraction smooth |
| Motherboard size | Standard motherboards of 12" × 13" and below |
| Backplane specification | 6Gb/s Sata interface, with temperature control, direct connection mode |
| Optical drive slot type | None |
| USB type | 2 * USB 2.0 |
| Rear expansion slot direction | 7 half-height PCI/PCIE expansion slots, vertical insertion |
| Front door panel | None |
| Fan specification | 4 8cm fan positions, standard 3 8025B ball bearing fans, hot-swappable |
| Power supply specification | Compatible with standard 2U power supply and CRPS redundant power supply with a length of 300mm and below |
| System control | Power LED*1, Reset*1 Power SW*1, HDD LED*1NIC LED*2*1, UID LED*1UID SW*1, OH/FAN Fail LED*1Power Fail LED*1 |
| Top cover button | Yes, tool-free disassembly |
| Application area | Cloud storage, cloud computing, big data, security monitoring and other fields |
