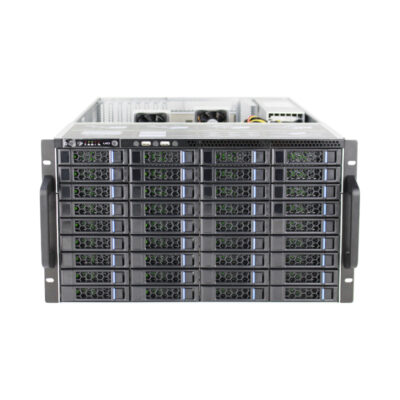

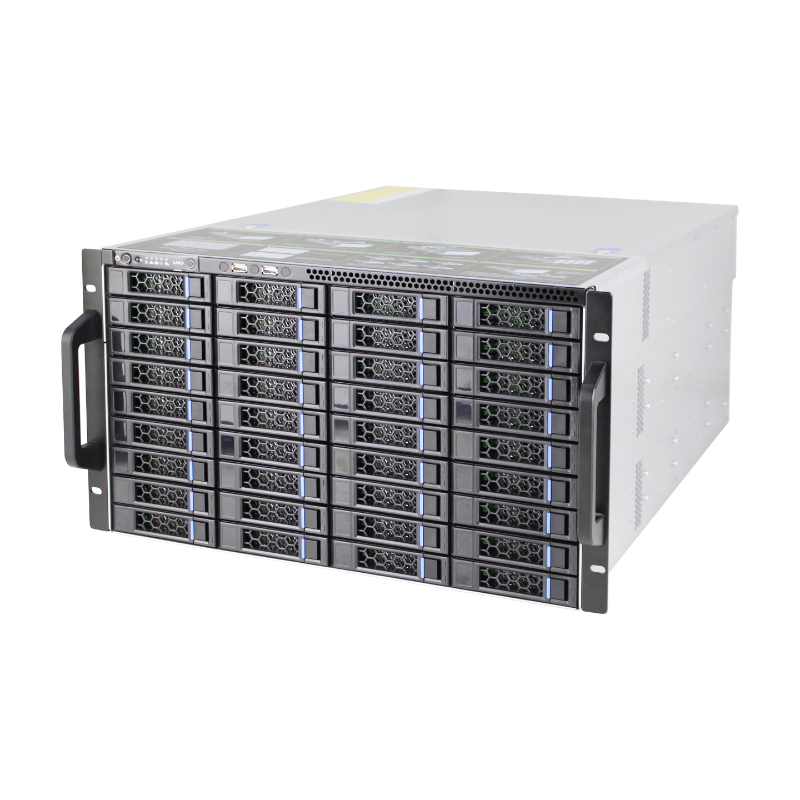

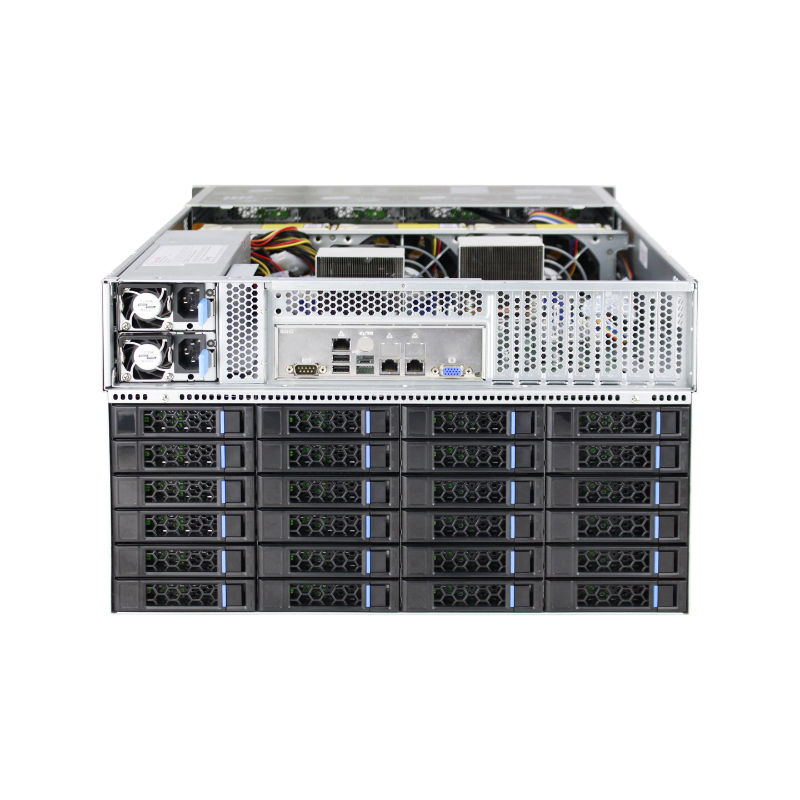

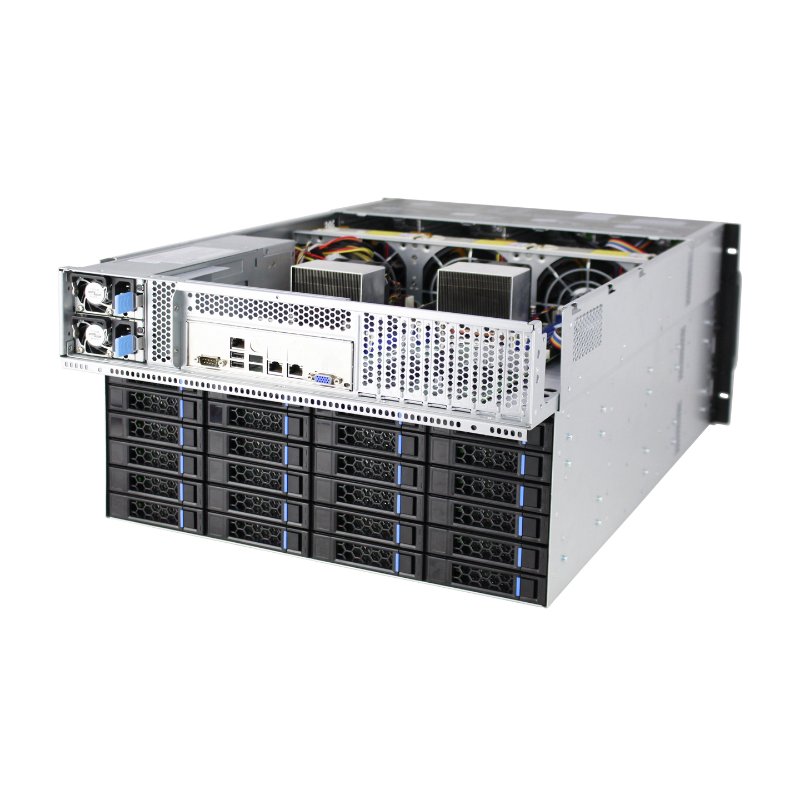

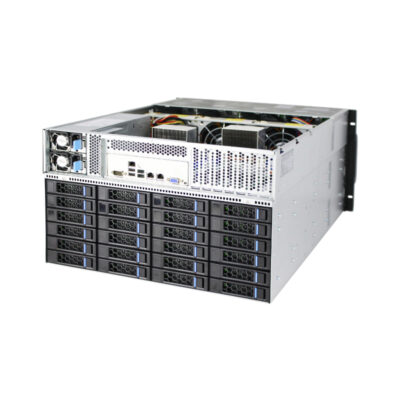

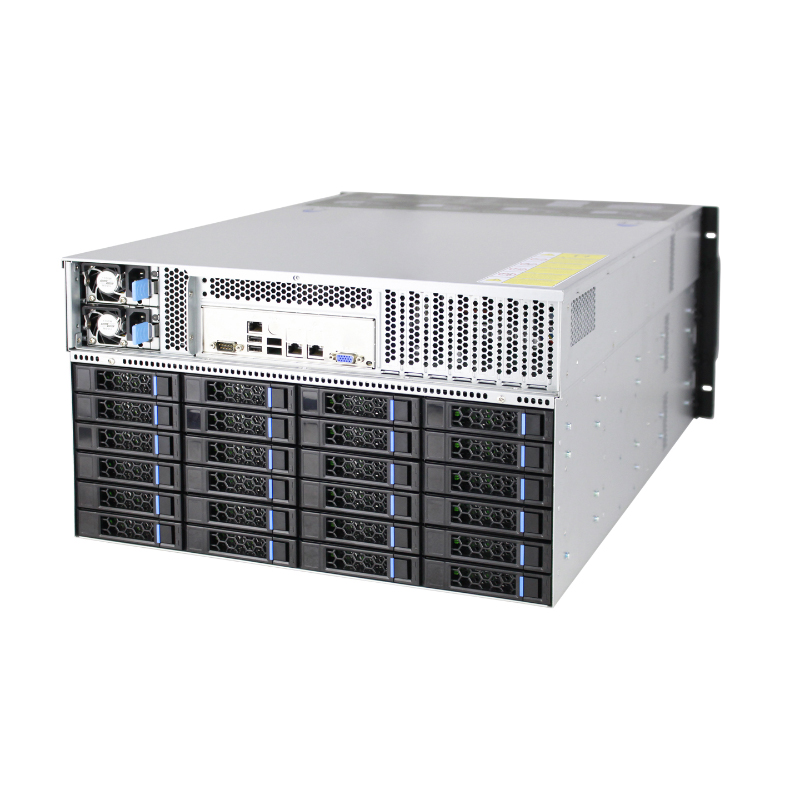

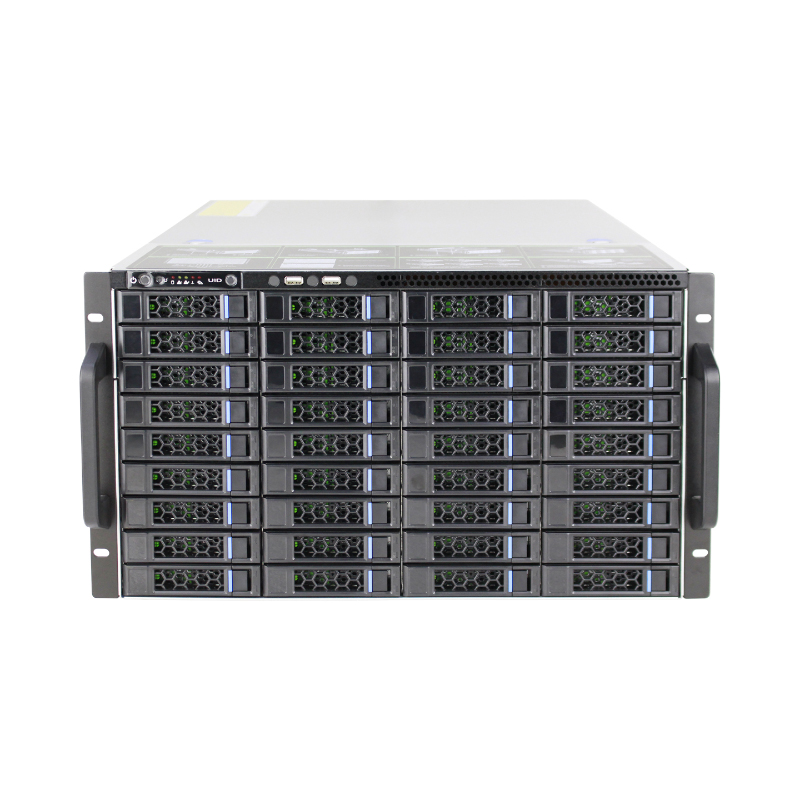

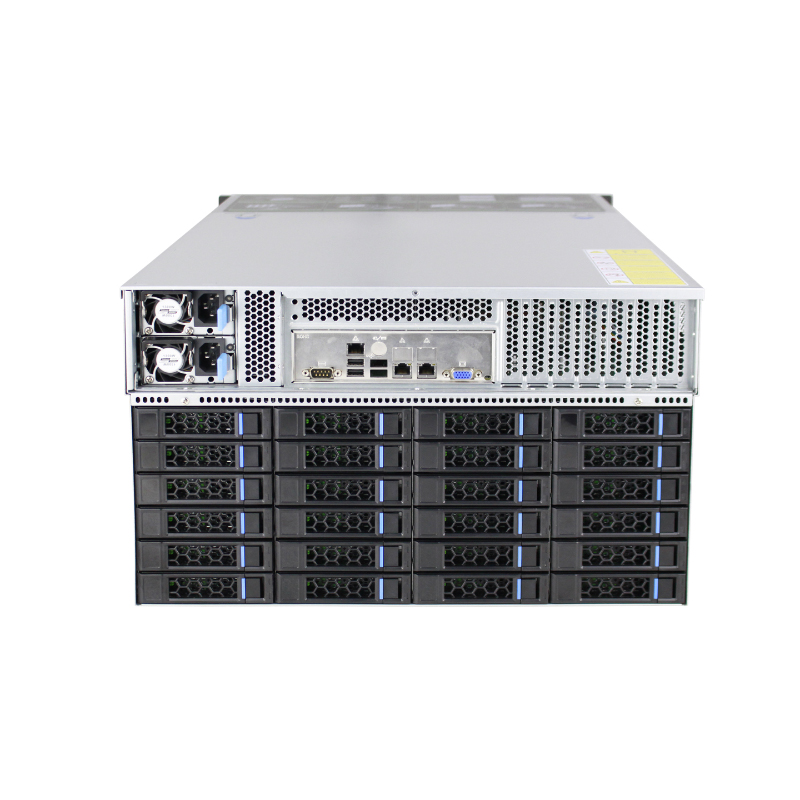

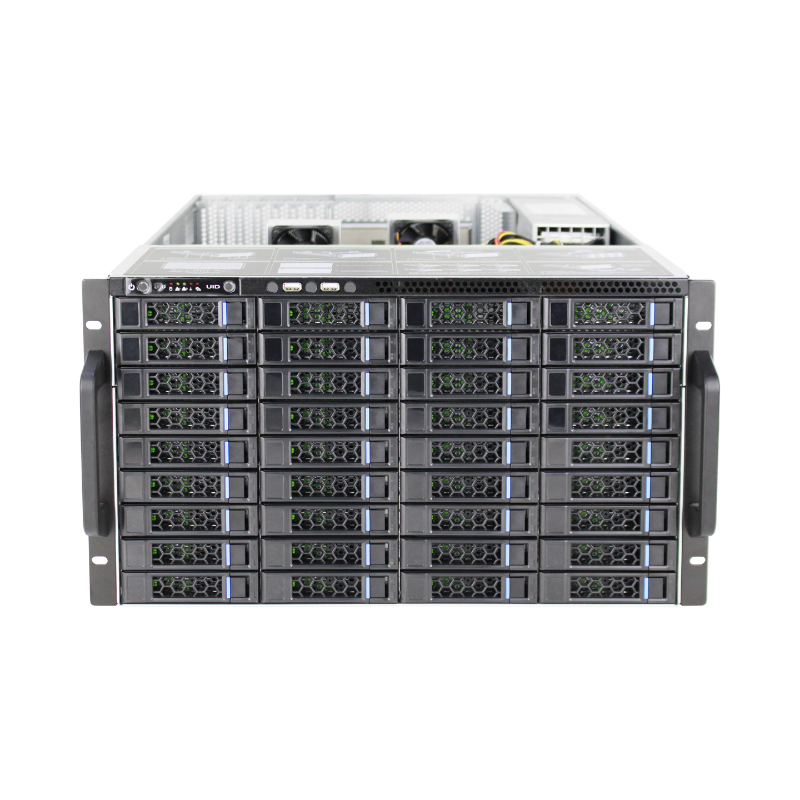

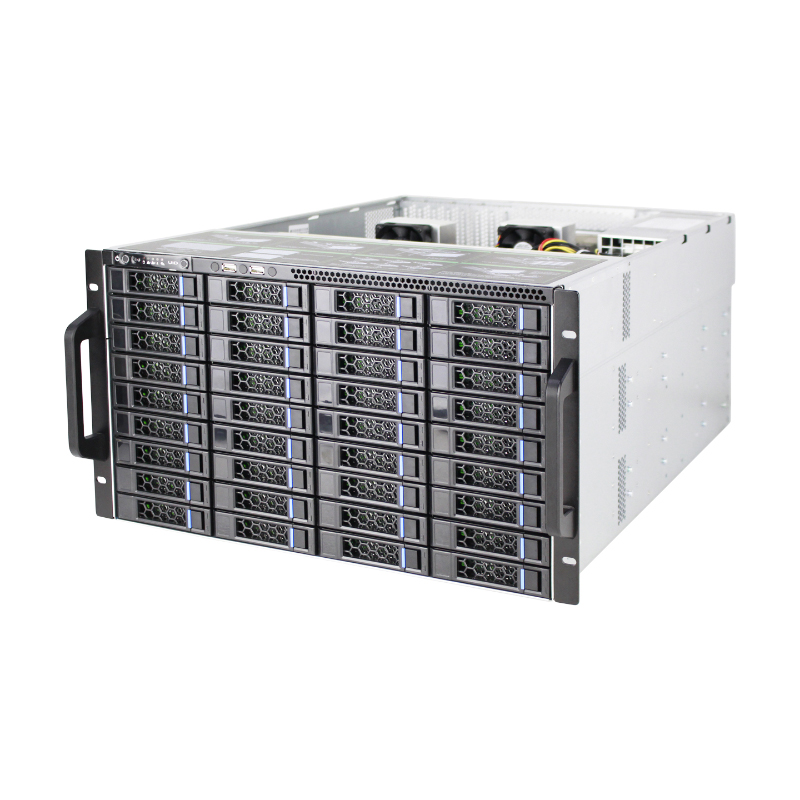

ISC-SC665-H60-T is a 6U rackmount storage chassis with 60 hot-swap 3.5/2.5-inch bays, two internal 2.5-inch bays, seven half-height expansion slots, CRPS support, and six 12038 fans for data center, cloud, OEM/ODM, and bulk project sourcing.
Product Overview: ISC-SC665-H60-T is a 6U rackmount chassis for dense, serviceable storage builds. Product Category: 60-bay hot-swap storage chassis. Key Configuration: 60 front 3.5/2.5-inch bays, two internal 2.5-inch bays, six 12038 ball fans, seven half-height PCI/PCIe slots, CRPS PSU support, and 1.0 mm SGCC. Compatibility: Supports motherboards up to 12 x 13 inches; backplane, cables, rails, locks, and included parts depend on configuration. Applications: Cloud storage, big data, surveillance, enterprise IT, and selected HPC storage nodes. Procurement Value: For integrators, data centers, OEM/ODM projects, distributors, and volume sourcing.
| Model | ISC-SC665-H60-T |
|---|---|
| Dimensions (mm) | 650mm deep × 437.5mm wide × 265mm high, standard rack-mounted server chassis |
| Material | Environmentally friendly, fingerprint-resistant 1.0mm SGCC |
| HDD and FDD positions | 60 3.5" hot-swappable hard disk slots (compatible with 2.5" hard disks), 2 built-in 2.5" hard disk slots |
| Fan position | 6 12038 ball fans, high speed, high wind pressure, high air volume, hot-swappable |
| HDD extraction box | Anti-EMI design, compatible with 2.5"/3.5" hard disks, with light guide, can indicate the working status of the hard disk, optional with lock function |
| HDD backplane | 6Gb Expander expansion backplane, Mini-sas interface (SFF8087), with temperature control, SGPIO and time-sharing startup function; optional 12Gb Expander expansion backplane, Mini-sas HD interface (SFF8643) |
| Suitable for motherboard | Compatible with various motherboards of 12"*13" and below |
| System control | Power SW*1, Reset*1, Power LED*1, HDD LED*1, NIC LED*2, Power Fail LED*1, OH/Fan Fail LED*1, USB2.0*2 |
| Power supply | CRPS redundant power supply |
| Expansion slot | 7 half-height PCI/PCIE expansion slots |
| Slide rail | Three-section ball bearing rails or simple rails |
| Application area | Cloud storage, cloud computing, big data, security monitoring and other fields |
