ISC-RC4U610M-T is a 4U 19-inch rackmount case with two 3.5-inch HDD bays, three 5.25-inch bays, seven-slot expansion, front USB and an 8.4-inch LCD. It supports selected industrial boards and OEM/ODM procurement for automation, IoT and transport projects.

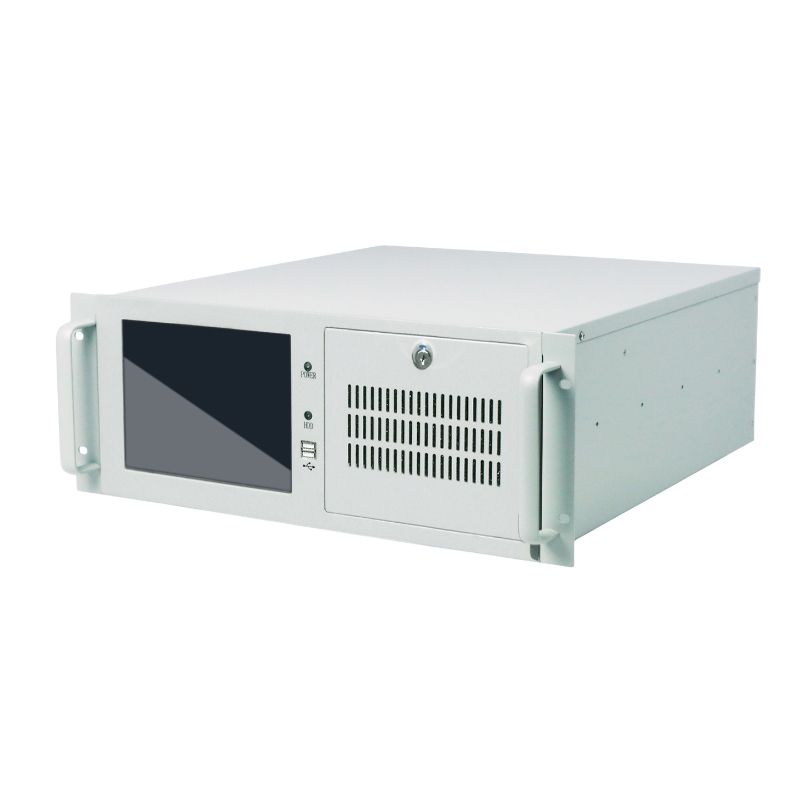

ISC-RC4U610M-T is a 4U industrial rackmount chassis with an 8.4-inch LCD for rack control builds.
Product Category:
Rackmount Case for industrial computing.
Key Configuration:
Two 3.5-inch HDD bays, one 3.5-inch FDD bay, three 5.25-inch bays, seven-slot rear window, one 12025 fan and two front USB ports.
Compatibility:
For selected ISA/PCI/PCIMG backplanes or boards up to 12 x 9.6 inches, with PS/2 or redundant PSU options.
Applications:
Industrial control, automation, IoT and intelligent transport.
Procurement Value:
For integrators, OEM buyers and distributors needing configurable supply, prototypes and volume sourcing.
| Model | ISC-RC4U610M-T |
|---|---|
| Dimensions (mm) | Depth 480mm × width 427mm × height 177mm, standard 19" rack-mounted industrial chassis |
| Material | Environmental protection, fingerprint resistant 1.2mm/SGCC |
| HDD bit | Two 3.5" hard drive bays, the hard drive bay adopts spring shock absorption design |
| FDD bit | 1 x 3.5" floppy drive bay |
| CD-ROM bit | Three 5.25" optical drive bays |
| Power supply | Standard PS2 power supply or redundant power supply |
| Fan position | 1 12025 fan |
| Room for expansion | 7-slot rear window or 14-slot rear window can be replaced |
| USB interface | Support 2 front USB ports |
| Color | Different colors can be sprayed on request |
| LCD screen | 8.4" LCD screen, optional resistive touch screen |
| Suitable for motherboard | Standard ISA/PCI/PCIMG industrial backplane or 12"×9.6" and below industrial motherboard |
| Application field | Used in industrial control, mechanical automation, Internet of Things, intelligent transportation and other fields |
