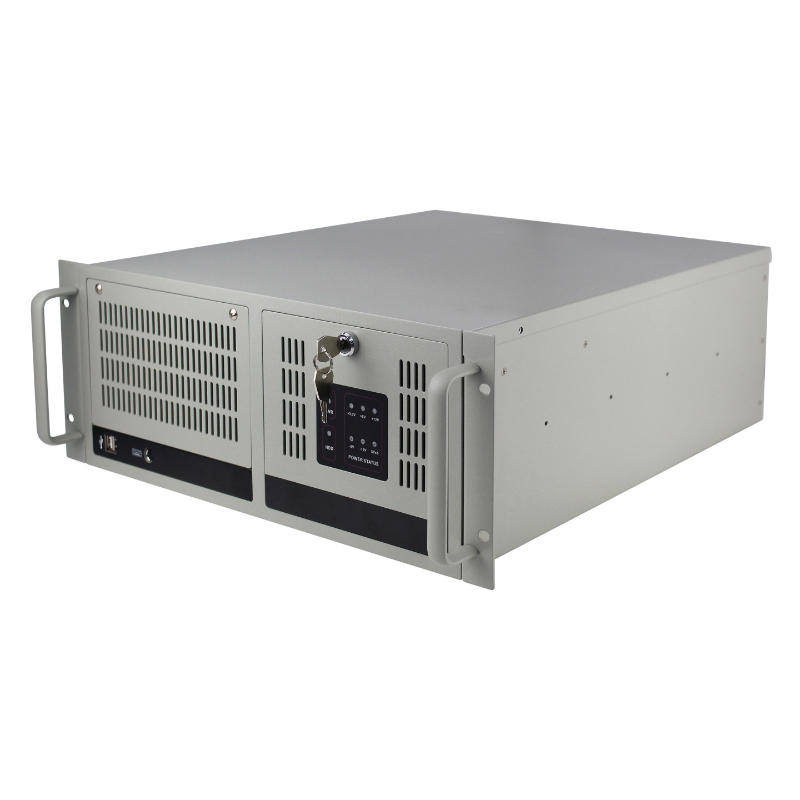

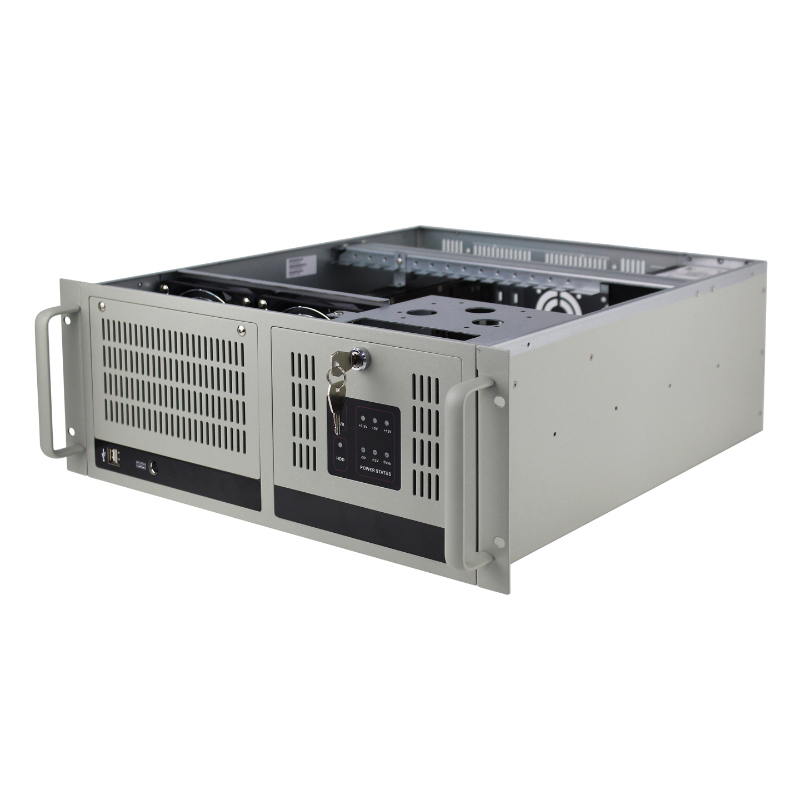

ISC-RC4U610H-T is a 4U SGCC rackmount chassis for industrial control, automation, IoT and monitoring systems. It supports selected industrial motherboards, flexible 3.5/5.25-inch bays, PS2 or redundant PSU options, and 7- or 14-slot rear configurations for OEM/ODM sourcing.
Product Overview: ISC-RC4U610H-T is a 4U rackmount chassis for industrial hardware integration.
Product Category: SGCC steel rackmount case for automation, IoT, transport and security systems.

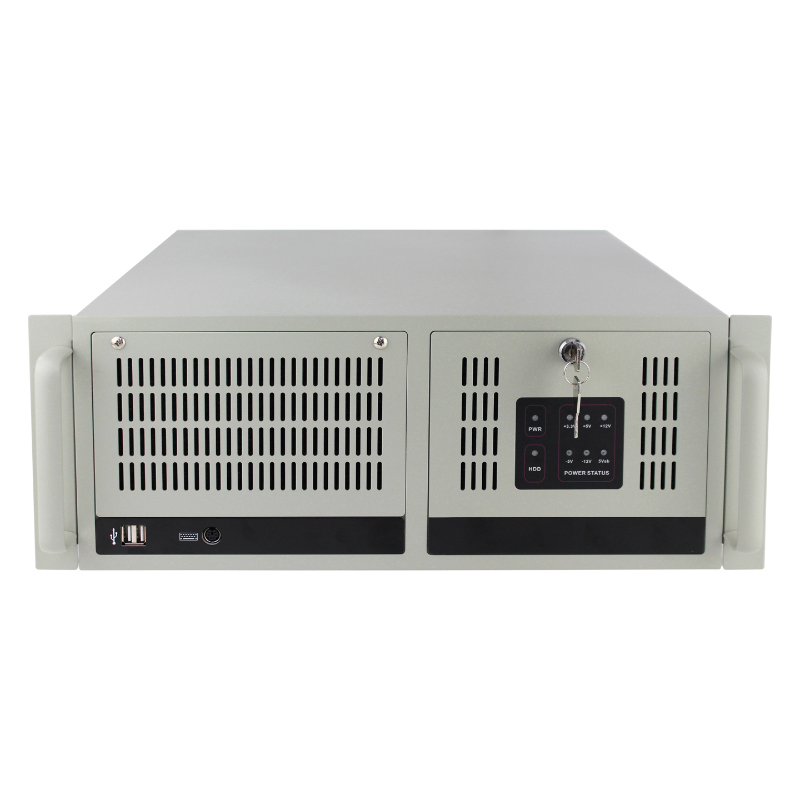

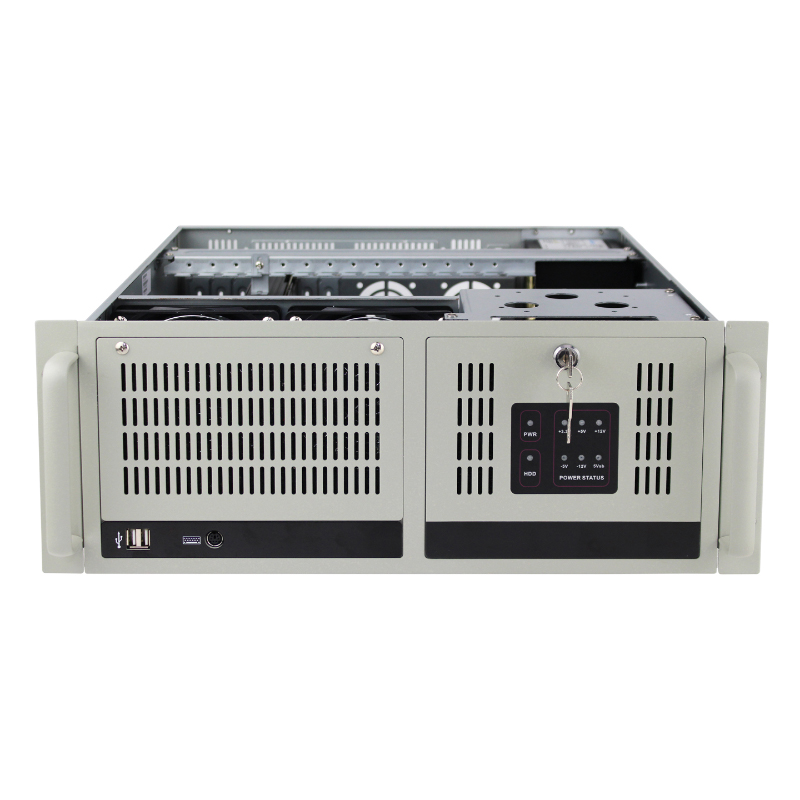

Key Configuration: One 3.5-inch HDD or FDD bay, three 5.25-inch bays, two front USB ports, two 8025 fan positions, and 7- or 14-slot rear options.
Compatibility: Supports selected industrial motherboards up to 12 x 10.5 inches, industrial backplanes, and PS2 or redundant PSU formats.
Applications: Industrial control, edge computing, monitoring and network storage.
Procurement Value: Suitable for system integrators, OEM/ODM buyers, distributors and project teams seeking configurable chassis supply.
| Model | ISC-RC4U610H-T |
|---|---|
| Dimensions (mm) | L480mm* W427mm* H177mm |
| Material | Environmentally friendly, fingerprint resistant 1.2mm SGCC |
| HDD and FDD bits | 1* 3.5″ HDD bay or 1* 3.5″ Floppy drive bay |

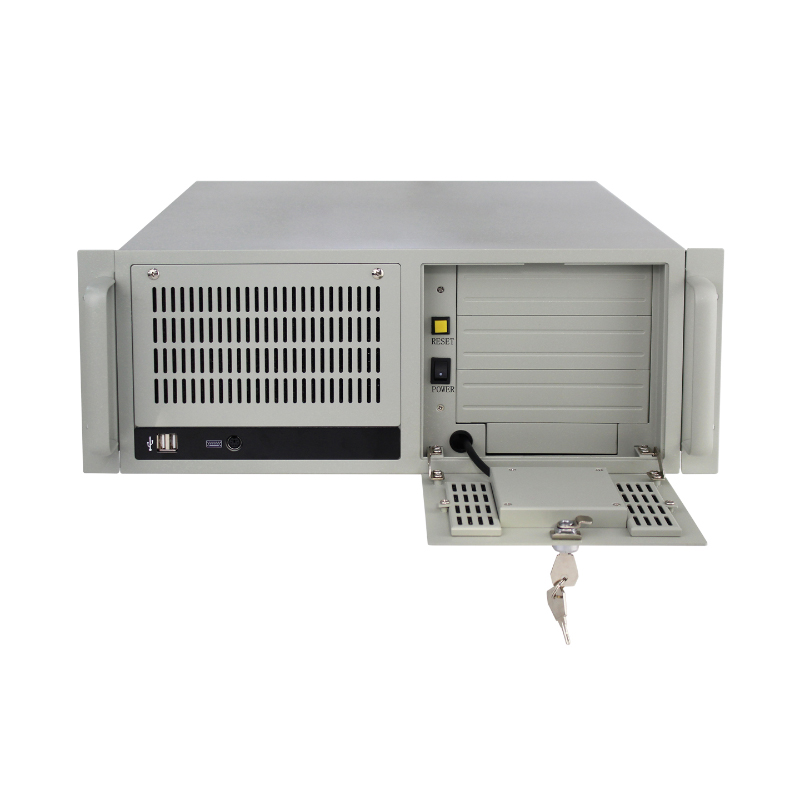

| CD-ROM bit | 3* 5.25″ optical drive bays |
| Power supply | Support PS2 power supply or redundant power supply |
| Fan position | 2* 8025 fans |

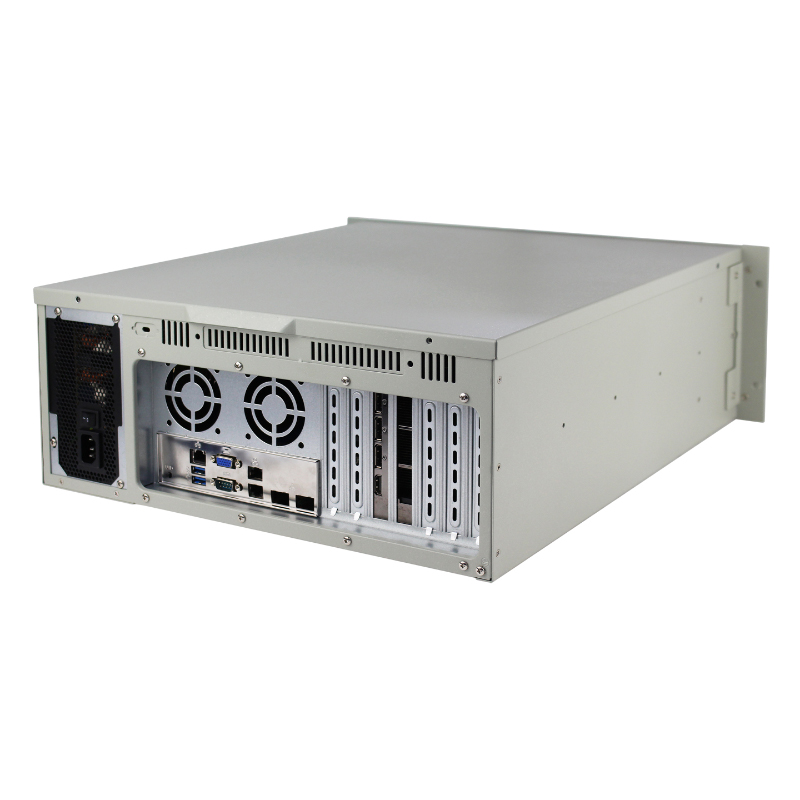

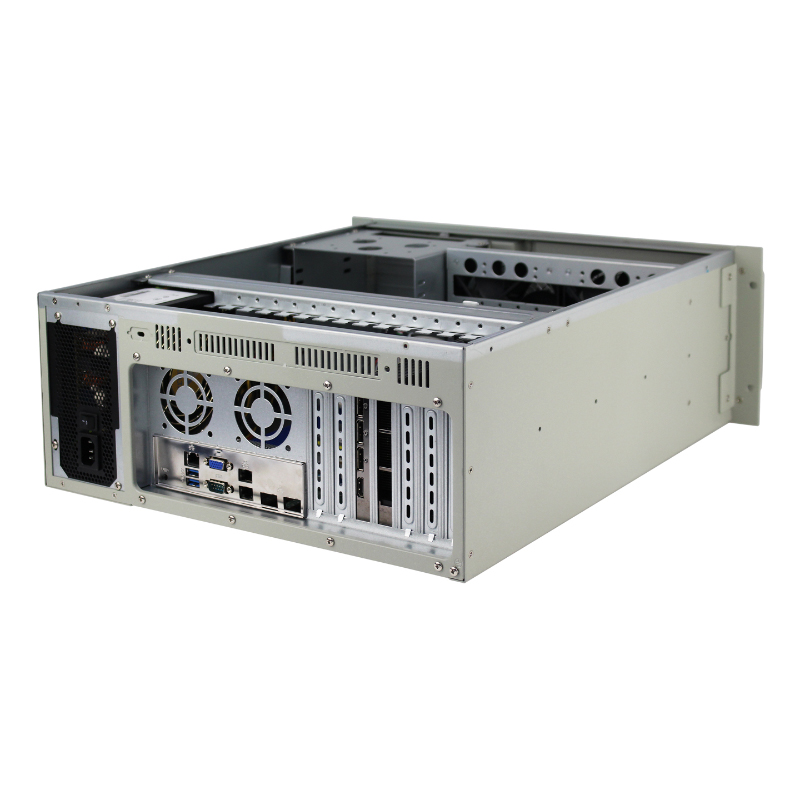

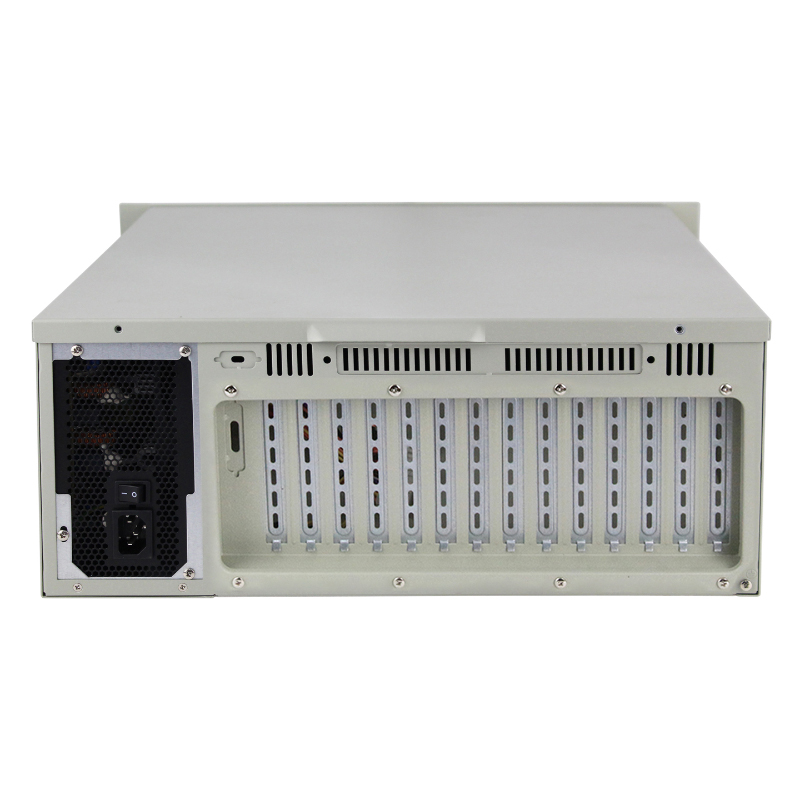

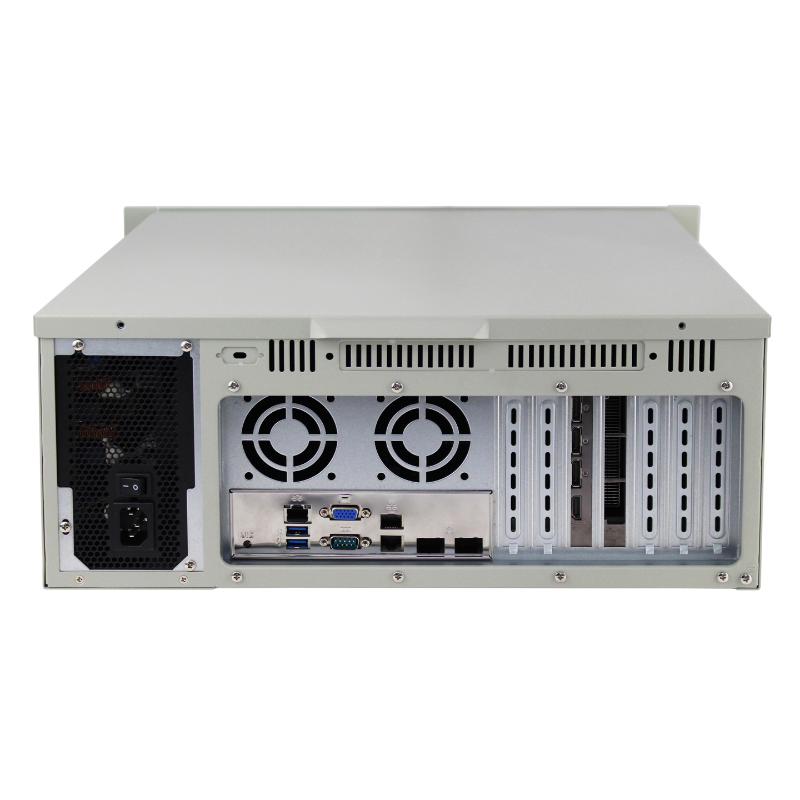

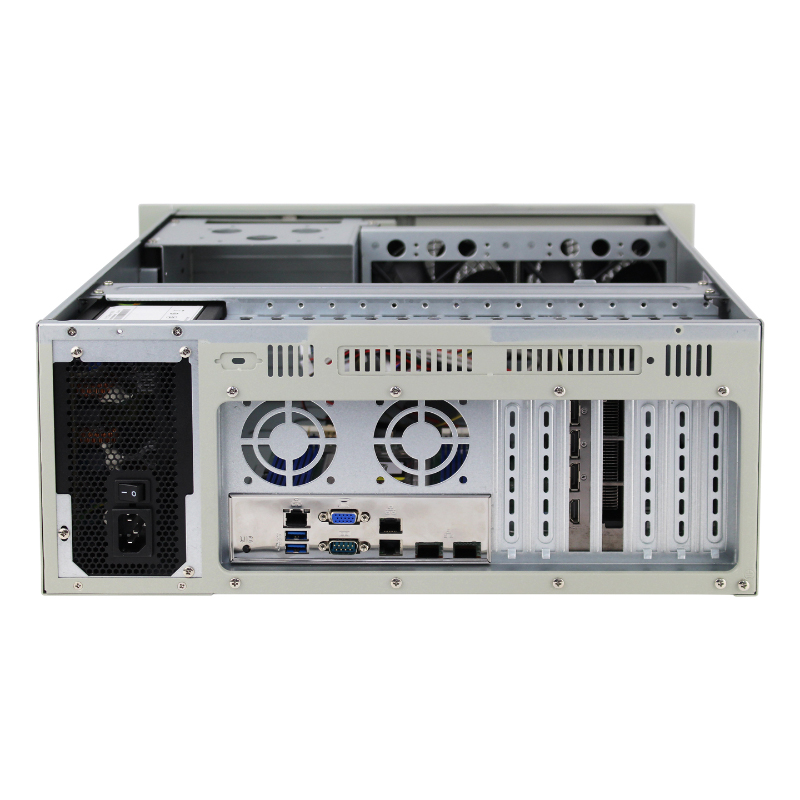

| Room for expansion | 7-slot rear window or 14-slot rear window can be replaced |
| USB interface | Support 2 front USB ports |

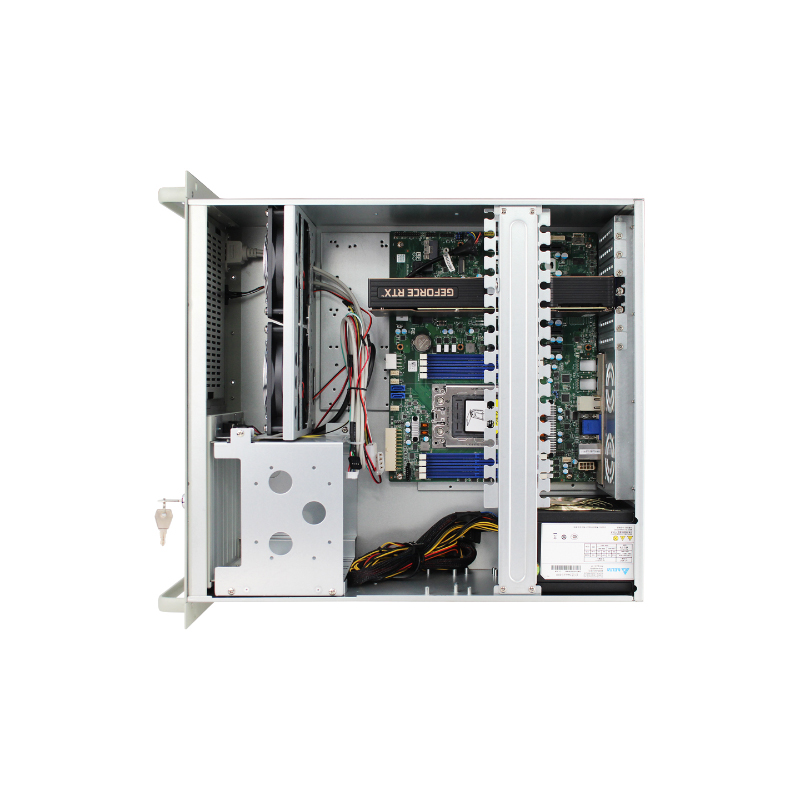

| Suitable for motherboard | Standard ISA/PCI/PCIMG industrial backplane or 12″*10.5″ and below the industrial motherboard |
| Application field | Widely used in industrial control, intelligent transportation, mechanical automation, the Internet of Things, security monitoring, and other fields |
