The ISC-RC4U510L-T 4U SGCC steel rackmount chassis supports ATX/microATX boards up to 12 × 9.6 inches, three 3.5-inch or 2.5-inch drives, three 5.25-inch bays and seven full-height PCI/PCIe slots. Designed for industrial system integration and OEM/ODM sourcing.

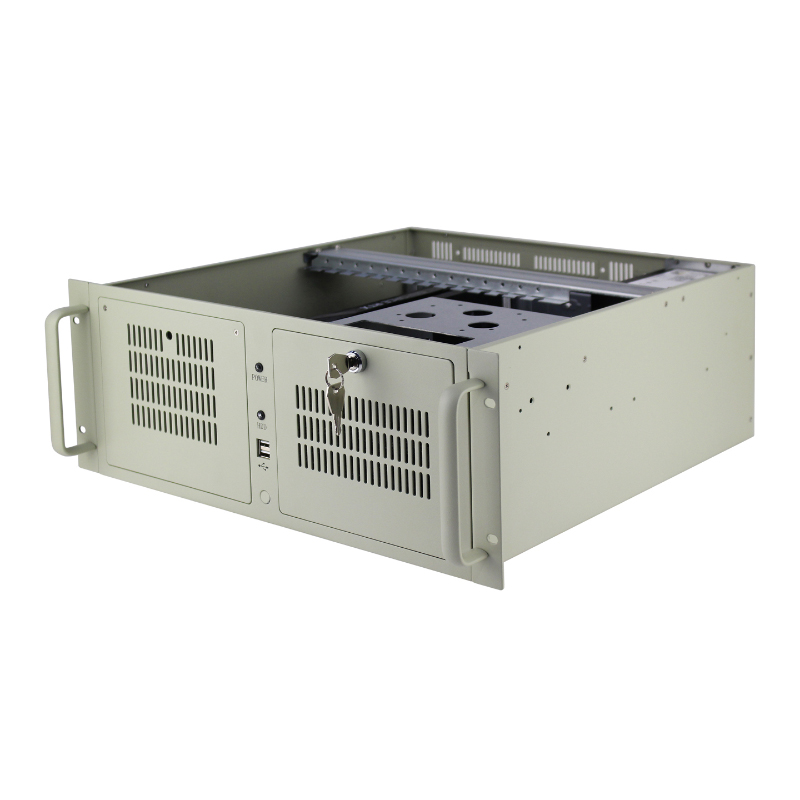

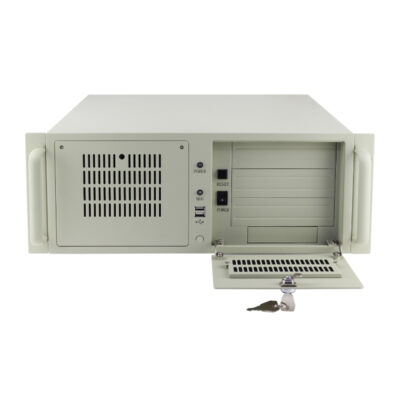

ISC-RC4U510L-T is a 4U rackmount chassis for industrial and server integration, supplied as an enclosure rather than a complete system.
Key Configuration:
Three 3.5-inch or 2.5-inch drive positions, one 3.5-inch FDD bay, three 5.25-inch bays, seven full-height PCI/PCIe slots, two front USB ports, and one 120 mm fan position.
Compatibility:
Supports ATX and microATX boards up to 12 × 9.6 inches and ATX PSU format. Confirm PSU, fan, backplane, rails, cables, and accessories before ordering.
Applications:
Industrial control, intelligent transport, automation, IoT, security monitoring, and enterprise integration.
Procurement Value:
Suitable for system integrators, OEM buyers, distributors, and project teams requiring configurable chassis sourcing, customization, and repeat procurement.
| Model | ISC-RC4U510L-T |
|---|---|
| Dimensions (mm) | Depth 450mm × Width 427mm × Height 177mm, standard rack-mounted industrial chassis |
| Material | Environmentally friendly, fingerprint-resistant 1.2mm/SGCC |
| HDD slot | 3 3.5" hard disk slots (or 3 2.5" SSDs) |
| FDD slot | 1 3.5" floppy drive slot |
| CD-ROM slot | 3 5.25" optical drive slots |
| Power supply | 4U standard ATX power supply |
| Fan slot | 1 12025 fan |
| Expansion space | 7 PCI/PCIE full-height expansion slots |
| USB interface | Supports 2 front USB ports |
| Suitable for motherboard | Supports motherboards of 12"×9.6" and below |
| Application area | Widely used in industrial control, intelligent transportation, mechanical automation, Internet of Things, security monitoring and other fields |
