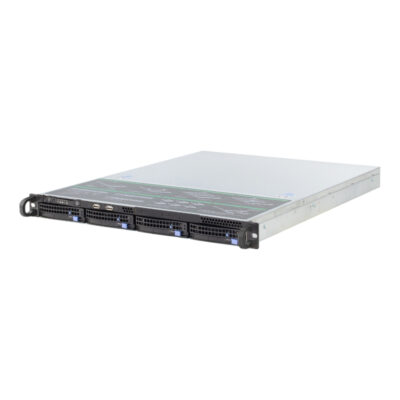

1U rackmount server chassis with four front-access removable drive trays, rack handles and front USB controls. Designed for storage, enterprise IT and system integration; motherboard, PSU, backplane, cooling and rail compatibility require confirmation.

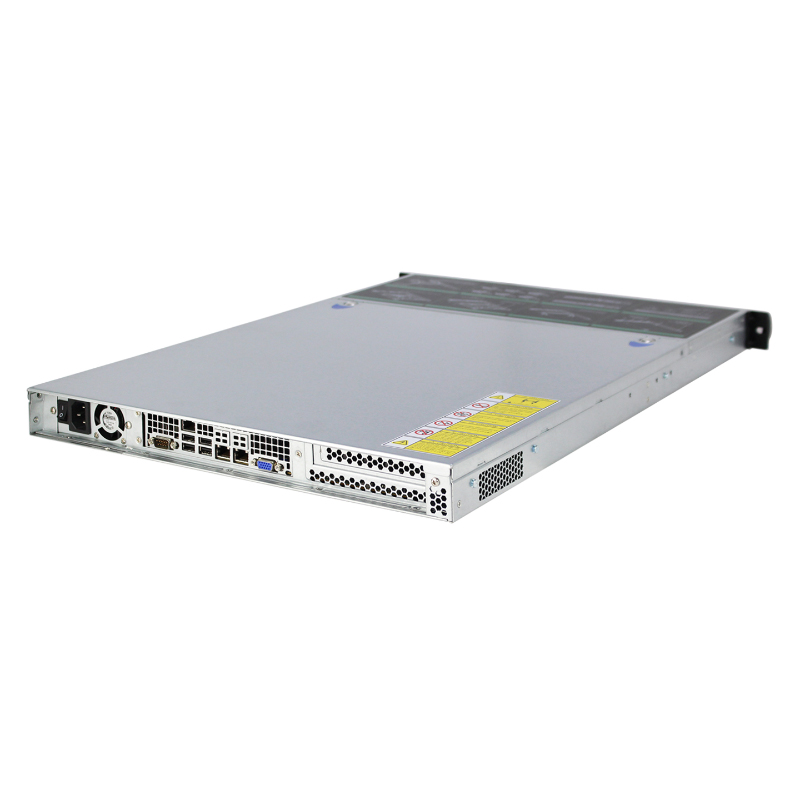

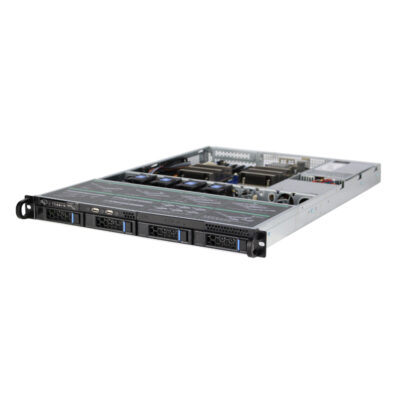

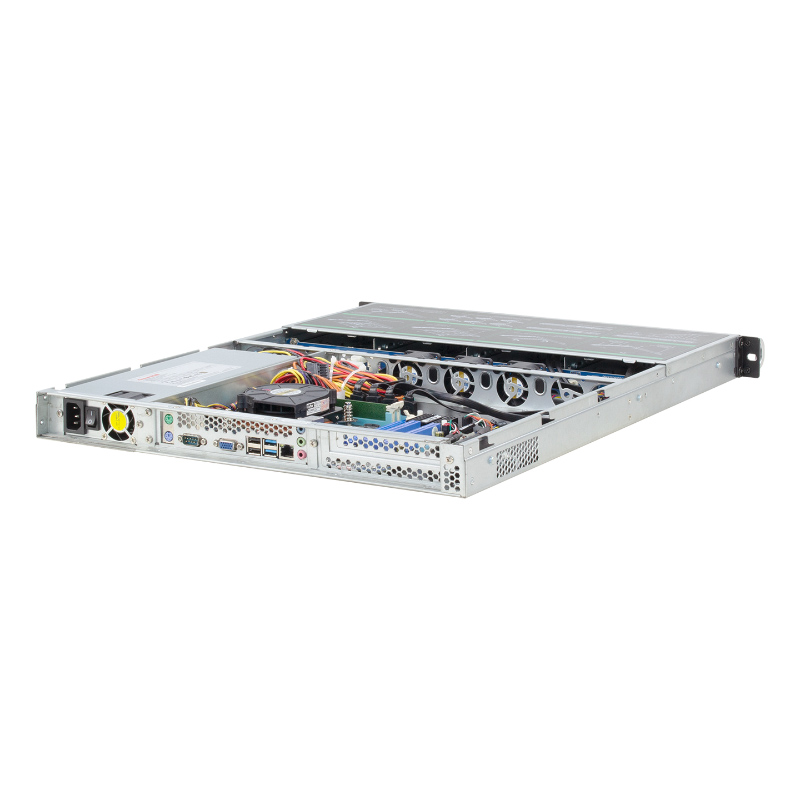

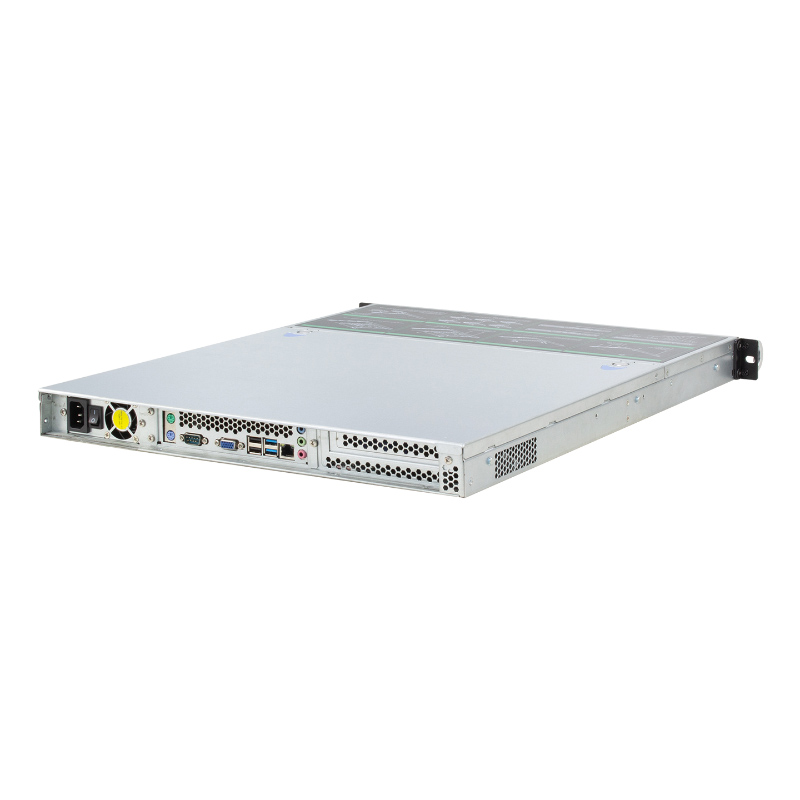

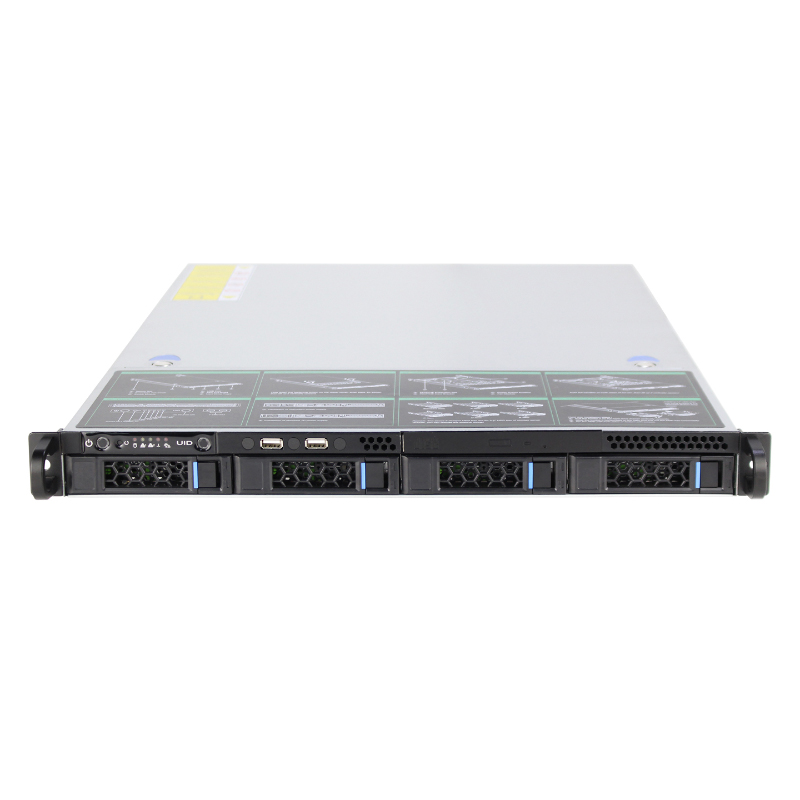

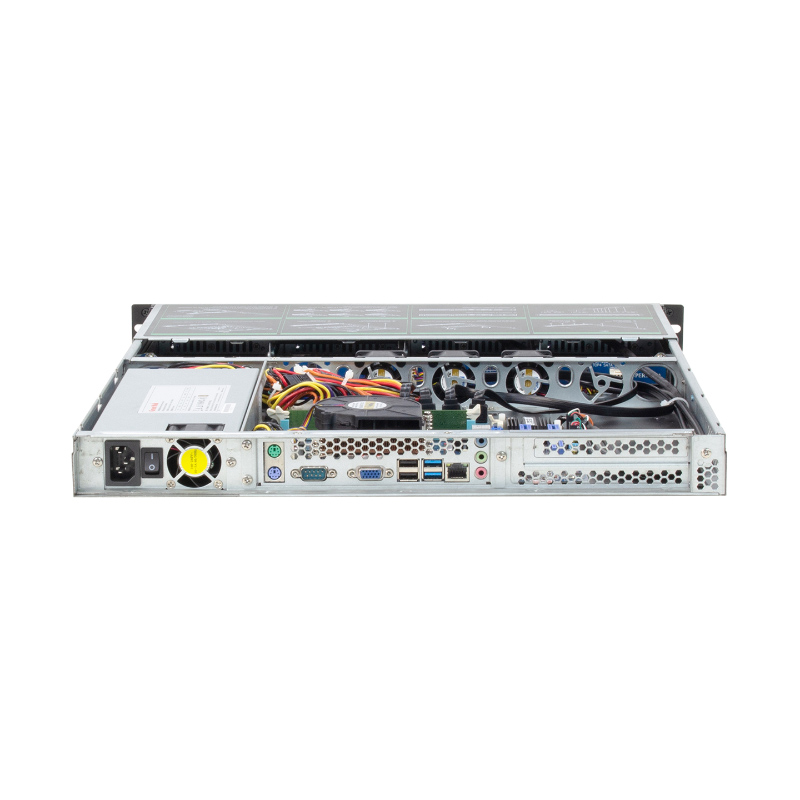

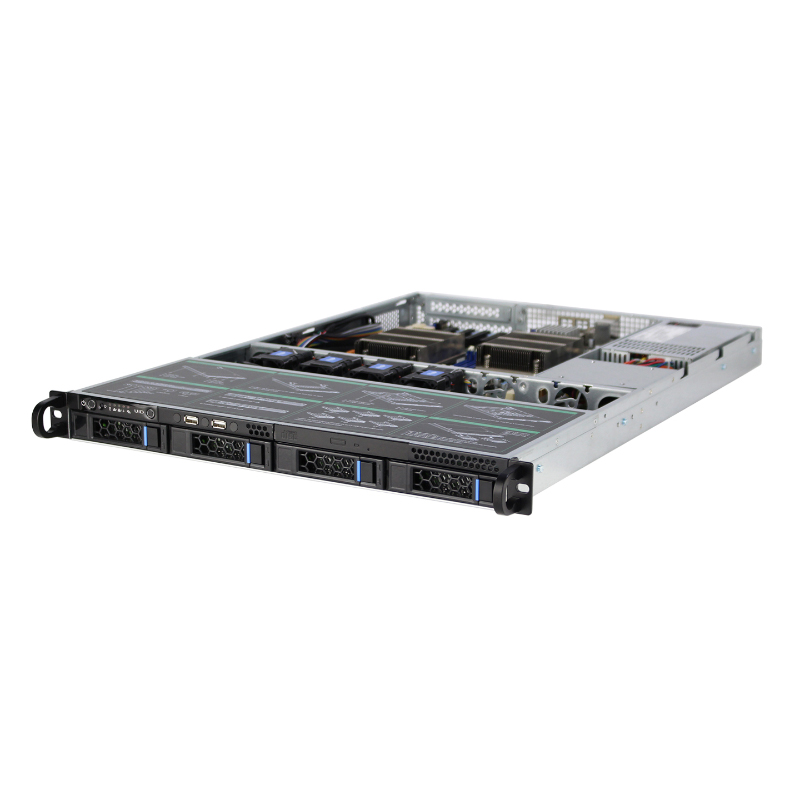

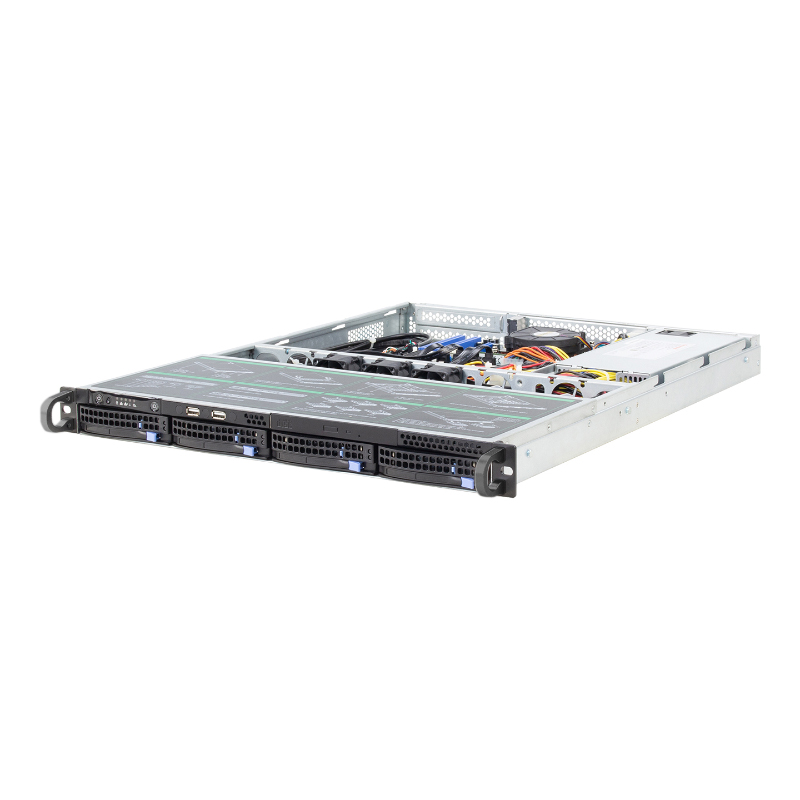

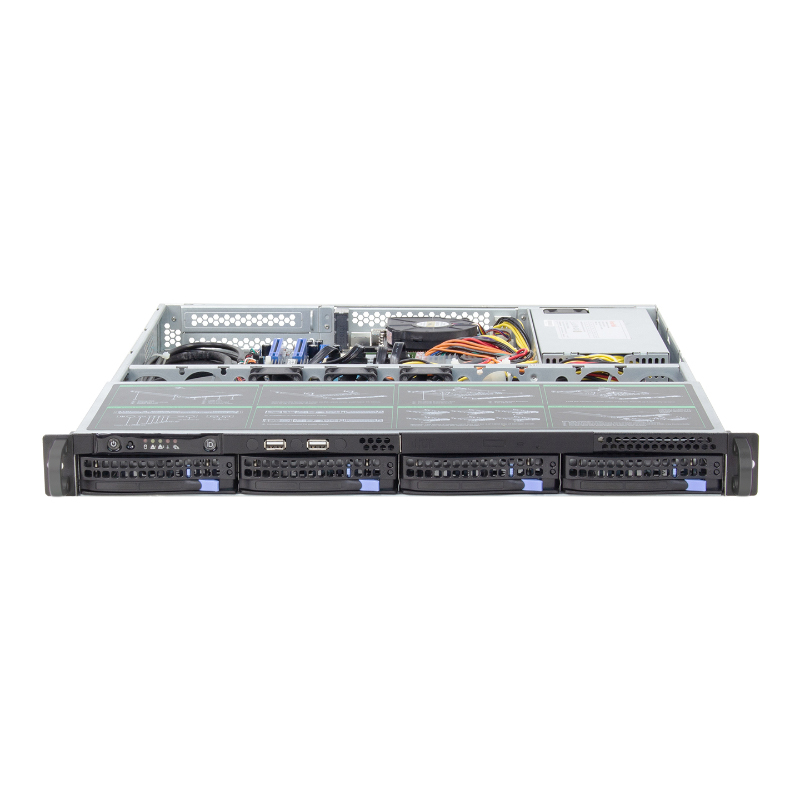

This 1U metal rackmount chassis has a removable top cover, front rack handles and four front-access drive trays for easier service. Front ventilation supports directed airflow, while the compact form suits data centers, enterprise IT, security storage and edge deployments.
Designed as a 4-bay server or storage enclosure, it provides visible front USB and system controls. Motherboard, PSU, cooling, backplane and rail compatibility depend on configuration and should be confirmed before ordering. It suits integrators, OEM/ODM projects, distributors and procurement teams requiring flexible sourcing, maintenance access and scalable deployment.
| Model | ISC-SC1U560-H4-T |
|---|---|
| Chassis size | L560mm* W437.5mm* H44.5mm |
| Material | Environmentally friendly, fingerprint resistant 1.0mm SGCC |
| Hard disk | 4* front 3.5" HDDs (compatible with 2.5" HDD/SSD), 1 built-in 2.5" HDD/SSD; the hard disk extraction box adopts anti-EMI design, with light guide column, which can indicate the working status of the hard disk; slide rail design, smooth extraction |
| Motherboard size | Standard motherboards 12" x 10.5" and below |
| Backplane Specifications | 6Gb/s Sata interface, with temperature control, direct connection mode |
| Optical drive slot type | 1 ultra-thin notebook optical drive slot |
| USB type | 2*USB 2.0 |

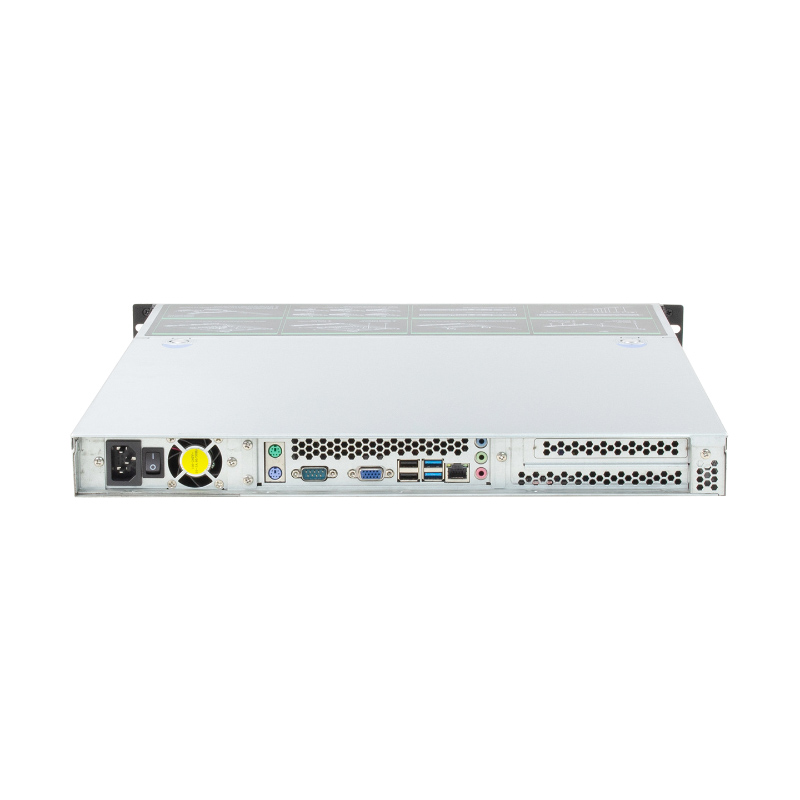

| Rear expansion slot orientation | 1 standard PCI/PCIE horizontal expansion slot |
| Fan Specifications | support 6* 40mm fan positions, standard 3* 4028B ball fans, 12000rpm, with hot swap and shock absorption |
| Power Specifications | Compatible with standard 1U power supplies with a length of 225mm and below |
| System control | Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2*1, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1 |
