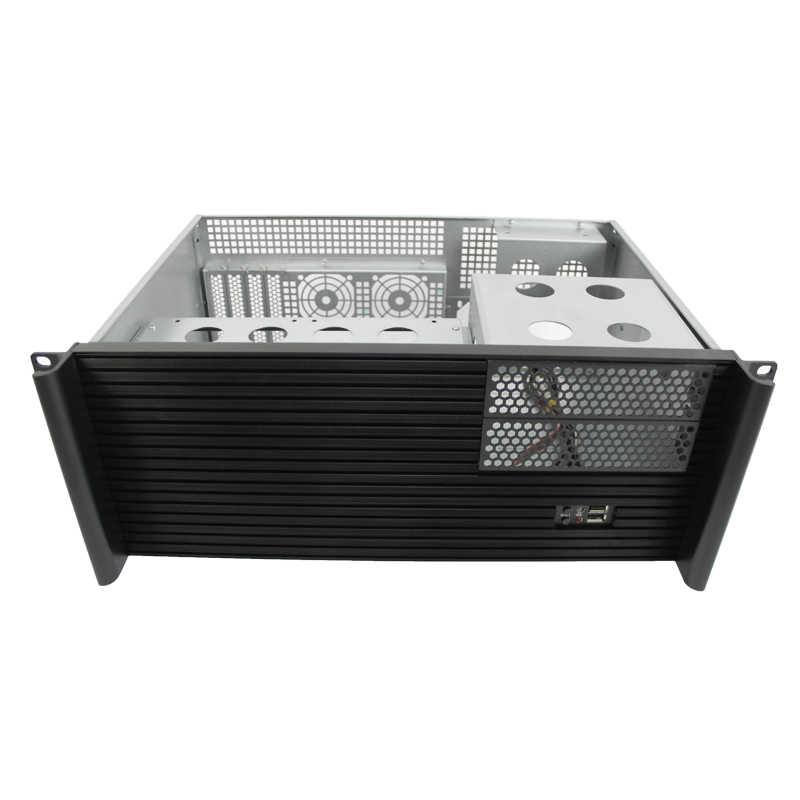

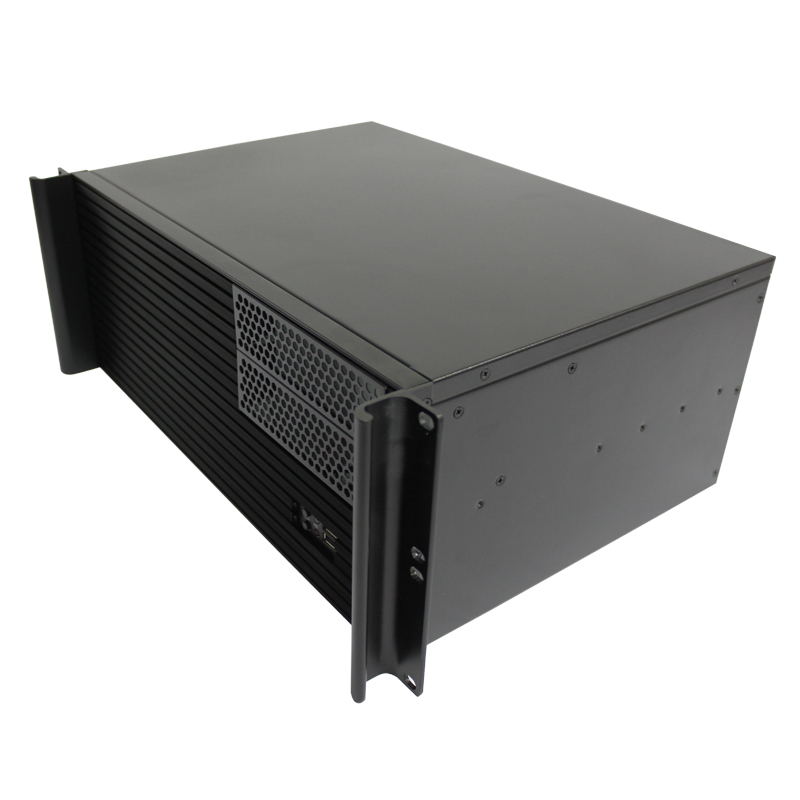

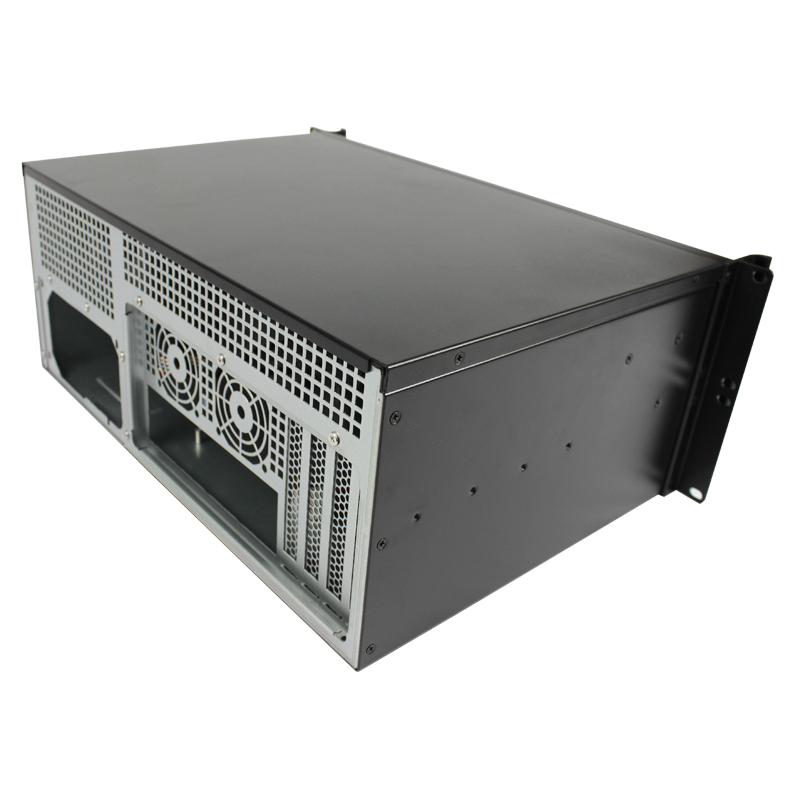

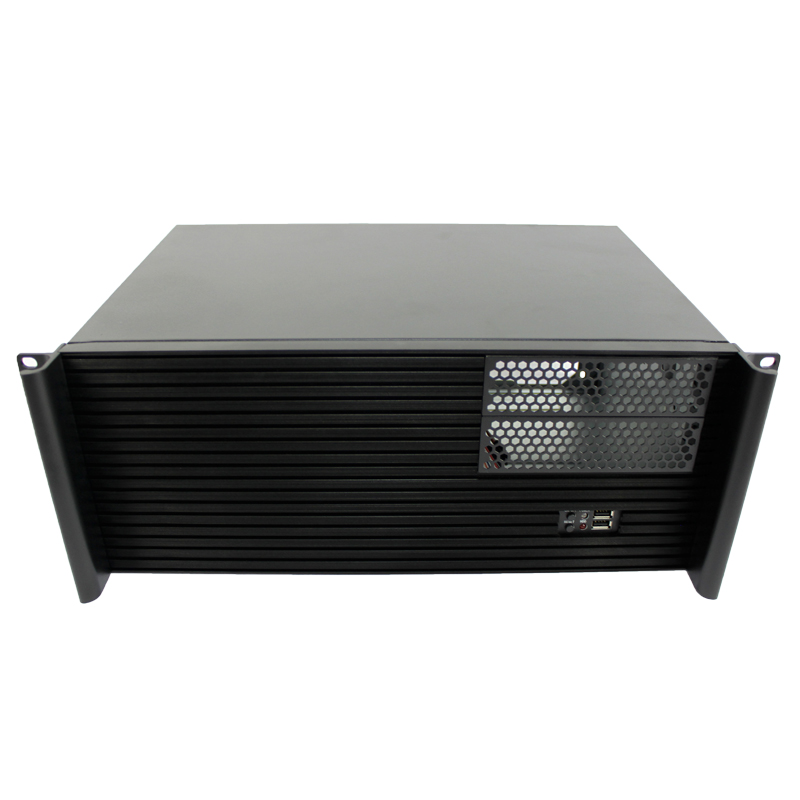

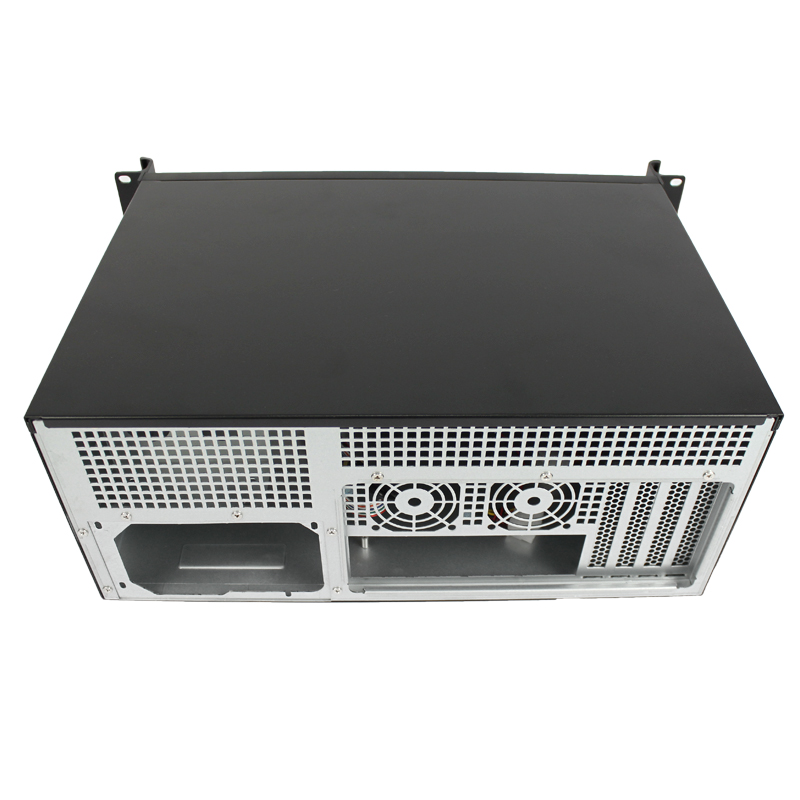

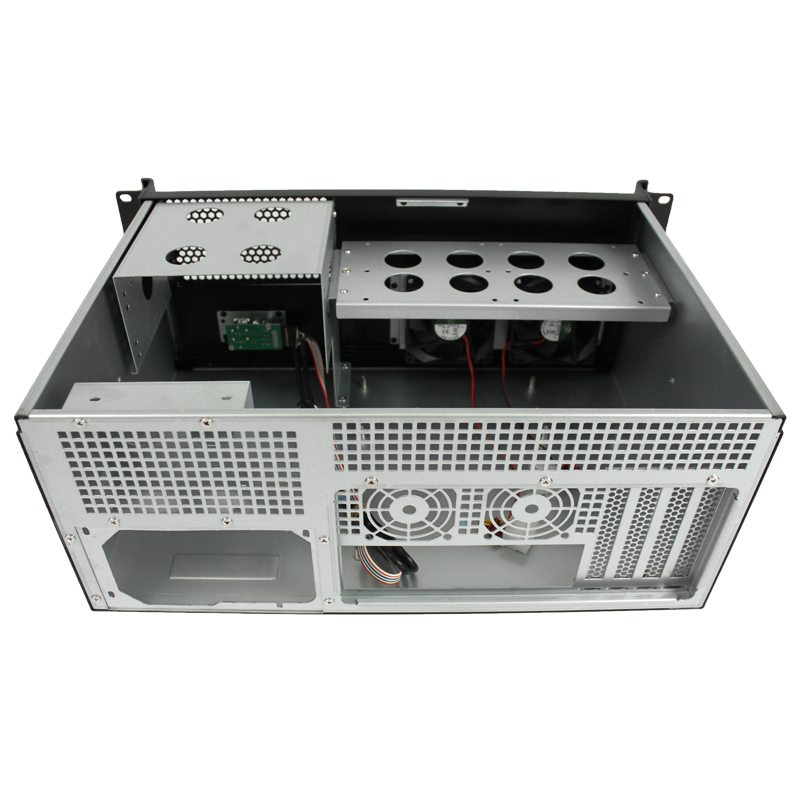

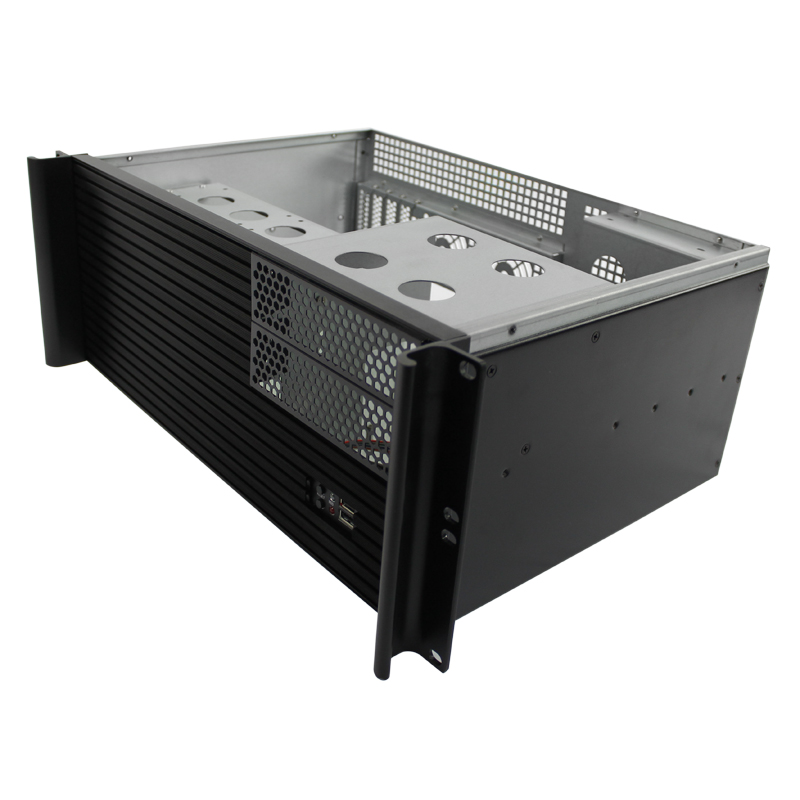

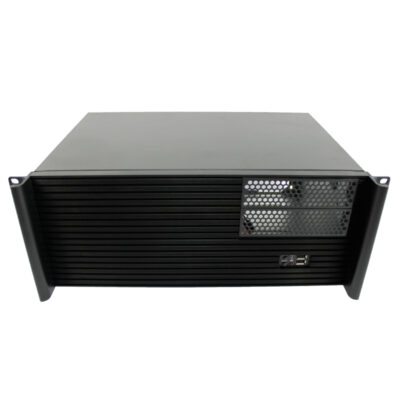

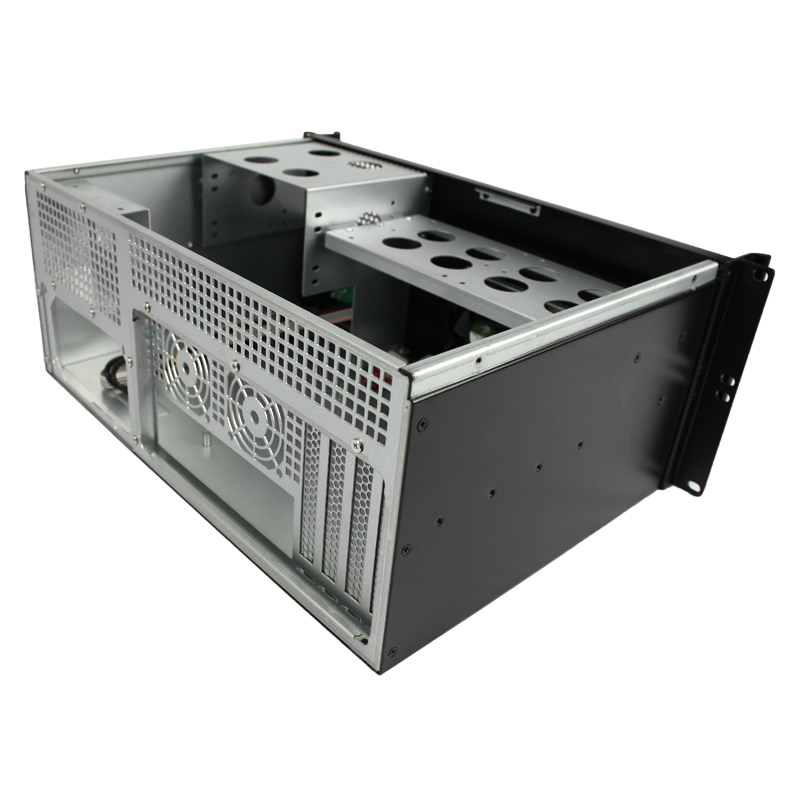

ISC RC4U300L M is a 4U rackmount chassis with two 3.5-inch and two 2.5-inch drive positions, two CD-ROM bays, four full-height PCI slots, dual 8025 fans, ATX PSU support and front USB 2.0. Built for enterprise integration, OEM/ODM and bulk procurement.
ISC RC4U300L M is a 4U rackmount chassis for enterprise server, storage and industrial computing builds.
Product Category:
Short-depth rackmount server case.
Key Configuration:
Two 3.5-inch and two 2.5-inch drive positions, two CD-ROM bays, four full-height PCI slots and two 8025 fans.
Compatibility:
Designed for ATX power supplies; confirm motherboard, GPU, backplane, rails and cable fit before ordering.
Applications:
Data centers, private cloud, research, monitoring and system integration workloads.
Procurement Value:
Accessible expansion supports maintenance and scaling. Ideal for integrators, IT buyers, OEM projects, volume sourcing and distributor cooperation.
| Model | ISC-RC4U300L-M |
|---|---|
| Dimensions(mm) | 482(W)*300(D)*178 mm(H) |
| Main Board | 9.6"*9.6"(245MM*245MM) |
| Hard Disk | Two 3.5-inch Hard Disks and Two 2.5-inch Hard Disks |
| CD-ROM | Two CD-ROMs |
| Power | ATX Power |
| Fan | Two 8025 Fans |
| Expansion Slot | Four Full High and Straight Slots |
| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.2MM |
| Packaging size | 54*43*27CM(0.0626CBM) |
| Gross weight | 7.069KG |
| N.W | 5.834KG |
