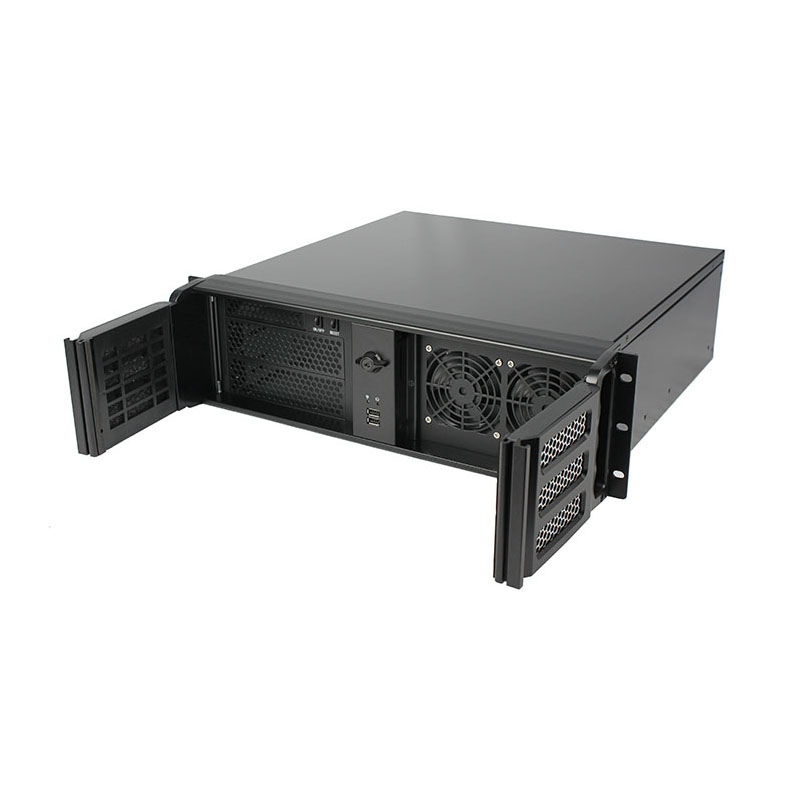

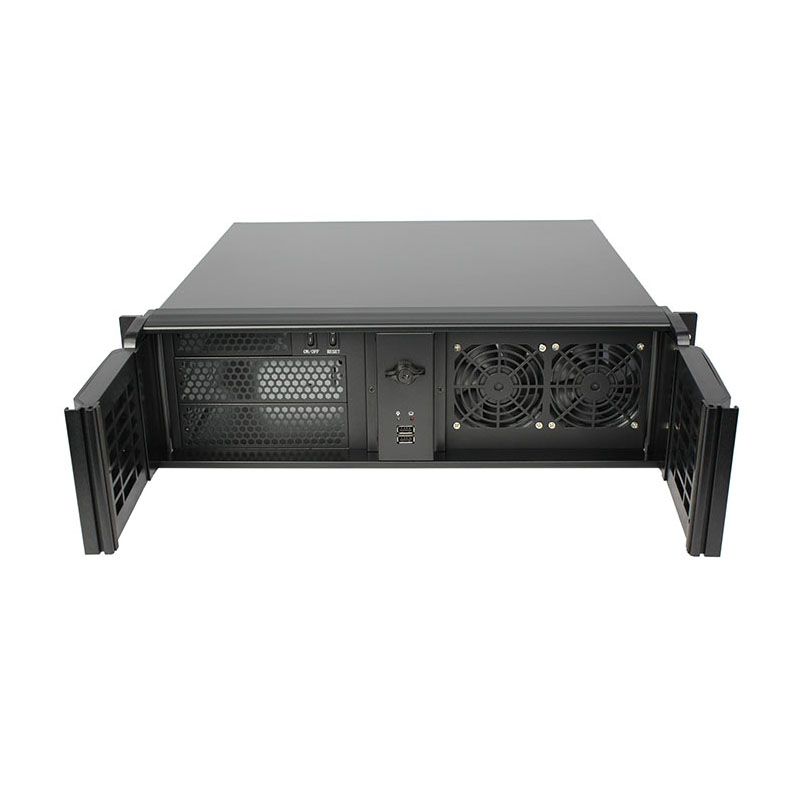

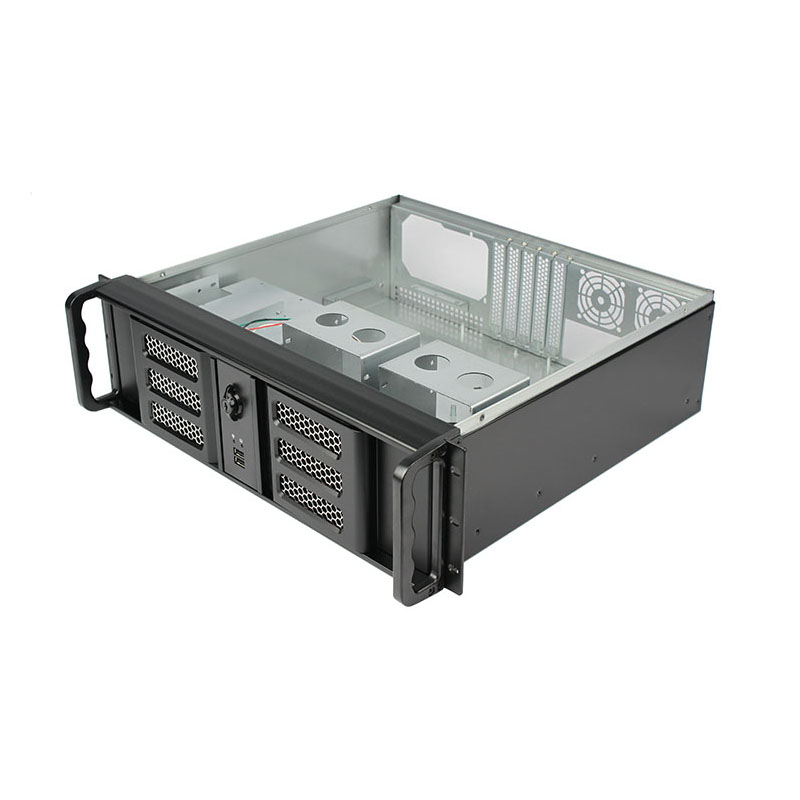

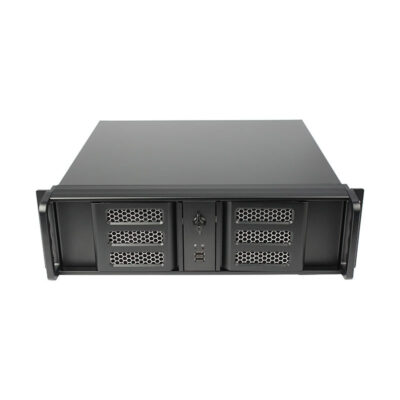

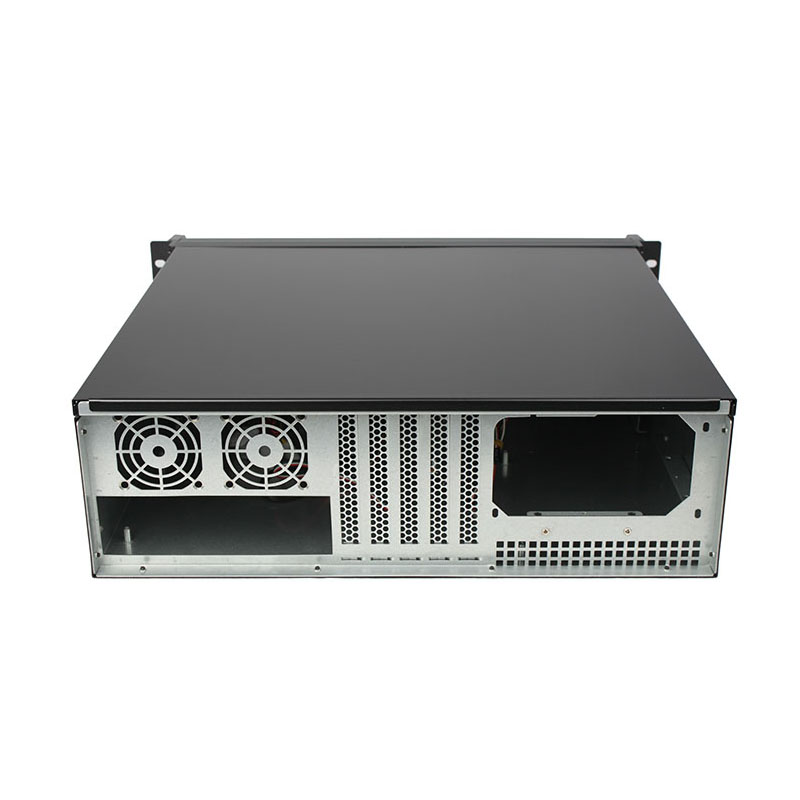

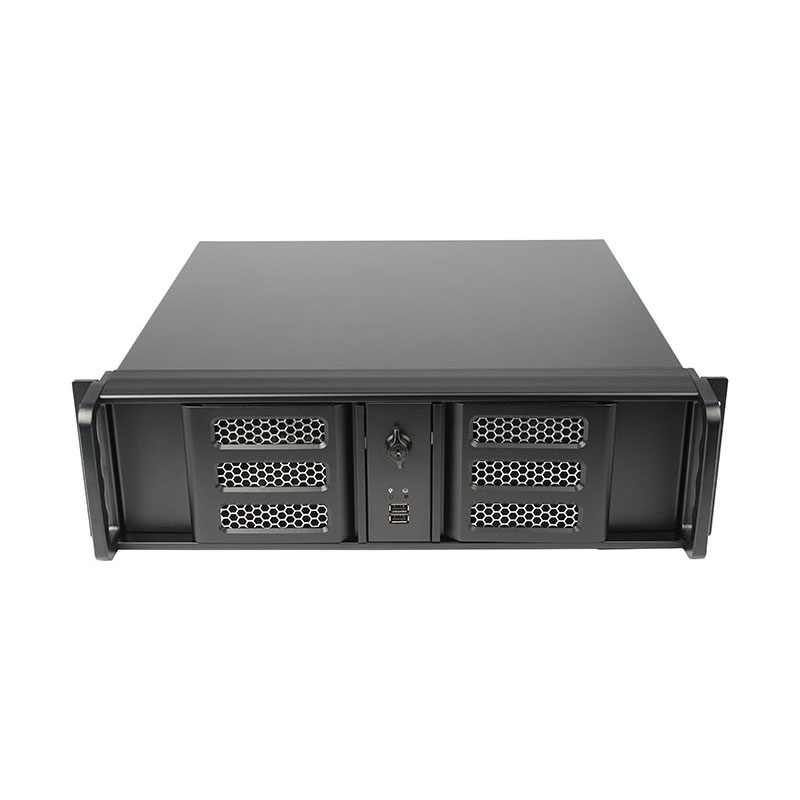

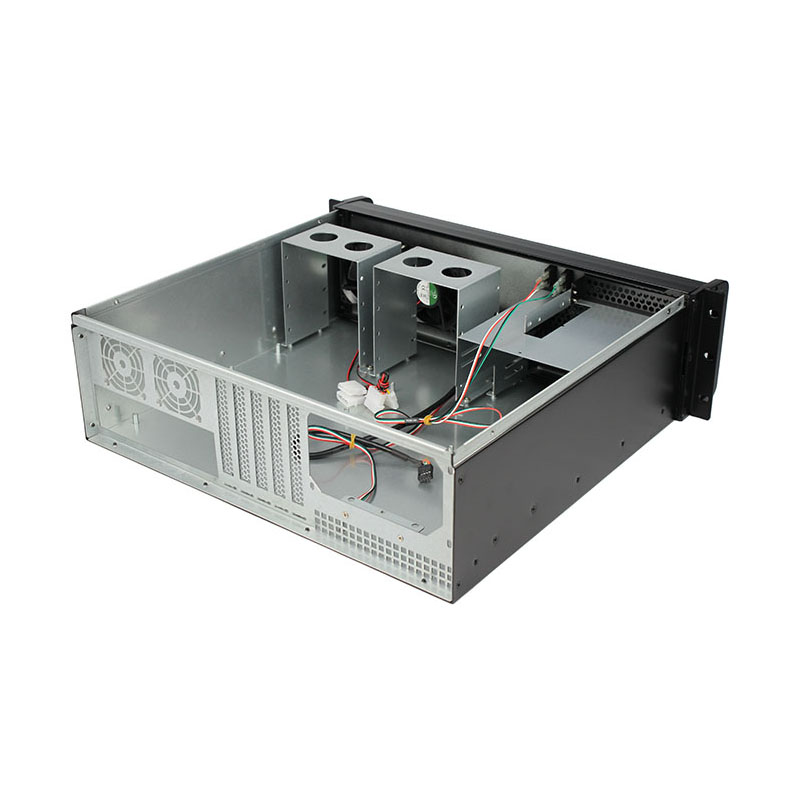

ISC RC3U390L5 M 3U Rackmount Server Chassis for OEM Supply

ISC RC3U390L5 M is a 3U SGCC steel rackmount chassis with eight 3.5-inch drive bays, five PCI-E slots, dual 8025 fans and front USB 2.0. Designed for data center, enterprise and system-integration projects, with OEM/ODM and bulk sourcing support.

Categories: , Tags: , ,
Share your love

Built from 1.2 mm SGCC steel, the ISC RC3U390L5 M is a 3U rackmount chassis with front handles, a lockable panel, ventilated drive sections and two 8025 fans. Dual USB 2.0 ports, power and reset controls, and status LEDs support rack-side operation and maintenance.

It provides eight 3.5-inch drive bays and five PCI-E slots for storage, network, controller or selected GPU builds. Motherboard, PSU, backplane, hot-swap, rails and card-length compatibility should be confirmed by configuration. Suited to data centers, enterprise IT, research and private cloud, it gives integrators, distributors and OEM/ODM buyers a configurable platform for server and storage projects.

Model

ISC-RC3U390L5-M
Dimensions(mm)

482(W)*390D)*133MM(H)
Main Board

12"* 9.6"(305 * 245MM)
Hard Disk

8* 3.5-inch Hard Disks
CD-ROM

Two CD-ROMs; One Floppy disk
Power

ATX PSU
Fan

Two 8025 Fans
Expansion Slot

5*PCI-E slot
Panel Setting

Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator and One HD Indicator
Case Material

SGCC
Material Thickness

1.2MM
Packaging size

58*57*24CM
Gross weight

9.487KG
N.W

6.793KG
