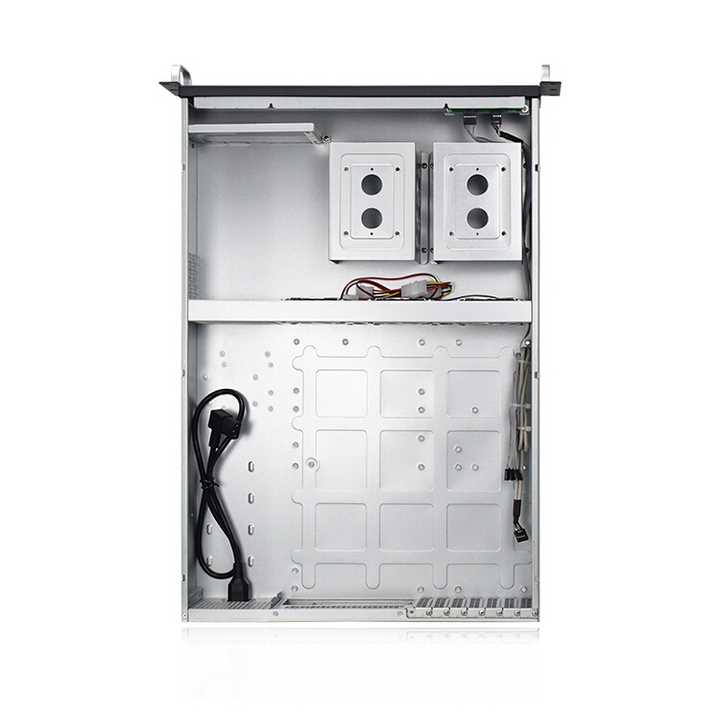

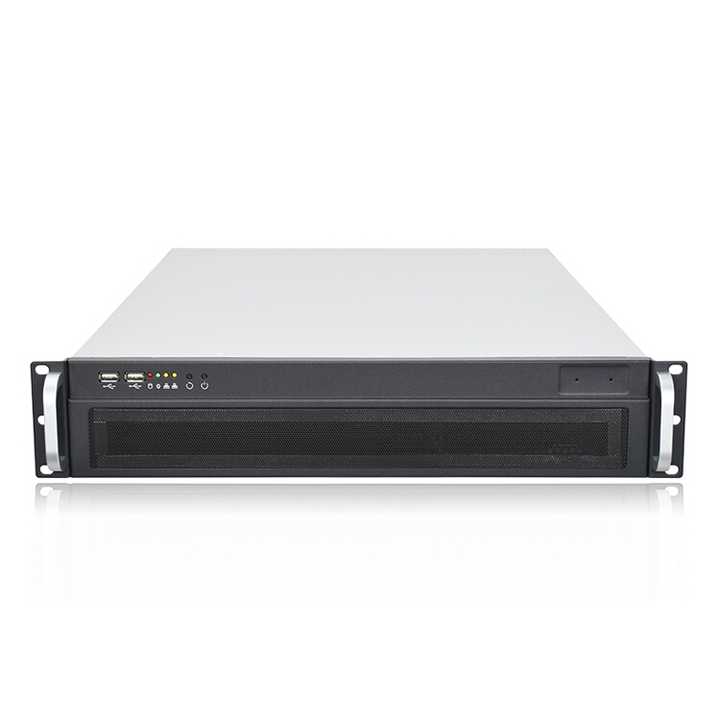

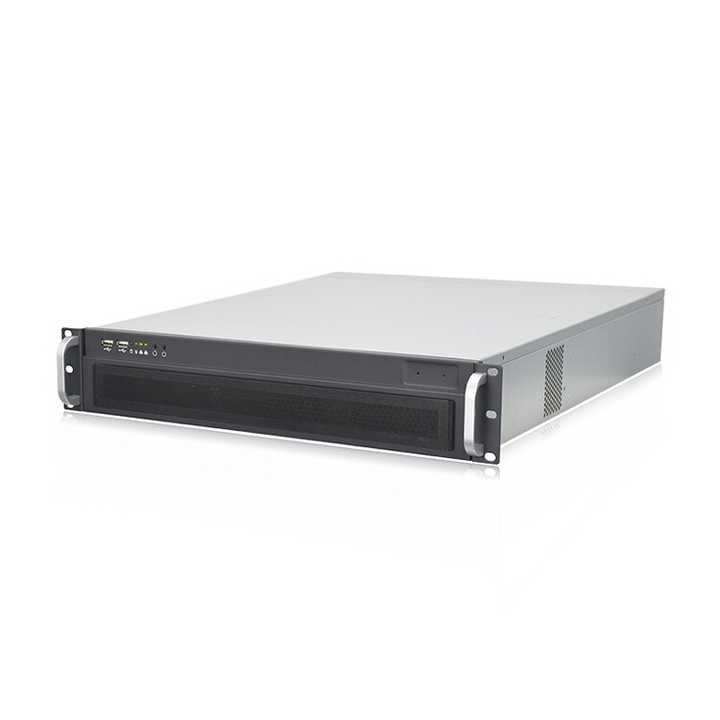

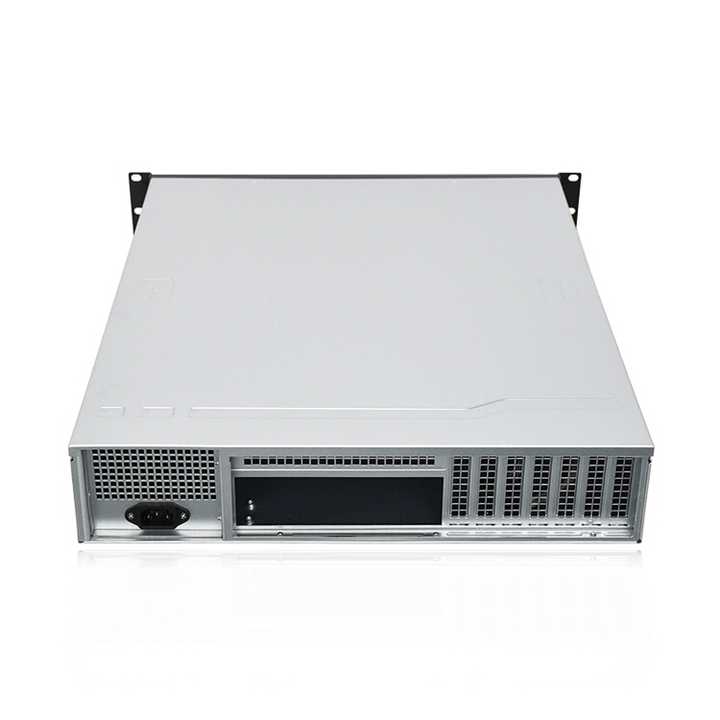

LX-S2650A is a 2U rackmount server chassis with flexible 3.5/2.5-inch drive layouts, broad motherboard support, 7 half-height PCIe slots, three 80mm fans, and redundant or standard PSU compatibility for enterprise integration, OEM/ODM, and bulk procurement.

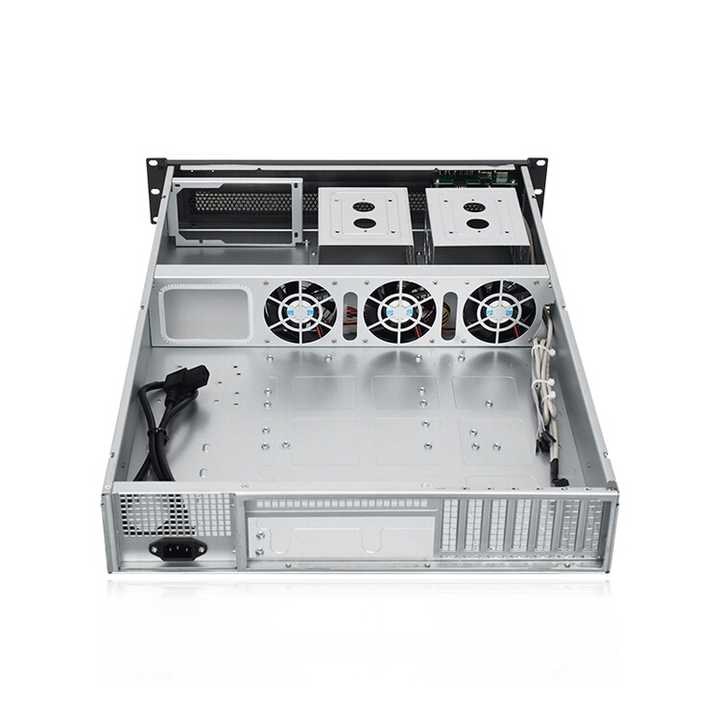

Built from 1.0mm SGCC steel, the LX-S2650A is a 2U rackmount chassis measuring 650 x 430 x 89mm. Rack handles and three 80mm fans support secure installation, airflow, durability, and convenient servicing in data center, enterprise IT, edge, and research environments.
It supports EATX, CEB, ATX, Micro ATX, and Mini-ITX boards, six 3.5-inch bays or four 3.5-inch plus two 2.5-inch bays, seven half-height PCIe slots, and redundant or 2U single/ATX PSU formats. Suitable for storage, private cloud, HPC, and system integration, it serves OEM buyers, integrators, distributors, and project teams. Confirm hot-swap, backplane, rails, and accessories before ordering.
| Model | LX-S2650A |
|---|---|
| Color | Silver |
| Materia | Quality Fine 1.0mm SGCC |

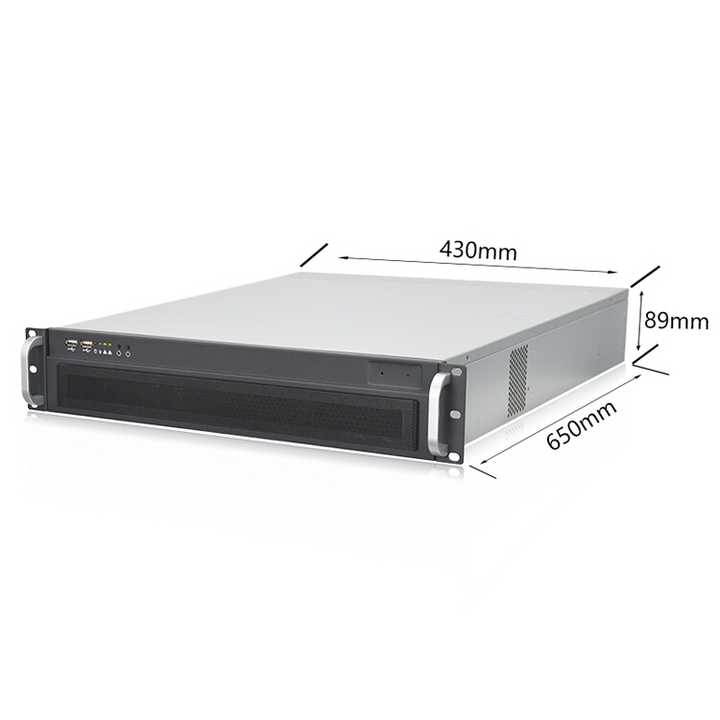

| Dimension D*W*H | L650mm*W430mm*H89mm |
| HDD Bay | 6*3.5" bays or 4*3.5"+2*2.5" bays |
| Front Panel Control | 1 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators |
| Cooling Fan | 3pcs 80mm fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6")/Mini-ITX(6.7"*6.7") |
| Suitable PSU | Redundant power supply / 2U single/ATX standard power supply |
| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Single package size | L760mm*W540mm*H200mm |
| Single gross weight | 13kg |
