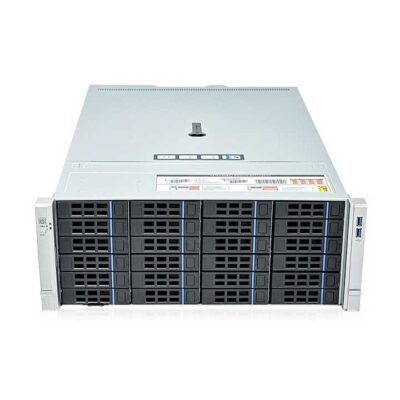

ISC-SC465B24-L is a 4U rackmount server chassis with 24 hot-swap SAS/SATA bays, 7 full-height PCIe slots, broad motherboard support, and flexible PSU options for storage, GPU, data center, and OEM/ODM integration projects.
This 4U rackmount chassis uses 1.0 mm SECC steel and aluminum alloy, with front hot-swap drive access and three hot-swap 12038 fans for managed airflow. The durable, serviceable design supports easier maintenance in data centers, enterprise IT, cloud storage, monitoring, and research racks.
The ISC-SC465B24-L provides 24 SAS/SATA bays, support for EATX, CEB, ATX, and Micro ATX boards, seven full-height PCIe slots, and selected redundant or ATX PSUs. It is suited to storage and GPU-capable integration projects. iSTONECASE supports OEM/ODM customization, prototyping, bulk sourcing, and distributor procurement; confirm backplane, rails, PSU, and accessories before ordering.
| Model | ISC-SC465B24-L |
|---|---|
| Color | Silver |
| Materia | Quality Fine 1.0mm SECC,Aluminum Alloy, Plastic |

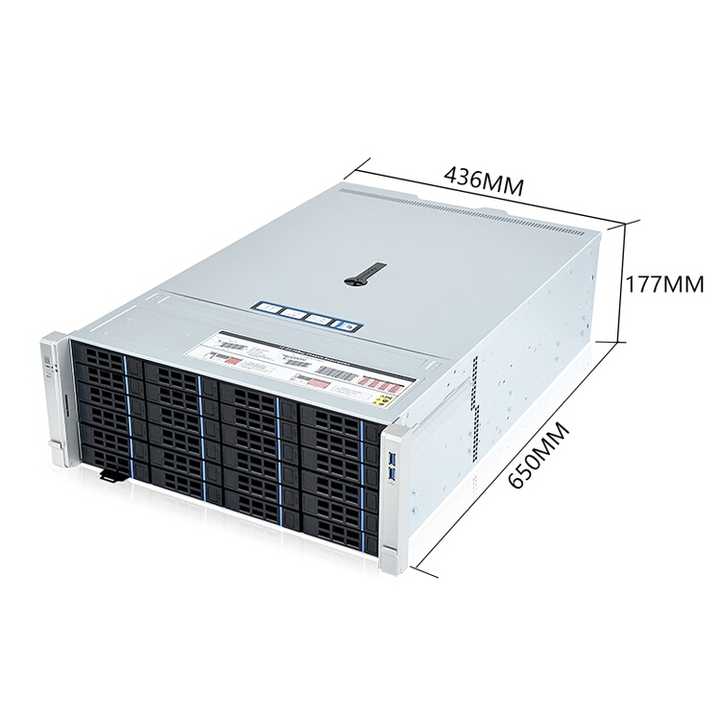

| Dimension D*W*H | L650mm*W436mm*H177mm |

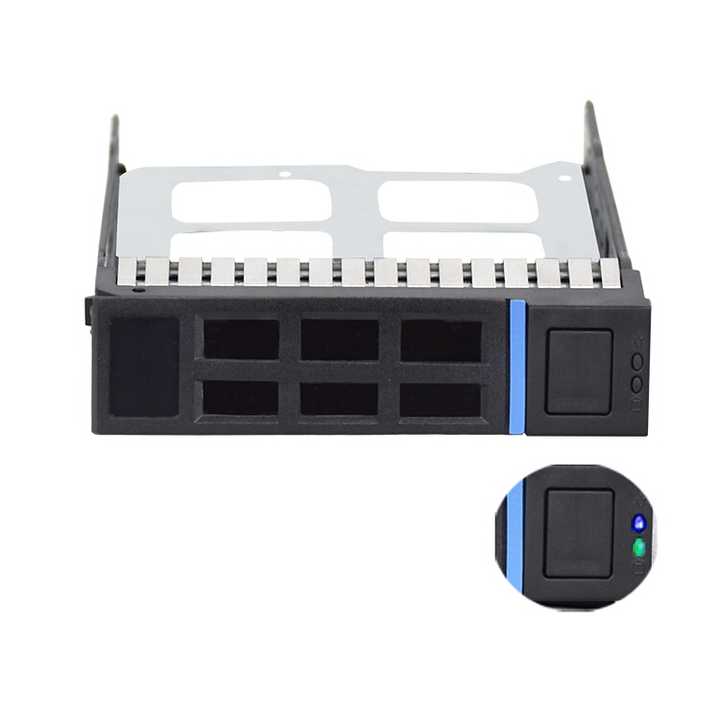

| HDD Bay | 24*3.5"/2.5"hot-swap SAS/SATA drive bays |

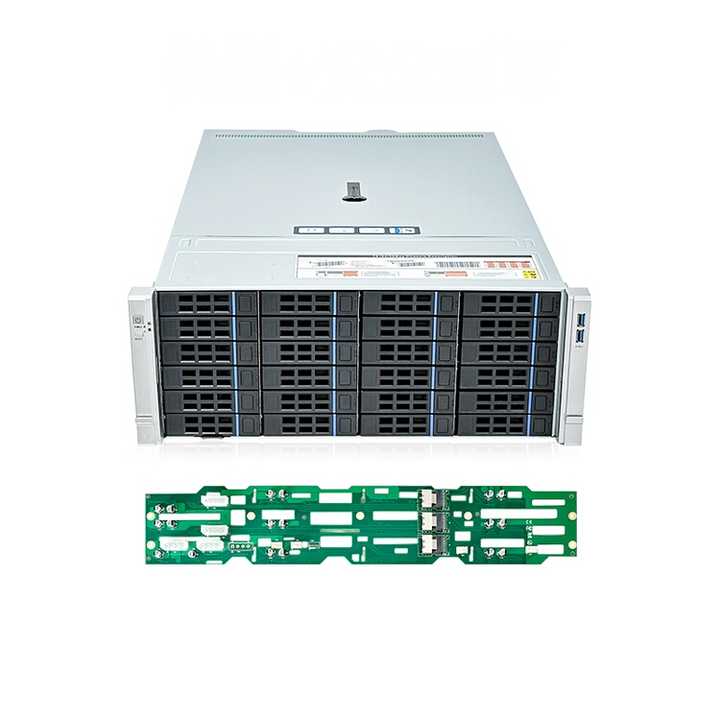

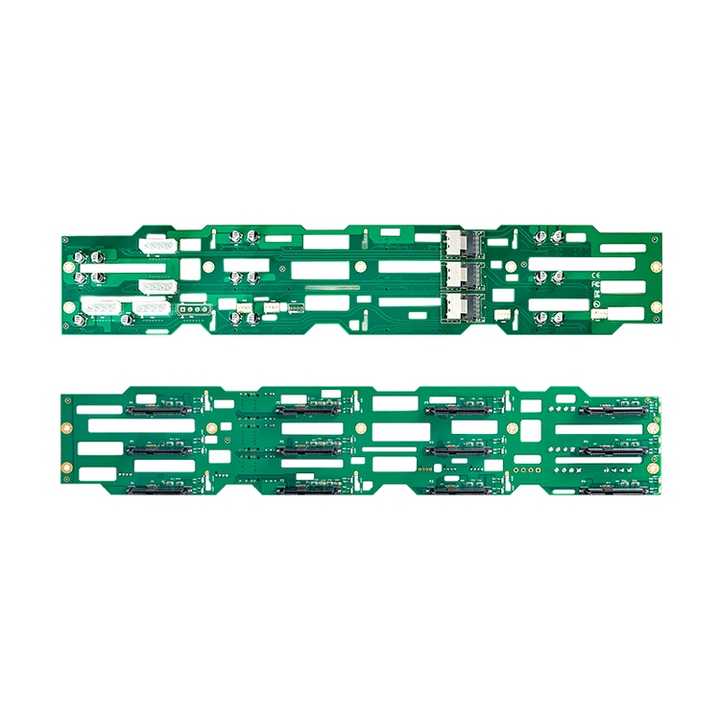

| HDD Backplane | 6Gb/s SAS Backplane,Supports SGPIO |
| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators |

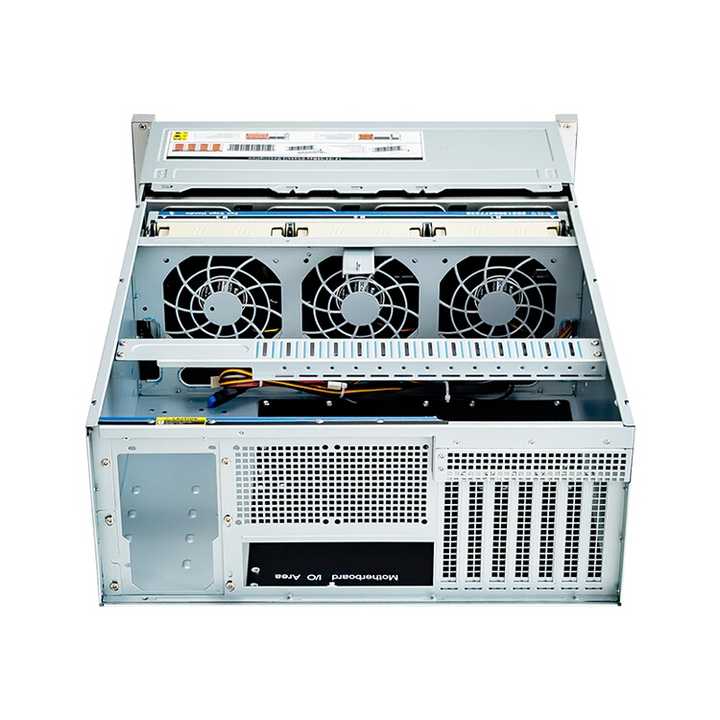

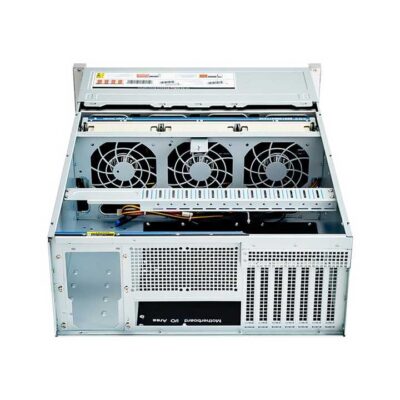

| Cooling Fan | Supports intelligent-temperature control,3pcs 12038 hot-swap fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | Redundant power supply / ATX standard power supply |
| Epansion Space | 7 full-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Single package size | L810mm*W580mm*H210mm |
| Single gross weight | 21kg |
