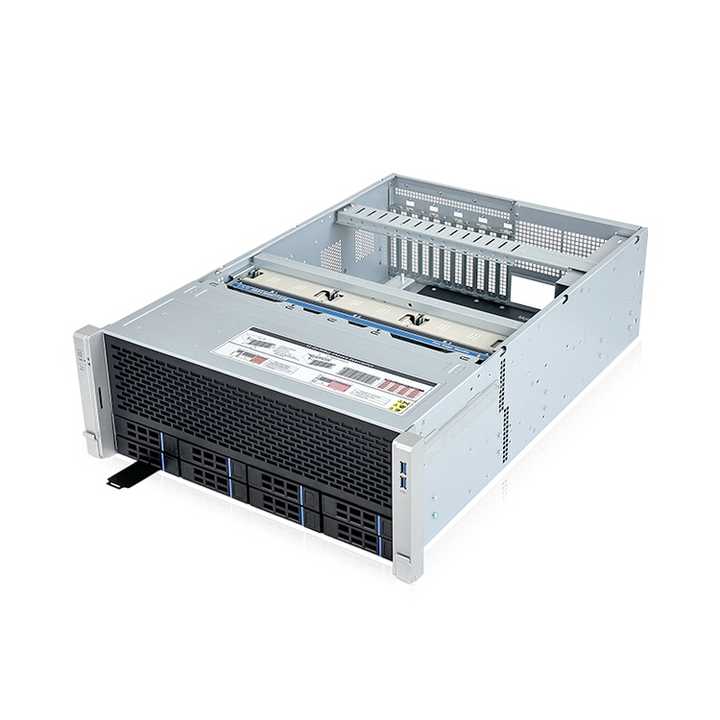

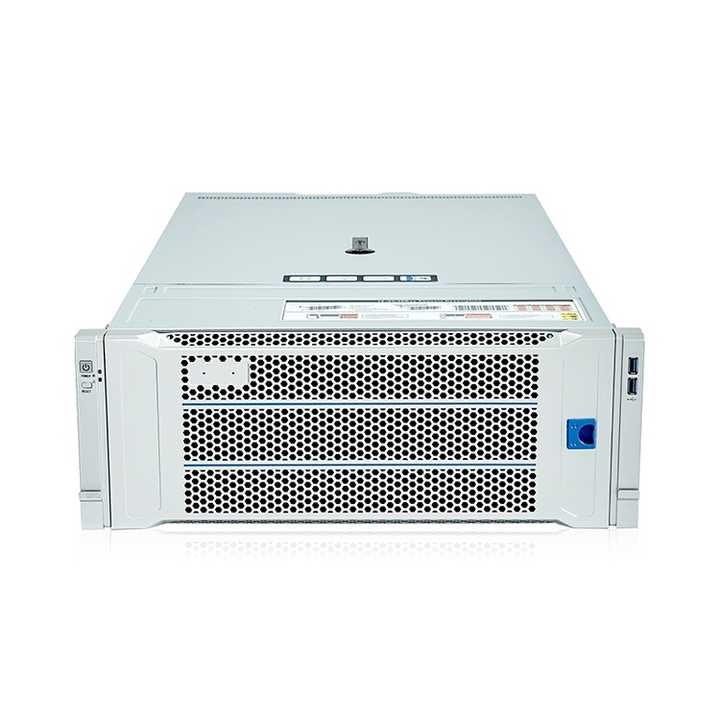

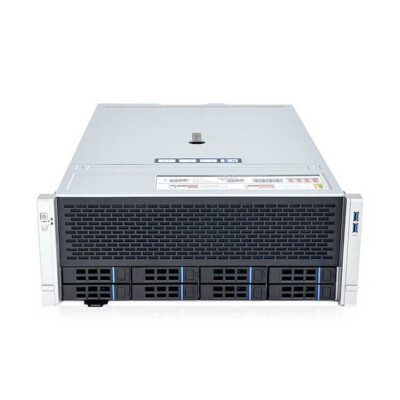

The ISC-SC465B08-L is a 4U rackmount server chassis with eight 3.5/2.5-inch SAS/SATA hot-swap bays, 11 full-height PCIe slots, and EATX, ATX, CEB and Micro ATX support. Designed for AI, HPC, storage and data center integration, with OEM/ODM and volume sourcing options.
Built as a 4U rackmount chassis, the ISC-SC465B08-L uses 1.0 mm SECC steel with aluminum-alloy and plastic parts for durable construction. Its 650 mm depth, front hot-swap access, three 120 mm hot-swap fans and two 8038 fan positions support airflow and maintenance.
This 8-bay case supports 3.5- and 2.5-inch SAS/SATA drives, EATX, ATX, CEB and Micro ATX motherboards, up to 11 full-height PCIe cards and selected 1+1 redundant PSU configurations. It suits data center, AI, HPC and enterprise storage projects for integrators, operators and distributors. iSTONECASE supports OEM/ODM customization, prototyping and bulk sourcing; confirm backplane, rails, PSU and accessories before ordering.
| Model | ISC-SC465B08-L |
|---|---|
| Color | Silver |
| Materia | Quality Fine 1.0mm SECC,Aluminum Alloy, Plastic |

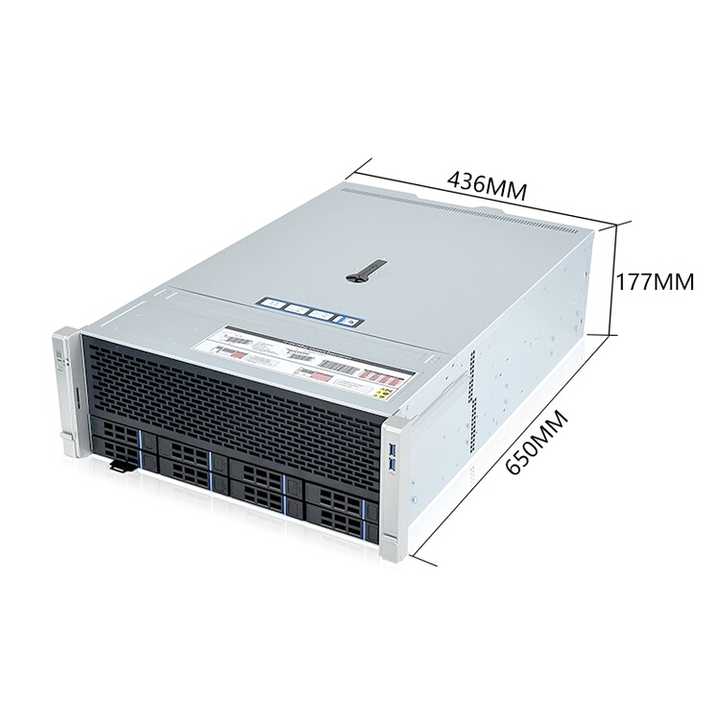

| Dimension D*W*H | L650mm*W436mm*H177mm |
| HDD Bay | 8*3.5"/2.5"hot-swap SAS/SATA drive bays |
| HDD Backplane | 12Gb/s SAS Backplane,Supports SGPIO |
| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators,Front Mask |

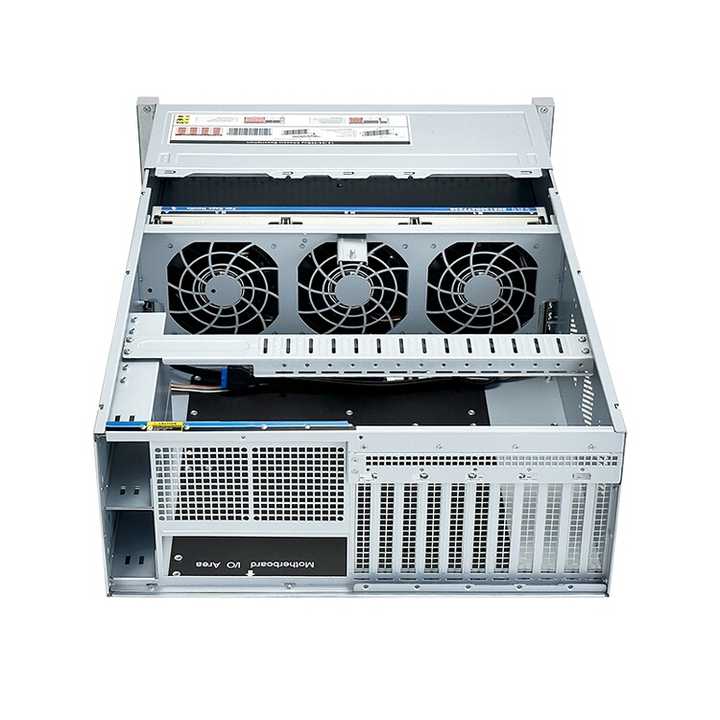

| Cooling Fan | Supports intelligent-temperature control,3pcs 12038 hot-swap fans,2pcs 8038 fan positions |
| Suitable Motherboard | (15"*13")/EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | 1+1 redundant Power supply |

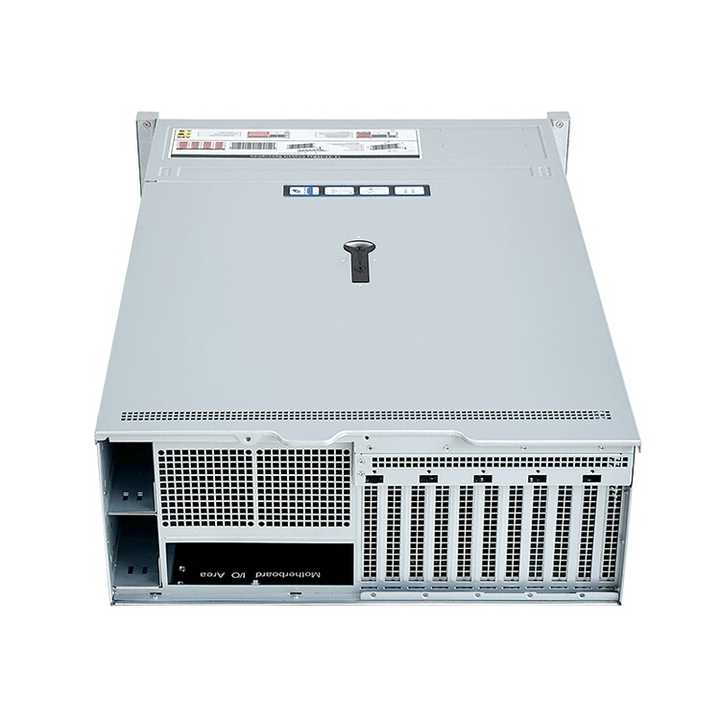

| Epansion Space | 11 full-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Single package size | L810mm*W580mm*H300mm |
| Single gross weight | 18 kg |
