4U rackmount server chassis with 24 front bays for 3.5-inch drives and selected 2.5-inch HDD/SSD configurations, 7 full-height PCIe slots, 12 x 13-inch motherboard support, hot-swappable cooling fans and tool-free access for enterprise storage projects.

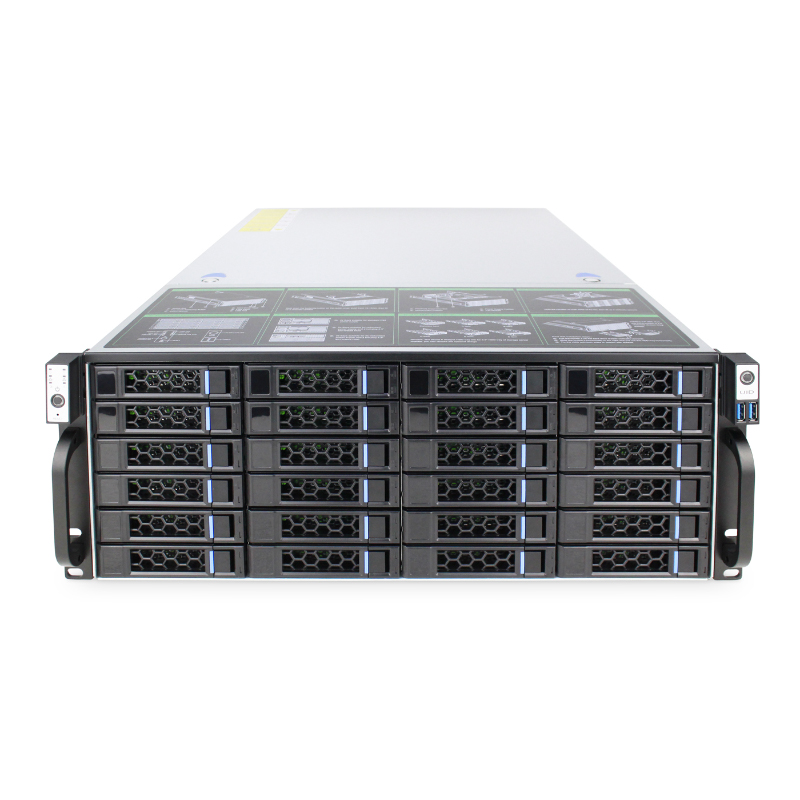

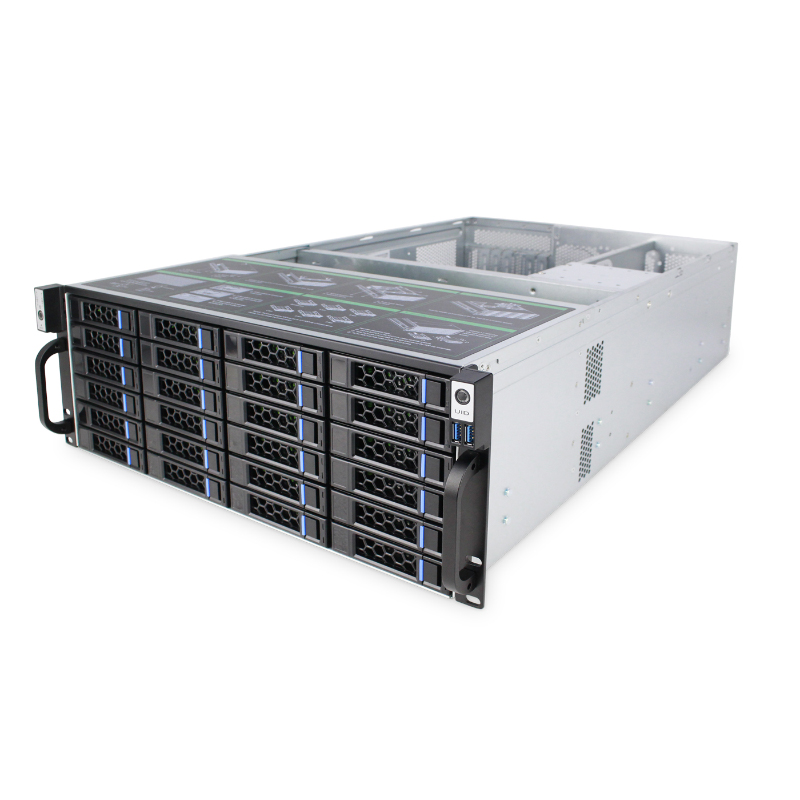

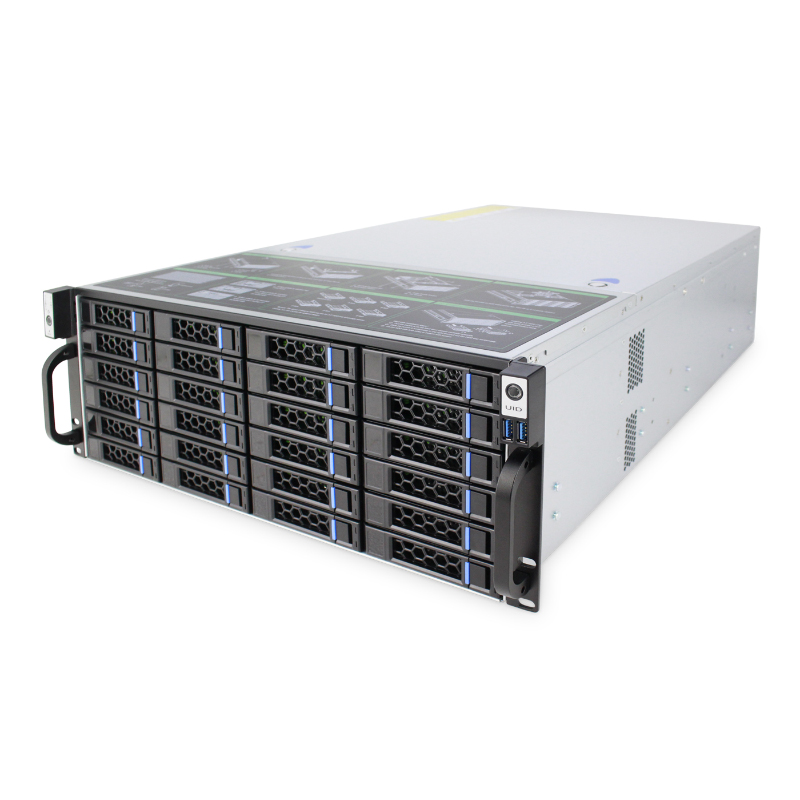

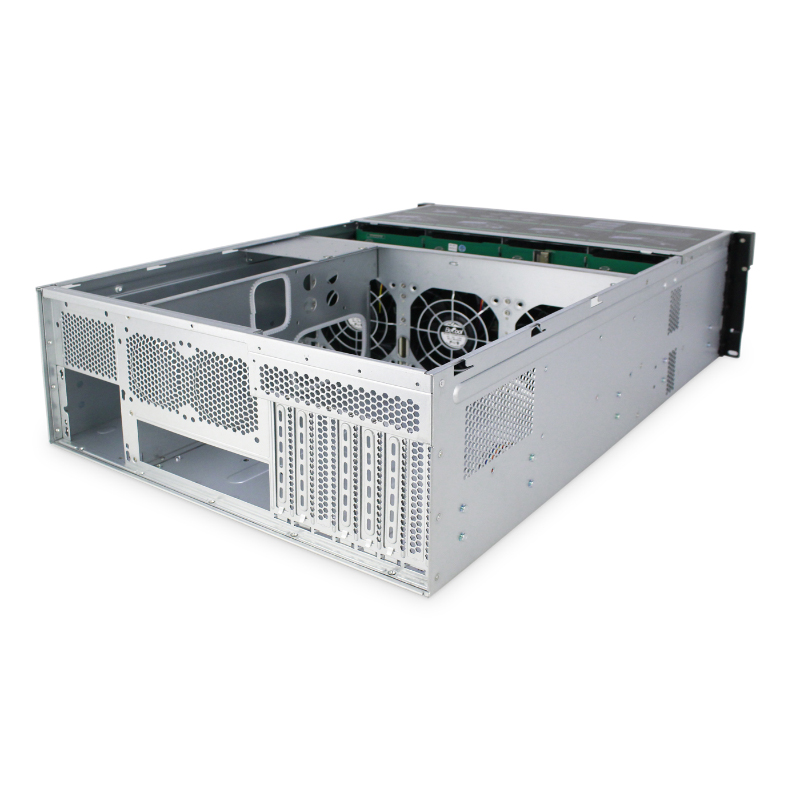

The ISC-SC456-H24-T is a 4U rackmount metal server chassis with 24 front-access drive bays and a tool-free top cover for easier servicing. Three 120 mm ball-bearing fans provide directed airflow and support hot-swappable fan maintenance for dense storage deployments.
It supports 3.5-inch drives, selected 2.5-inch HDD or SSD configurations, motherboards up to 12 x 13 inches and seven full-height PCIe slots. Designed for cloud storage, big data, security monitoring and research systems, it gives integrators, data center teams, distributors and OEM/ODM buyers a configurable platform for project sourcing. Confirm backplane, PSU, rails and accessories before ordering.
| Model | ISC-SC456-H24-T |
|---|---|
| Case size | Depth 560mm × Width 437.5mm × Height 176mm |
| Material | Environmentally friendly, fingerprint-resistant 1.0mm SGCC |

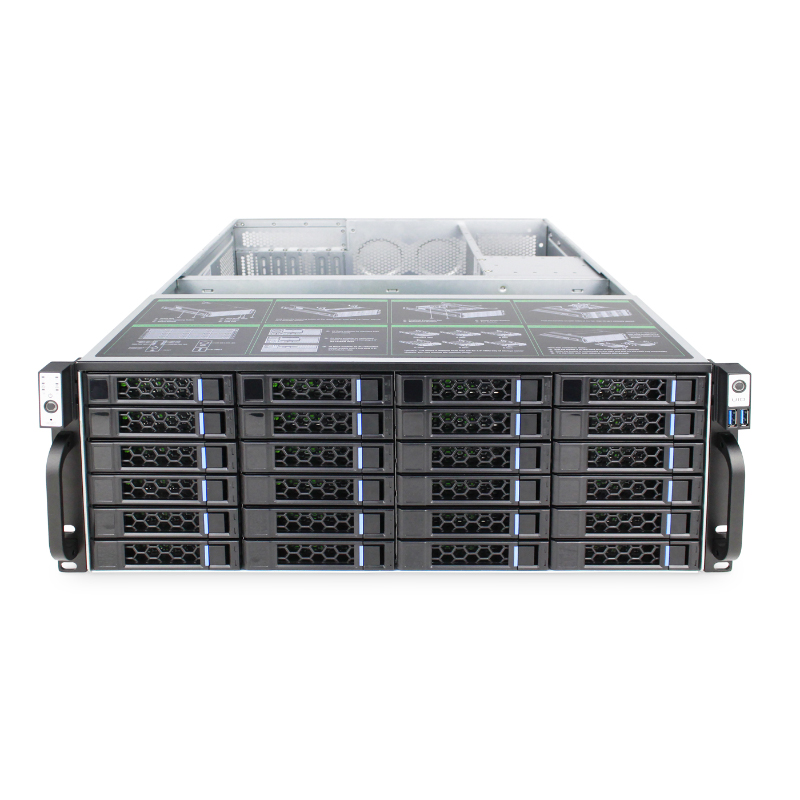

| Hard disk | 24 front 3.5" HDDs (compatible with 2.5" HDD/SSD), 3 internal 2.5" HDD/SSD; hard disk extraction box adopts EMI-proof design, with light guide, which can indicate the working status of hard disk; slide rail design, smooth extraction |
| Motherboard size | Standard motherboard of 12" × 10.5" and below |
| Backplane specifications | 6Gb Mini-sas interface (SFF8087), with temperature control, with SGPIO |
| Optical drive slot type | None |
| USB type | 2 * USB 2.0 |

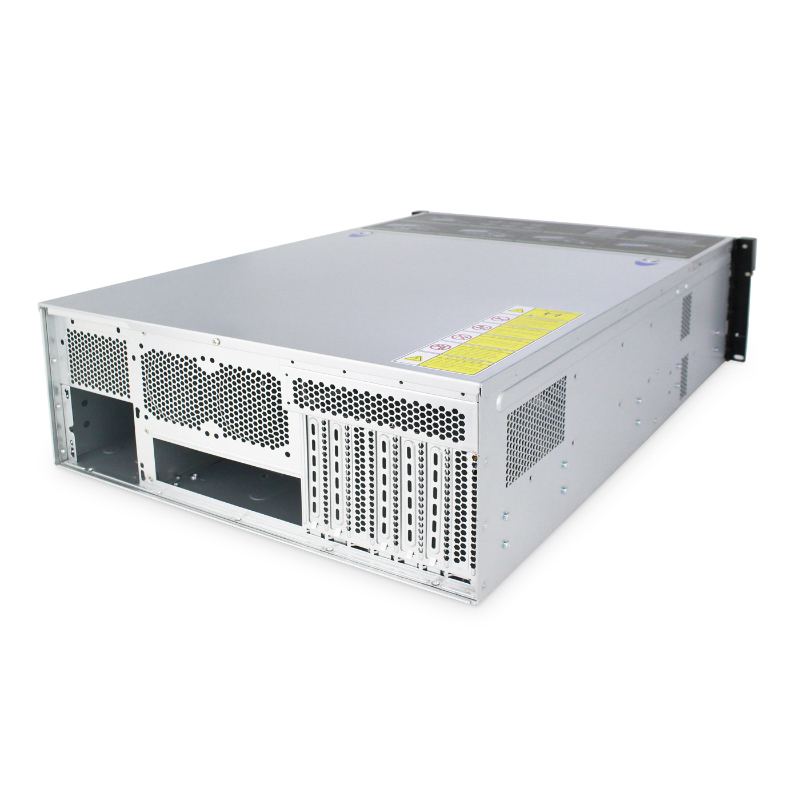

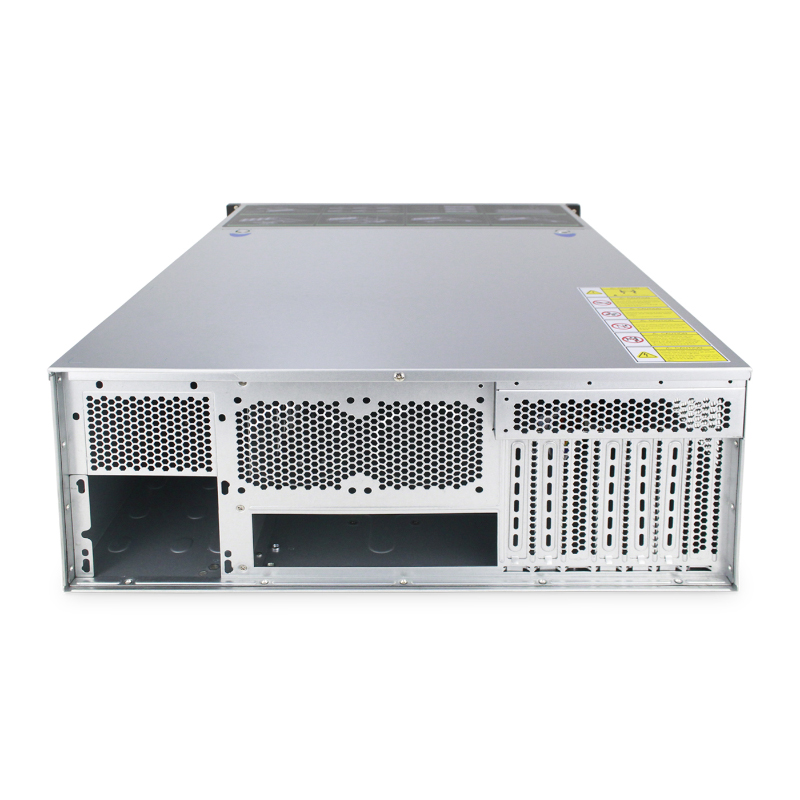

| Rear expansion slot direction | 7 full-height PCI/PCIE expansion slots, vertical insertion |
| Front door panel | None |

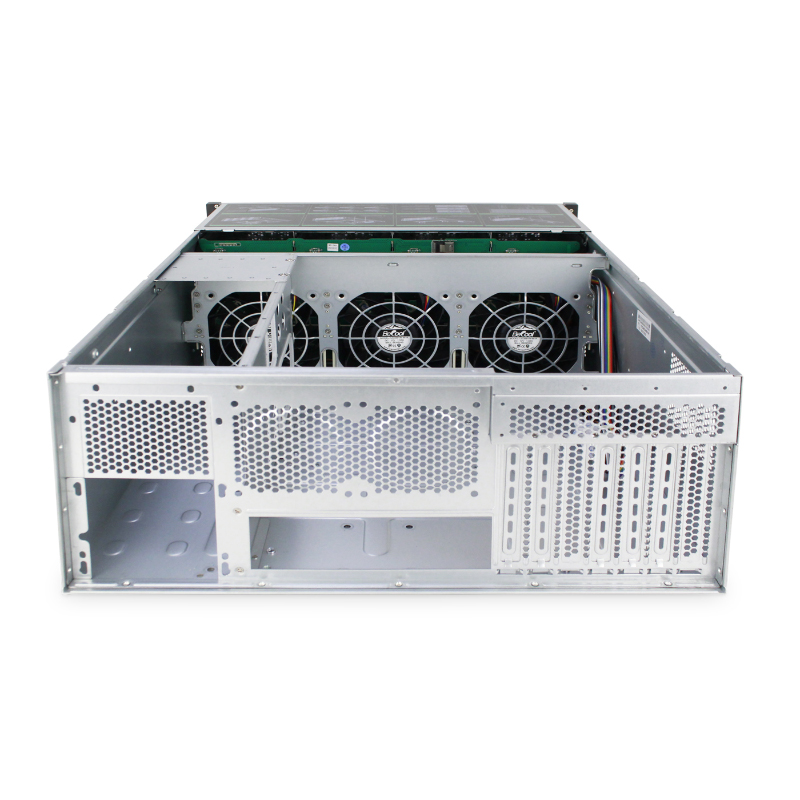

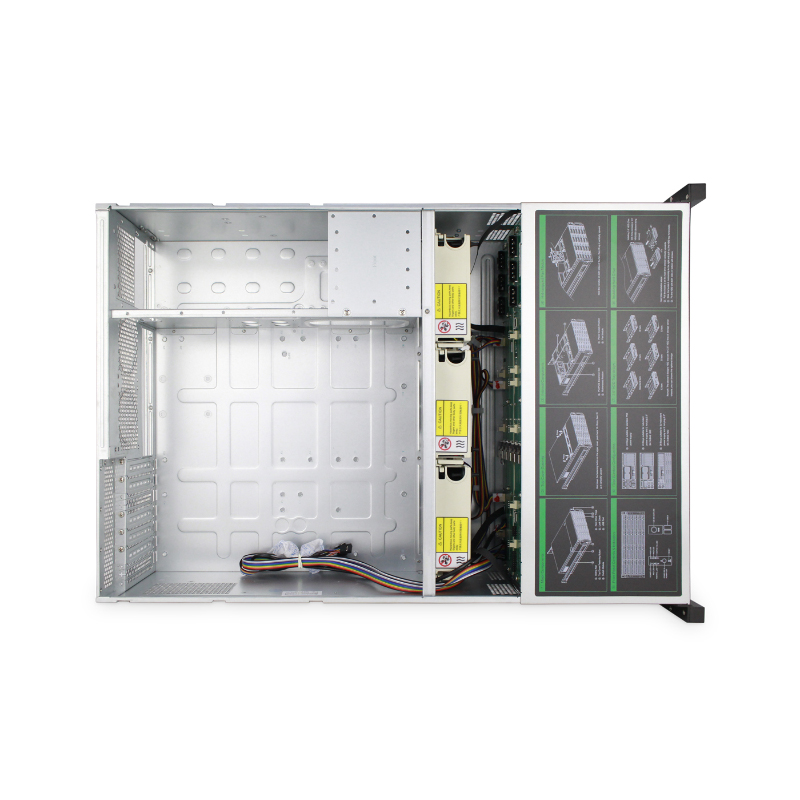

| Fan specifications | 3 12 cm fan positions, standard 2 12038B ball fans, hot-swappable |
| Power supply specifications | Standard ATX power supply or CRPS redundant power supply |
| System control | Power LED*1, Reset*1Power SW*1, HDD LED*1NIC LED*2*1, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1 |
| Air guide cover | No |
| Top cover button | Yes, tool-free disassembly |
