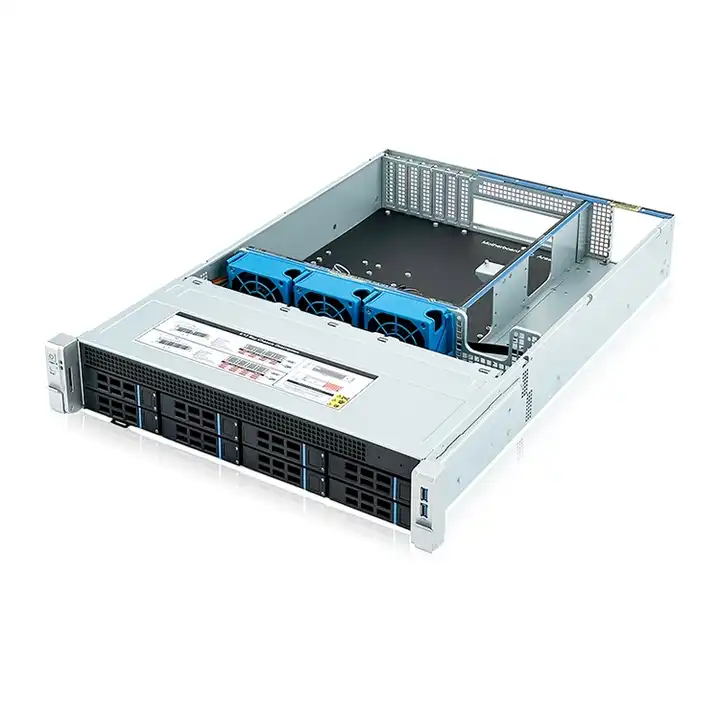

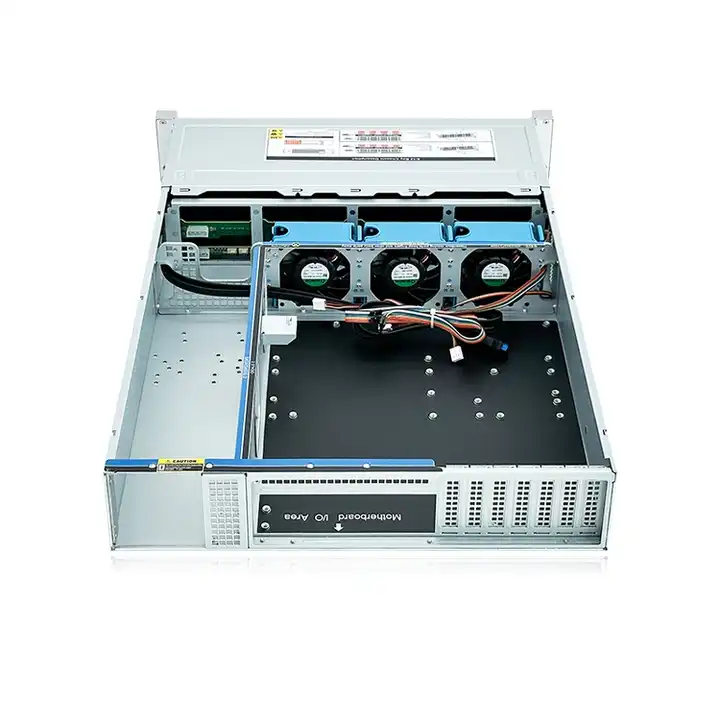

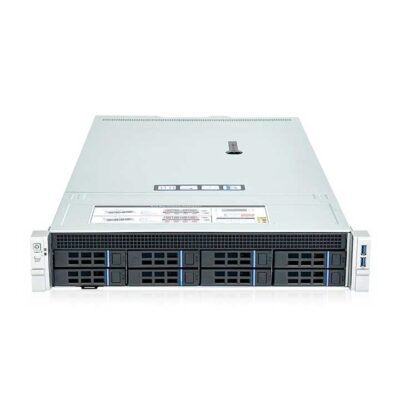

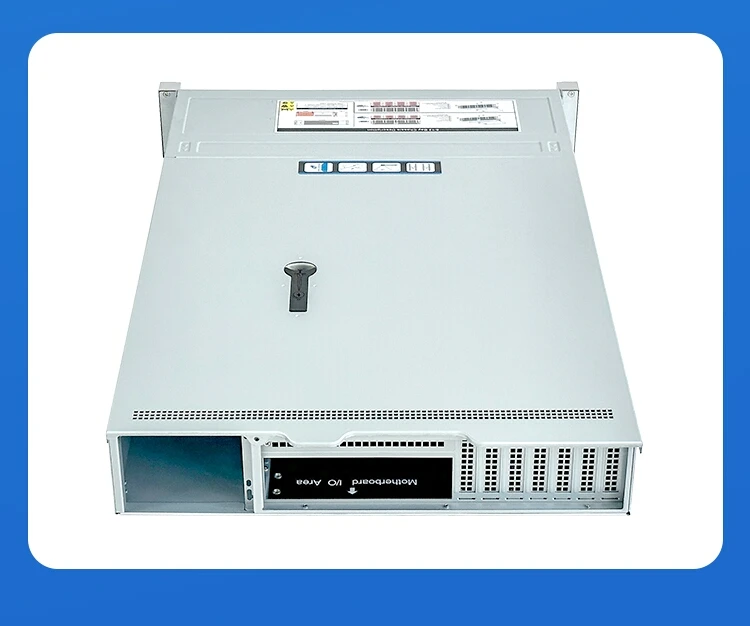

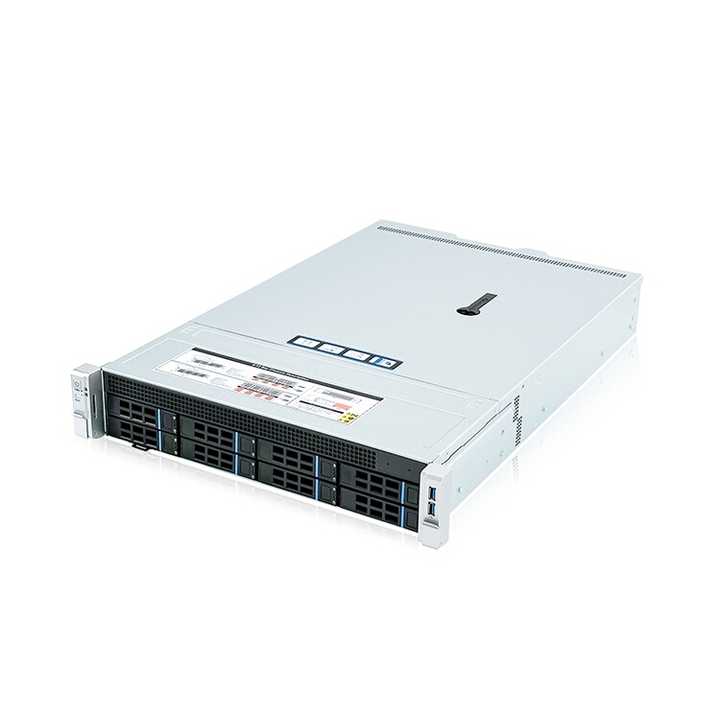

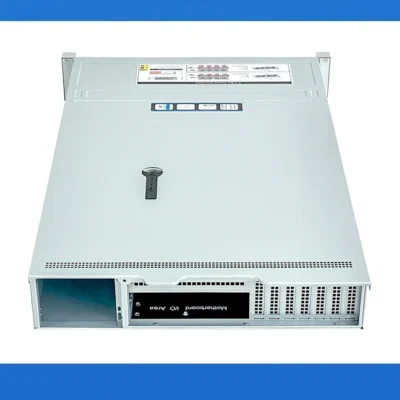

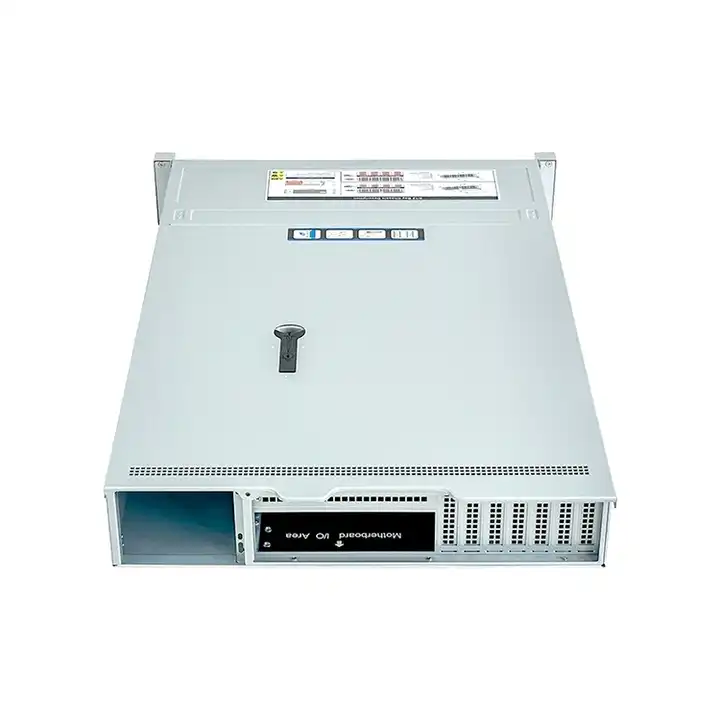

ISC-SC265C08-L is a 2U rackmount server chassis with 12 hot-swap SAS/SATA bays, EATX, CEB, ATX and Micro ATX support, seven half-height PCIe slots, and flexible PSU options for data center, storage and OEM/ODM projects.
ISC-SC265C08-L is a 2U metal rackmount server chassis for storage and compute systems. Front-access hot-swap drive service, three 8038 hot-swap fans with temperature control, and front USB 2.0 system controls simplify rack maintenance in data centers, enterprise IT, cloud, research, and managed-service environments.
It provides 12 SAS/SATA bays for 3.5- or 2.5-inch drives, supports EATX, CEB, ATX, and Micro ATX boards, seven half-height PCIe slots, and redundant or 2U single PSU formats. For integrators, distributors, and project buyers, it offers flexible OEM/ODM sourcing for storage, HPC, AI-supporting, and private-cloud builds. Rails, backplane details, and included parts depend on configuration.
| Model | ISC-SC265C08-L |
|---|---|
| Color | silver |
| Materia | Quality Fine 1.0mm SECC,Aluminum Alloy, Plasti |
| Dimension D*W*H | L650mm*W436mm*H90mm |
| HDD Bay | 8*3.5"/2.5"hot-swap SAS/SATA drive bays,optional rear 2*2.5" hot-swap hard drive |
| HDD Backplane | 12Gb/s SAS Backplane,Supports SGPIO |
| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators,Front Mask |
| Cooling Fan | Supports intelligent-temperature control,3pcs 8038 hot-swap fans |
| Suitable Motherboard | EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | Redundant power supply / 2U single power supply |
| Epansion Space | 7 half-height PCIe expansion card slots |
| Packaging Details | Carton with PE foam |
| Selling Units | Selling Units |
| Single package size | 82X59X22 cm |
| Single gross weight | 16.000 kg |
