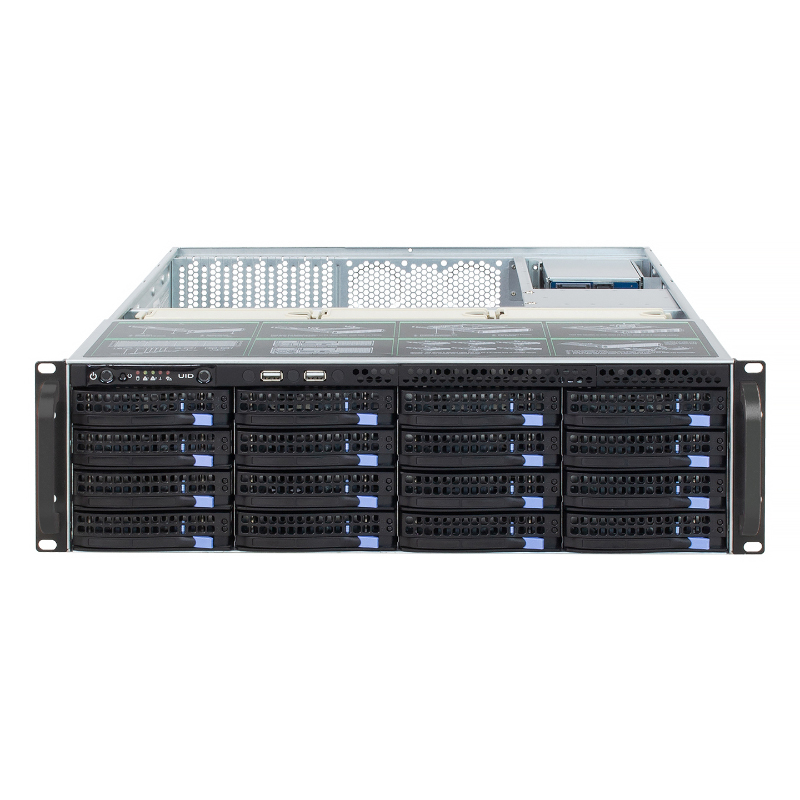

ISC-SC365-H16-T is a 3U rackmount server chassis with 16 front 3.5/2.5-inch hot-swap bays, 3 internal 2.5-inch bays, 7 full-height PCIe slots, a Mini-SAS backplane, and motherboard support up to 12 x 13 inches. Designed for storage integration, OEM/ODM projects, and bulk sourcing.
Built from 1.0 mm fingerprint-resistant SGCC, the ISC-SC365-H16-T uses a 3U rackmount structure with a tool-free top cover, front-access carriers, and three hot-swappable 12038B ball-bearing fans. The layout supports directed airflow and easier maintenance.
This server chassis has 16 front 3.5/2.5-inch hot-swap bays, three internal 2.5-inch bays, seven full-height PCIe slots, and a 6Gb Mini-SAS SFF-8087 backplane with SGPIO and temperature control. It supports motherboards up to 12 x 13 inches and selected 2U or CRPS power supplies. Designed for cloud storage, surveillance, big data, and system integration, it supports OEM/ODM and bulk procurement. Confirm rack depth and guide-rail fit before ordering.
| Model | ISC-SC365-H16-T |
|---|---|
| Case size | Depth 650mm×Width 437.5mm×Height 132mm |
| Material | Environmentally friendly, fingerprint-resistant 1.0mm SGCC |
| Hard disk | 16 front 3.5" HDDs (compatible with 2.5" HDD/SSD), 3 built-in 2.5" HDD/SSD; The hard disk extraction box adopts EMI-proof design, with light guide, which can indicate the working status of the hard disk; slide rail design, smooth extraction |
| Motherboard size | Standard motherboards of 12" × 13" and below |
| Backplane specification | 6Gb direct-connect backplane, Mini-sas interface (SFF8087), with temperature control, with SGPIO |
| Optical drive slot type | None |
| USB type | 2 * USB 2.0 |
| Rear expansion slot direction | 7 full-height PCI/PCIE expansion slots, vertical insertion |
| Front door panel | None |
| Fan specification | 3 12 cm fan positions, standard 3 12038B ball fans, hot-swappable |
| Power supply specification | Compatible with standard 2U power supplies and CRPS redundant power supplies with a length of 240mm and below |
| System control | Power LED*1, Reset*1 Power SW*1, HDD LED*1NIC LED*2*1, UID LED*1UID SW*1, OH/FAN Fail LED*1Power Fail LED*1 |
| Top cover button | Yes, tool-free disassembly |
| Application area | Cloud storage, cloud computing, big data, security monitoring and other fields |
