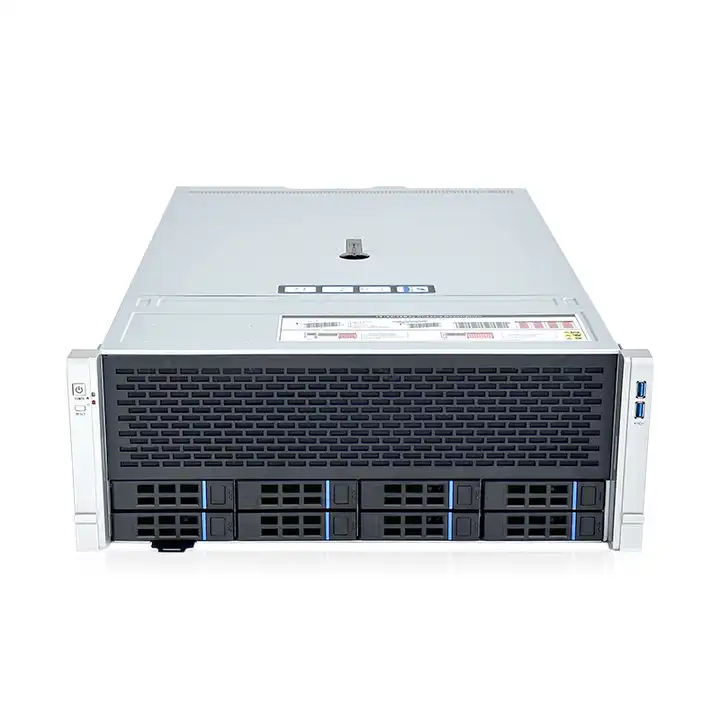

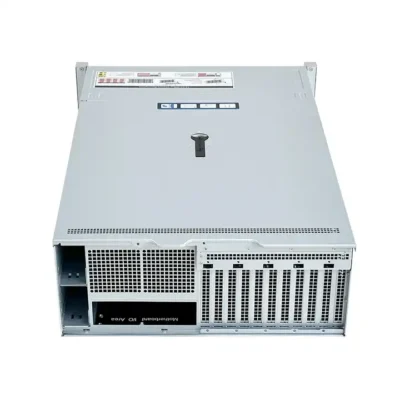

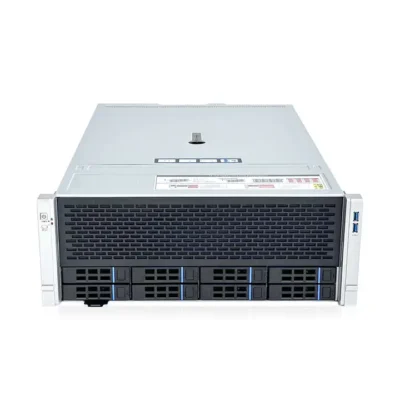

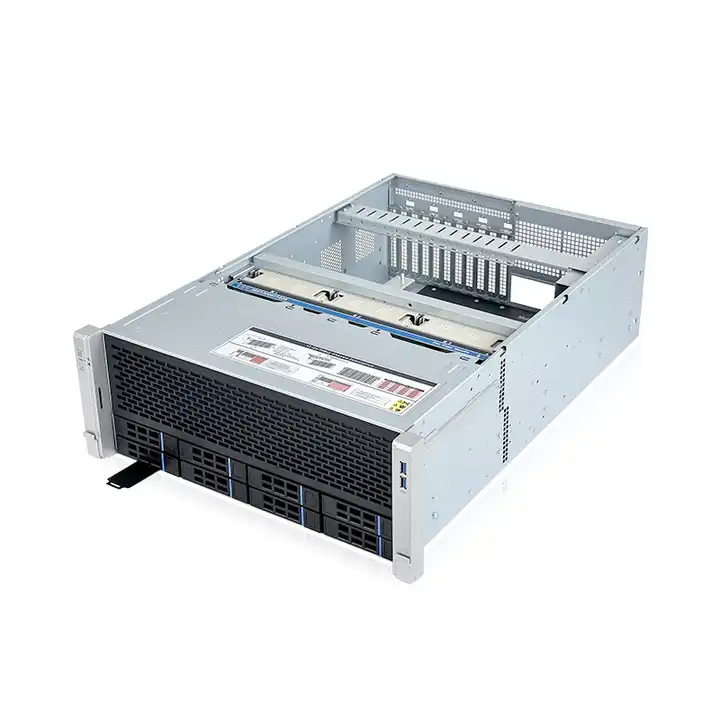

ISC-SC465B08NV-L is a 4U rackmount GPU server chassis with 8 hot-swap 3.5/2.5-inch bays, 11 full-height PCIe slots, broad motherboard support, redundant PSU compatibility, and cooling for data center, HPC, storage, and OEM/ODM procurement.
Built from 1.0 mm SECC steel with aluminum alloy and plastic elements, this 4U rackmount chassis is designed for data center, storage, and compute deployments. Front hot-swap access, three hot-swap 120 mm fans, two 80 mm fan positions, and status I/O support airflow, monitoring, durability, and service access.
As a GPU server case and storage platform, it offers eight hot-swap 3.5/2.5-inch SAS/SATA/U.2 bays, two 4-NVMe direct-connect backplanes, and 11 full-height PCIe slots. EATX, ATX, CEB, Micro ATX, and 1+1 redundant PSU support suit HPC, AI, private cloud, system integrators, OEM/ODM projects, and bulk sourcing. Confirm rails, GPUs, drives, PSU, and accessories before ordering.
| Model | ISC-SC465B08NV-L |
|---|---|
| Color | silver |
| Materia | Quality Fine 1.0mm SECC,Aluminum Alloy, Plastic |

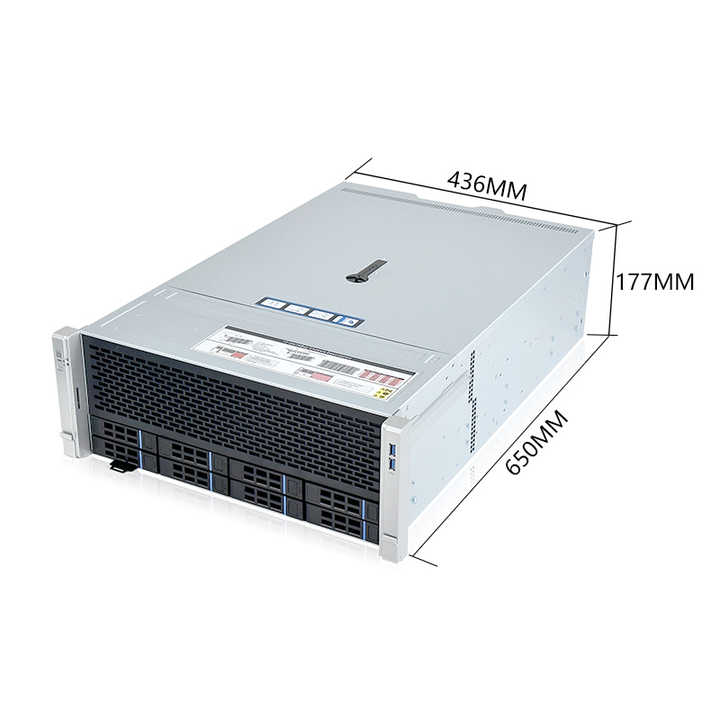

| Dimension D*W*H | L650mm*W436mm*H177mm |
| HDD Bay | 8*3.5"/2.5"hot-swap SAS/SATA/U.2 drive bays |

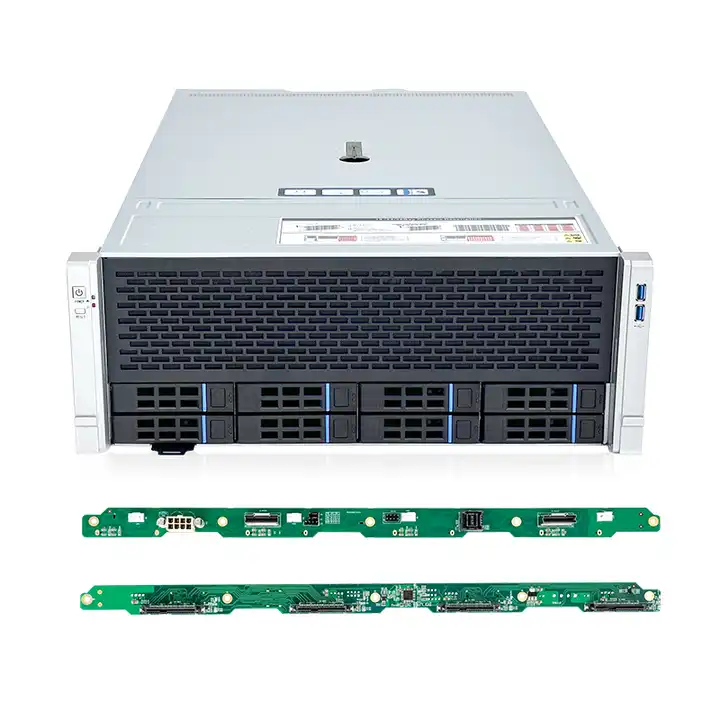

| HDD Backplane | 2 pieces of 4NVMe direct-connection backplanes |
| Front Panel Control | 2 USB3.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 1 network indicators |
| Cooling Fan | Supports intelligent-temperature control,3pcs 12038 hot-swap fans,2pcs 8038 fan positions |
| Suitable Motherboard | (15"*13")/EATX(12"*13")/CEB(12"*10.5")/ATX(12"*9.6")/Micro ATX(9.6"*9.6") |
| Suitable PSU | 1+1 redundant Power supply |
| Epansion Space | 11 full-height PCIe expansion card slots |
| Front Mask | Optional |
| Slide Rail | Optional |
| Packaging Details | Carton with PE foam |
| Single package size | L810mm*W580mm*H300mm |
| Single gross weight | 18 kg |
