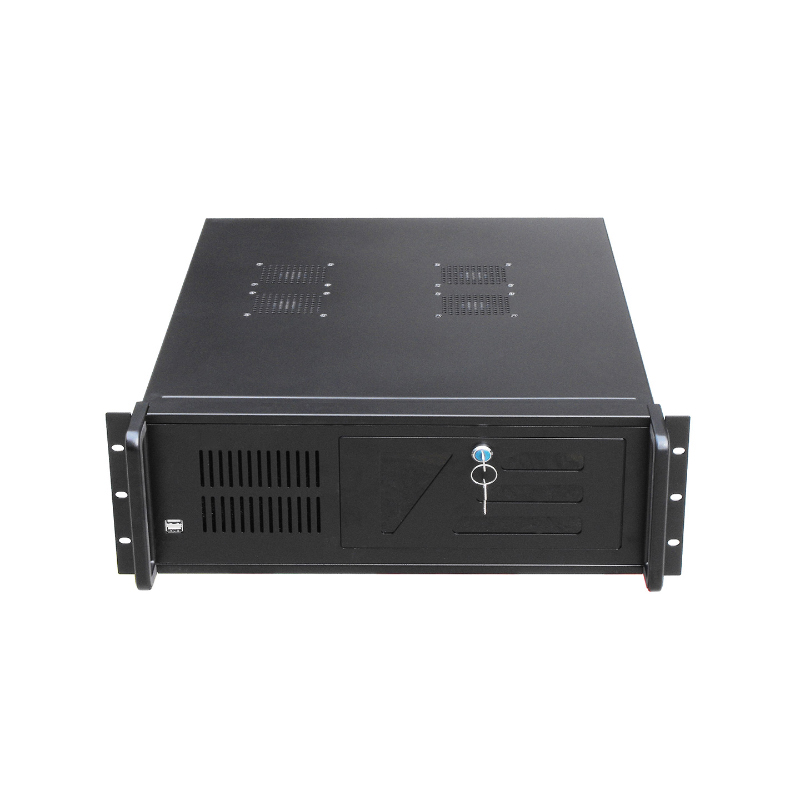

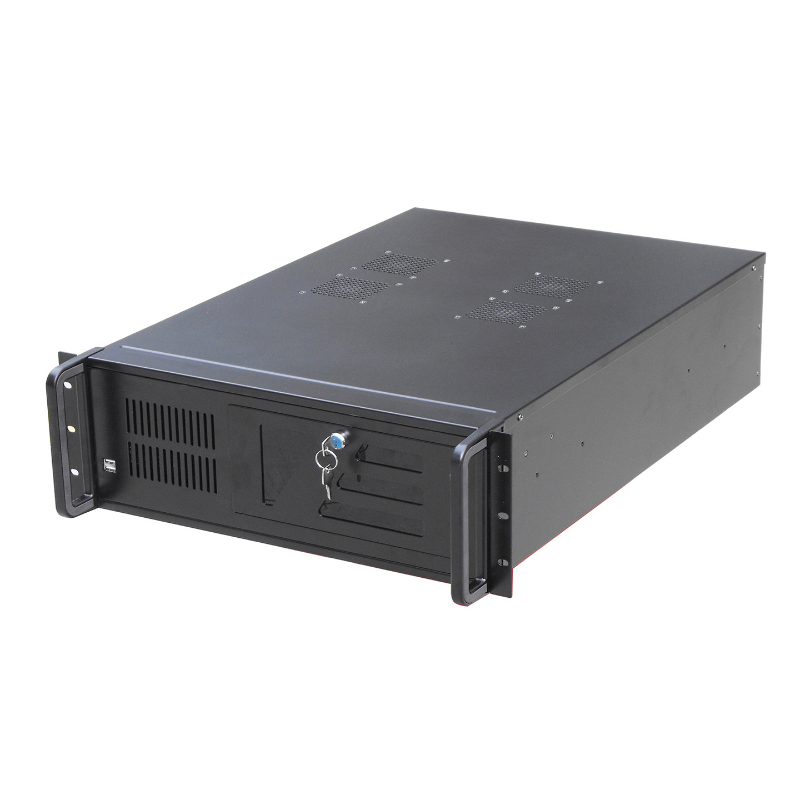

ISC RC4U630 T 4U rackmount case features 12 shock-absorbing HDD bays, two front USB ports, optional rear fans, PS2 PSU support, and selectable industrial backplane and slot structures. Built for control, IoT, surveillance, and OEM/ODM procurement.

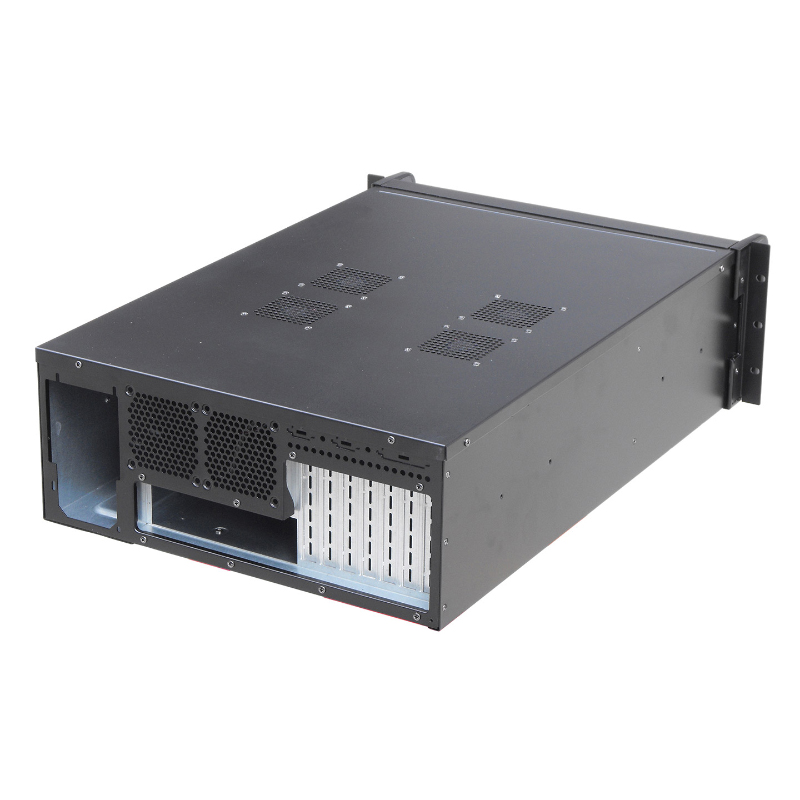

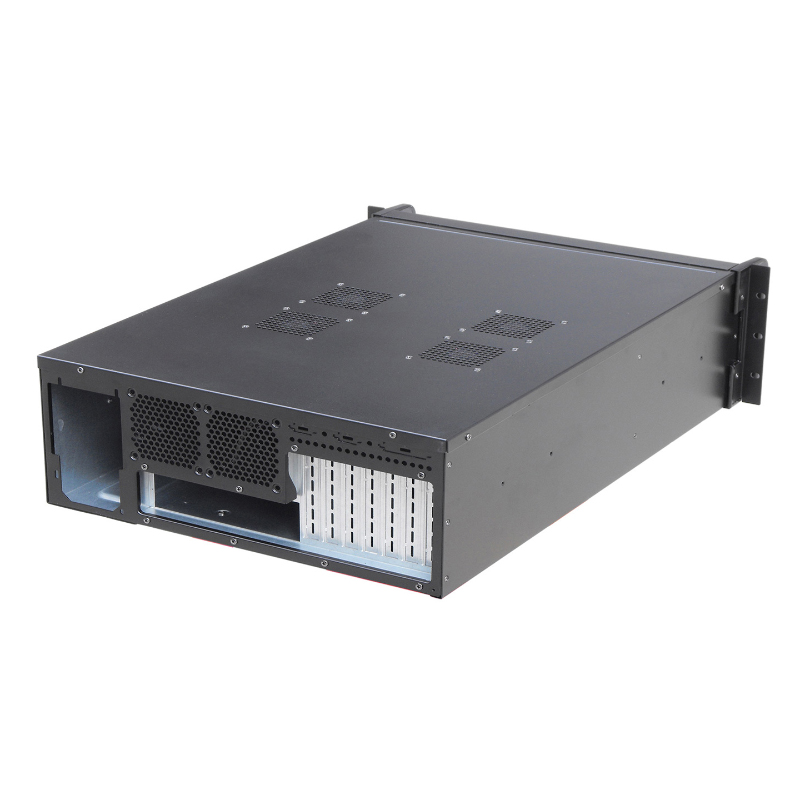

Product Overview: The ISC RC4U630 T is a 4U rackmount chassis for industrial system integration.
Product Category: Rackmount case for control, monitoring, automation, transportation, and IoT projects.
Key Configuration: 12 shock-absorbing HDD bays, two front USB ports, optional rear fans, and 7-slot or 14-slot rear structures.
Compatibility: Designed for PS2 power supplies and selected ISA/PCI/PCIMG backplanes; confirm configuration before ordering.
Applications: Suitable for storage, surveillance, edge computing, and industrial workloads.
Procurement Value: Supports iSTONECASE OEM/ODM customization, prototyping, bulk sourcing, distributor supply, and replacement planning.
| Model | ISC-RC4U630-T |
|---|---|
| Dimensions (mm) | Depth 630mm × width 427mm × height 177mm, standard 19" rack-mounted industrial control chassis |
| Material | Environmental protection, fingerprint resistant 1.2mm/SGCC |
| HDD bit | 12 3.5" hard disk bays, the hard disk adopts spring shock absorption design |
| FDD bit | 1 x 3.5" floppy drive bay |
| CD-ROM bit | 2 x 5.25" optical drive bays |
| Power supply | Standard PS2 power supply |

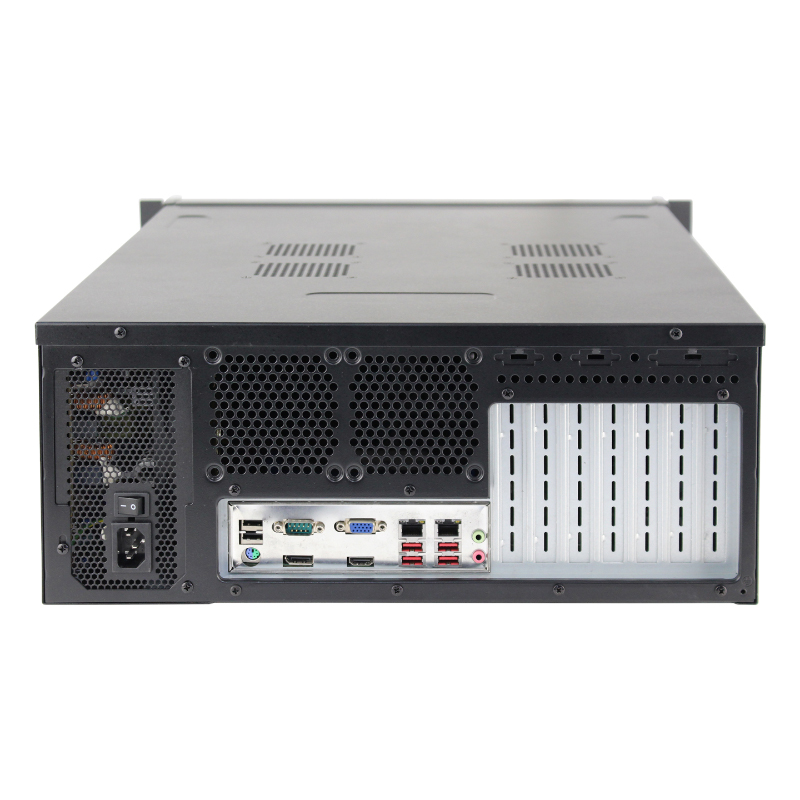

| Fan position | One 12025 fan is standard, and two 8025 fans are optional for the rear window |
| Room for expansion | 7-slot or 14-slot rear window can be replaced |

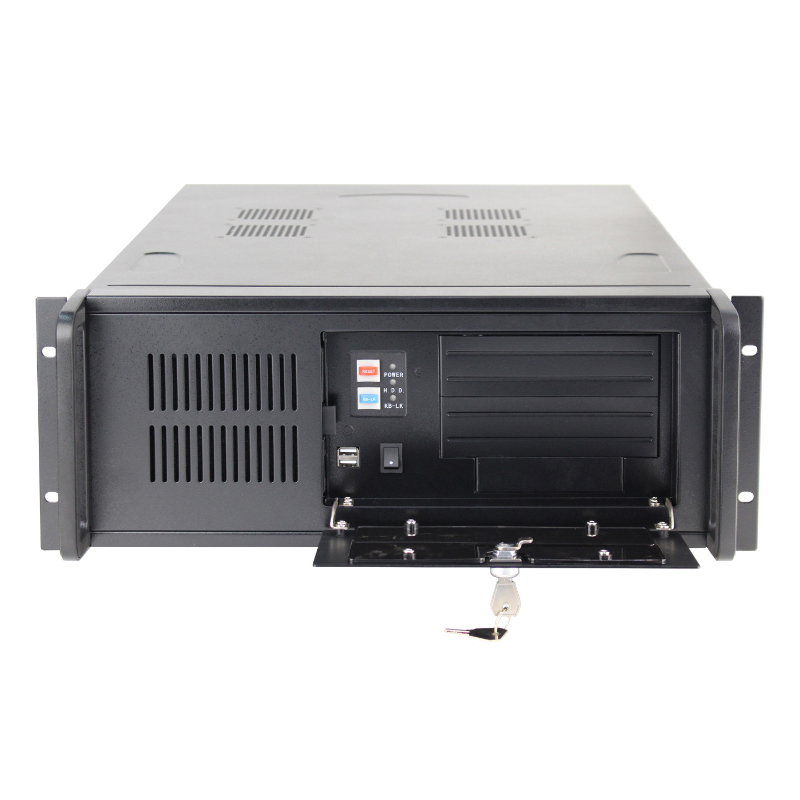

| USB interface | 2 front USB ports |
| Suitable for motherboard | Standard ISA/PCI/PCIMG industrial backplane or 12"*13" and below industrial motherboard |
| Application field | Widely used in industrial control, security monitoring, mechanical automation, intelligent transportation, Internet of Things and other fields |
