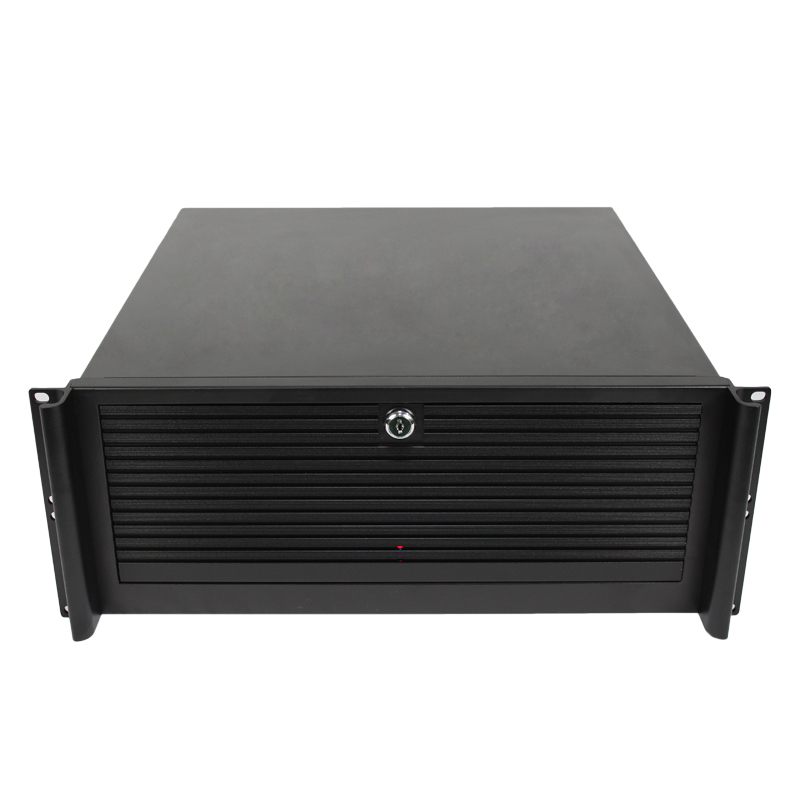

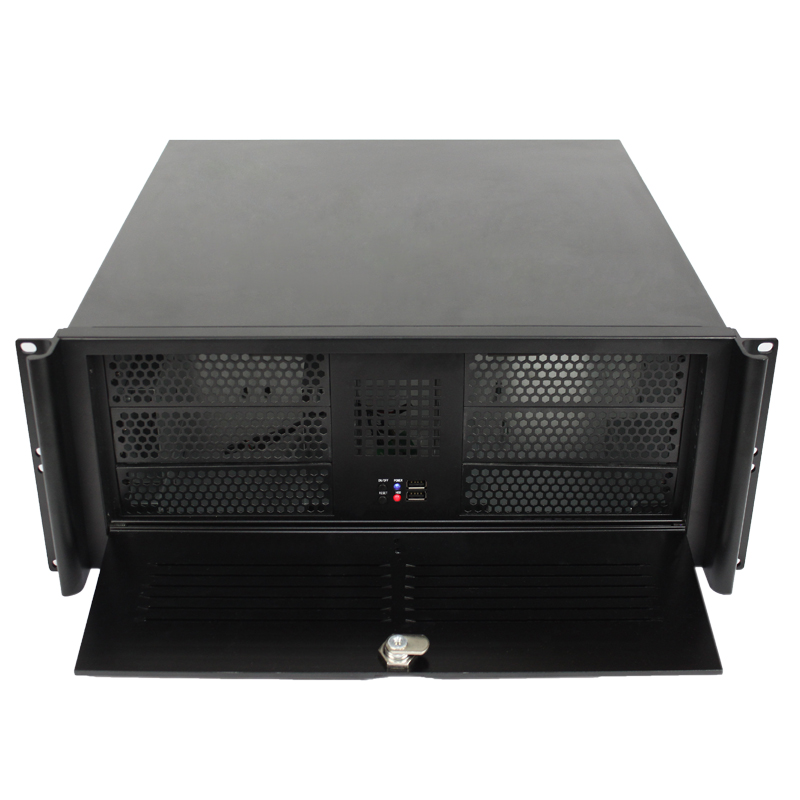

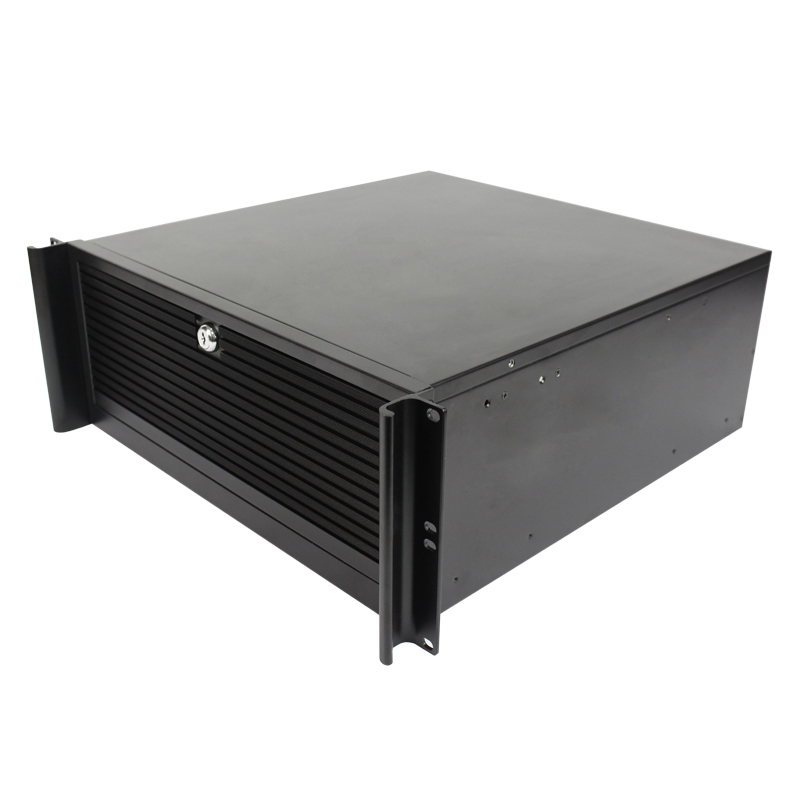

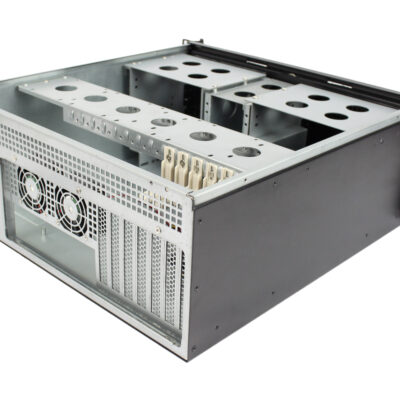

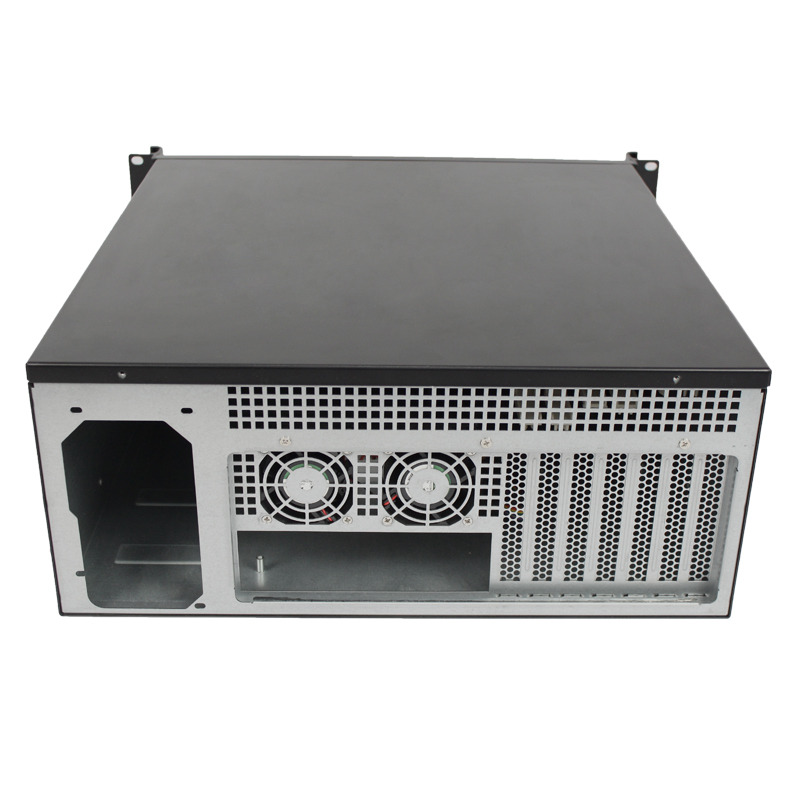

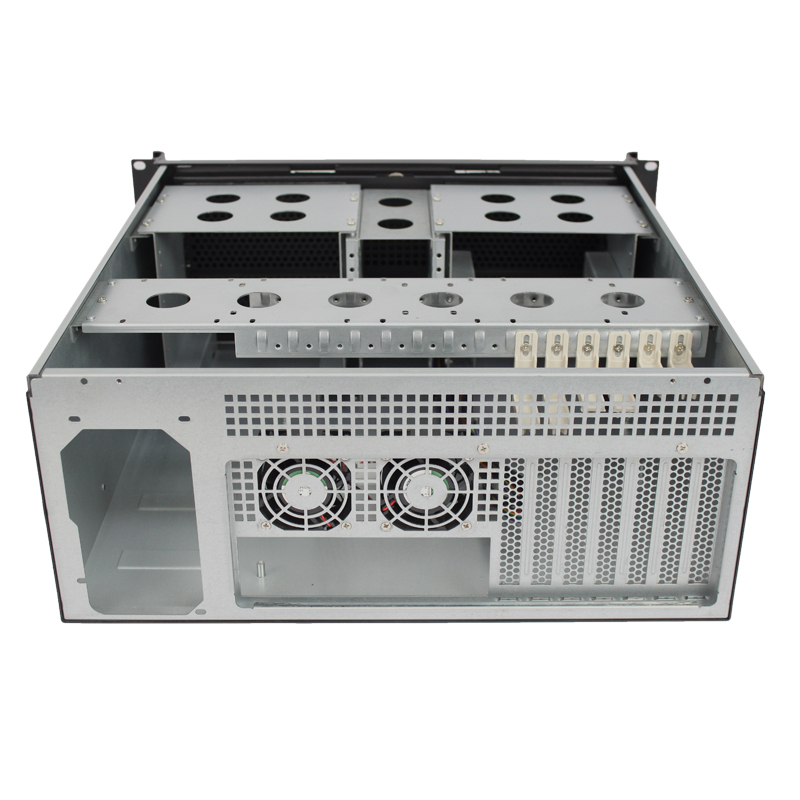

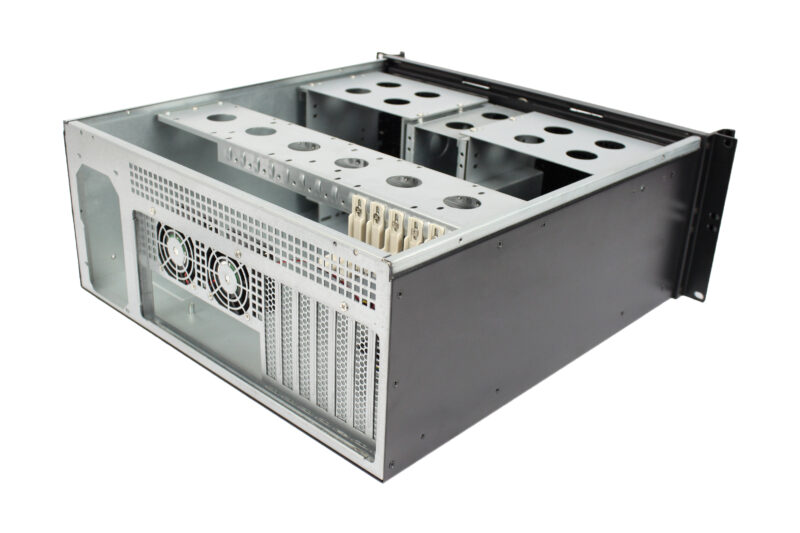

ISC-RC4U450-6D-M is a 4U SGCC steel rackmount chassis with 4 × 3.5-inch and 4 × 2.5-inch bays, seven full-height expansion slots, dual 80 mm cooling and ATX PSU support. Designed for server integration, OEM/ODM projects and bulk sourcing.
ISC-RC4U450-6D-M is a 4U rackmount enclosure for configurable server builds, not a complete server.
Product Category:
Steel rackmount server case for enterprise IT and system integration.
Key Configuration:
Mixed internal drive bays, seven full-height slots, two 80 mm fans and ATX PSU support.
Compatibility:
Designed for motherboard footprints up to 305 × 345 mm; confirm mounting points, cards, rails and backplane before ordering.
Applications:
Suitable for compute, storage, virtualization, monitoring and research workloads.
Procurement Value:
For integrators, data centers, OEM customers and distributors seeking customization, prototyping, bulk production and long-term sourcing.
| Module | ISC-RC4U450-6D-M |
|---|---|
| Dimensions | 482(W)*450(D)*178 mm(H) |
| Main Board | 12"* 13"(305*345MM) |
| Hard Disk | Four 3.5-inch Hard Disks,Four 2.5-inch Hard Disks |
| CD-ROM | Six 5.25-inch CD-ROMs |
| Power Supply | ATX PSU |
| Fan | Two 8025 Fans |
| Expansion Slot | Seven Full High and Straight PCI Slots |
| Certificate | CE,ROHS |
| Application | Server |
| Type | Rack |
| Form Factor | ATX |
| Material | Steel, SGCC 1.2mm |
| Style | With Fan, With Side Panel Window |
| Front Ports | Usb |
