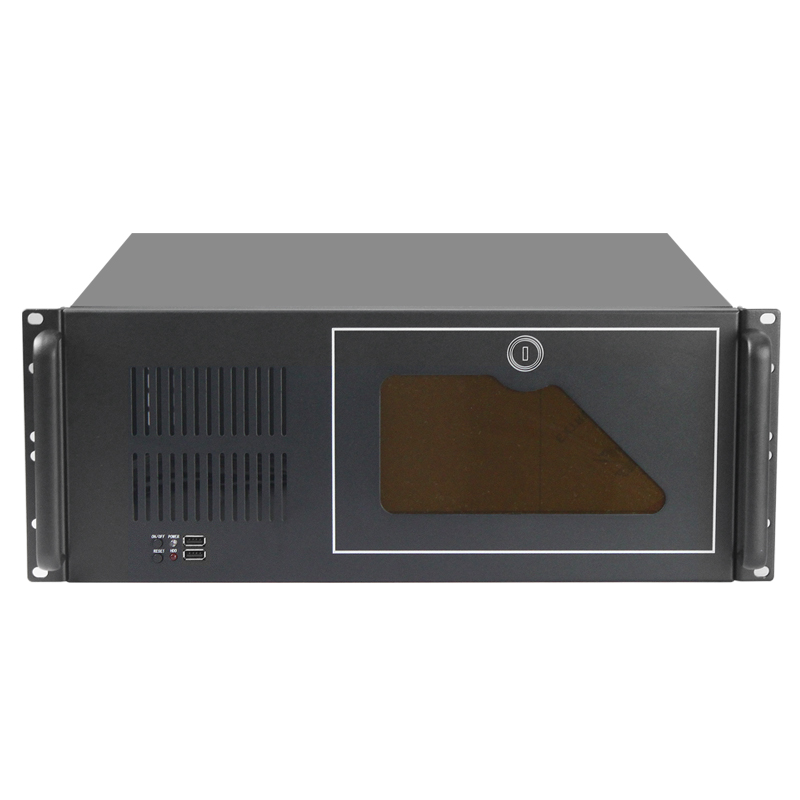

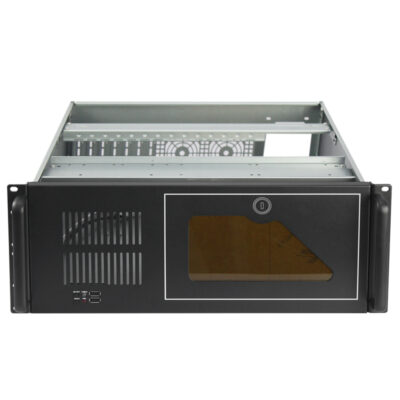

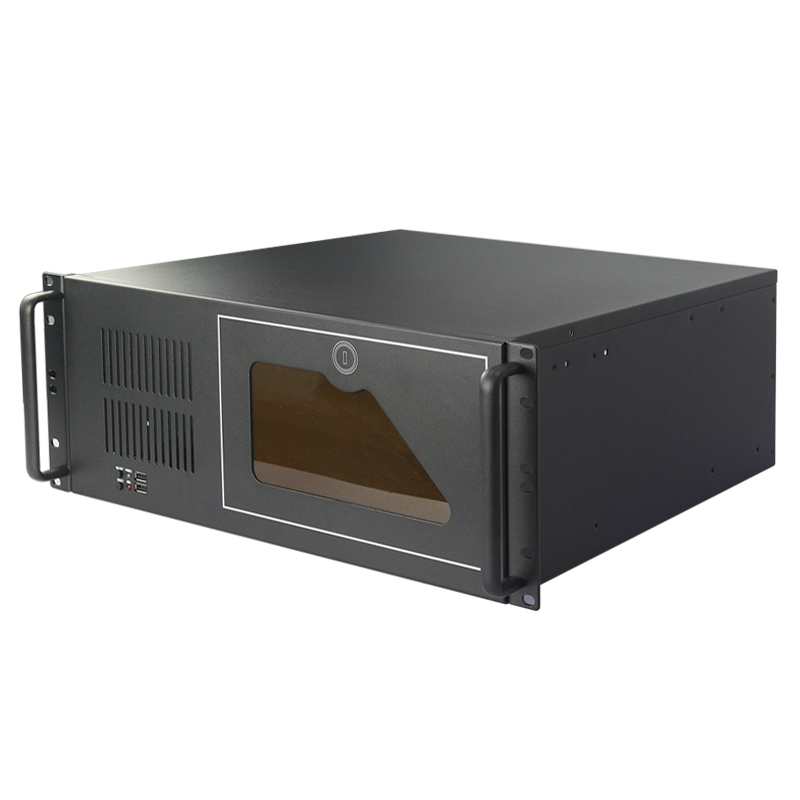

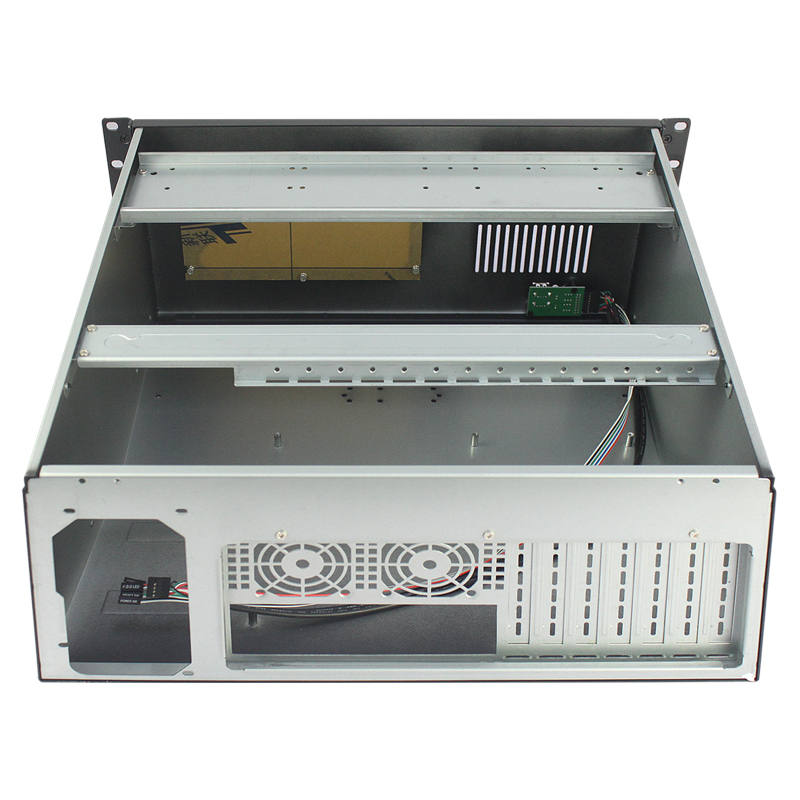

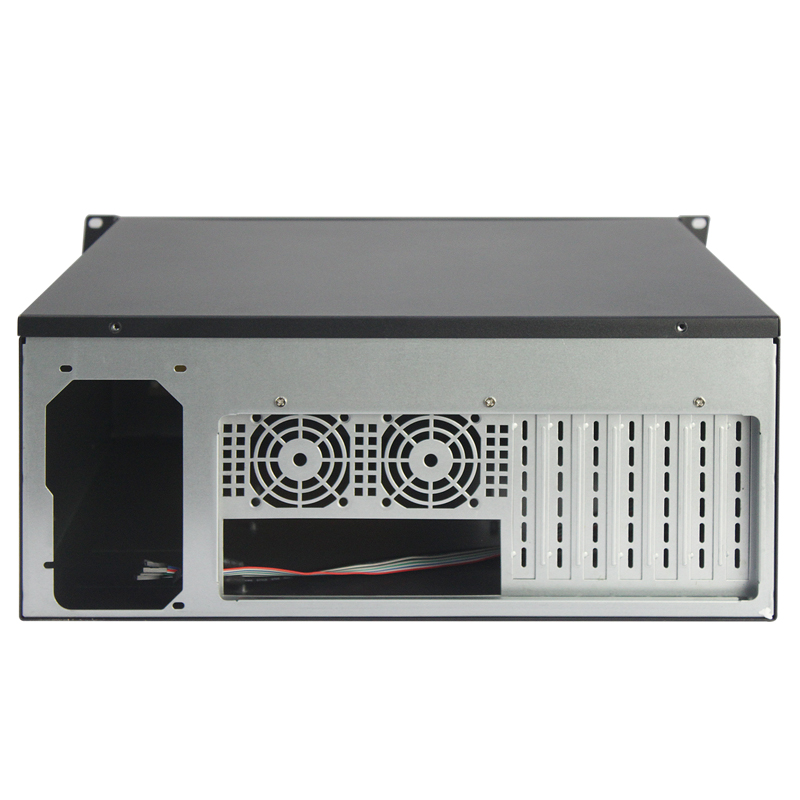

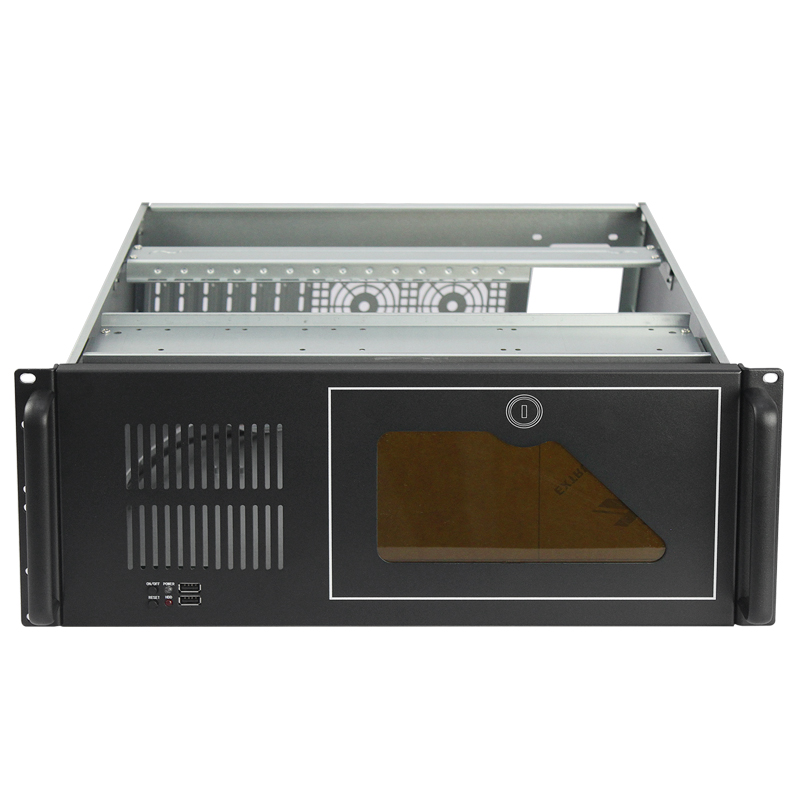

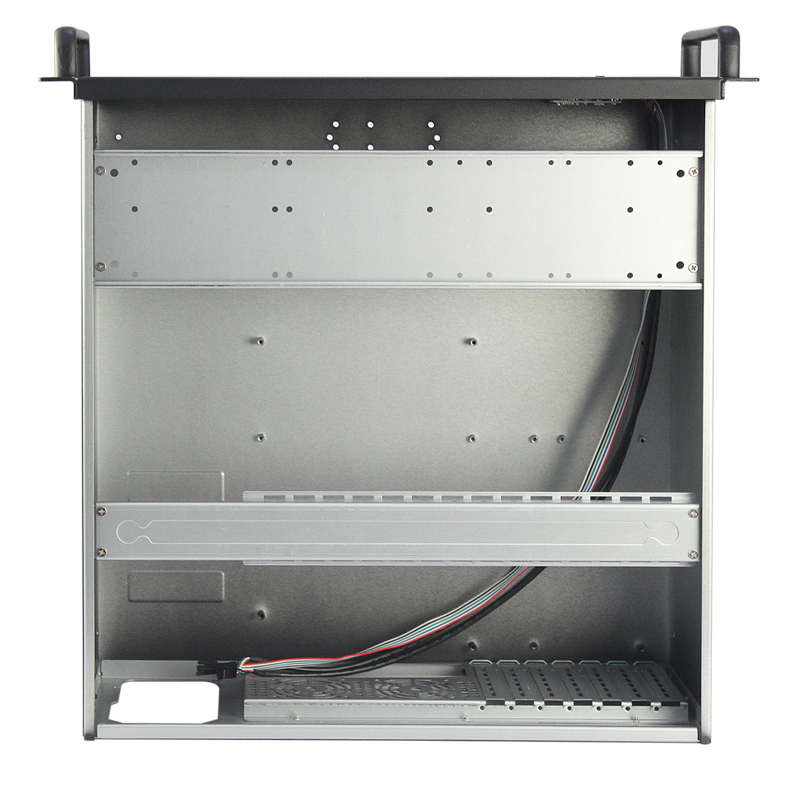

The ISC RC4U420F M is a 4U rackmount chassis with three 3.5-inch bays, seven PCIe slots, ATX motherboard and PSU support, optional dual 60 x 25 mm fans, and front USB. Designed for enterprise IT, system integration, bulk procurement, and OEM/ODM projects.
Product Overview: ISC RC4U420F M is a 4U rackmount chassis for enterprise computing, storage, monitoring, and server integration.
Product Category: 4U Rackmount Case.
Key Configuration: Three 3.5-inch bays, seven PCIe slots, front USB, steel and acrylic construction, and two optional 60 x 25 mm fans.
Compatibility: Supports ATX motherboards up to 305 x 245 mm and ATX power supplies. Confirm core components, backplane, hot-swap parts, rails, and accessories.
Applications: Data centers, enterprise IT, security, industrial control, and private cloud.
Procurement Value: For integrators, distributors, and project buyers needing OEM/ODM customization and bulk sourcing.
| Module | ISC-RC4U420F-M |
|---|---|
| Dimensions | 482(W)* 450(D)*178MM(H) |
| Main Board | 12"*9.6"(305*245MM) |
| Hard Disk | 3*3.5" HDD |
| CD-ROM | None |
| Power Supply | ATX Power support |
| Fan | 2*6025 fans optional |
| Expansion Slot | 7*PCI-E slot |
| G.W/N.W | 9.5KGS /7.7KGS |
| Carton size | 59*55*28 CM |
| Application | Server |
| Type | Full Tower |
| Form Factor | ATX |
| Material | Acrylic, Steel |
| Style | With Fan, With Side Panel Window |
| Front Ports | Usb |
| Certification | CE ROHS |
