Compact 300 mm-deep ISC-RC4U300C-M 4U rackmount chassis for 170 x 215 mm motherboards, two 3.5-inch or two 2.5-inch drives, ATX PSU configurations, three full-height slots and dual 6025 fans. Suited to edge, industrial and enterprise integration, OEM/ODM projects and bulk sourcing.

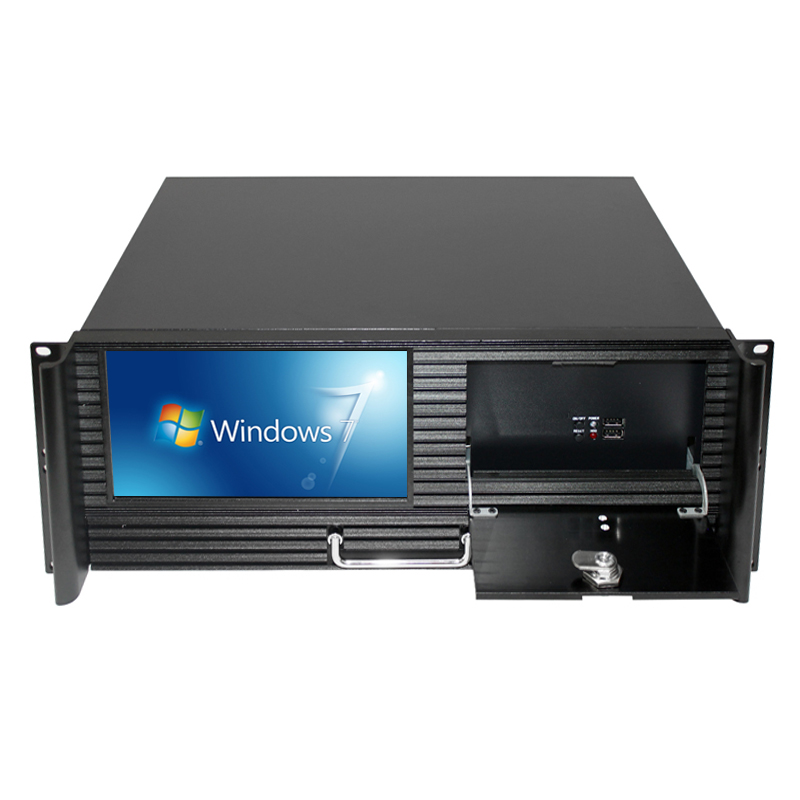

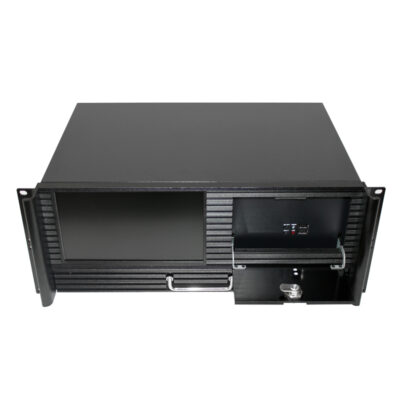

ISC-RC4U300C-M is a compact 4U rackmount chassis for industrial computing and enterprise IT.
Product Category:
Short-depth rackmount enclosure for edge appliances, control systems, surveillance and small server builds.
Key Configuration:
300 mm depth, dual-size drive support, three full-height slots, two 6025 fans and front USB 2.0 controls.
Compatibility:
Designed for 170 x 215 mm motherboards and ATX PSU layouts. No hot-swap backplane or guide rails are specified; confirm required parts before ordering.
Applications:
For system integrators, OEM customers, distributors and project buyers.
Procurement Value:
Supports standardized builds, customization review, repeat sourcing and OEM/ODM production planning.
| Model | ISC-RC4U300C-M |
|---|---|
| Dimensions(mm) | 482(W)*300(D)*177.8(H)mm |
| Main Board | 7"*8.5"(170*215MM) |
| Hard Disk | 2*3.5 inch or 2*2.5 inch hdd |
| CD-ROM | None |
| Power | ATX PSU |
| Fan | 2*6025 cooling fan |
| Expansion Slot | Three full hight straight expansion slot |

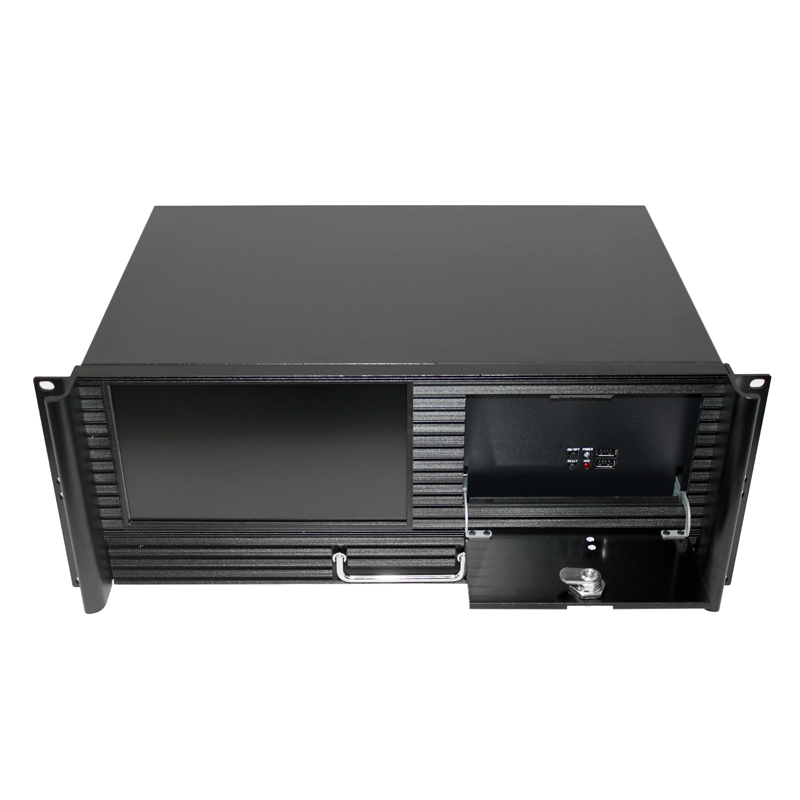

| Panel Setting | Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.2MM |
| Packaging size | 56.5*47*30CM(0.08CBM) |
| Gross weight | 11.89KG |
| N.W | 9.44KG |
